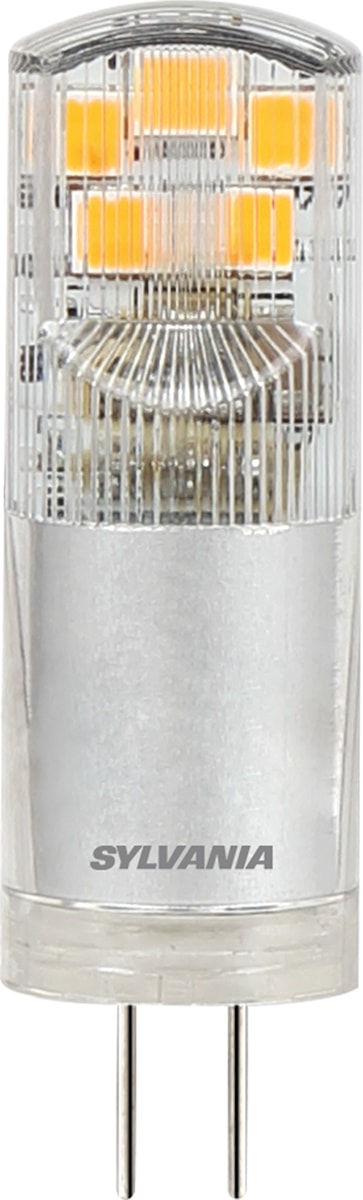

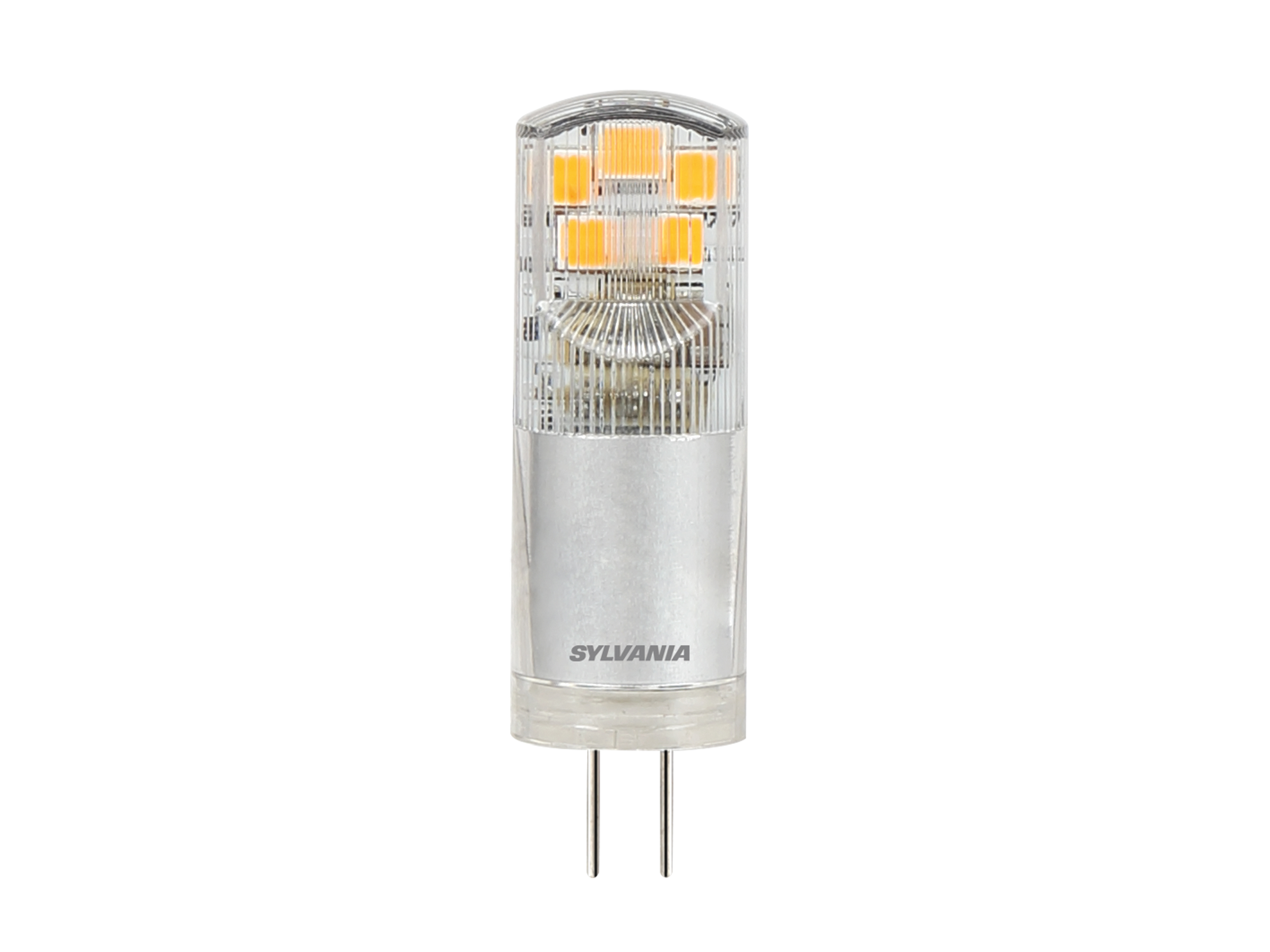

ToLEDo G4 300lm 827 SL


Item No: 0028244

LED retrofit replacement for halogen low voltage capsules Compact design Omni-directional light distribution 12V AC/DC 300lm = 28W halogen G4 lamp High lumen efficacy: 125lm/W 91% energy saving A++ energy rating Non-dimmable Suitable for chandeliers, interior display, shop windows, decorative and general lighting applications

Technical Assets


Photometrics

Product name
ToLEDo G4 300lm 827 SL
Technology
LED
Watt (Rated) (W)
2.4
Cap/Base
G4
Fixture rating
Open
General application
Hospitality, Museums & Galleries, Residential & Consumer, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
Warranty
3 years
Useful luminous flux (Φuse)
300
Luminous flux (Rated) (lm)
300
Correlated colour temperature (k)
2700
Light colour
Homelight
CRI (Ra)
80
Beam Angle (°)
300
Power consumption (W)
2.4
Wattage (W)
2.4
Starting time (max) (s)
<0.5
Warm-up time to 60% of full light (max) (s)
<1
Primary Supply/Product voltage - min (V)
12
Primary Supply/Product voltage - max (V)
12
Lamp power factor
0.5
No. Of switching cycles before premature failures
>50000
Dimmable
No
Nominal Frequency (Hz)
50/60/HF
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
44
Nominal Product Diameter (mm)
13
Weight (kg)
0.045
Product EAN number
5410288282442
Packaging single length / height (cm)
6.7
Packaging single width (cm)
2.8
Packaging single depth (cm)
2.8
DUN14 (inner)
15410288282449
Units per inner package
10
Packaging inner length / height (cm)
7.7
Packaging inner width (cm)
6.5
Packaging inner depth (cm)
15.5
DUN14 (outer)
25410288282446
Units per outer package
100
Packaging outer length / height (cm)
18.0
Packaging outer width (cm)
35.0
Packaging outer depth (cm)
17.0
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Suitable for approved transf./dimmers
