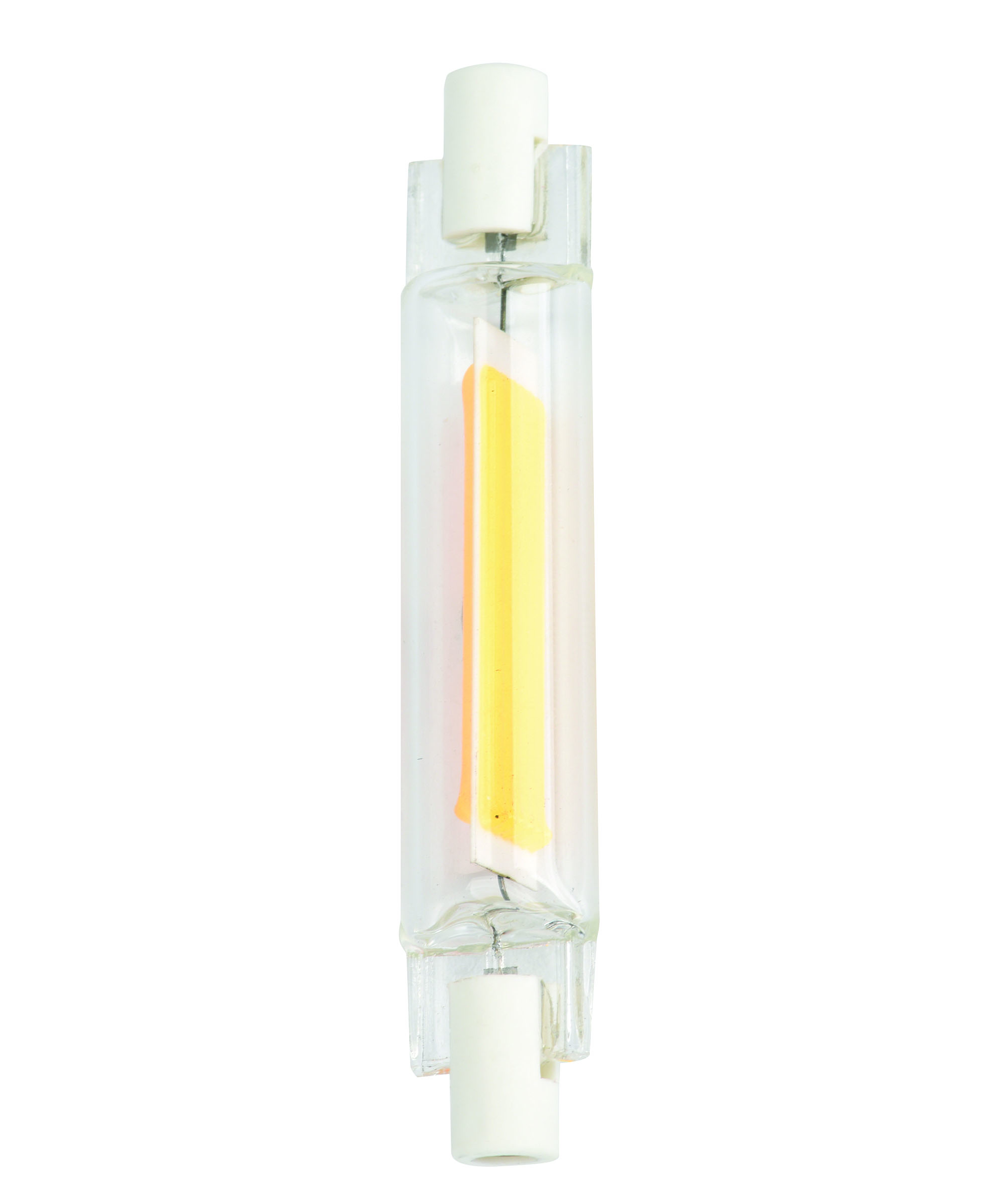

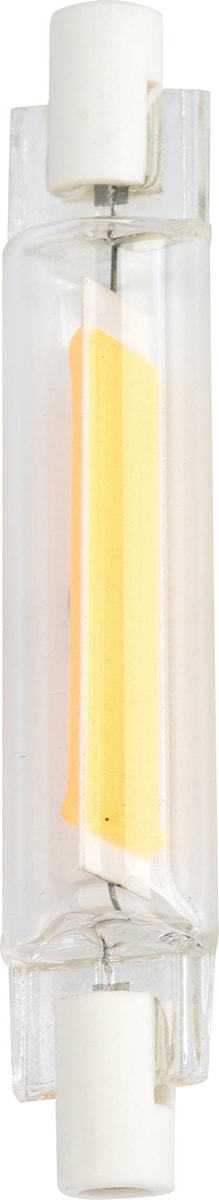

ToLEDo RT R7s 78mm 470LM 827 BL
Item No:
0028488
This product is no longer available
• ToLEDo R7s is a retrofit replacement for traditional halogen double-ended linear R7s lamps • The slim design and glass construction give the same look and feel of traditional halogen R7s lamp • Omni-directional light distribution • High lumen efficacy • Lumen output: 470lm • 90% energy saving • A++ energy rating • Length: 78mm • Non-Dimmable • 15,000 hours average rated life • Ideal for domestic and commercial applications
Technical Assets
Photometrics
Product name
ToLEDo RT R7s 78mm 470LM 827 BL
Technology
LED
Watt (Rated) (W)
4
Cap/Base
R7s
Fixture rating
Open
General application
Hospitality, Residential & Consumer
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740862
Warranty
3 years
Useful luminous flux (Φuse)
470
Luminous flux (Rated) (lm)
470
Correlated colour temperature (k)
2700
Light colour
Homelight
CRI (Ra)
80
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
4
Wattage (W)
4
Starting time (max) (s)
0.5
Warm-up time to 60% of full light (max) (s)
1
Lamp power factor
0.8
No. Of switching cycles before premature failures
>50000
Inrush Current (A)
0.9
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
33
Max. products per 16A C Breaker
53
Max. products per 20A C Breaker
66
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
78
Nominal Product Diameter (mm)
13
Weight (kg)
0.013
Product EAN number
5410288284880
Packaging single length / height (cm)
14.0
Packaging single width (cm)
8.0
Packaging single depth (cm)
1.0
DUN14 (inner)
15410288284887
Units per outer package
6
Packaging outer length / height (cm)
19.5
Packaging outer width (cm)
16.5
Packaging outer depth (cm)
14.2
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
