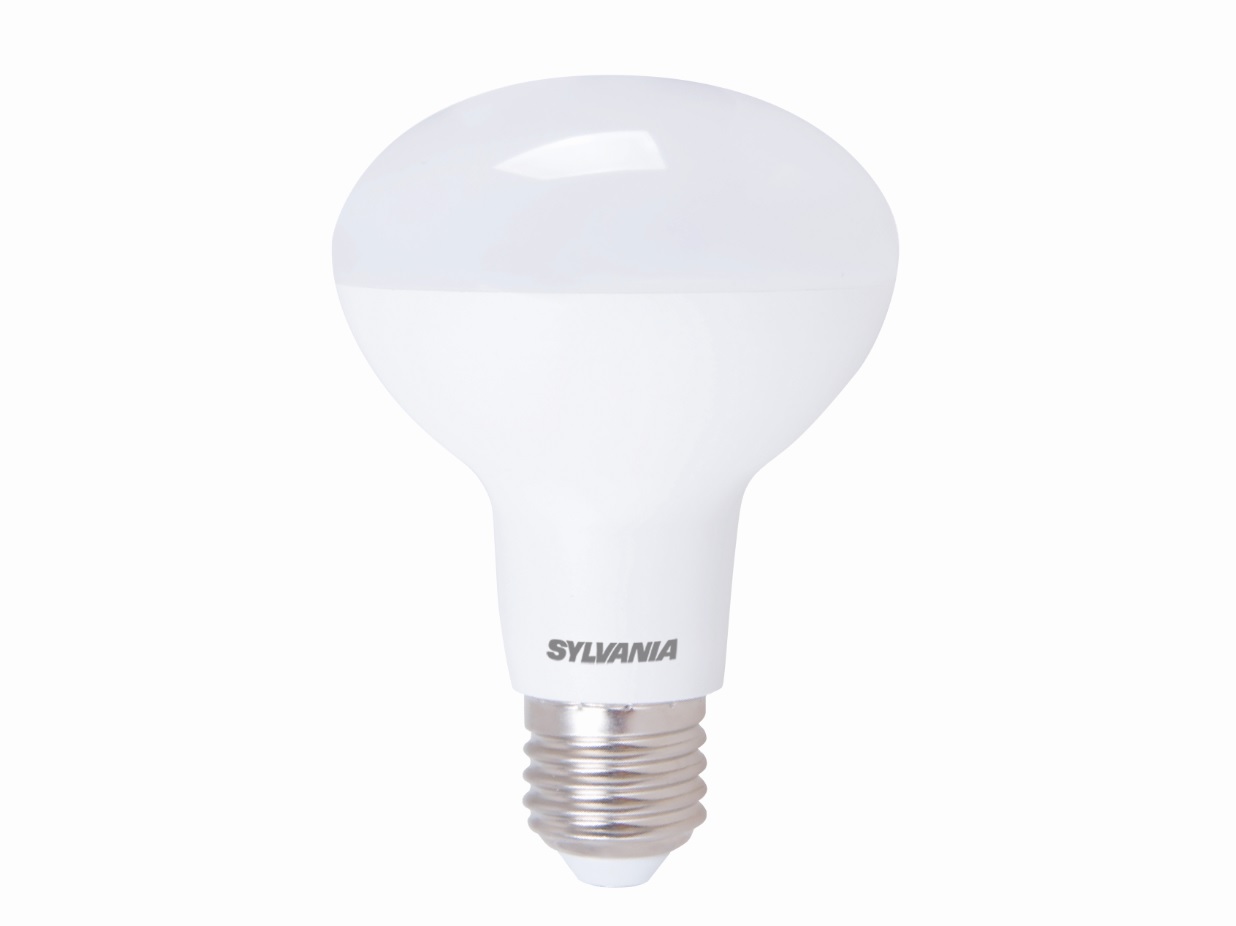

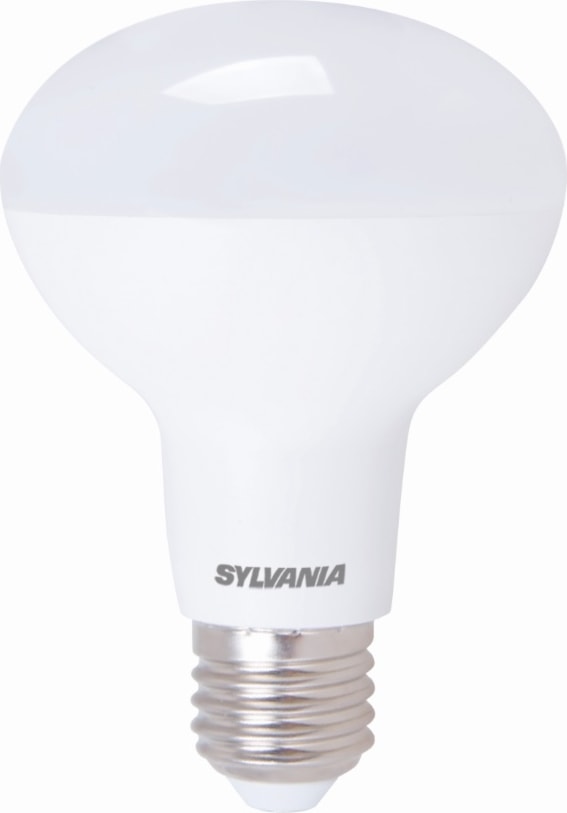

REFLED R80 V3 806LM 840 E27 SL

Item No: 0028522
This product is no longer available

• Energy efficient LED alternative for traditional incandescent and halogen blown reflector lamp• Modern construction and attractive design• Mercury free solution• Long average rated lifetime: 15,000 hours• Lower maintenance cost compared to traditional lamps• Non-dimmable• 3 years warranty• Perfect for general lighting applications: residential lighting, down lights, hotels, hotels, restaurants, bars, lobbies, corridors, halls, etc

Technical Assets

Photometrics

Product name
REFLED R80 V3 806LM 840 E27 SL
Technology
LED
Watt (Rated) (W)
9
Cap/Base
E27
Fixture rating
Open
General application
Hospitality, Residential & Consumer
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
Warranty
3 years
Useful luminous flux (Φuse)
806
Correlated colour temperature (k)
4000
Light colour
Cool White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Colour Consistency (SDCM)
6
Luminous Intensity (cd)
198
Beam Angle (°)
120
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
9
Wattage (W)
9
Starting time (max) (s)
0.5
Warm-up time to 60% of full light (max) (s)
1
Lamp power factor
0.5
No. Of switching cycles before premature failures
>50000
Inrush Current (A)
2.4
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
3
Max. products per 16A C Breaker
5
Max. products per 20A C Breaker
7
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
114
Nominal Product Diameter (mm)
81
Weight (kg)
0.056
Product EAN number
5410288285221
Packaging single length / height (cm)
8.2
Packaging single width (cm)
8.2
Packaging single depth (cm)
11.7
DUN14 (inner)
15410288285228
Units per inner package
6
DUN14 (outer)
25410288285225
Units per outer package
6
Packaging outer length / height (cm)
25.1
Packaging outer width (cm)
17.0
Packaging outer depth (cm)
12.7
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
