Insaver Slim UGR19 205 IP54 2400lm 840
Item No:
0030305
This product is no longer available
.png)

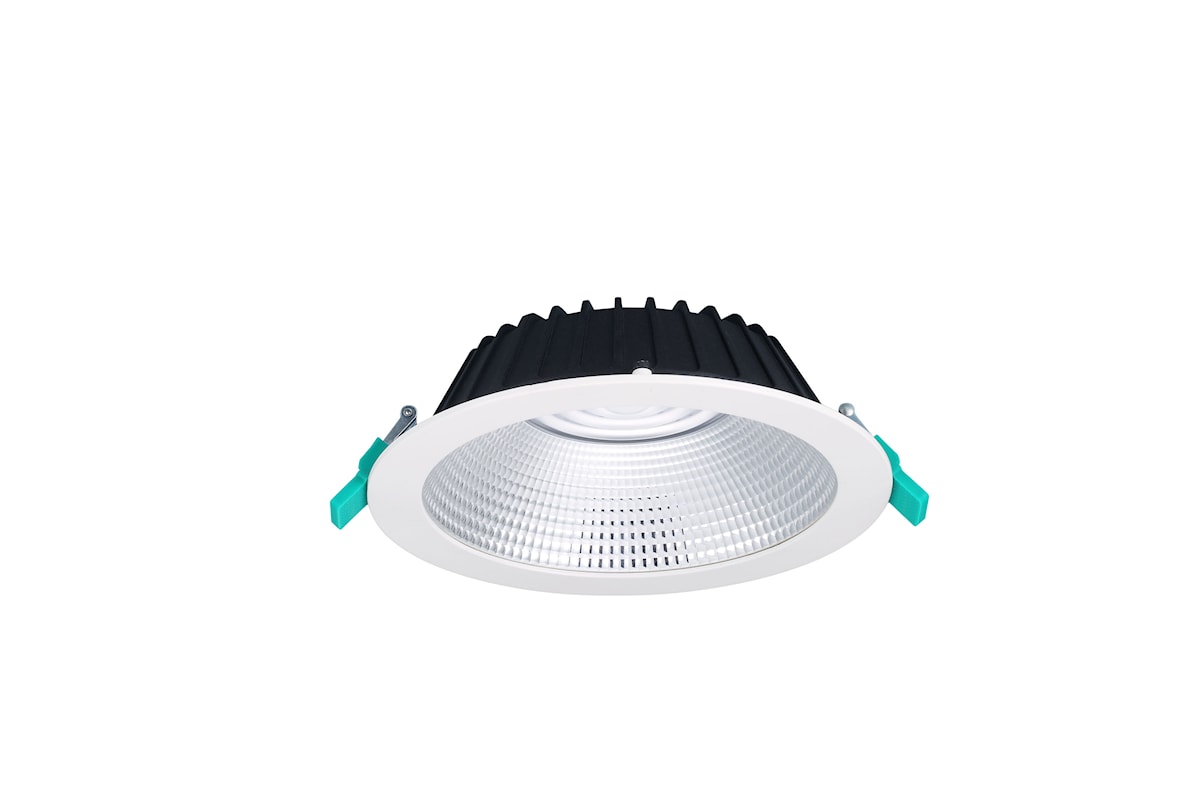

Insaver Slim is a ceiling recessed LED downlight (IP54 from the front),Die-cast aluminium body, loop in loop out connector for quick installation, Non dimmable LED driver, 20W; 2400lm; 120lm/W; 4000K; UGR <19 with shallow product depth 60mm. Meets TP(a) requirements.
Downloads
Technical Assets
Dimensions (mm)

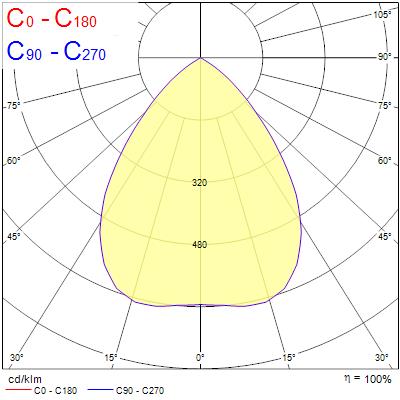

Photometrics
Product name
Insaver Slim UGR19 205 IP54 2400lm 840
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling recessed mounting
Built in presence detector
NONE
General application
Hospitality, Office, Retail
Operating temperature range (°C)
-10°C...+40°C
Performance ambient temperature Tq (°C)
40
Virtual assistant compatibility
N/A
ETIM Class
EC001744
E-number FI
4276919
Warranty
5 years
Fixture luminous flux (lm)
2400
Luminaire efficacy (lm/W)
120
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
60
Distribution type
Symmetric
Glare control
< 19
Photobiological Risk Group
RG1
Total power consumption (W)
20
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class II
Control gear required
Yes
Control gear type
LED driver constant current
No. Of switching cycles before premature failures
>100000
Dimmable
No
Dimming method
N/A
Drive current (mA)
600
Inrush Current (A)
17.2
Inrush Duration (µs)
200
Energy Efficiency Class (A->G) of contained light source
D
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
20
Max. products per 13A C Breaker
26
Max. products per 16A C Breaker
32
Max. products per 20A C Breaker
40
Max. products per 10A B Breaker
12
Max. products per 13A B Breaker
15
Max. products per 16A B Breaker
19
Max. products per 20A B Breaker
24
Connectable conductor cross section - Min (mm²)
0.10
Connectable conductor cross section - Max (mm²)
1.10
Lifespan L70 B50
90000
Lifespan L80 B20
90000
Lifespan L90 B10
39000
Housing colour
RAL 9003 - Signal white
IP rating
IP44/20
IK rating
IK07
Diffuser finish
Other
Diffuser material
None
Reflector finish
Not Applicable
Nominal Product Height (mm)
60
Nominal Product Diameter (mm)
220
Built-in diameter (mm)
205
Weight (kg)
0.73
Recessed Depth (mm)
150
Product EAN number
5410288303055
Packaging single length / height (cm)
23.2
Packaging single width (cm)
23.2
Packaging single depth (cm)
8.0
DUN14 (inner)
15410288303052
Units per outer package
12
Packaging outer length / height (cm)
48.0
Packaging outer width (cm)
48.0
Packaging outer depth (cm)
26.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-10-40
