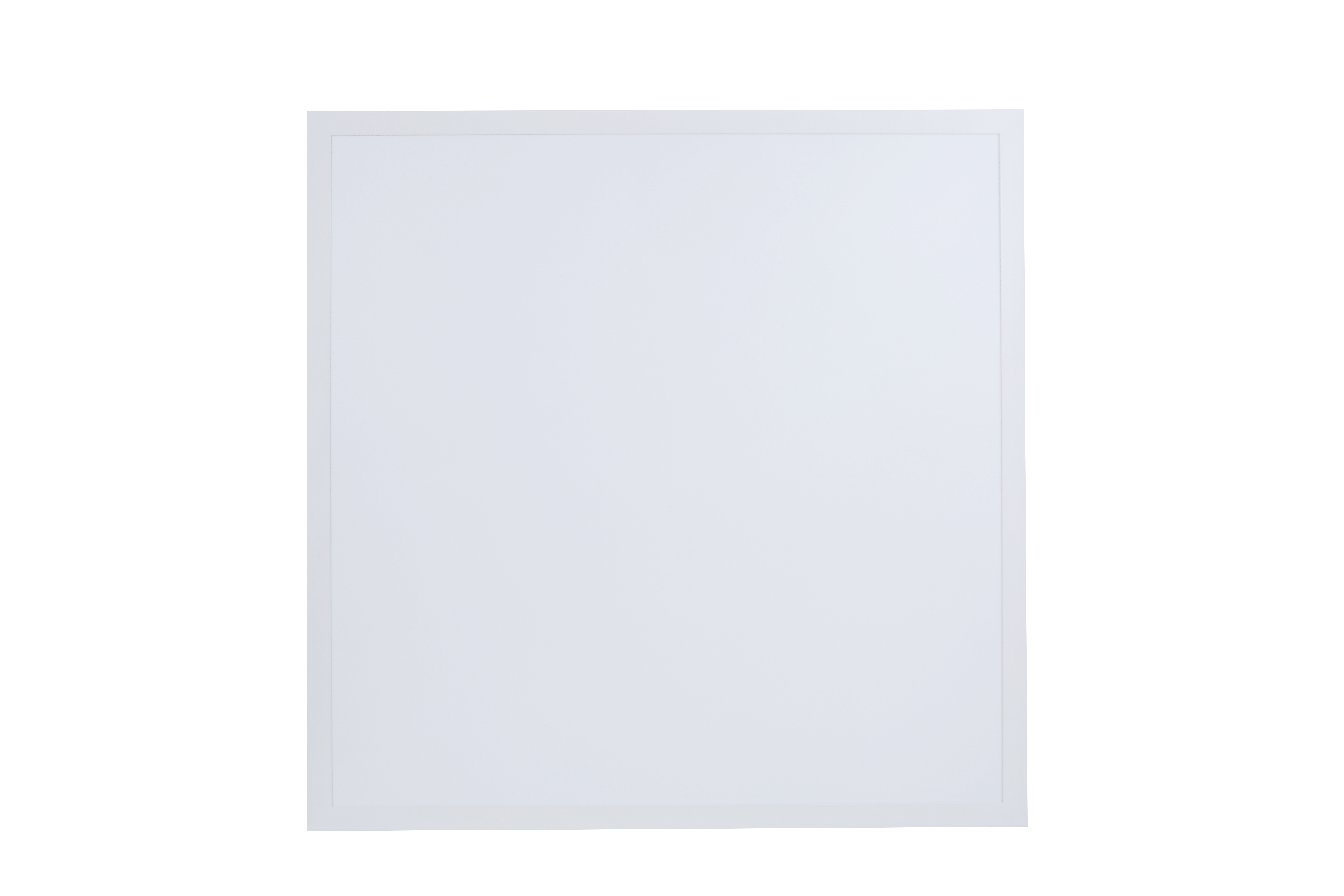

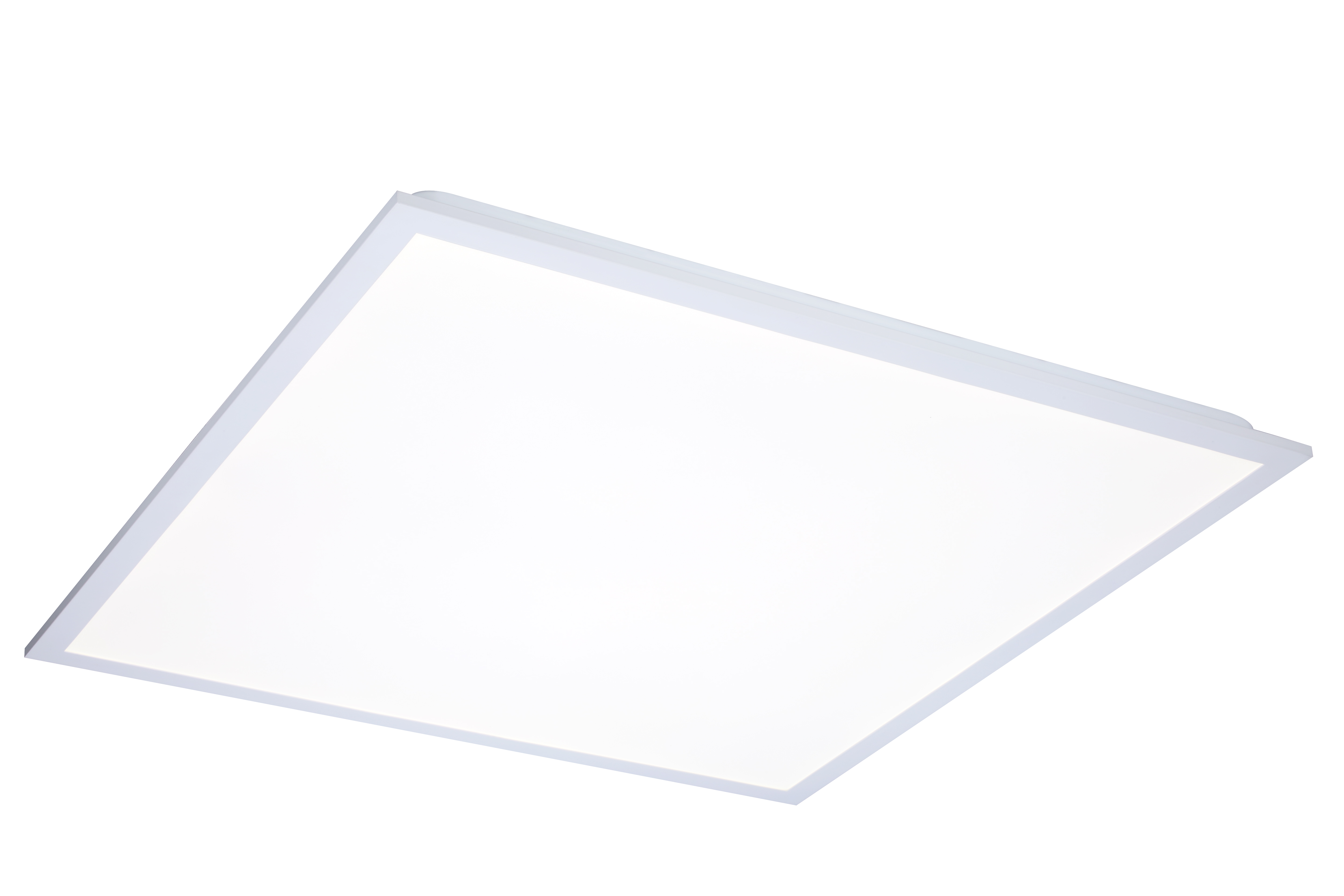

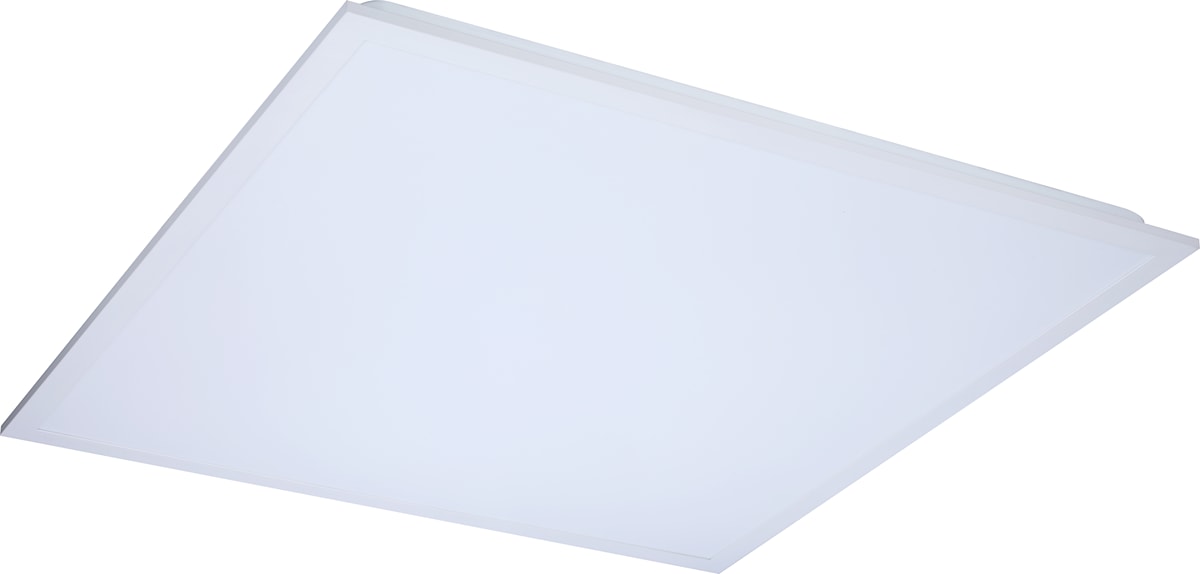

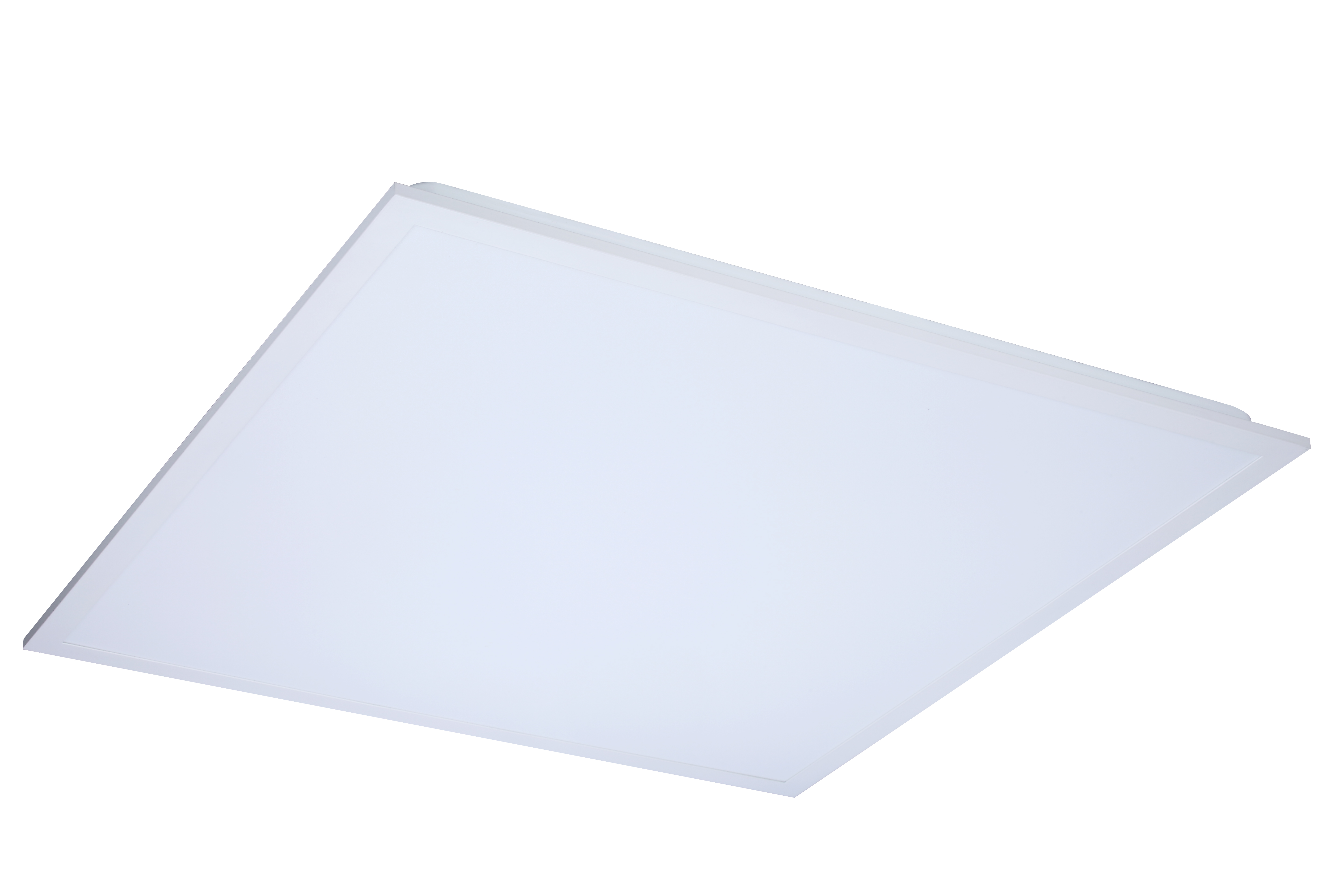

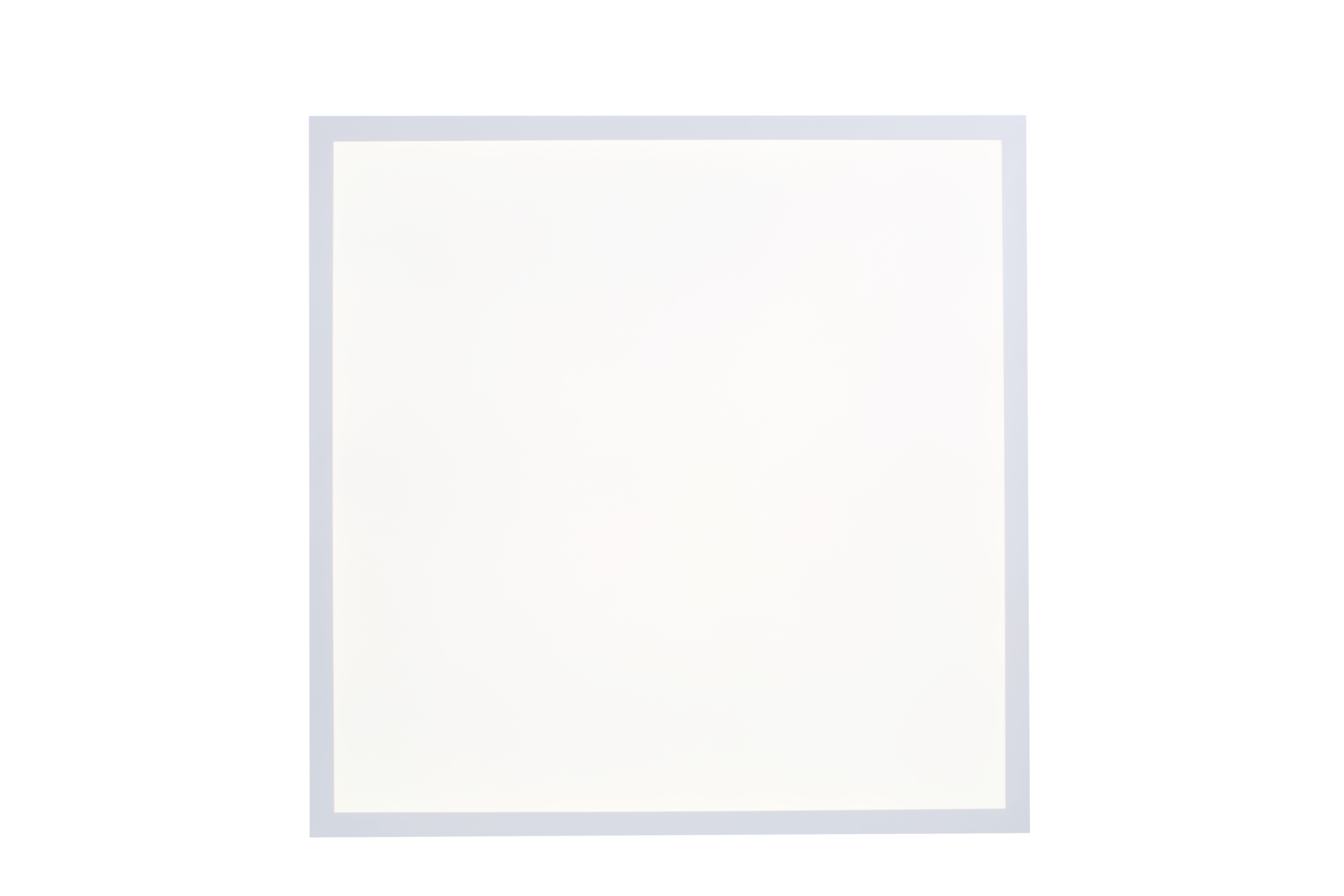

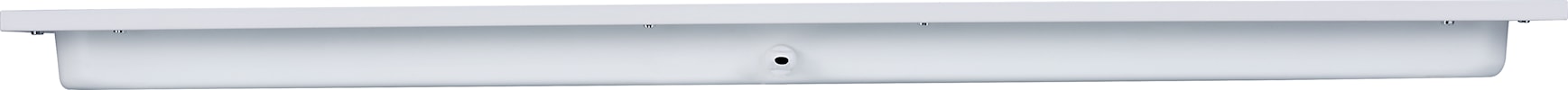

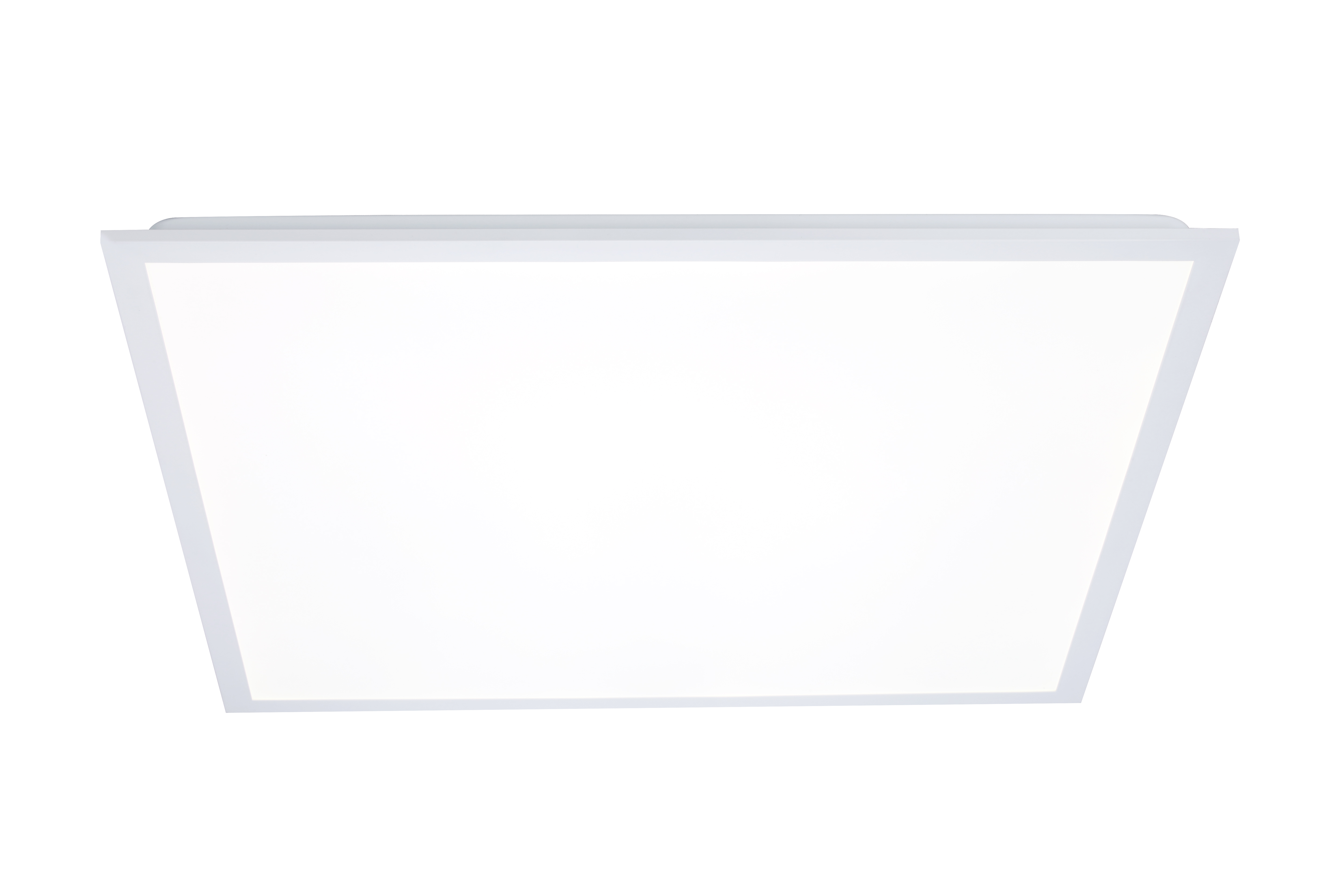

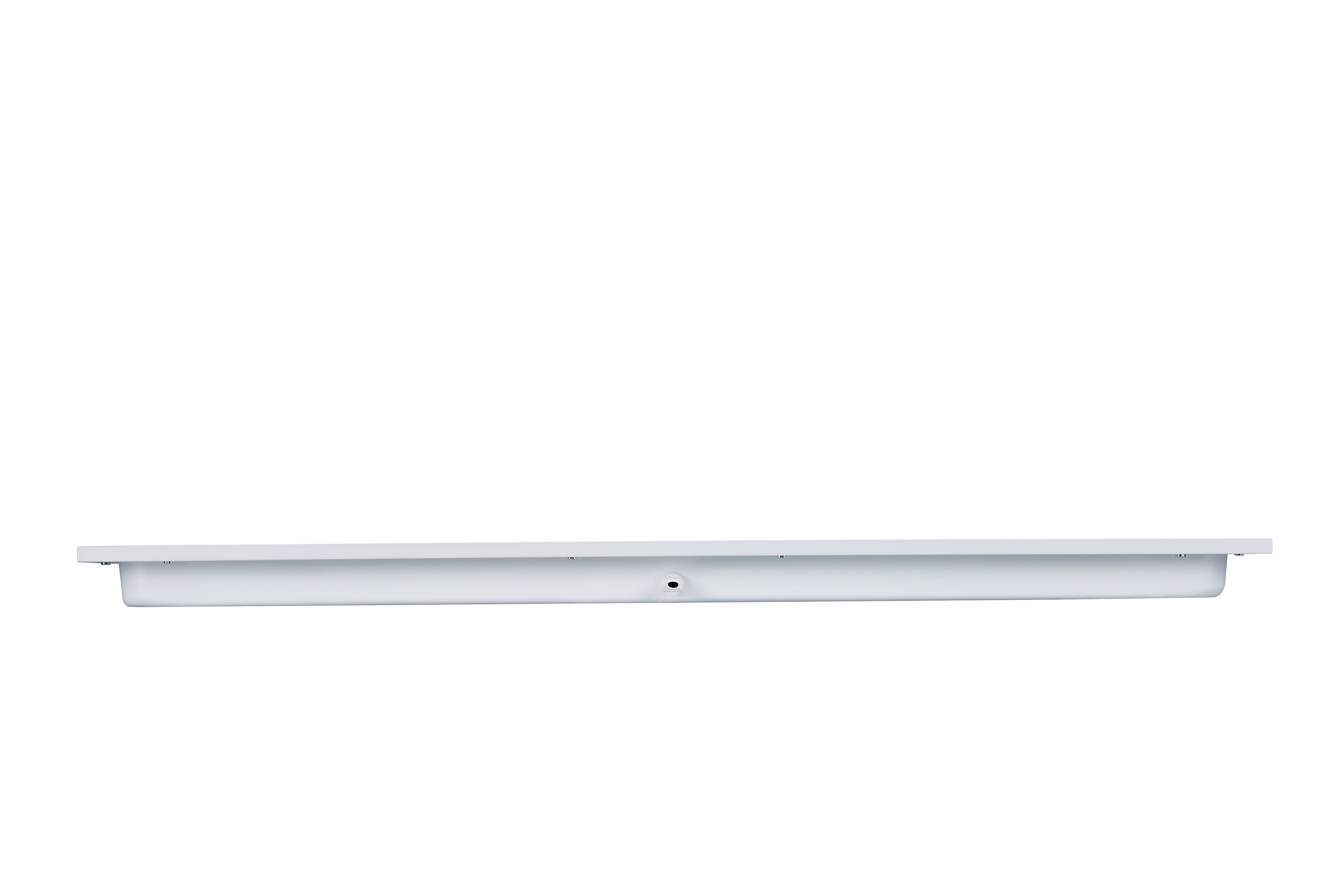

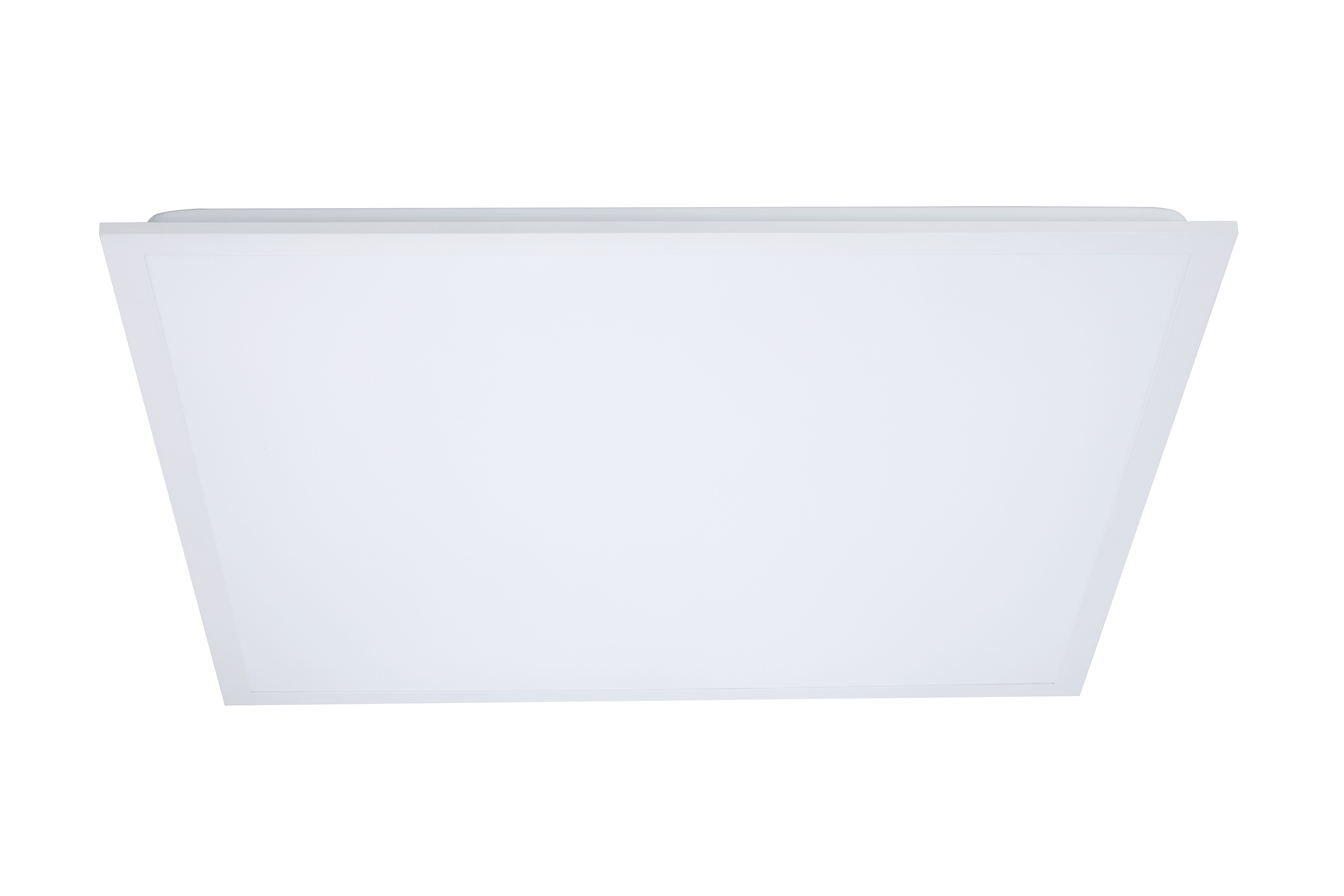

START Panel UGR19 600x600 3800Lm 830 LILO

Item No: 0042827
This product is no longer available

LED Panel with backlit technology, ideal for general indoor lighting applications such as breakout areas, offices and meeting rooms. Extruded aluminium frame, passive cooling. Low glaring UGR<19. RG0, 90 degree beam angle , optical system: PS diffuser with Prismatic finish. Light color temperature: 3000K Warm White, total system power: 36W , total fixture output: 3800lm, efficacy: 106 lm/W, Ra80 typical, LED chromacity: 3 step MacAdam ellipse (SDCM3), lifespan: 100,000 hours at 70% of the original output (L70B50), IR/UV free light source without heat radiation, operating voltage: 220-240V / 50-60Hz, low flicker, non dimmable driver, electrical protection: Class II. Degree of Protection: IP40/IP20, suitable for indoor environment only. Nominal size: 595x595mm, Loop in / loop out wiring, saftey cables included, 25mm nominal height, White color frame, weight: 1,6Kg.

Technical Assets

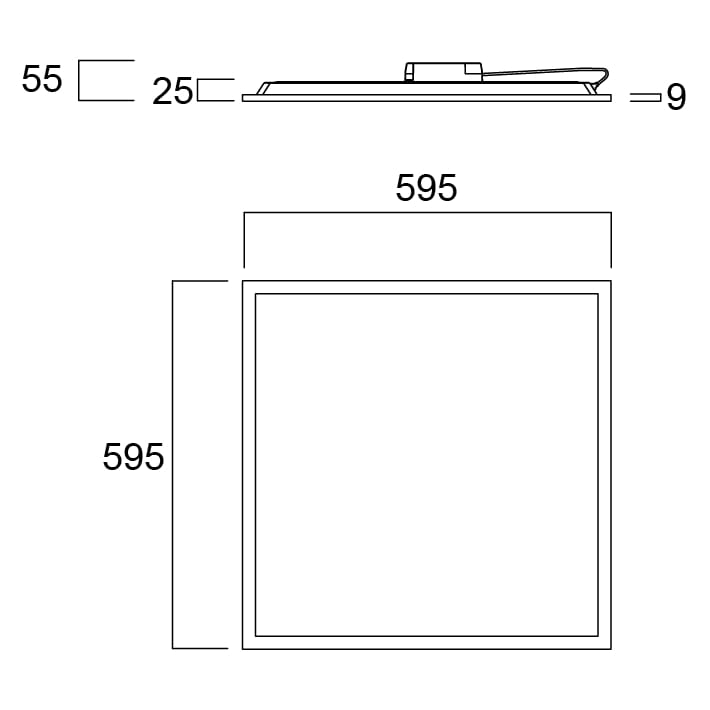

Dimensions (mm)

Photometrics

Product name
START Panel UGR19 600x600 3800Lm 830 LILO
Technology
LED (3 SDCM)
Cap/Base
N/A
Housing
Aluminium, Steel
Mount
Ceiling recessed mounting
Built in presence detector
NONE
General application
Education, Office
Operating temperature range (°C)
-10°C...+45°C
Performance ambient temperature Tq (°C)
25
Virtual assistant compatibility
N/A
ETIM Class
EC002892
E-number FI
4278456
Warranty
5 years
Fixture luminous flux (lm)
3800
Luminaire efficacy (lm/W)
106
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
90
Distribution type
Symmetric
Glare control
< 19
Photobiological Risk Group
RG0
Total power consumption (W)
36
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20.0
Electrical protection
Class II
Control gear required
Yes
Control gear type
LED driver constant current
No. Of switching cycles before premature failures
>25000
Dimmable
No
Dimming method
N/A
Drive current (mA)
680
Inrush Current (A)
17
Inrush Duration (µs)
150
Energy Efficiency Class (A->G) of contained light source
D
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
51
Max. products per 13A C Breaker
66
Max. products per 16A C Breaker
81
Max. products per 20A C Breaker
102
Max. products per 10A B Breaker
33
Max. products per 13A B Breaker
43
Max. products per 16A B Breaker
54
Max. products per 20A B Breaker
68
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
100000
Lifespan L80 B20
71000
Housing colour
RAL 9003 - Signal white
IP rating
IP40/20
IK rating
IK03
Diffuser finish
Prismatic
Diffuser material
Other
Nominal Product Length (mm)
595
Nominal Product Width (mm)
595
Nominal Product Height (mm)
26
Weight (kg)
1.6
Product EAN number
5410288428277
Packaging single length / height (cm)
60.0
Packaging single width (cm)
65.0
Packaging single depth (cm)
3.8
DUN14 (inner)
15410288428274
Units per outer package
4
Packaging outer length / height (cm)
69.0
Packaging outer width (cm)
65.0
Packaging outer depth (cm)
17.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-10-45
Certificate of Conformity UK
Certificate of Conformity EU
Datasheet

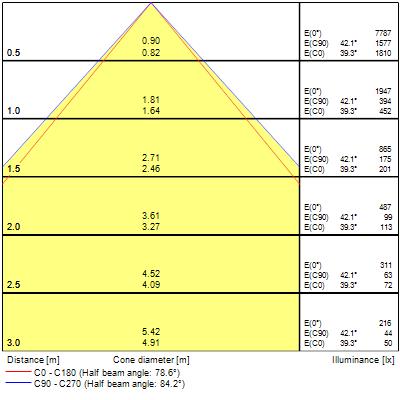

CONE

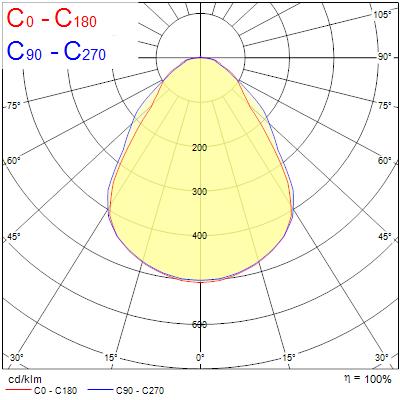

POLAR
