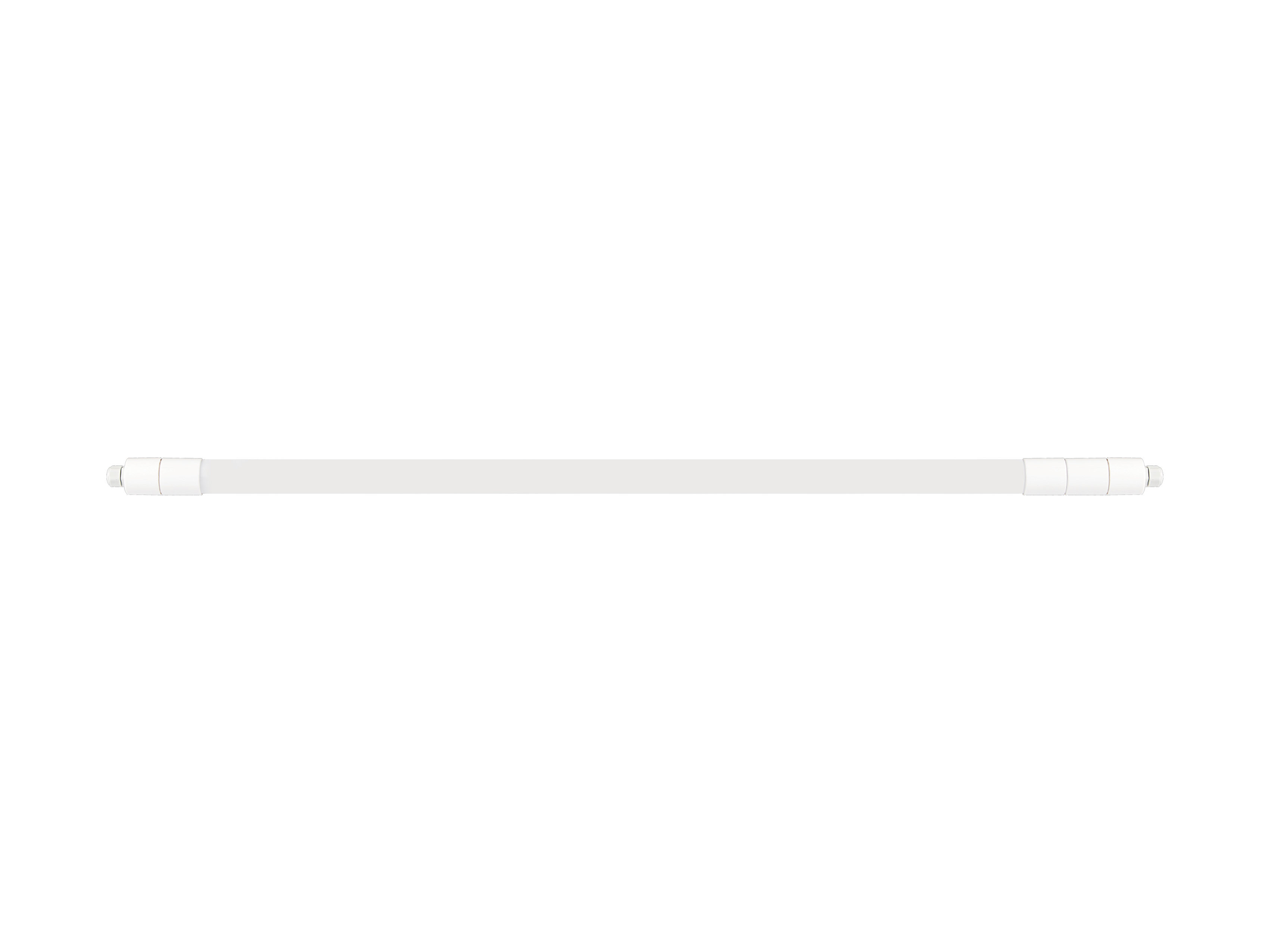

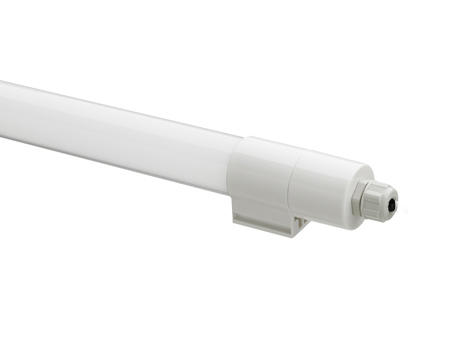

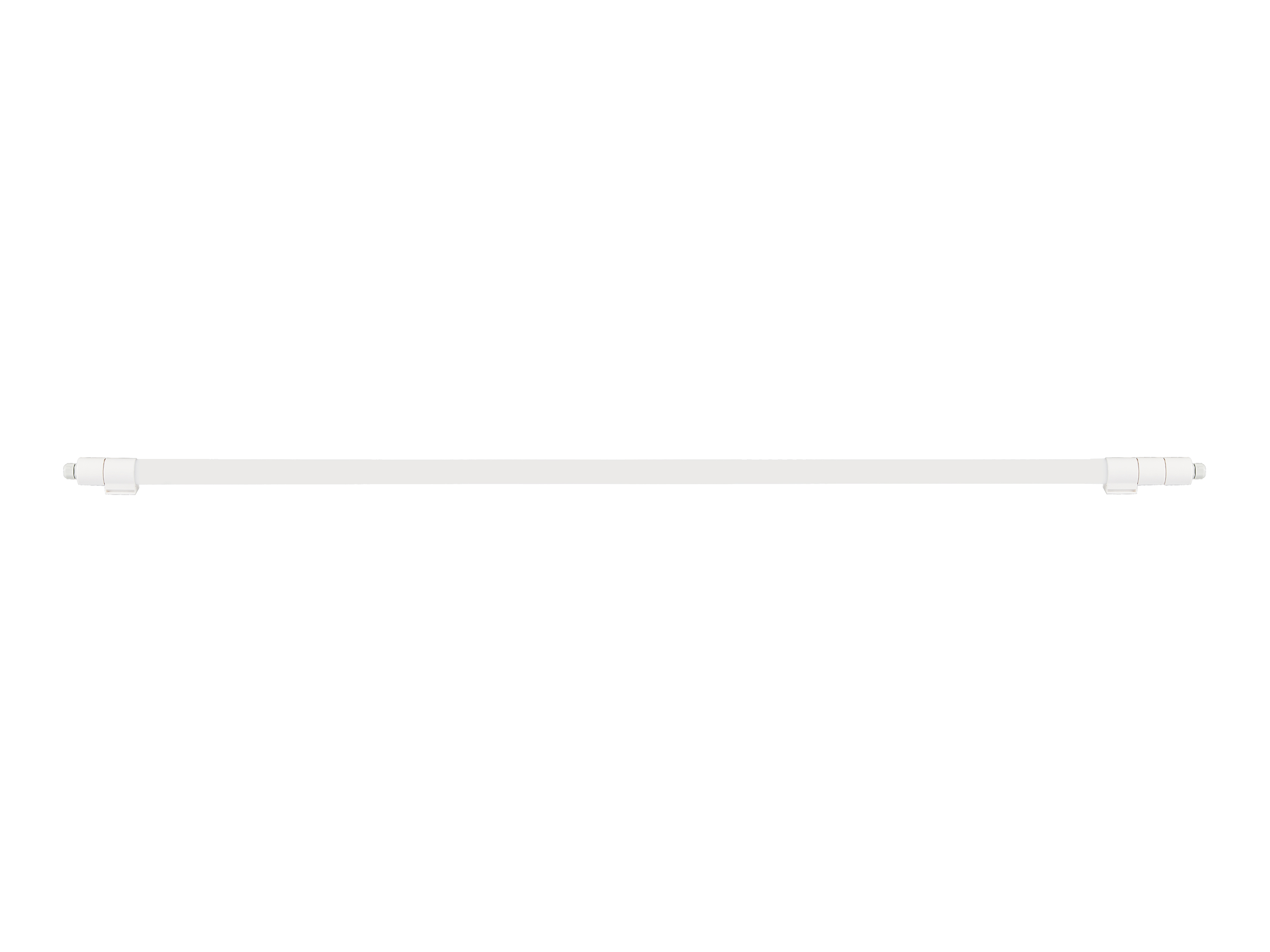

START eco Batten 1200 IP65 2500lm 840


Item No: 0045151
This product is no longer available

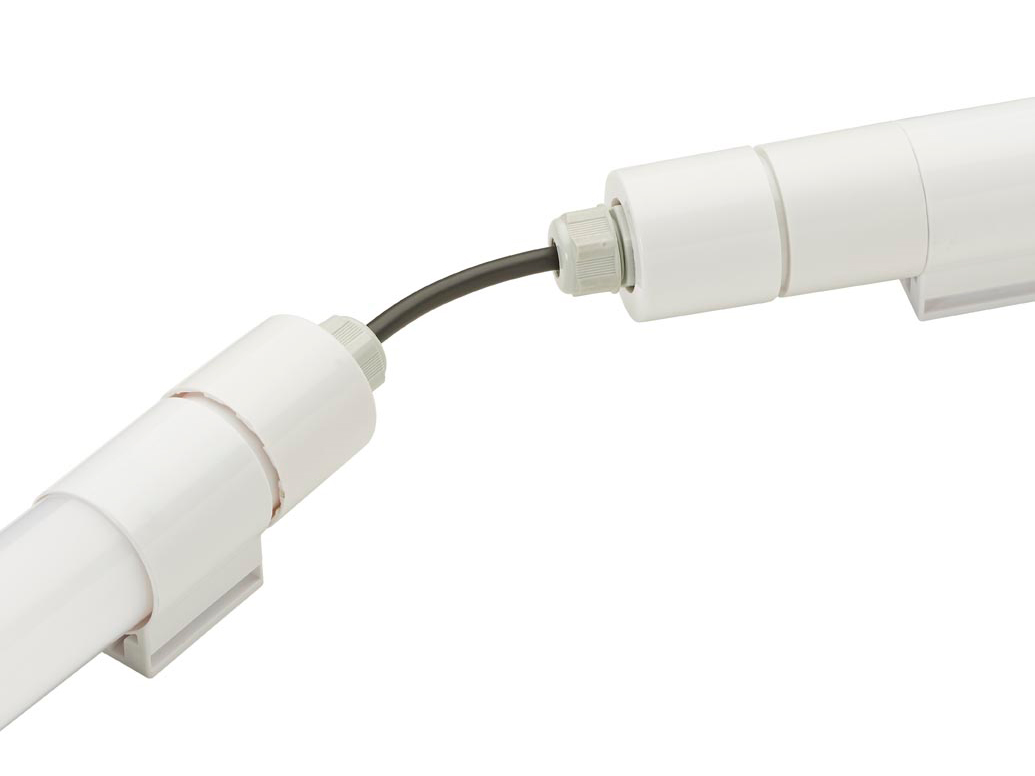

The new upgraded Start eco Batten IP65 (upgraded version of Batten LED LINK) is a versatile range of slimline LED waterproof luminaires that provide an ideal solution for interior and exterior applications such as workshops, garages and outdoor covered spaces. The design allows the luminaire to be easily linked to another luminaire through an IP65 rated connector. The product can be a slimline replacement for single and twin 36W/58W fluorescent waterproof battens.Polycarbonate housing and diffuser, 2500 lm, 20 W, 125 lm/W, 4000 K, drive current 130 mA, non dimmable, CRI 80, IP65, IK08, Class II, nominal average lifetime (h): 30000, 1200 mm x 42 mm x 52.8 mm, energy class: A++ A+ A.

Technical Assets


Dimensions (mm)

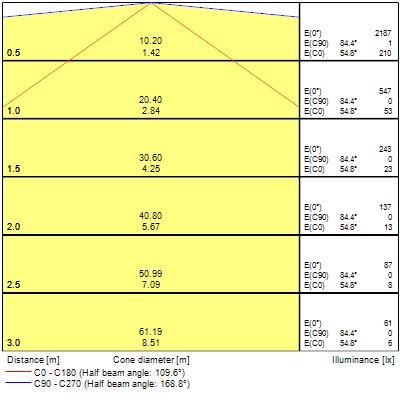

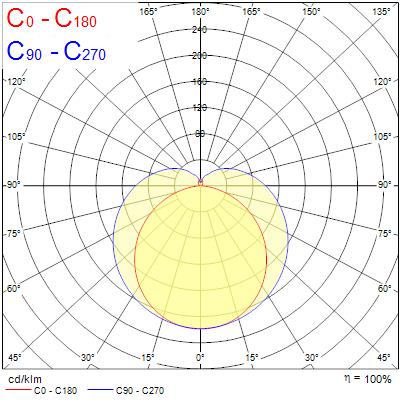

Photometrics

Product name
START eco Batten 1200 IP65 2500lm 840
Technology
LED
Housing
PC Polycarbonate
Mount
Ceiling surface mounting
Fixture rating
Enclosed
General application
Residential & Consumer
Operating temperature range (°C)
-10°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC000109
E-number FI
4274217
E-number SE
7214469
Warranty
3 years
Fixture luminous flux (lm)
2500
Luminaire efficacy (lm/W)
125
LOR (%)
100
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Beam Angle (°)
120
Glare control
< 24
Photobiological Risk Group
RG0
Total power consumption (W)
20
Lamp power factor
0.9
Electrical protection
Class II
Control gear type
LED driver constant current
Dimmable
No
Dimming method
N/A
Drive current (mA)
130
Inrush Current (A)
15
Inrush Duration (µs)
250
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
67
Max. products per 13A C Breaker
87
Max. products per 16A C Breaker
108
Max. products per 20A C Breaker
135
Lifespan L70 B50
30000
Housing colour
White
IP rating
IP65
IK rating
IK08
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
1200
Nominal Product Width (mm)
44
Nominal Product Height (mm)
52.8
Weight (kg)
0.607
Product EAN number
5410288451510
Packaging single length / height (cm)
133.6
Packaging single width (cm)
5.1
Packaging single depth (cm)
5.17
DUN14 (inner)
15410288451517
Units per outer package
12
Packaging outer length / height (cm)
134.8
Packaging outer width (cm)
24.7
Packaging outer depth (cm)
19.5
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-10-40
