START FLAT PANEL LED 600 4000K G2
Item No:
0047751
This product is no longer available
.png)

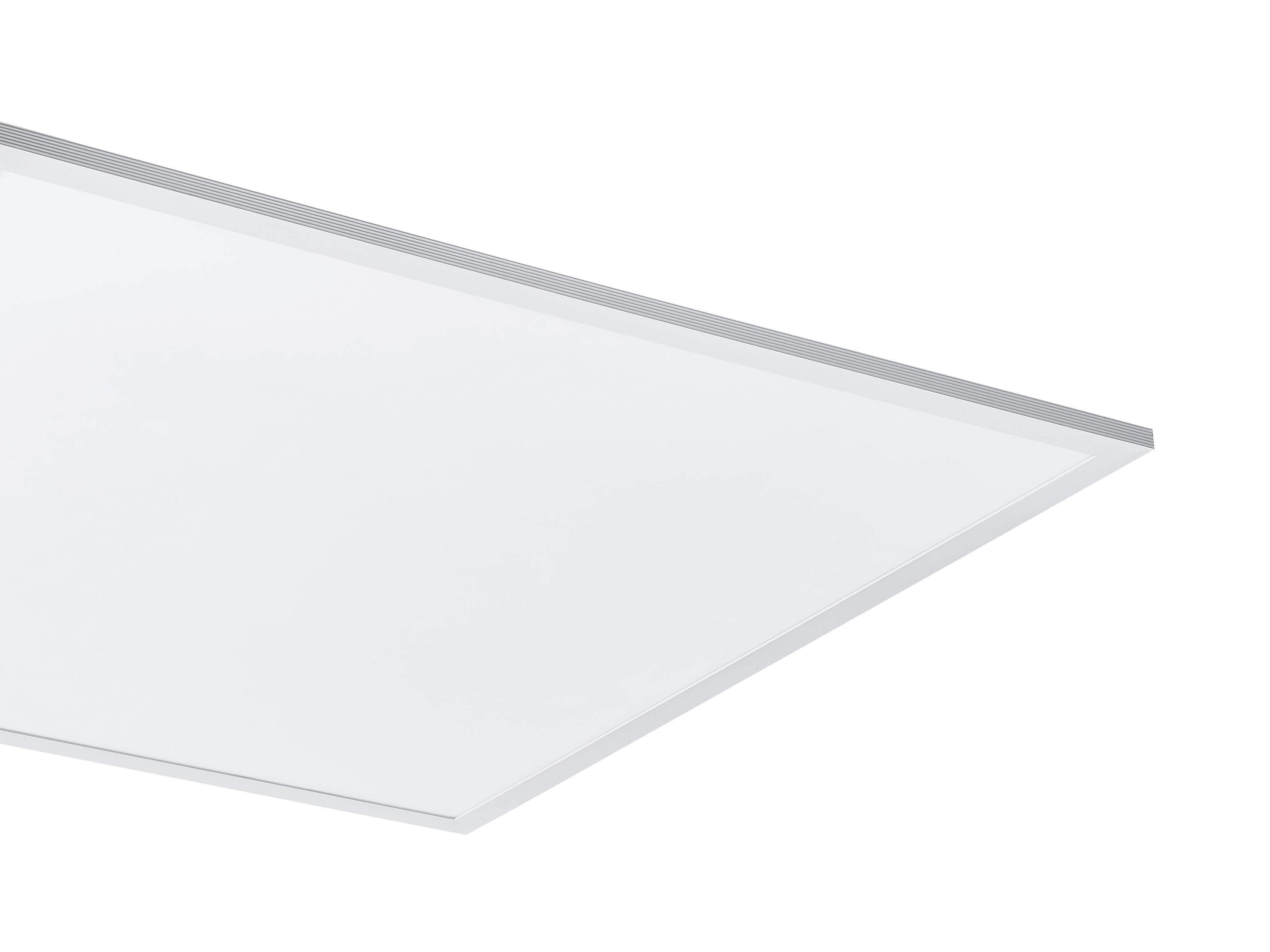

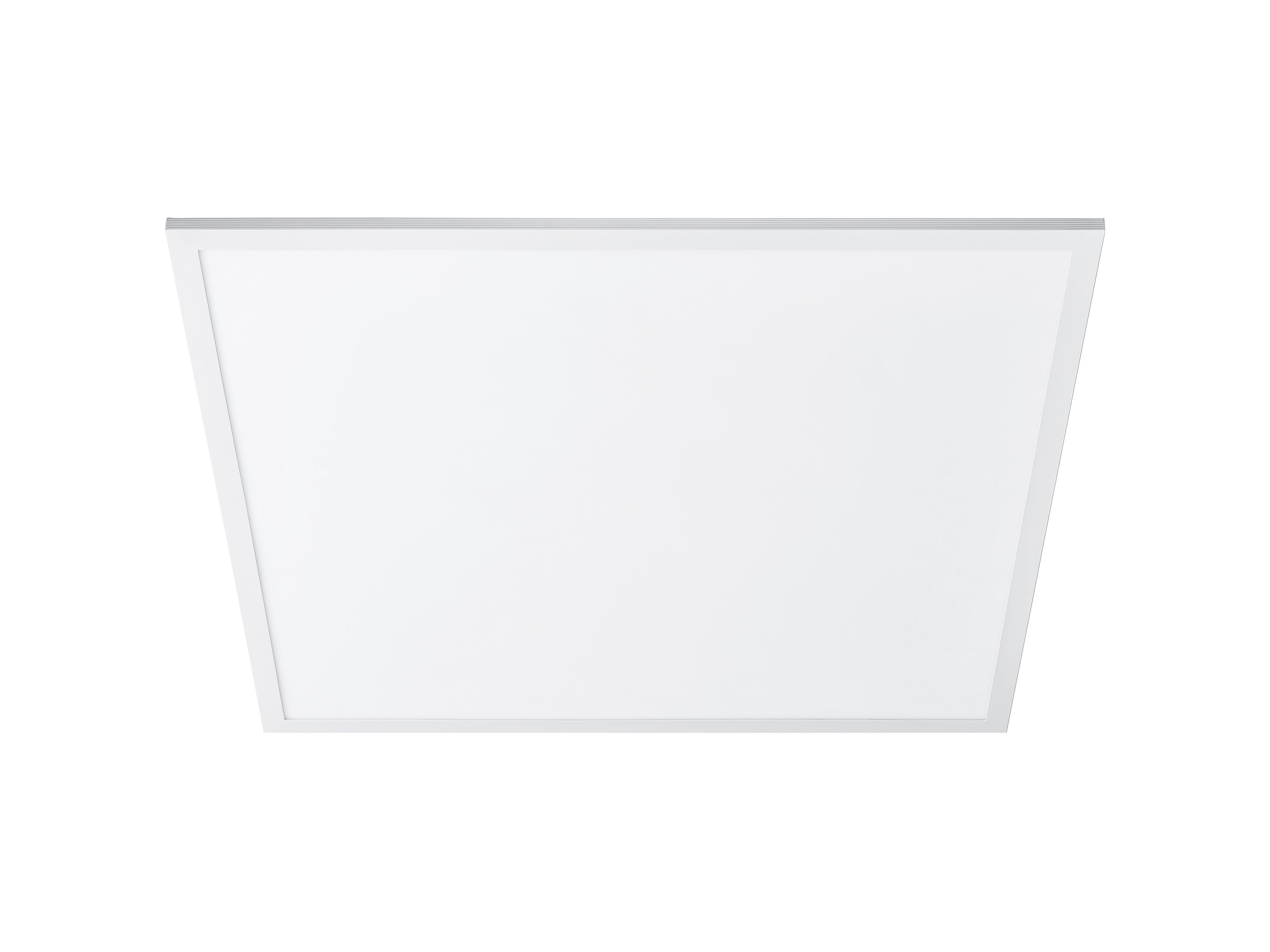

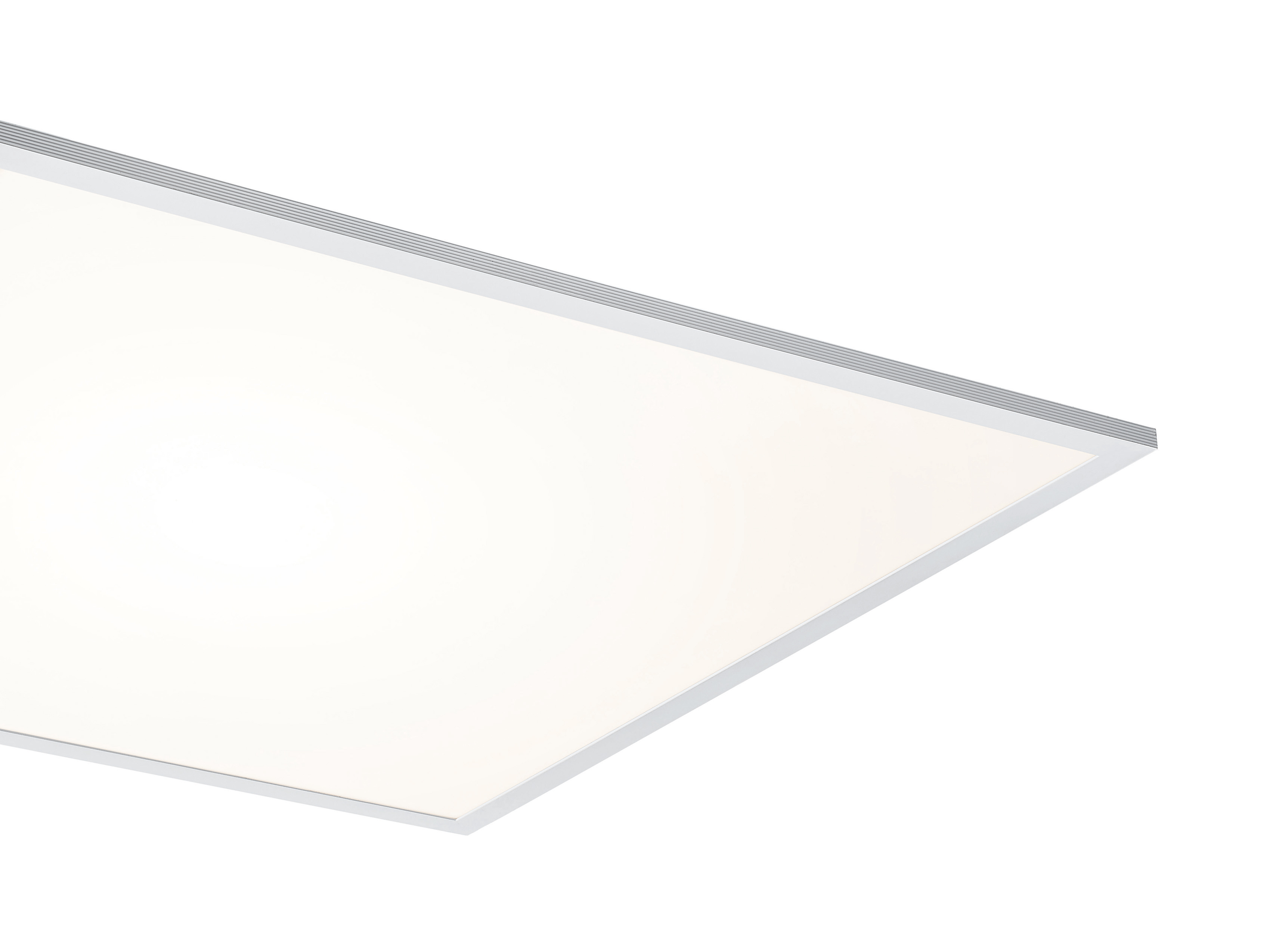

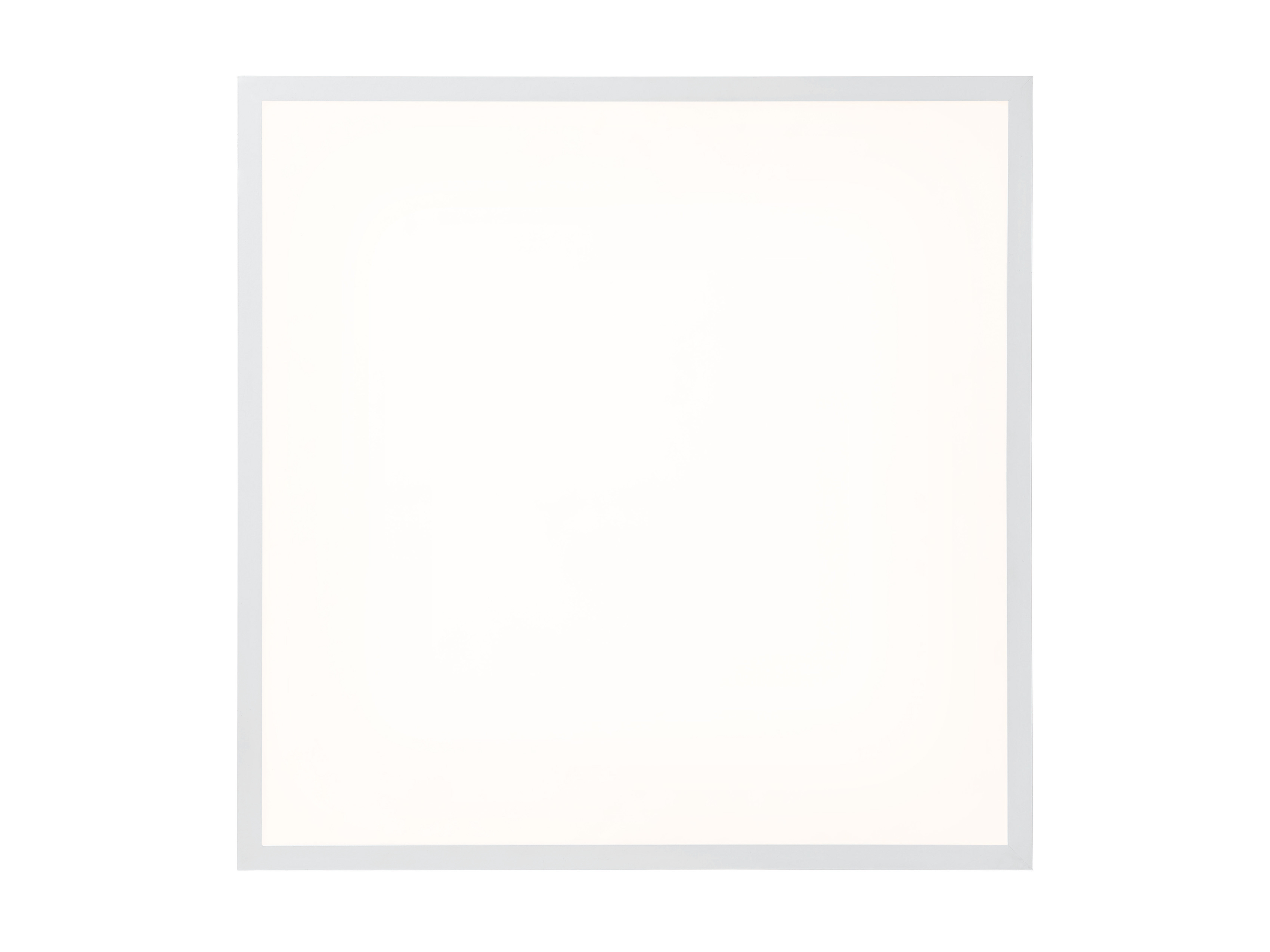

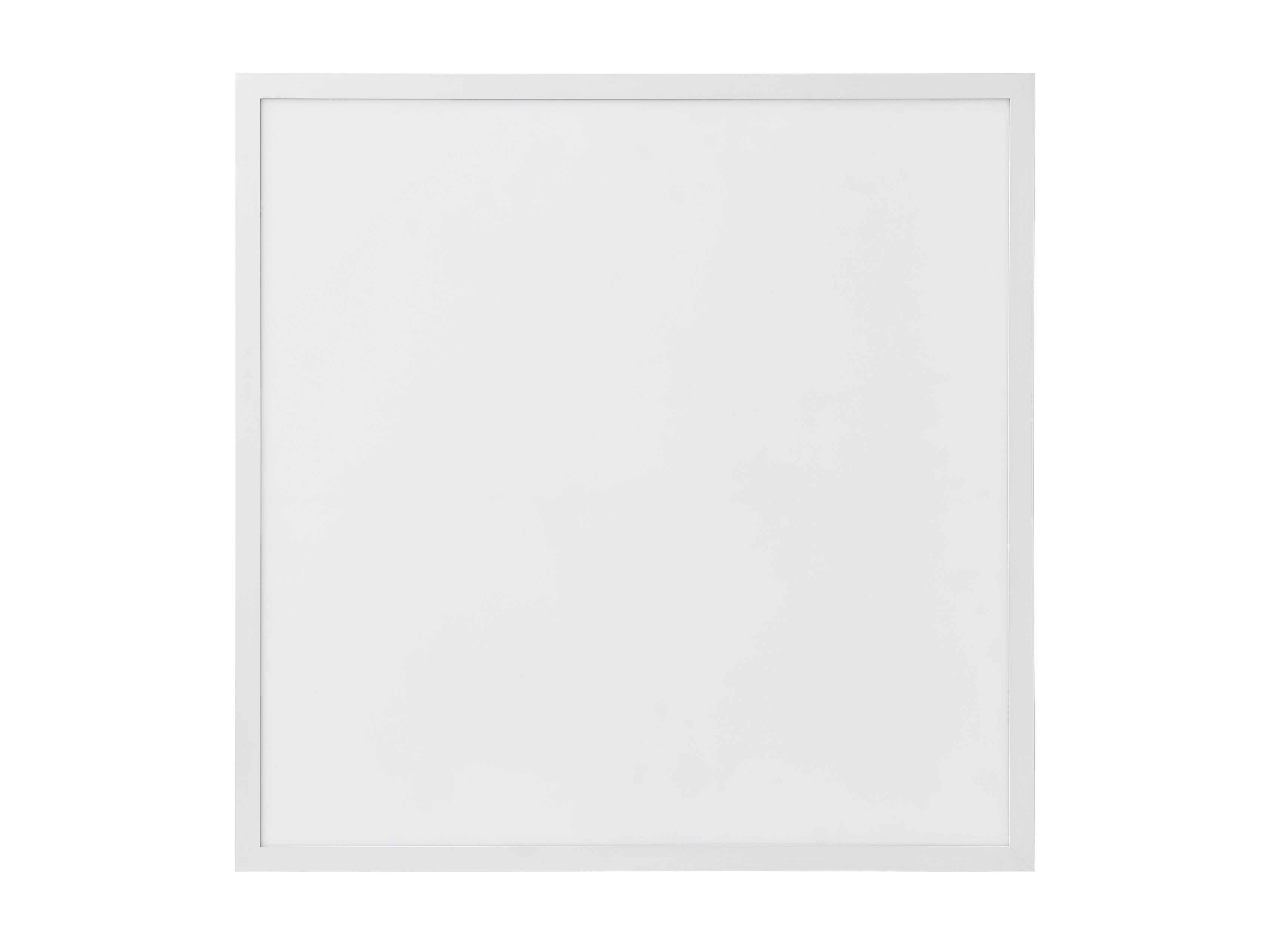

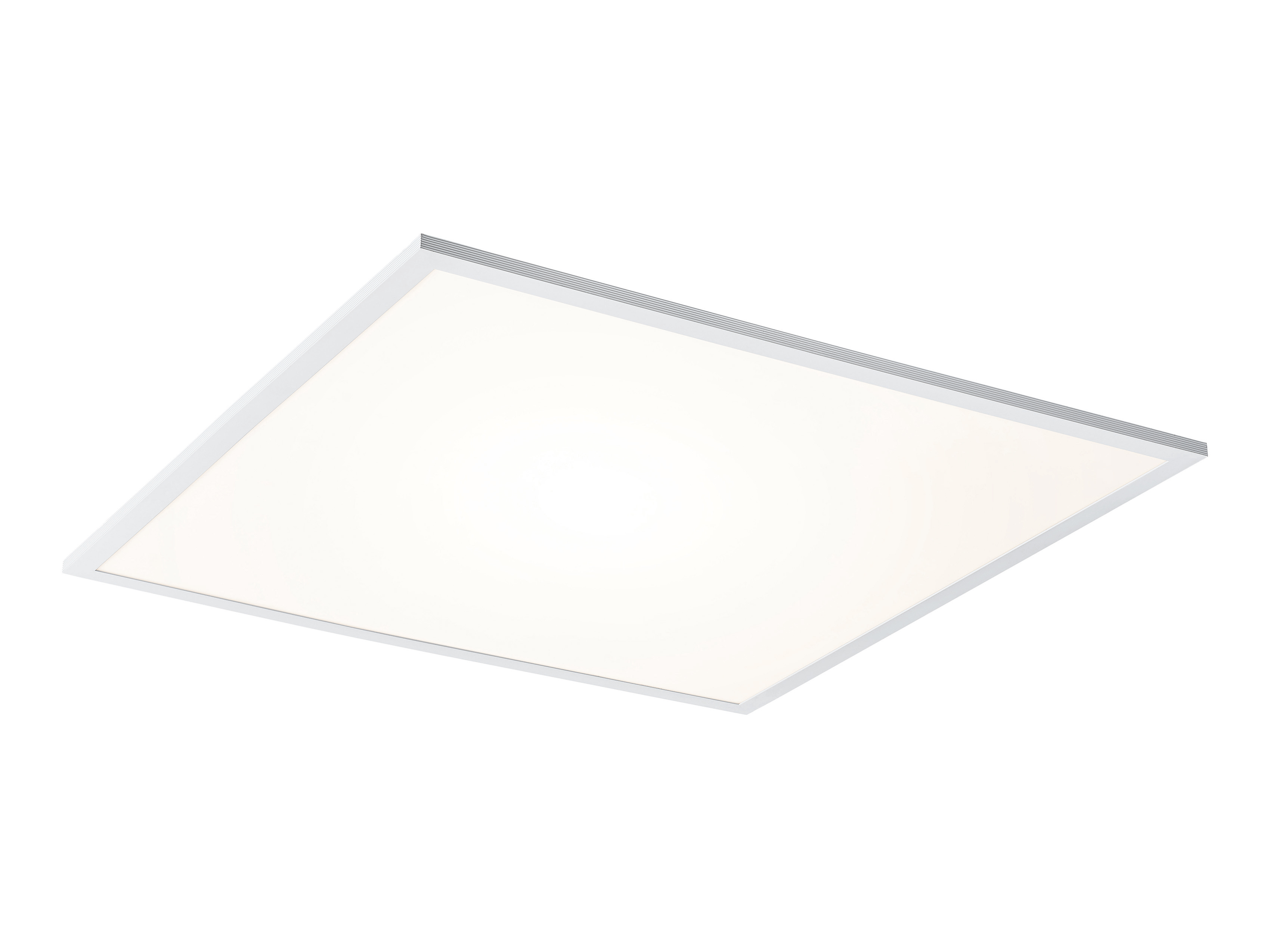

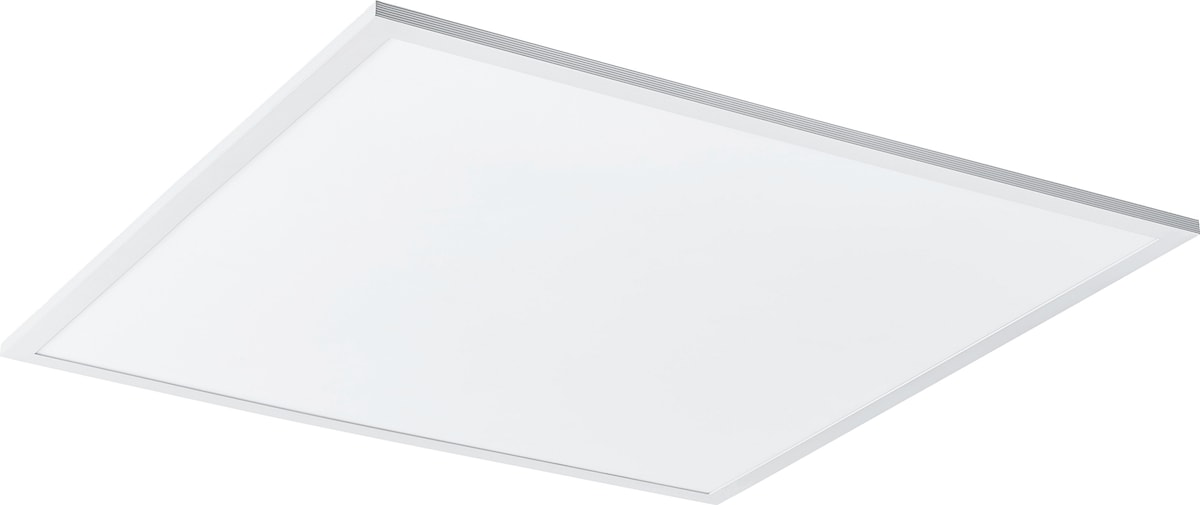

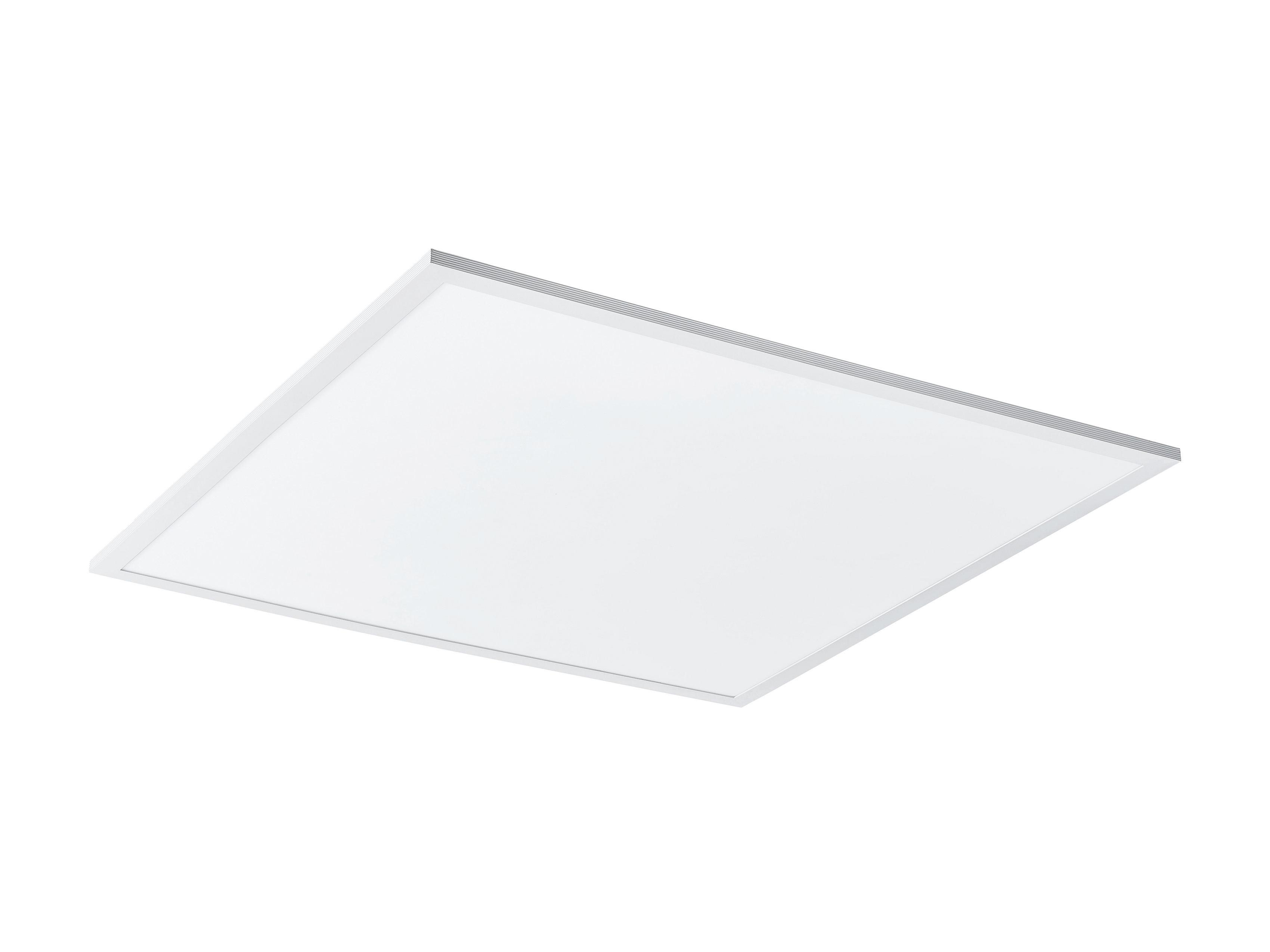

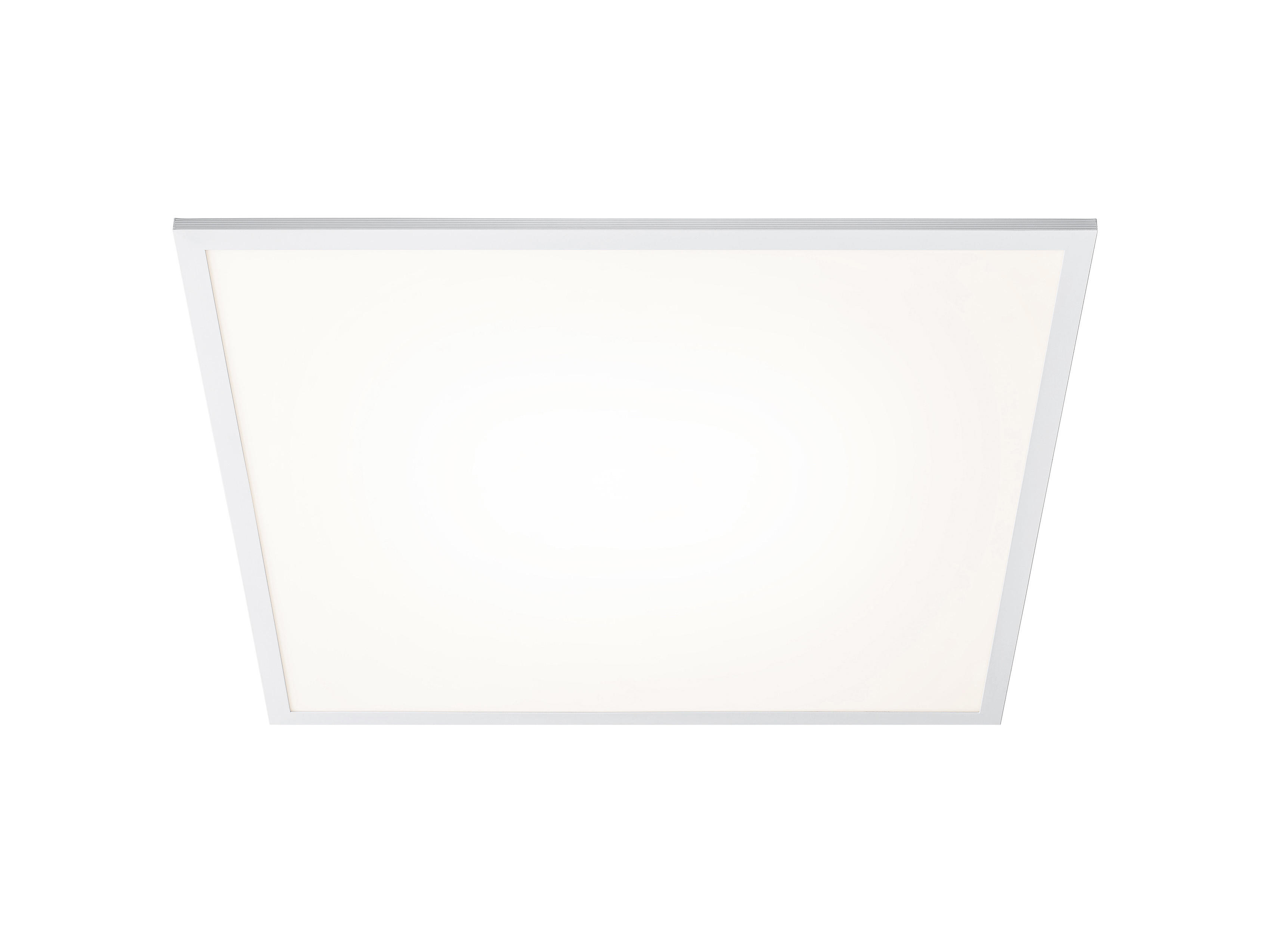

Edge lit LED flat panel. Low Flicker, 39 W, Neutral White, 4000 K, 4000 lumens, 104 lm/W, 50000 hours lifetime (L70), PMMA opal diffuser, aluminium frame, steel body, electronic non dimmable driver. (HxWxD) 10.5 x 595 x 595 mm
Technical Assets
Dimensions (mm)

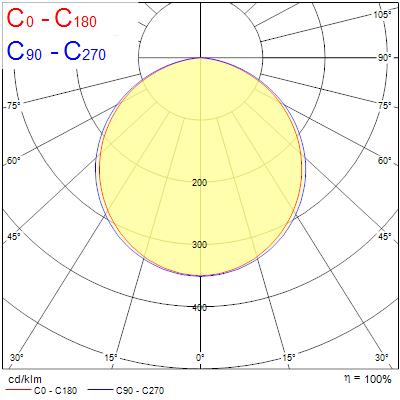

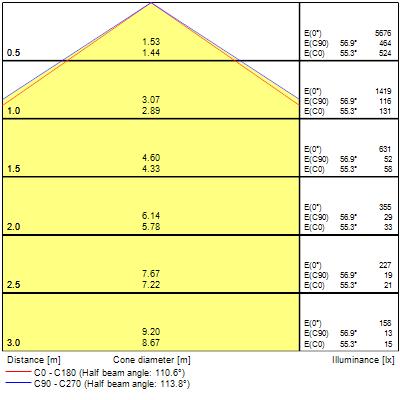

Photometrics
Product name
START FLAT PANEL LED 600 4000K G2
Technology
LED
Housing
Aluminium
Mount
Ceiling recessed mounting
Environment
Interior
General application
Education, Office
Operating temperature range (°C)
-10°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC002892
E-number FI
4274109
Warranty
5 years
Fixture luminous flux (lm)
4000
Luminaire efficacy (lm/W)
104
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Adjustable chromaticity
N
Beam Angle (°)
15
Glare control
< 22
Photobiological Risk Group
RG0
Total power consumption (W)
39
Lamp power factor
0.9
Electrical protection
Class II
Control gear type
Electronic ballast
Dimmable
No
Drive current (mA)
1200
Inrush Current (A)
14
Inrush Duration (µs)
450
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
20
Max. products per 10A B Breaker
12
Max. products per 16A B Breaker
19
Lifespan L70 B50
50000
Housing colour
White
IP rating
IP40/20
IK rating
IK03
Diffuser material
PMMA Acrylic
Nominal Product Length (mm)
595
Nominal Product Width (mm)
595
Nominal Product Height (mm)
10.5
Weight (kg)
2.914
Product EAN number
5410288477510
Packaging single length / height (cm)
68.5
Packaging single width (cm)
63.0
Packaging single depth (cm)
4.0
DUN14 (inner)
15410288477517
Units per outer package
2
Packaging outer length / height (cm)
70.6
Packaging outer width (cm)
66.1
Packaging outer depth (cm)
10.1
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-10-40
