START eco Flood Flat IP65 6500lm 840
Item No:
0047973
This product is no longer available
.png)

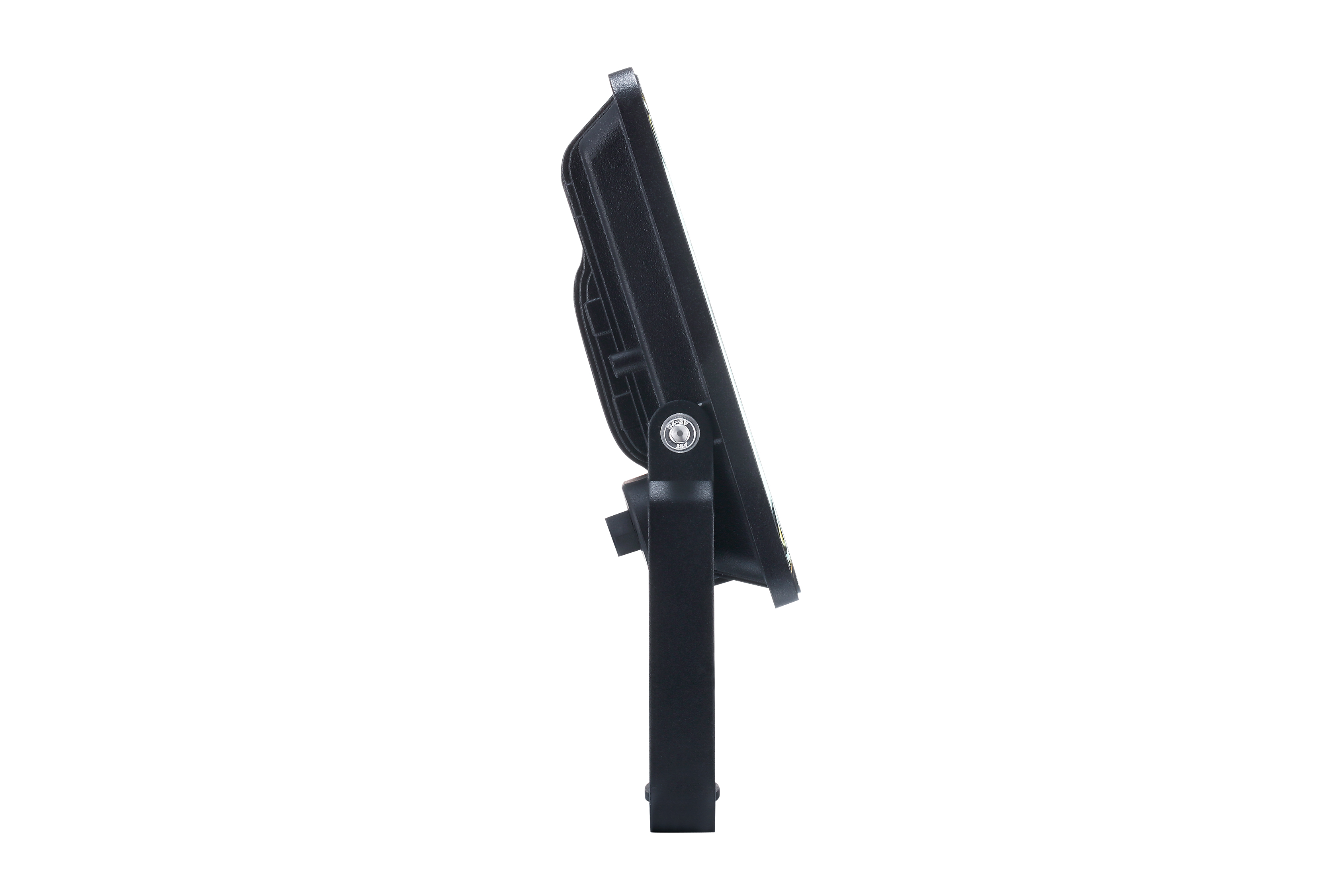

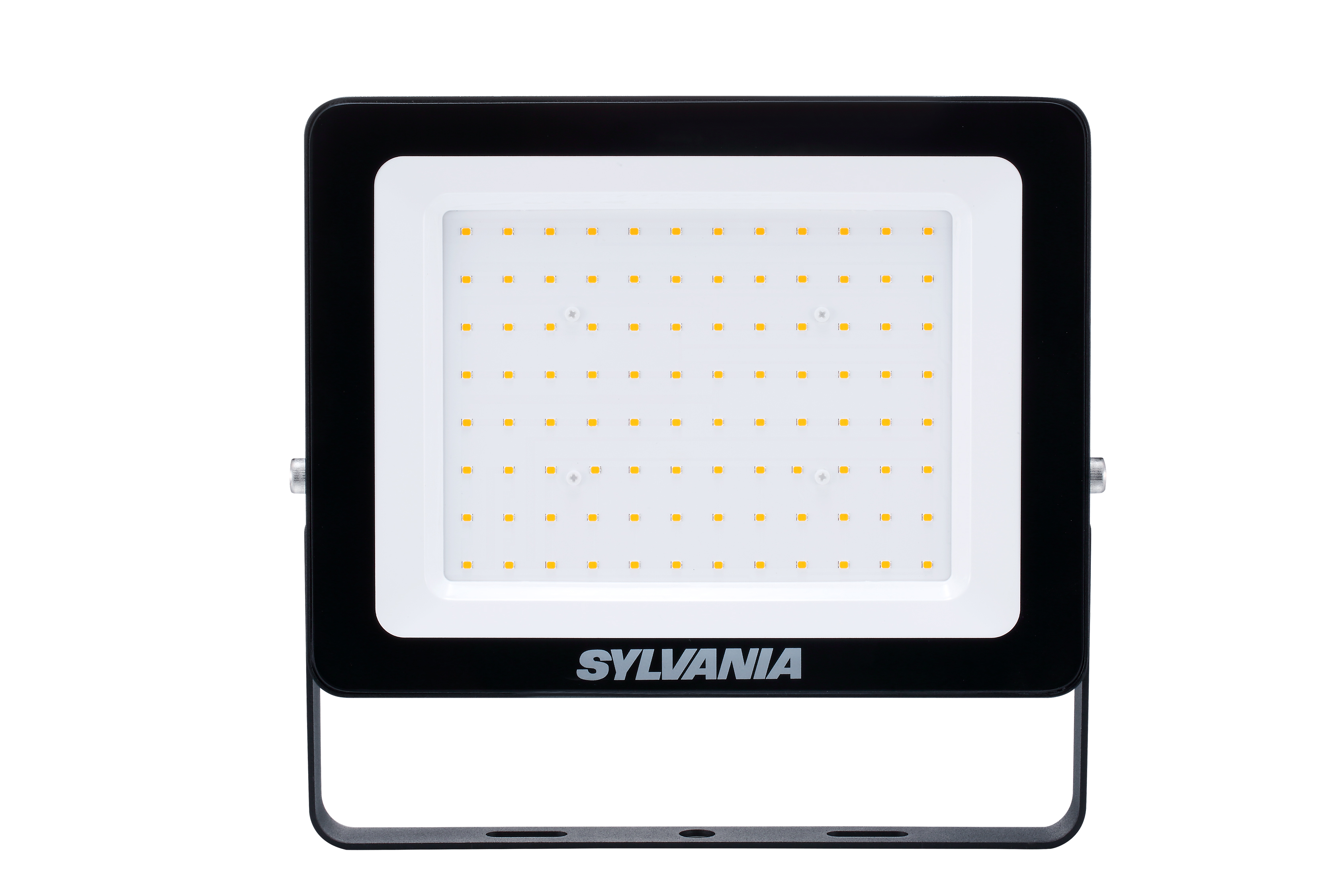

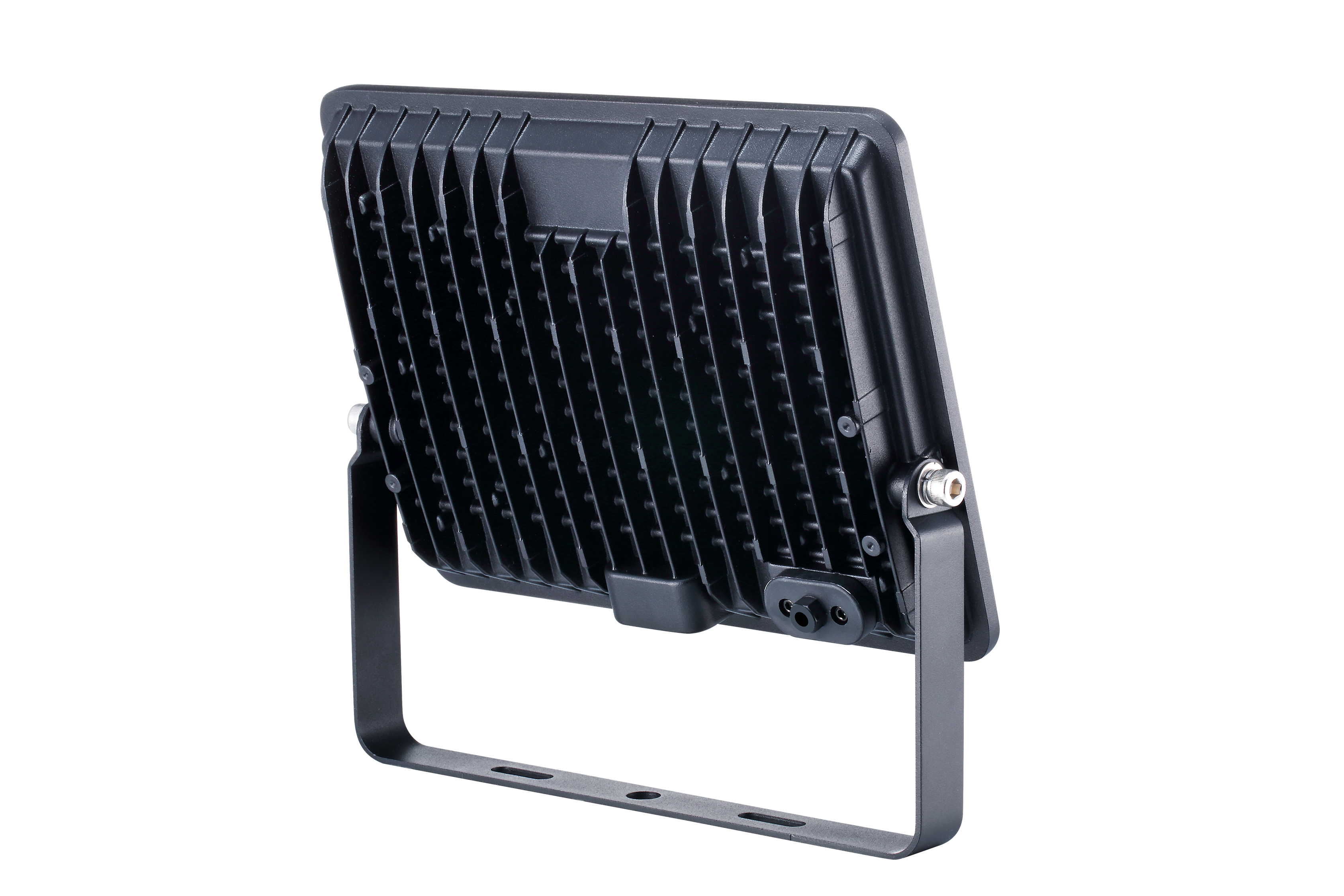

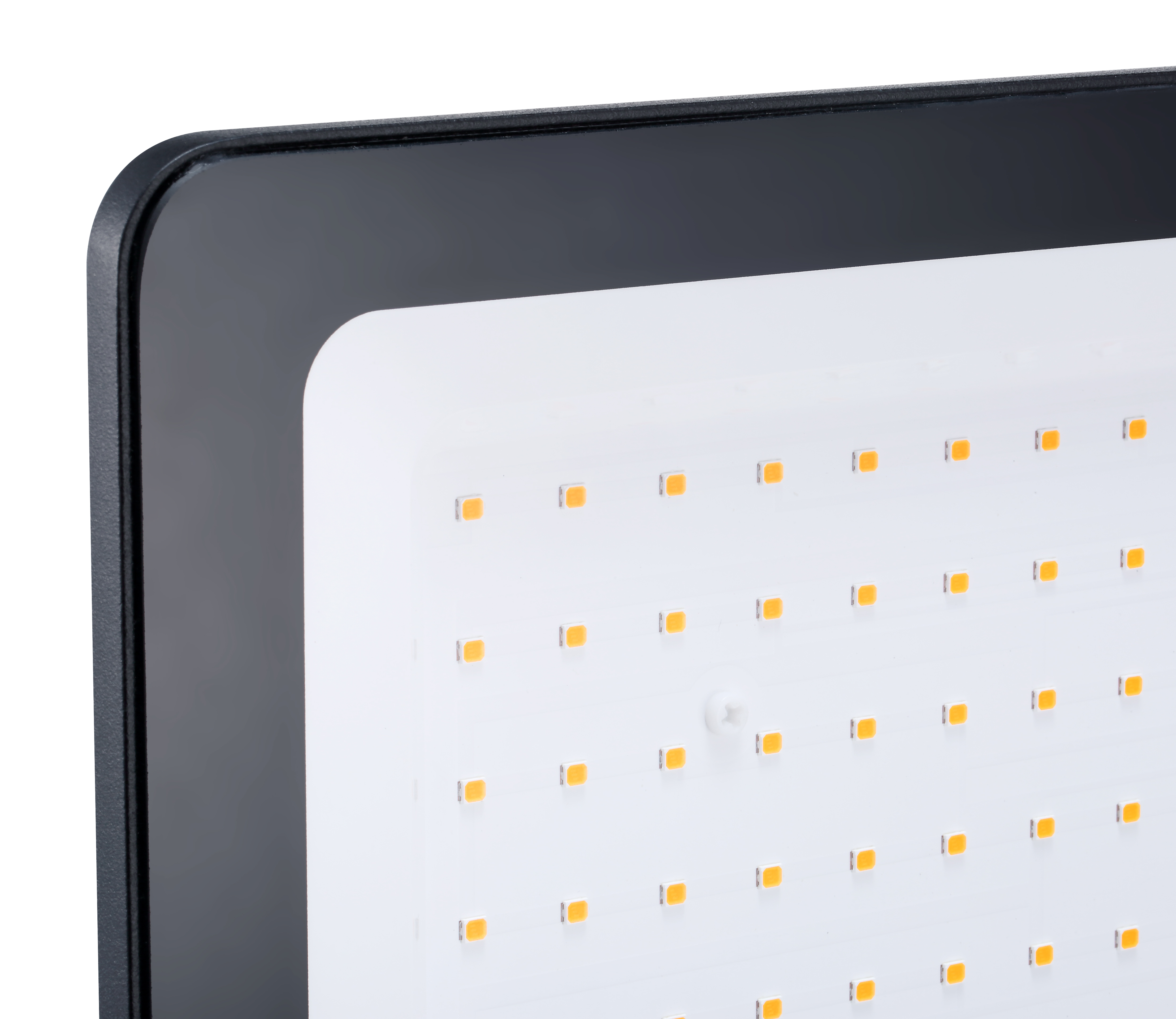

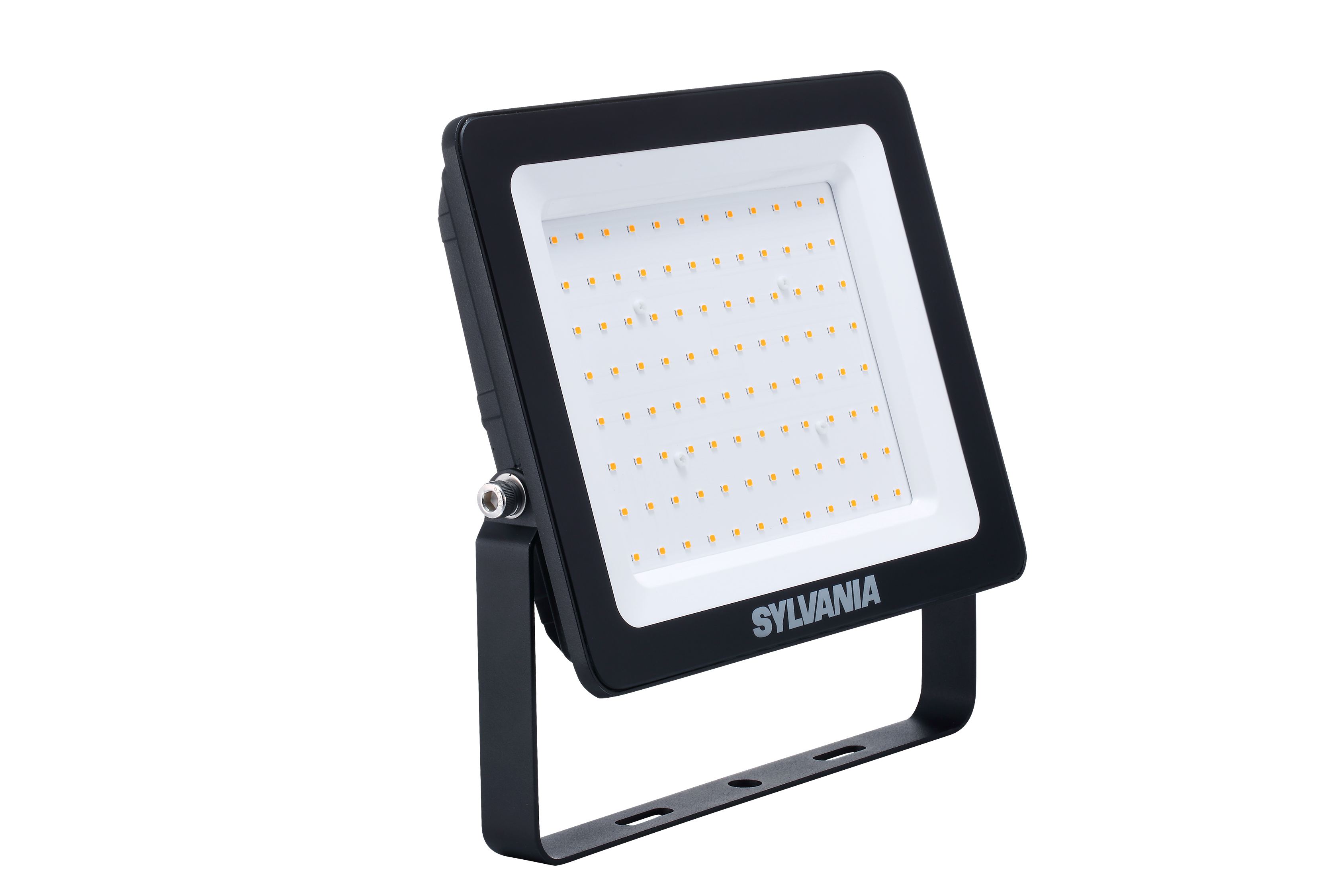

The new Start eco Flood Flat comes with improved design. The streamlined, durable, lightweight die-cast aluminium body makes it a perfect choice for building facades, car parks, garages and construction areas. The product includes 1 m pre-wired stripped cable and fitting bracket for quick and easy installation and the universal mounting bracket allows wall or surface mounting with the possibility of vertical tilting. Black die-cast aluminum housing, white reflector, 6650 lm, 70 W, 95 lm/W, 4000K, drive current 270 mA, non dimmable, CRI>80, IP65, IK07, Class I, lumen maintenance L70:B50: 30000 hrs, 283 x 263 x 44 mm (L x W x H). Weight: 1.775kg. Energy class: A++ A+ A.
Technical Assets
Dimensions (mm)

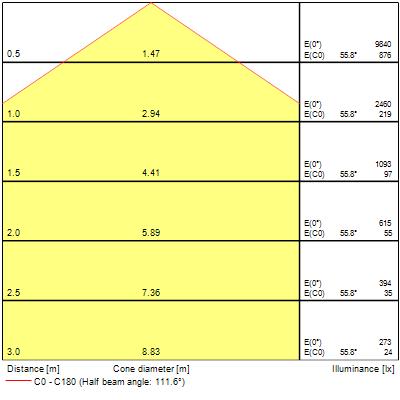

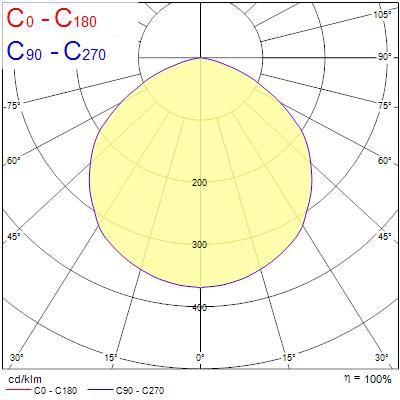

Photometrics
Product name
START eco Flood Flat IP65 6500lm 840
Technology
LED
Housing
Aluminium
General application
Residential & Consumer
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4579439
Warranty
3 years
Fixture luminous flux (lm)
6650
Luminaire efficacy (lm/W)
95
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Beam Angle (°)
110
Photobiological Risk Group
RG1
Total power consumption (W)
70
Lamp power factor
0.9
Electrical protection
Class I
Drive current (mA)
270
Inrush Current (A)
22.5
Inrush Duration (µs)
600
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
12
Max. products per 13A C Breaker
15
Max. products per 16A C Breaker
19
Max. products per 20A C Breaker
24
Max. products per 10A B Breaker
6
Max. products per 13A B Breaker
7
Max. products per 16A B Breaker
9
Max. products per 20A B Breaker
12
Mains surge immunity (differential mode -> L-N) (kV)
1
Mains surge immunity (common mode -> L/N - GND) (kV)
2
Lifespan L70 B50
30000
Housing colour
RAL 9017 - Traffic black
IP rating
IP65
IK rating
IK07
Nominal Product Length (mm)
283
Nominal Product Width (mm)
263
Nominal Product Height (mm)
44
Weight (kg)
1.775
Wind Area (m²)
0.084
Product EAN number
5410288479736
Packaging single length / height (cm)
31.5
Packaging single width (cm)
7.4
Packaging single depth (cm)
23.6
DUN14 (inner)
15410288479733
Units per outer package
5
Packaging outer length / height (cm)
39.5
Packaging outer width (cm)
33.4
Packaging outer depth (cm)
26.9
Optimal operating condition (°C)
-20-40
