START SURFACE IP66 1500LM 840 IK10 BLK


Item No: 0049003
This product is no longer available

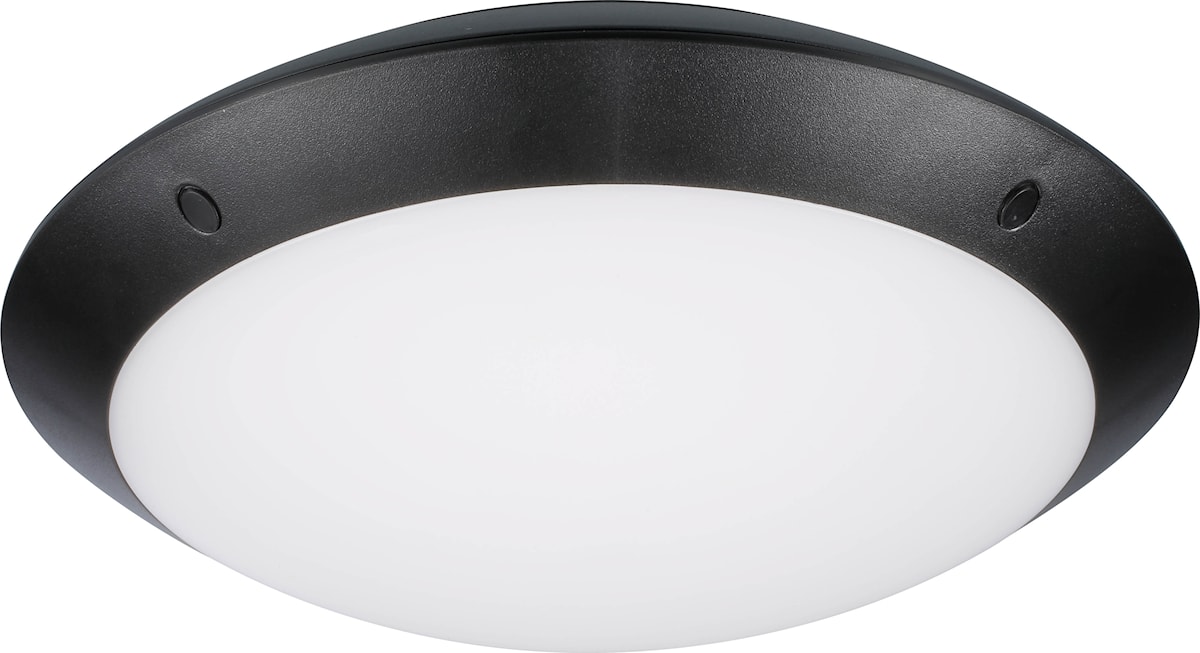

LED exterior surface mounted luminaire, 350mm diameter, 1500lm as max. lumen output, can be adjusted down to 730lm by internal switch, 14,5W power consumption max., 103lm/W efficacy, 4000K color temperature, CRI80, non-dimmable, IP66, IK10, 50,000 hours (L70), black housing, vandal resistant, supplied with anti-theft screws

Technical Assets


Dimensions (mm)

Photometrics

Product name
START SURFACE IP66 1500LM 840 IK10 BLK
Technology
LED
Housing
PC Polycarbonate
Mount
Ceiling surface mounting, Wall surface mounted
Environment
Indoor, Outdoor
General application
Hospitality
Operating temperature range (°C)
-20°C...+45°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC002892
E-number FI
4579481
Warranty
5 years
Fixture luminous flux (lm)
1500
Luminaire efficacy (lm/W)
103
Correlated colour temperature (k)
4000
Colour Code
840
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Beam Angle (°)
120
Photobiological Risk Group
RG0
Total power consumption (W)
14.5
Primary Supply/Product voltage - min (V)
198.0
Primary Supply/Product voltage - max (V)
264.0
Lamp power factor
0.9
Electrical protection
Class II
Dimmable
No
Drive current (mA)
450
Inrush Current (A)
15
Inrush Duration (µs)
200
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
35
Max. products per 13A C Breaker
45
Max. products per 16A C Breaker
56
Max. products per 20A C Breaker
70
Lifespan L70 B50
50000
Housing colour
RAL 9011 - Graphite black
IP rating
IP66
IK rating
IK10
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Nominal Product Height (mm)
111
Nominal Product Diameter (mm)
350
Weight (kg)
1.25
Product EAN number
5410288490038
Packaging single length / height (cm)
35.0
Packaging single width (cm)
35.0
Packaging single depth (cm)
11.1
DUN14 (inner)
15410288490035
Units per outer package
8
Packaging outer length / height (cm)
72.0
Packaging outer width (cm)
37.0
Packaging outer depth (cm)
49.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-45



Accessories
