Start Flood Flat IP54 PIR 1000LM 840 Black
Item No:
0050130
This product is no longer available
.png)

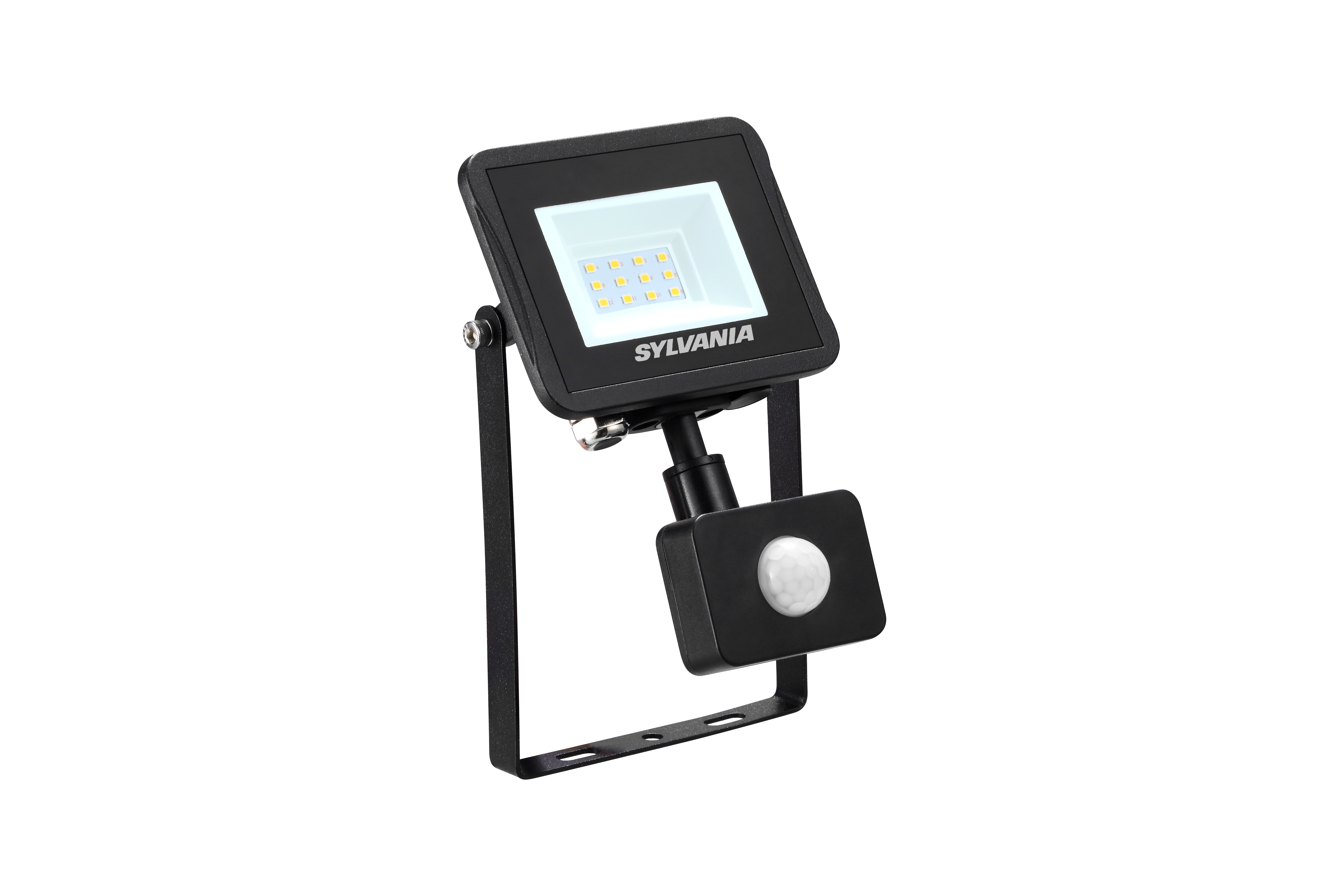

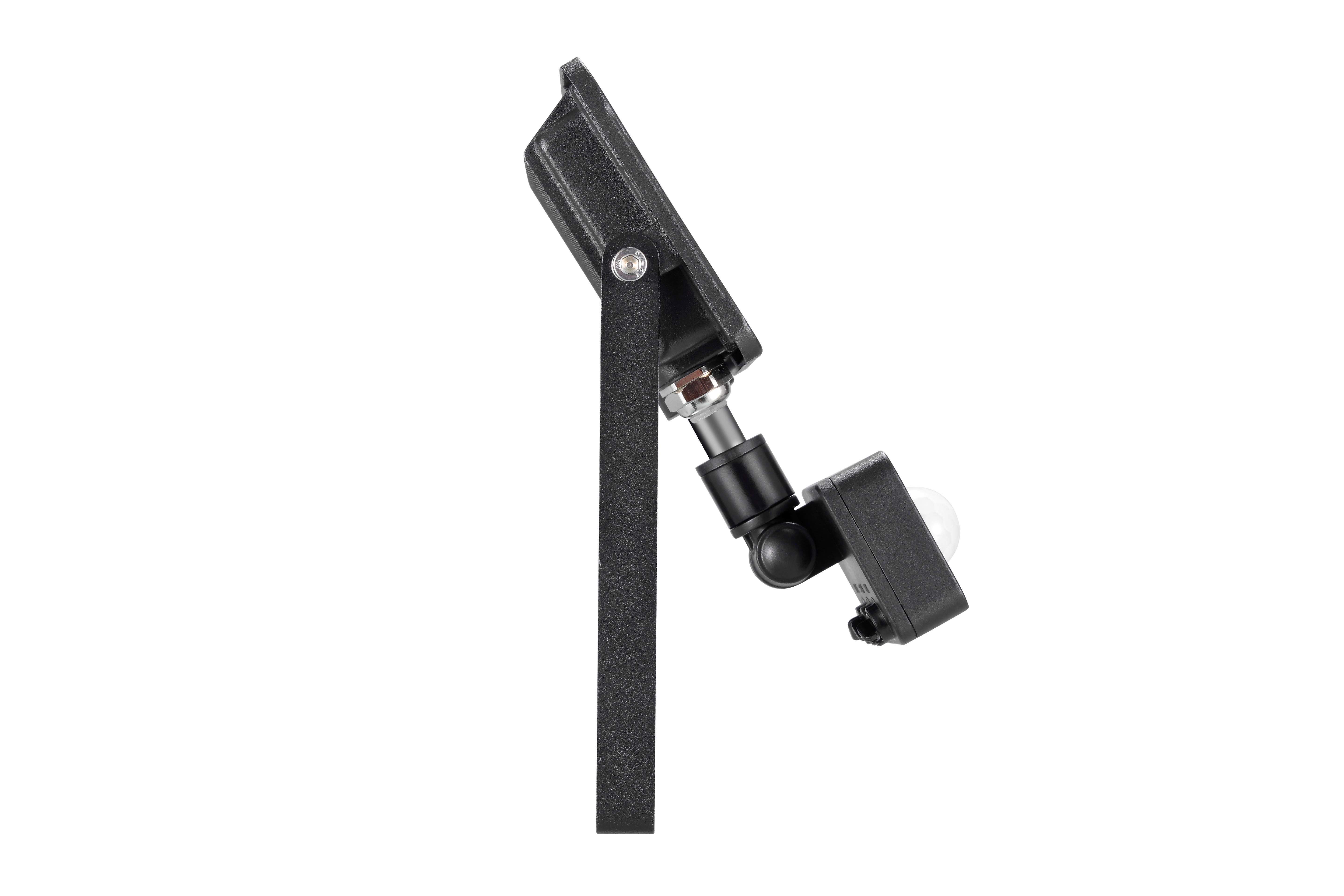

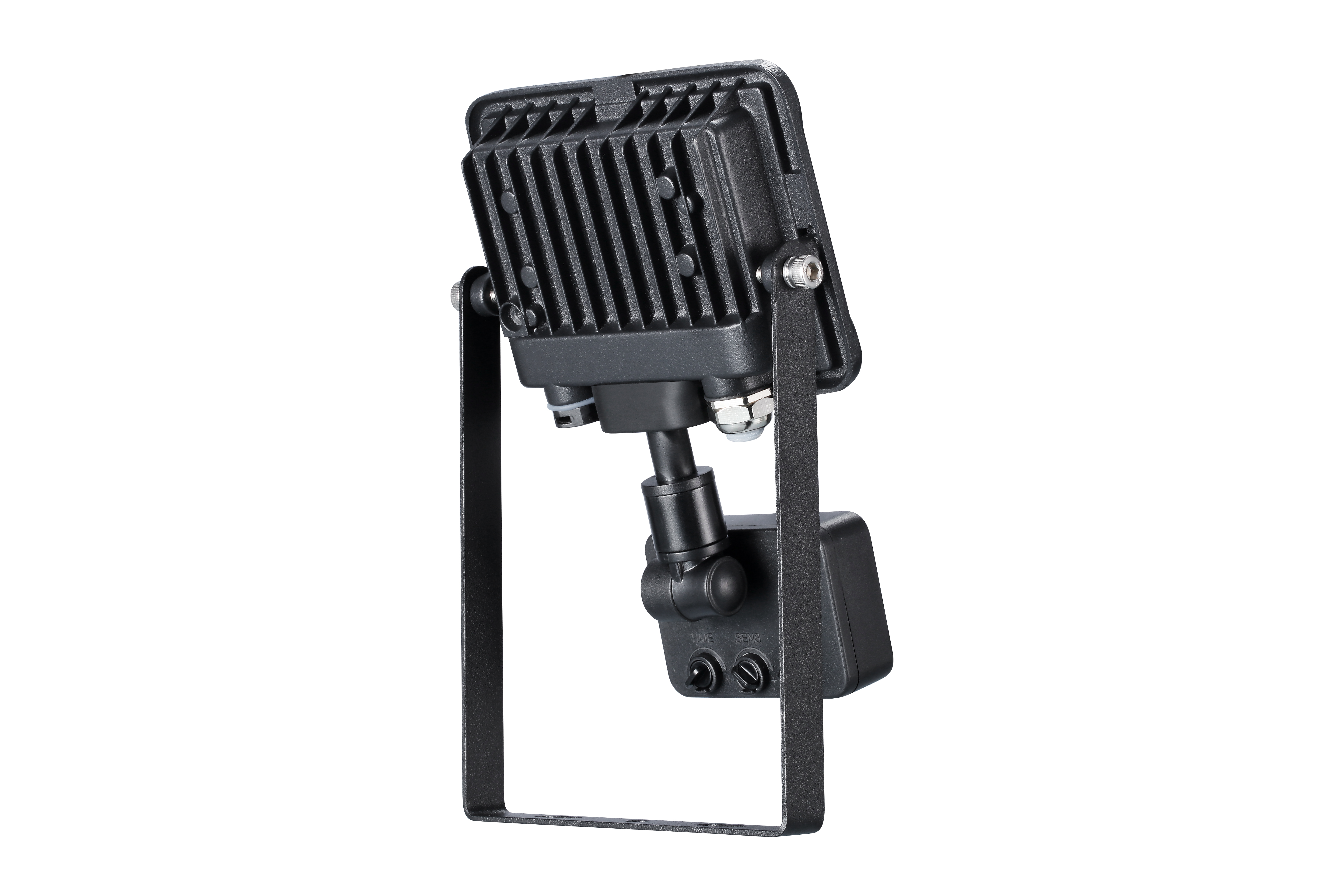

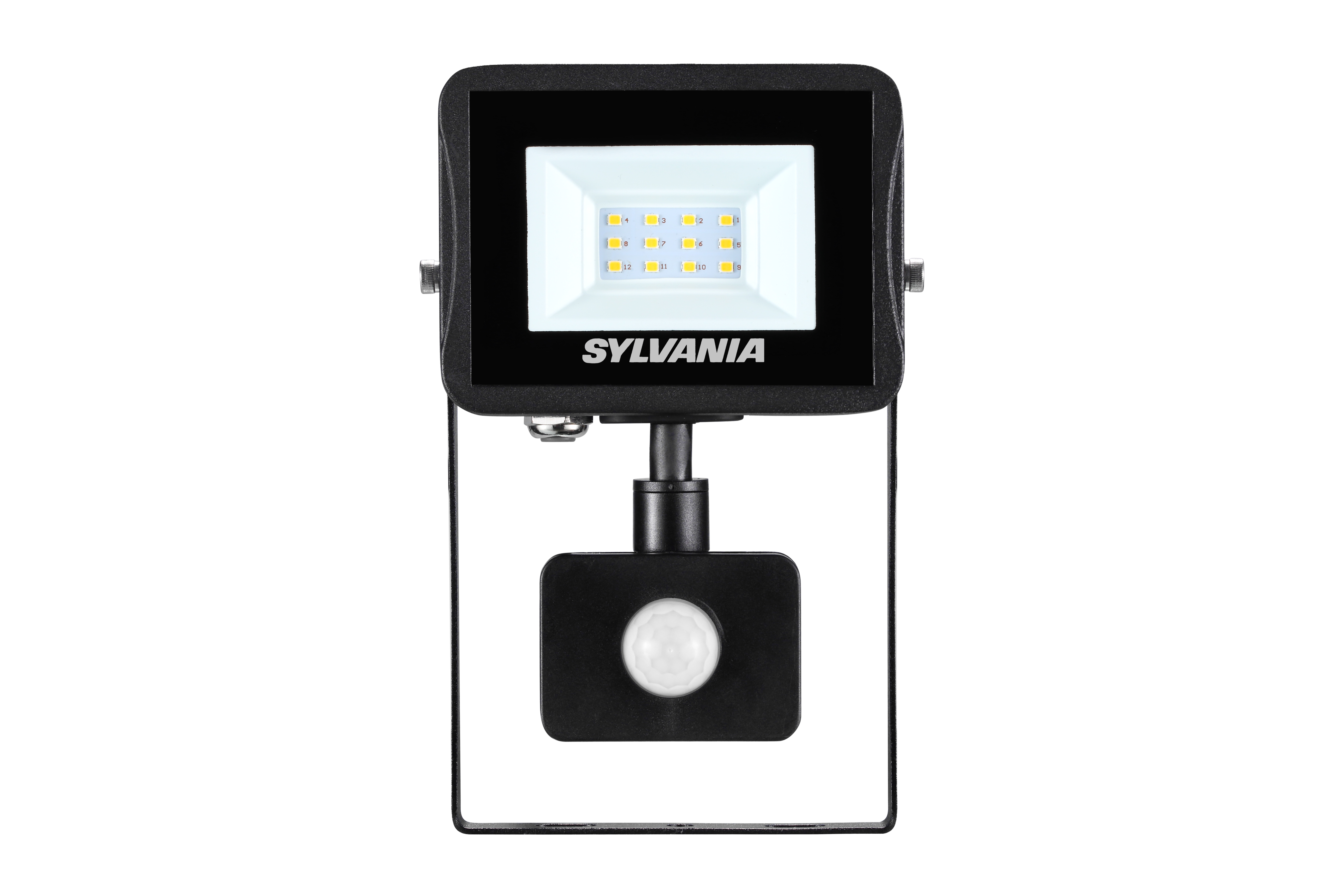

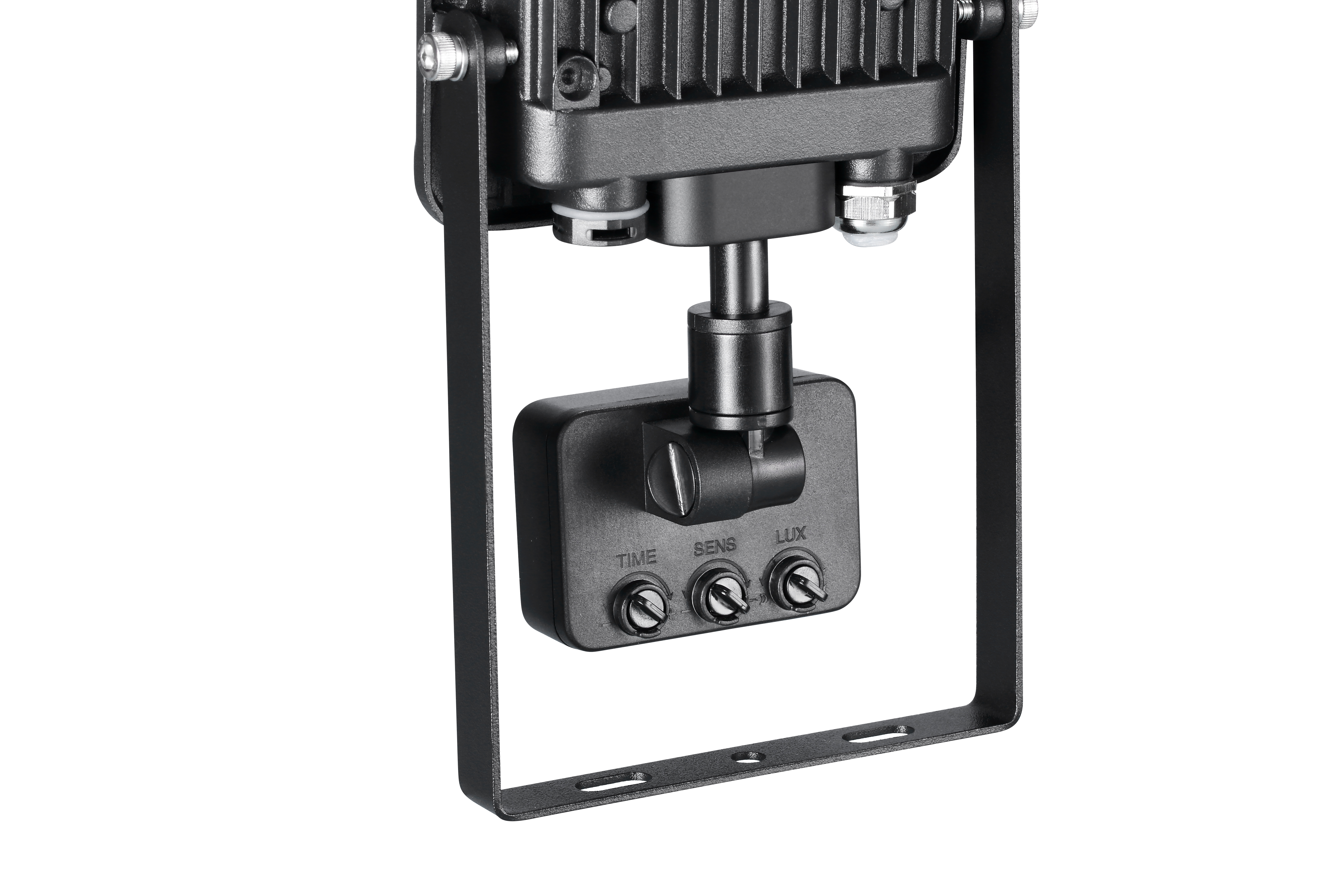

The streamlined, durable, lightweight die-cast aluminium body makes Start Flood Flat a perfect choice for building facades, car parks, garages and construction areas. The product includes 1 m pre-wired stripped cable and fitting bracket for quick and easy installation and the universal mounting bracket allows wall or surface mounting with the possibility of vertical tilting. Black (RAL9017) housing, white reflector, 1000 lm, 10 W, 100 lm/W, 4000K, non dimmable, CRI>80, IP54, IK06 - fixture, IK05 - sensor, Class I, lifespan L70:B50: 90000 hrs, 190 x 123 x 52 mm (L x W x H). Weight: 0.475kg. PIR sensor included.
Technical Assets

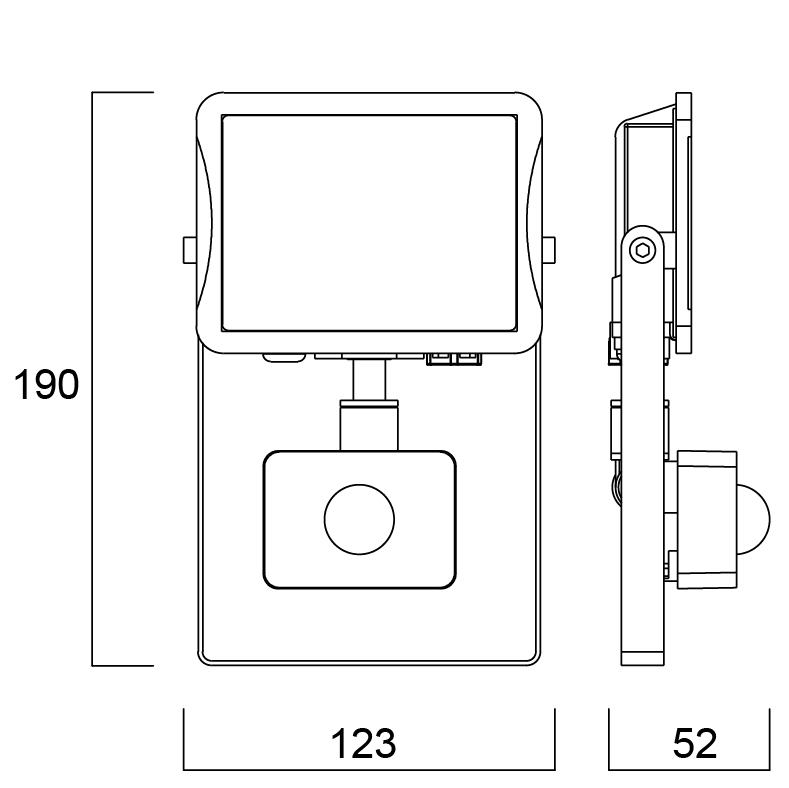

Dimensions (mm)

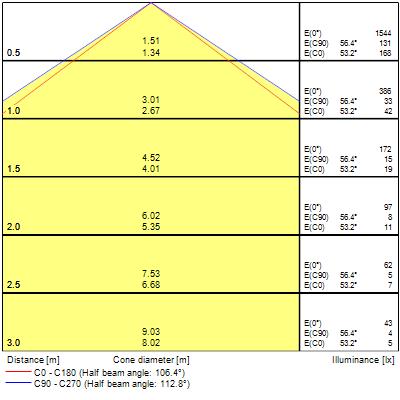

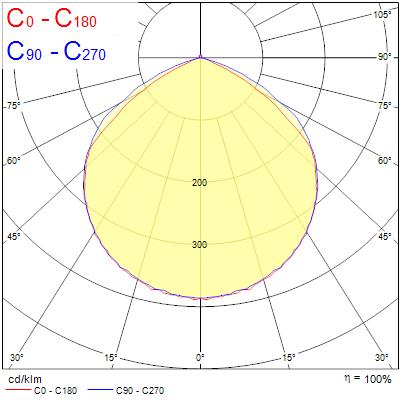

Photometrics
Product name
Start Flood Flat IP54 PIR 1000LM 840 Black
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Wall surface mounted, Ceiling surface mounting
Built in presence detector
PIR
General application
Residential & Consumer
Operating temperature range (°C)
-20°C...+40°C
Virtual assistant compatibility
N/A
ETIM Class
EC001744
E-number FI
4579539
Warranty
3 years
Fixture luminous flux (lm)
1000
Luminaire efficacy (lm/W)
100
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Beam Angle (°)
110
Distribution type
Symmetric
Photobiological Risk Group
RG1
Total power consumption (W)
10.0
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class I
Control gear type
LED driver constant current
Dimmable
No
Dimming method
N/A
Drive current (mA)
19
Inrush Current (A)
18.6
Inrush Duration (µs)
150
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Low (6% - 20%)
Max. products per 10A C Breaker
17
Max. products per 13A C Breaker
22
Max. products per 16A C Breaker
27
Max. products per 20A C Breaker
33
Max. products per 10A B Breaker
10
Max. products per 13A B Breaker
13
Max. products per 16A B Breaker
16
Max. products per 20A B Breaker
20
Connectable conductor cross section - Min (mm²)
0.5
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
90000
Lifespan L80 B50
85000
Lifespan L80 B20
54000
Housing colour
Black
IP rating
IP54
IK rating
IK06
IK rating of sensor
IK05
Diffuser finish
Transparent
Diffuser material
Safety tempered glass
Reflector finish
Not Applicable
Nominal Product Length (mm)
190
Nominal Product Width (mm)
123
Nominal Product Height (mm)
52
Weight (kg)
0.475
Product EAN number
5410288501307
Packaging single length / height (cm)
13.0
Packaging single width (cm)
6.0
Packaging single depth (cm)
20.0
DUN14 (inner)
15410288501304
Units per outer package
6
Packaging outer length / height (cm)
39.0
Packaging outer width (cm)
14.5
Packaging outer depth (cm)
22.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
