START eco Downlight 5in1 55-175 2000LM PIR
Item No:
0053394
This product is no longer available
.png)

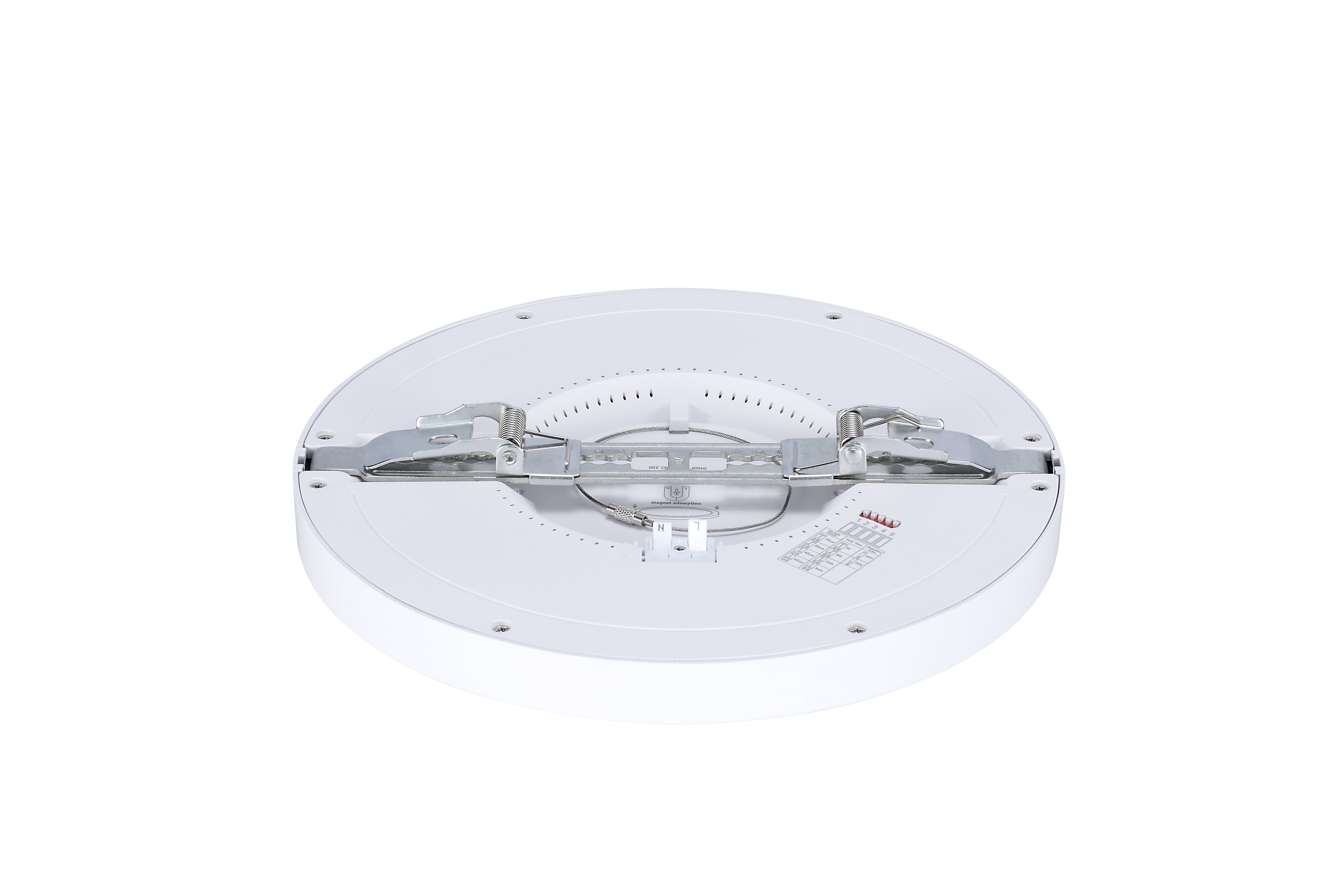

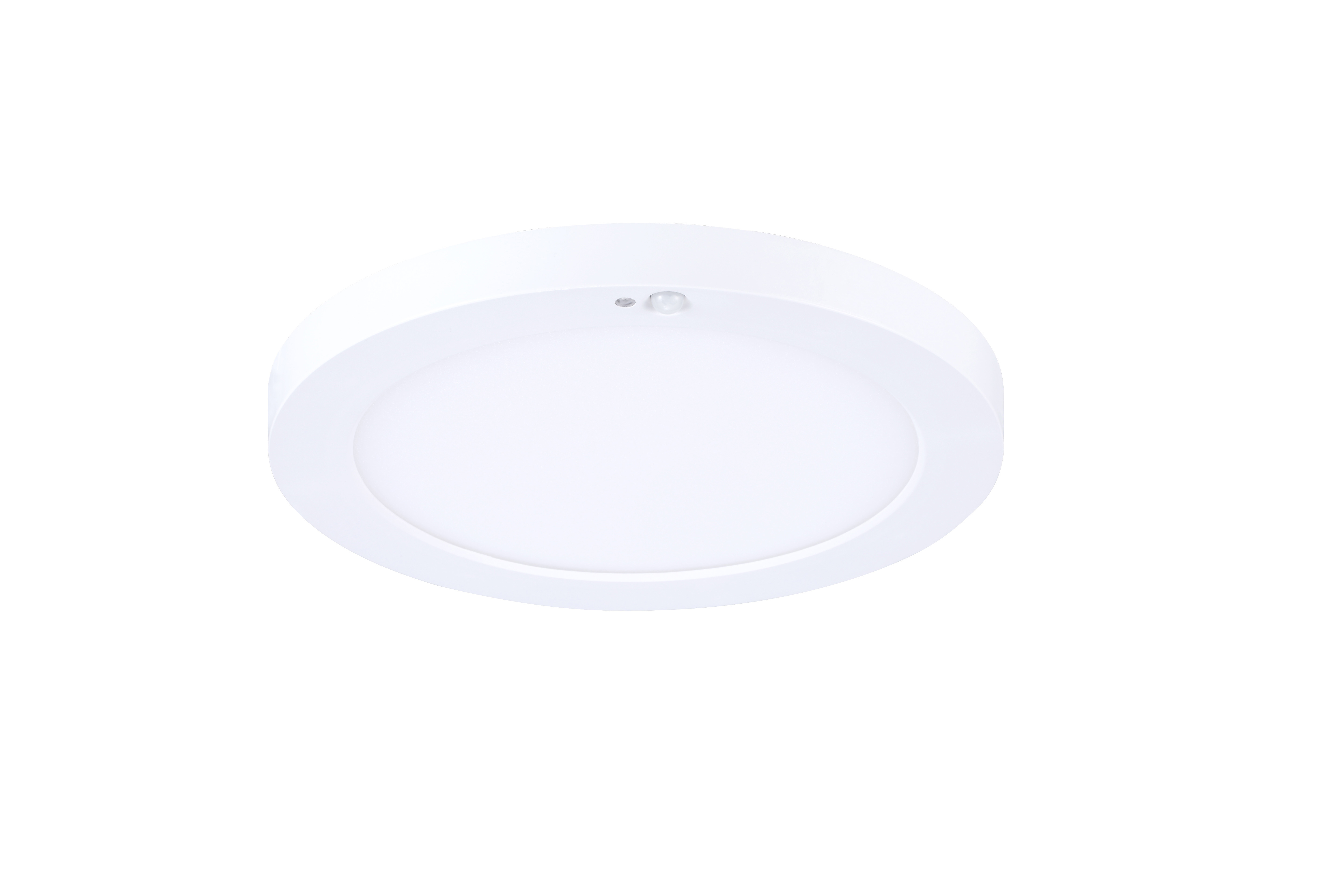

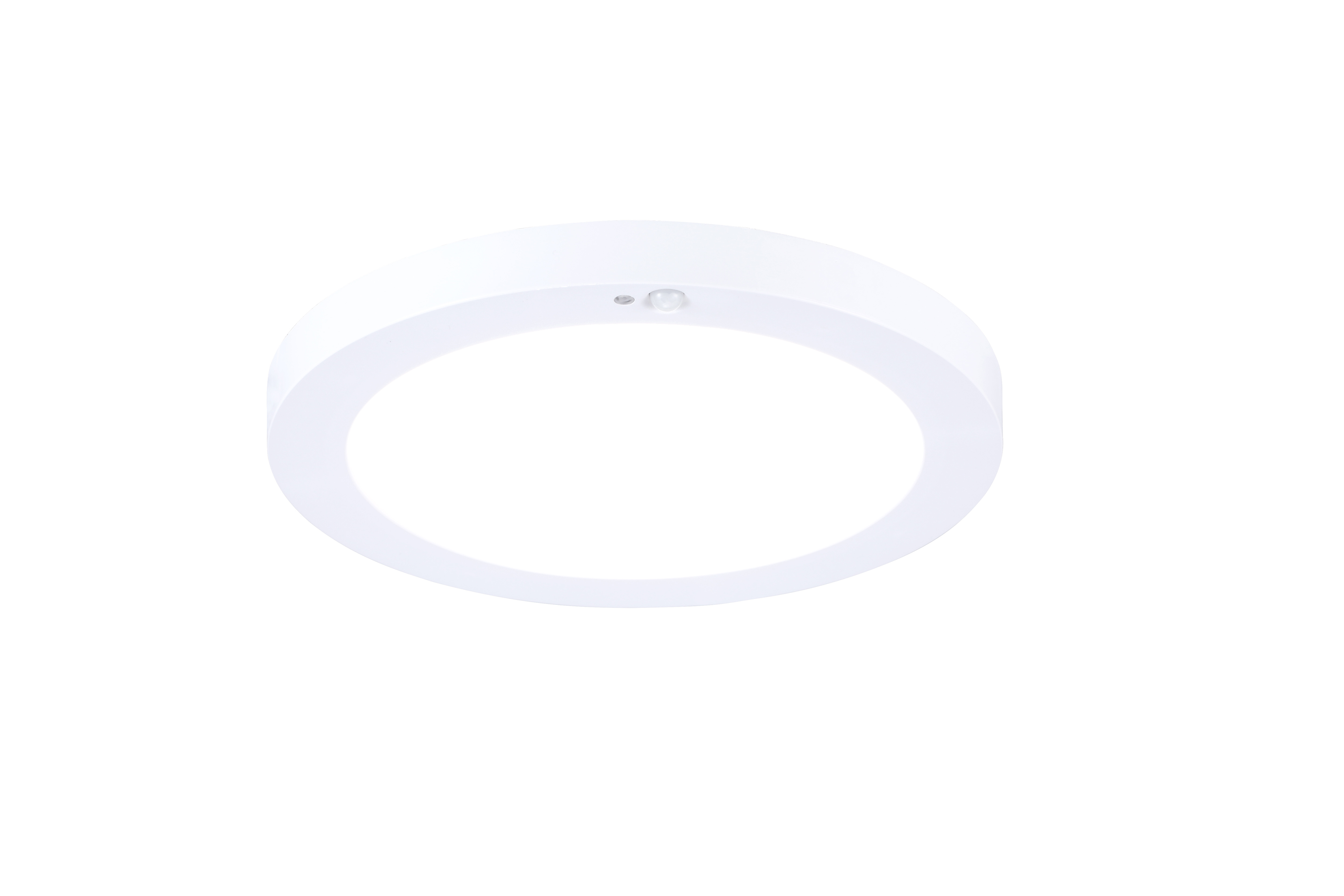

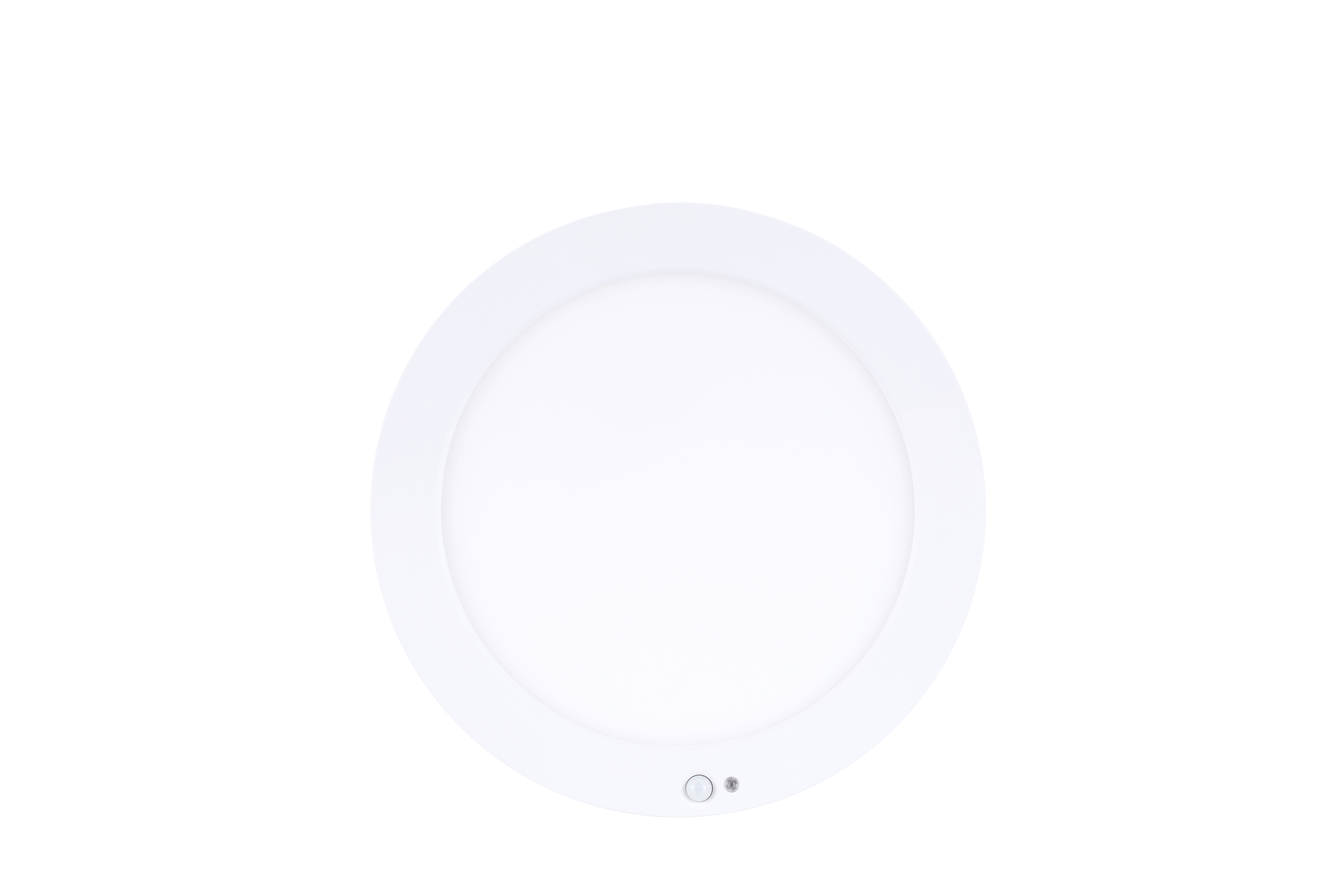

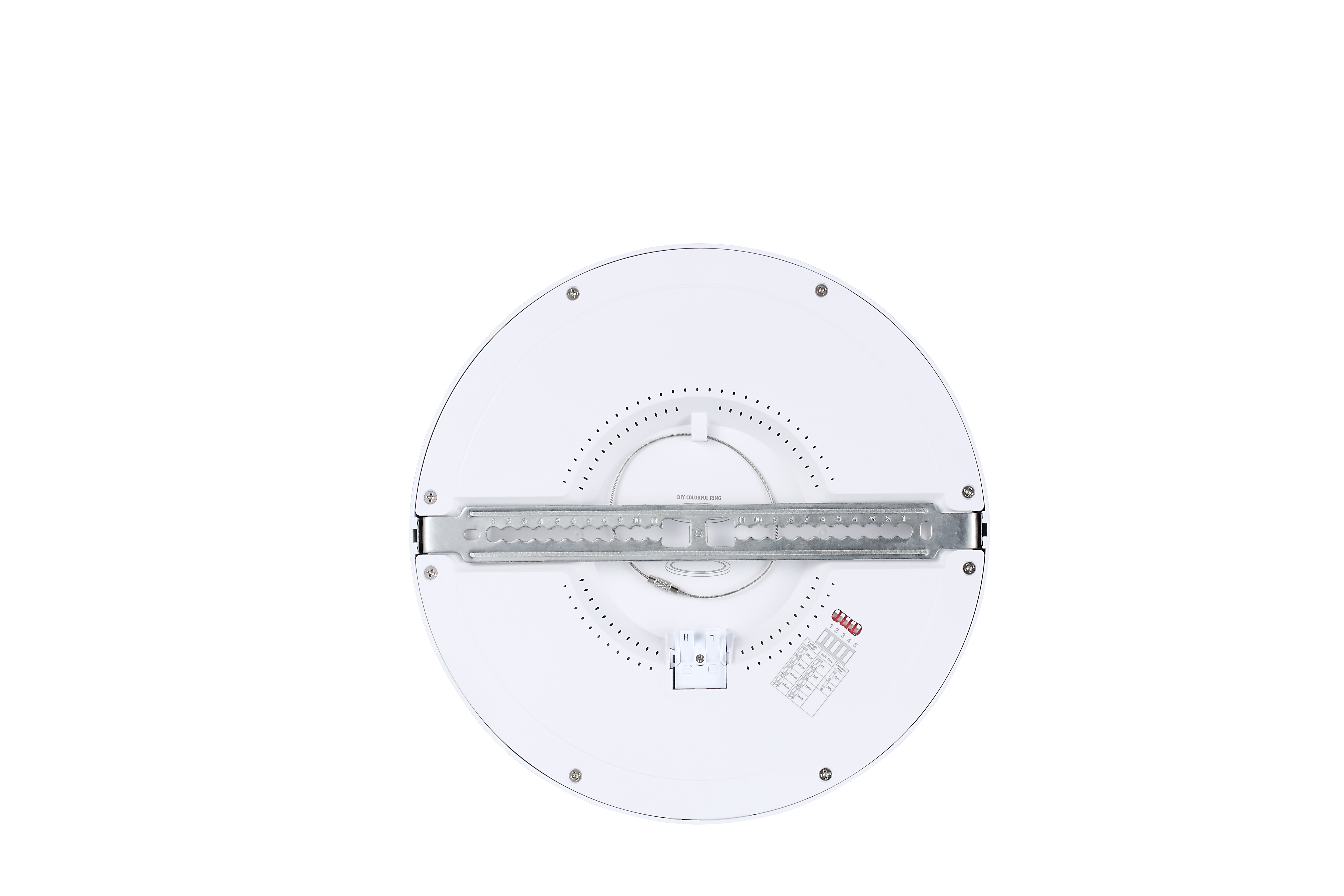

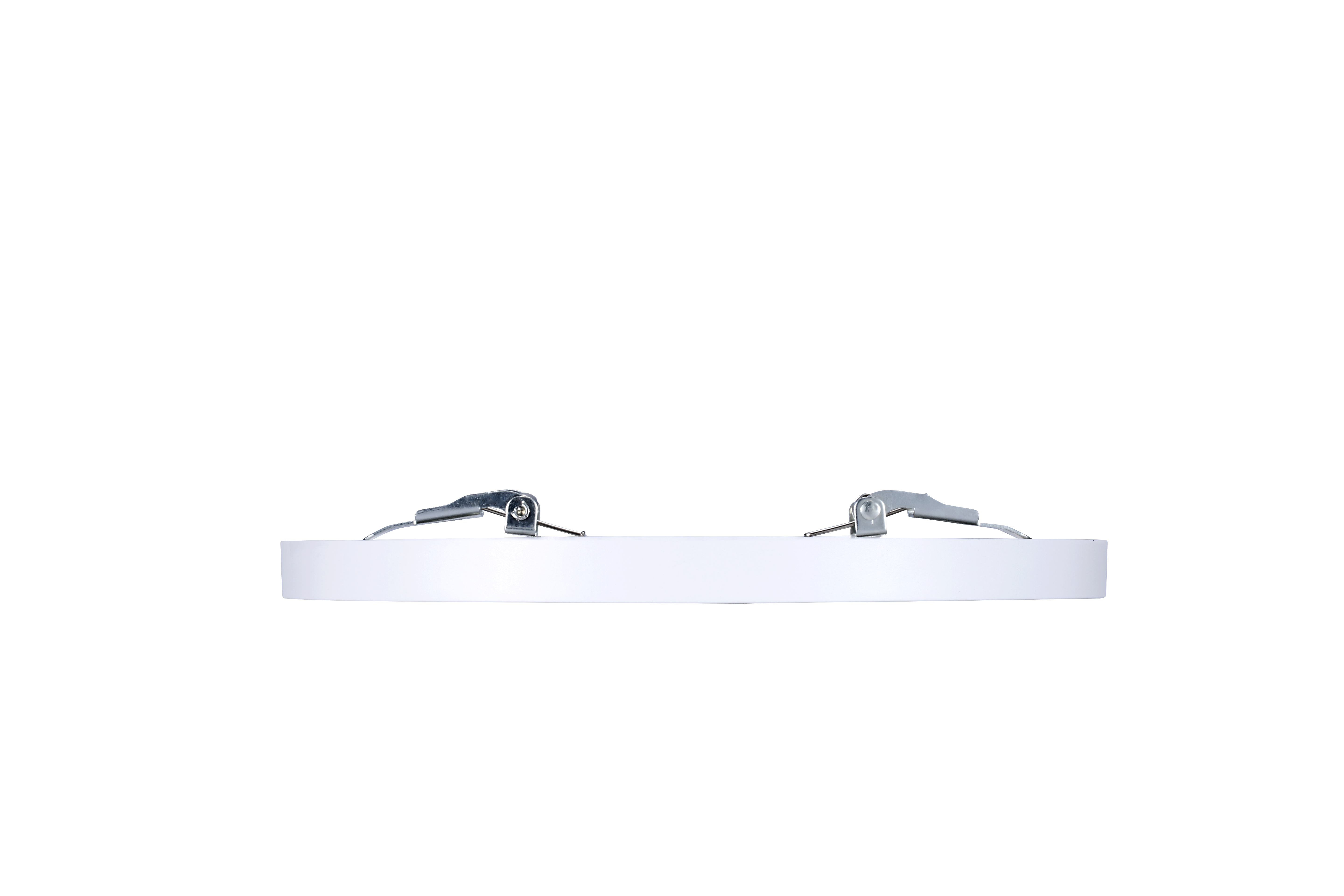

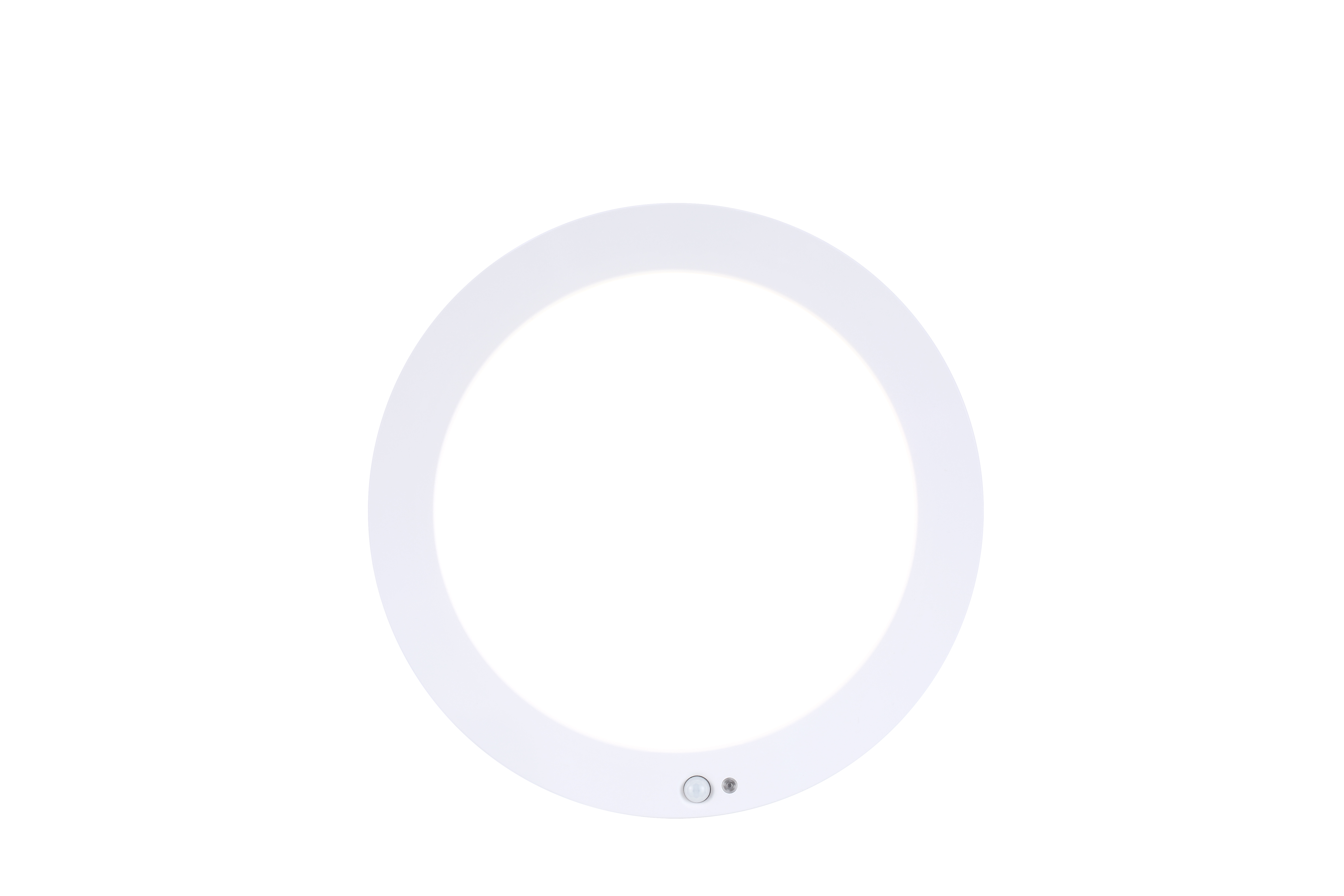

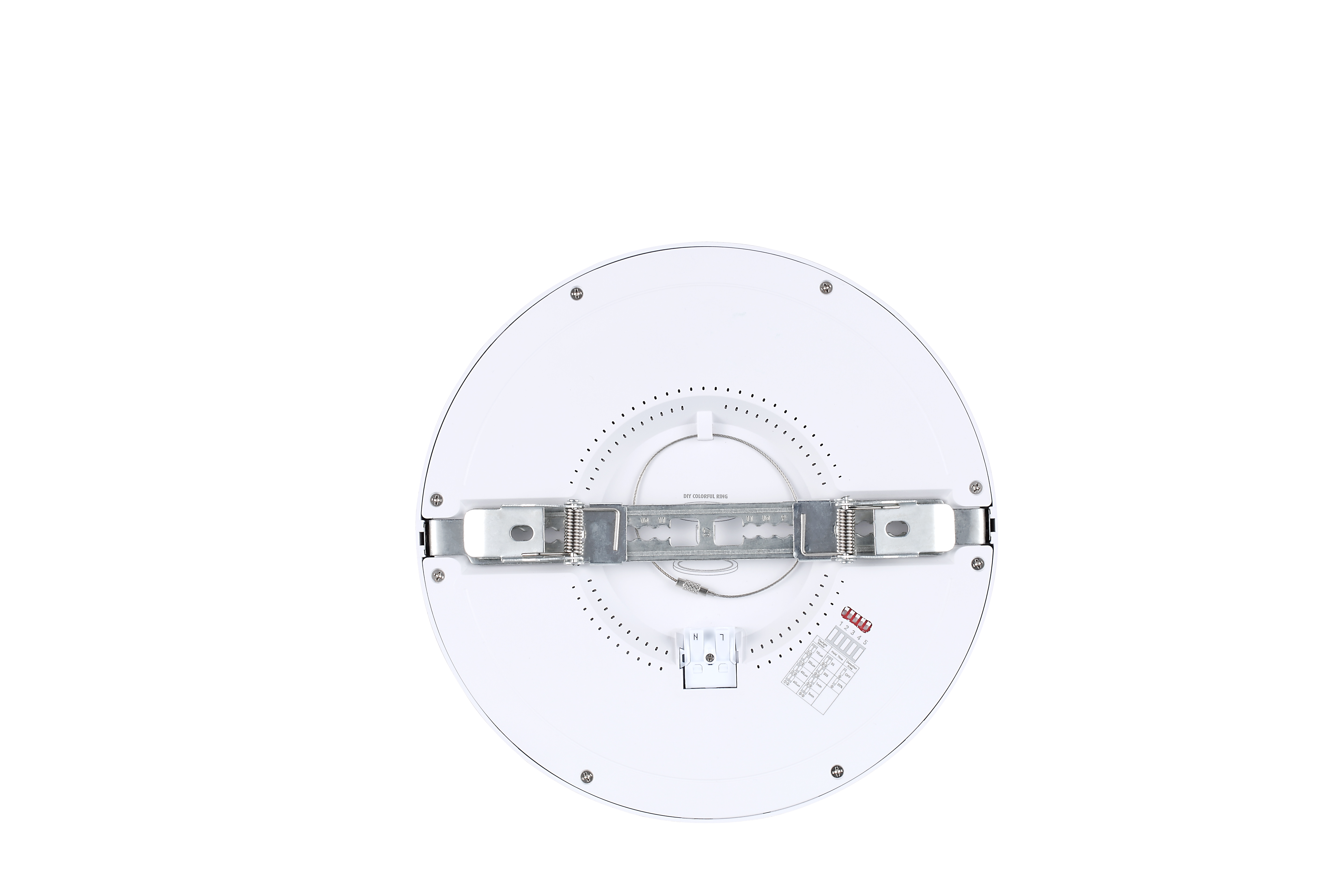

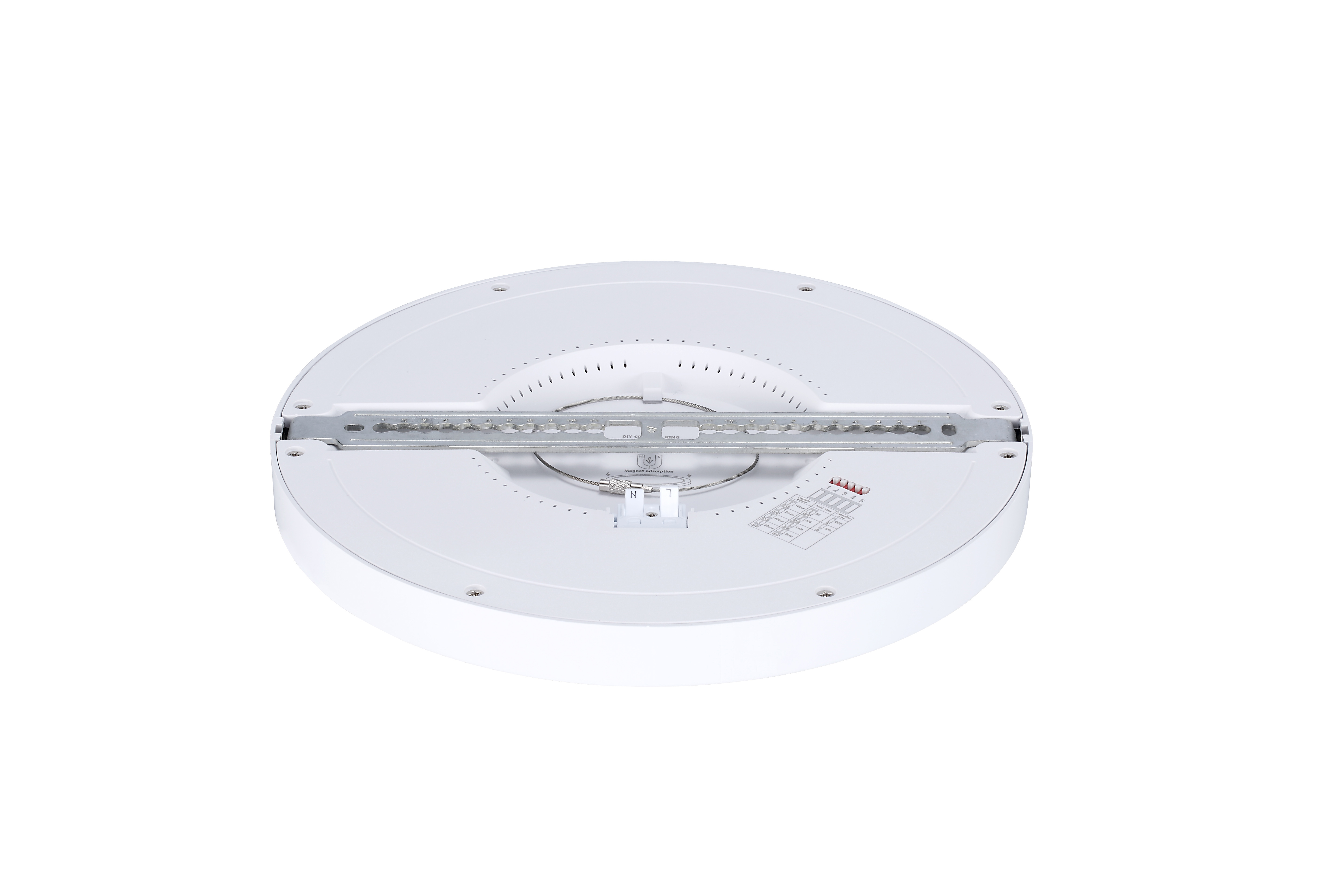

START eco Downlight 5in1 is an integrated LED recessed / surface mounted downlight with built in non dimmable driver and PIR sensor. PIR sensor with time settings (3 min max) and adjustable daylight lux level. Colour temperature (3000K, 4000K and 6500K) can be chosen by a 3-way switch located on the back of the fixture. Adaptability to various cut-outs from 55mm to 175mm. 21W, 2000lm, 95lm/W.
Downloads
Technical Assets

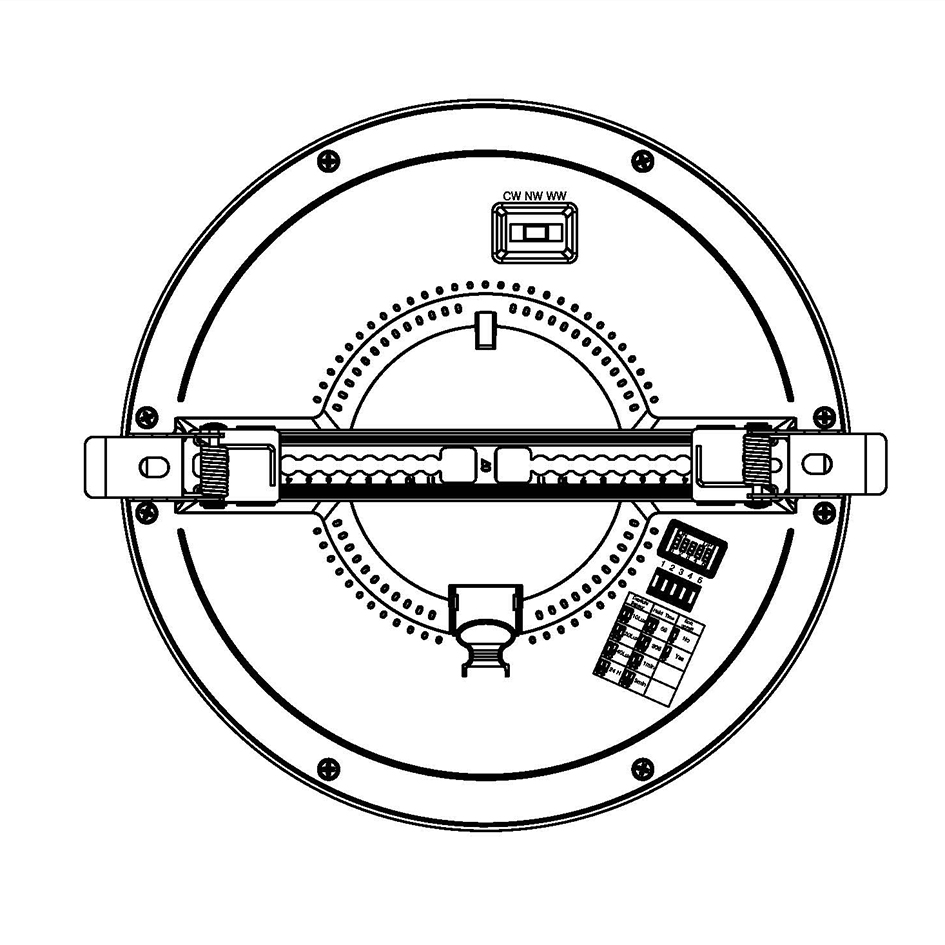

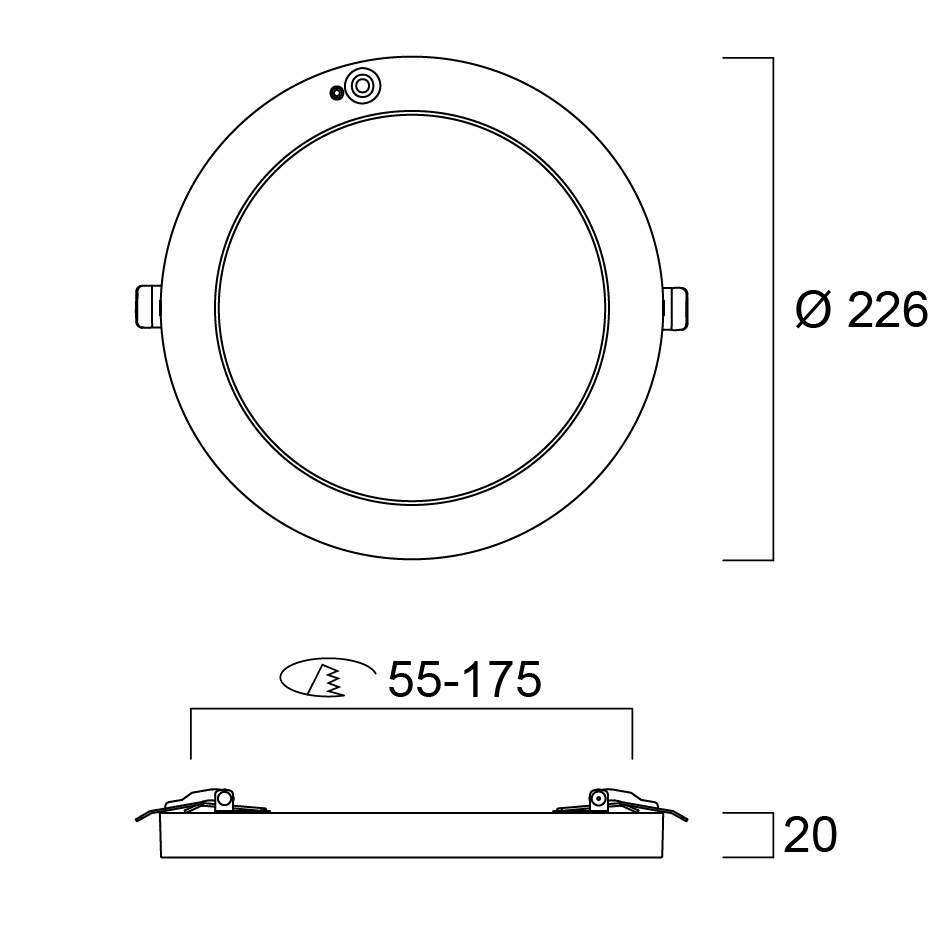

Dimensions (mm)

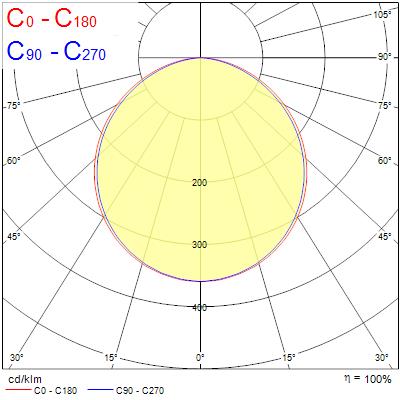

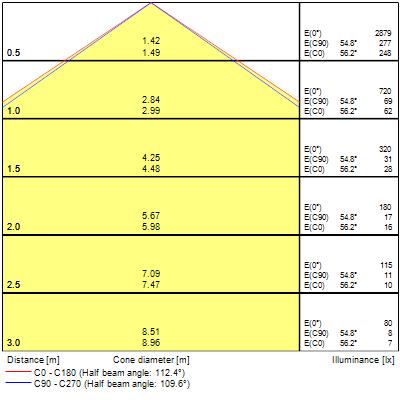

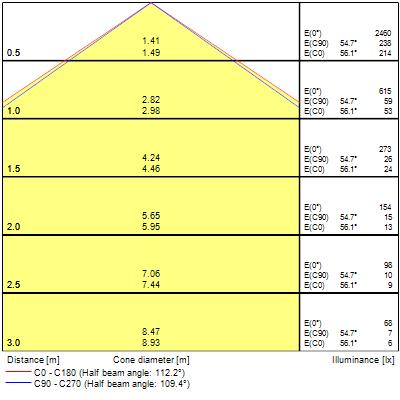

Photometrics
Product name
START eco Downlight 5in1 55-175 2000LM PIR
Technology
LED
Housing
PC Polycarbonate
Mount
Ceiling recessed mounting
Built in presence detector
PIR
General application
Residential & Consumer
Operating temperature range (°C)
-20°C...+25°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4278104
Warranty
3 years
Fixture luminous flux (lm)
2000
Luminaire efficacy (lm/W)
95
Correlated colour temperature (k)
4000
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Beam Angle (°)
110
Distribution type
Symmetric
Glare control
< 25
Photobiological Risk Group
RG0
Total power consumption (W)
21
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
22
Electrical protection
Class II
Control gear type
LED driver constant current
Dimmable
No
Drive current (mA)
210
Inrush Current (A)
25
Inrush Duration (µs)
100
Energy Efficiency Class (A->G) of contained light source
D
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
71
Max. products per 13A C Breaker
93
Max. products per 16A C Breaker
114
Max. products per 20A C Breaker
143
Lifespan L70 B50
30000
Housing colour
RAL 9003 - Signal white
IP rating
IP20
IK rating
IK03
Nominal Product Length (mm)
226
Nominal Product Width (mm)
226
Nominal Product Height (mm)
20
Nominal Product Diameter (mm)
226
Weight (kg)
0.465
Recessed Depth (mm)
50
Product EAN number
5410288533940
Packaging single length / height (cm)
24.0
Packaging single width (cm)
23.0
Packaging single depth (cm)
4.7
DUN14 (inner)
15410288533947
Units per outer package
14
Packaging outer length / height (cm)
50.4
Packaging outer width (cm)
35.8
Packaging outer depth (cm)
25.3
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-25
