START eco Downlight Flat 226 1750lm 840 DIM Surface
Item No:
0053948
This product is no longer available
.png)

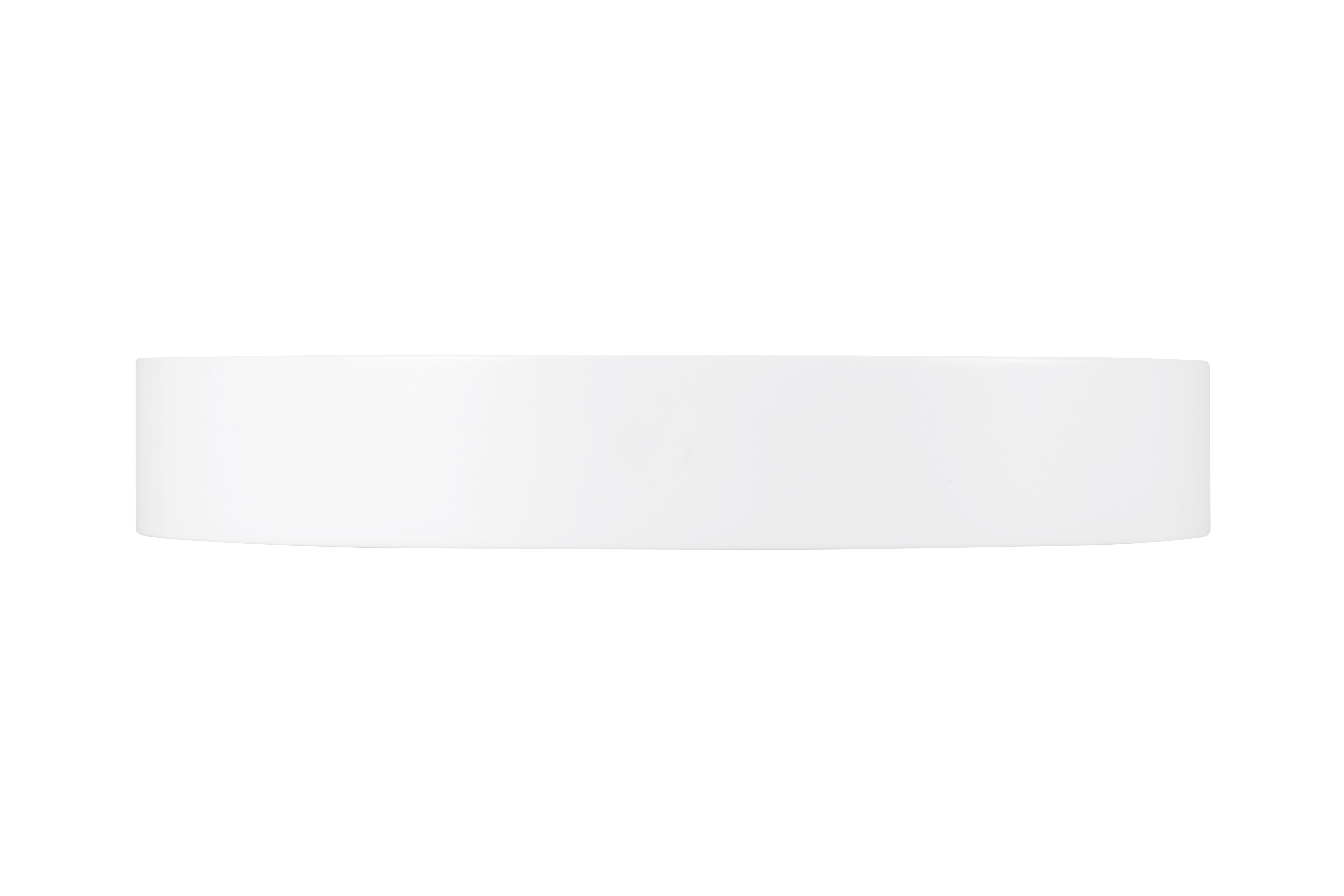

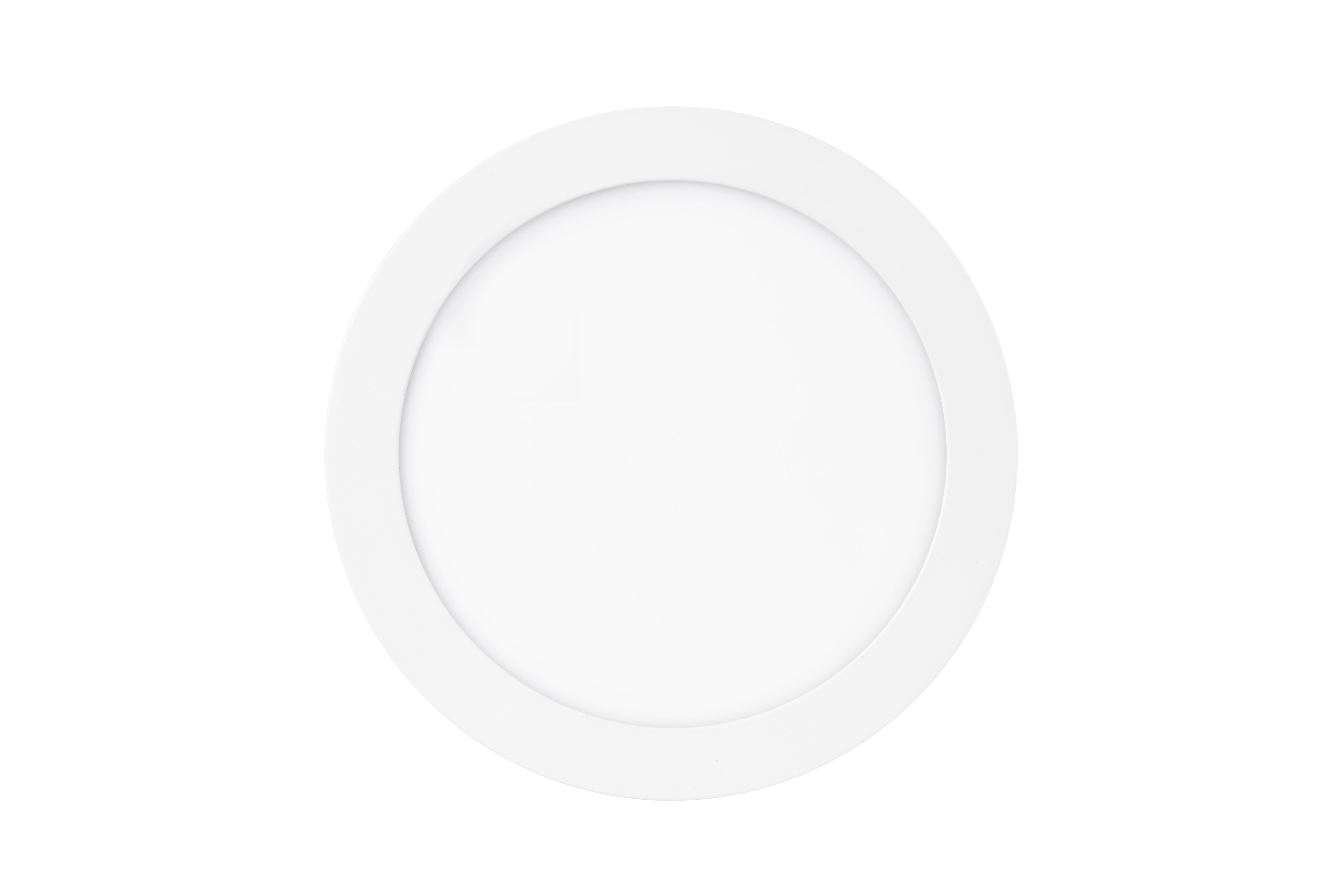

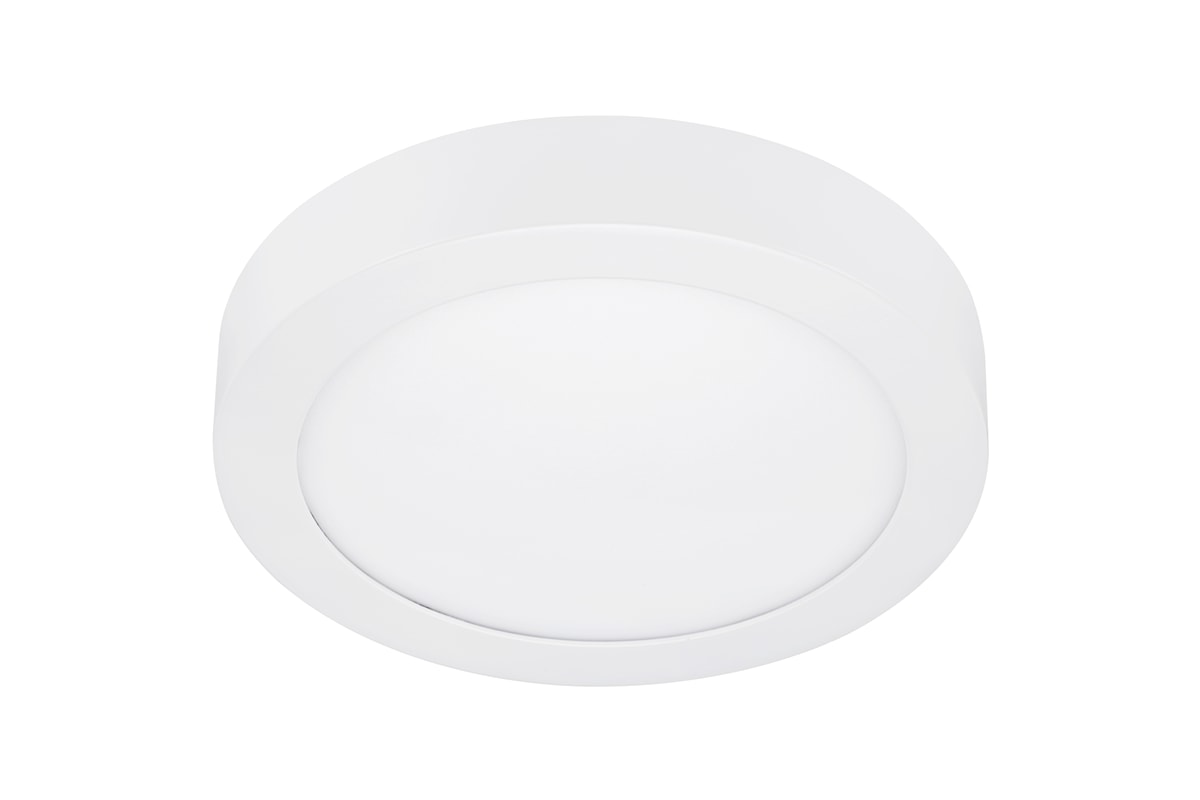

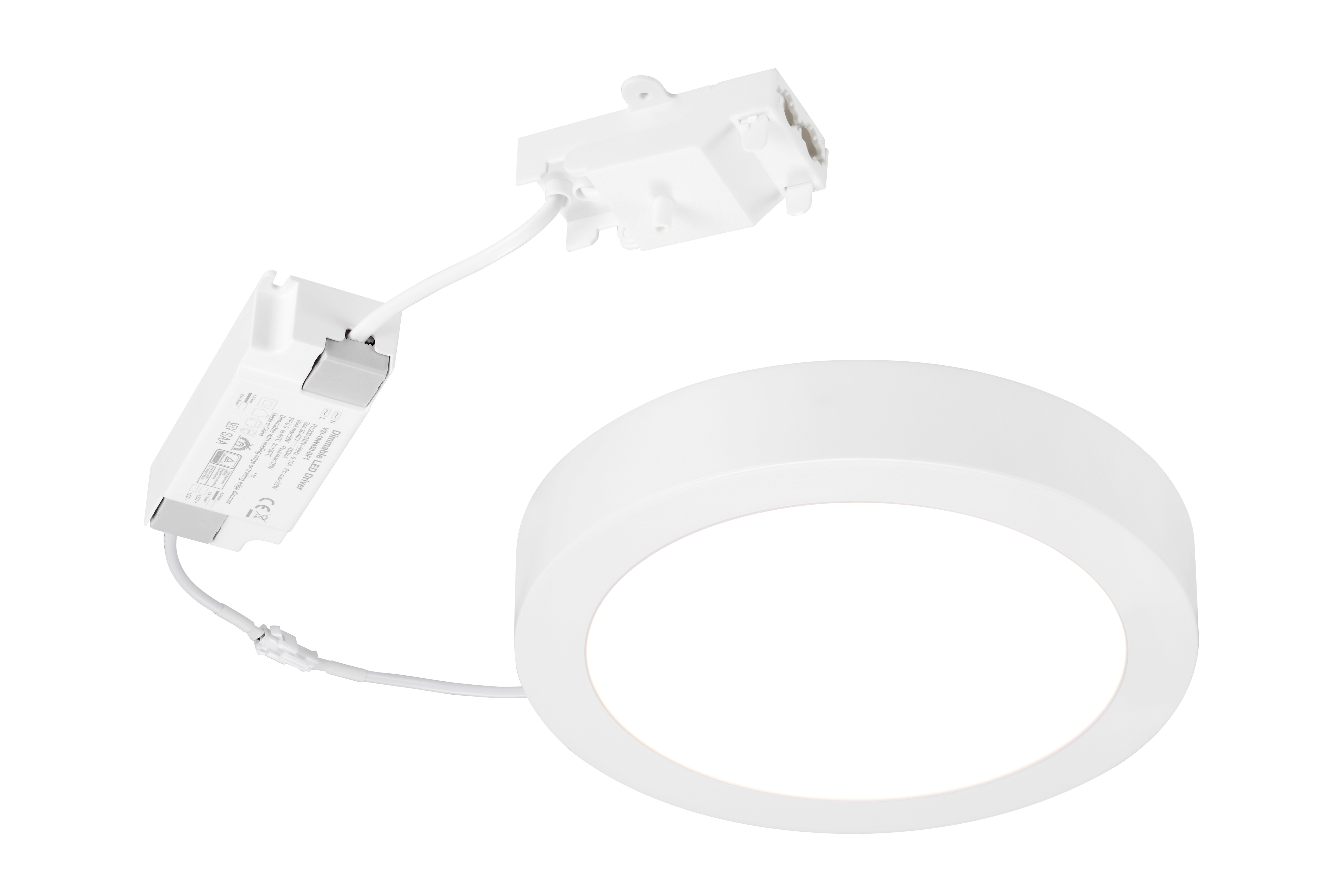

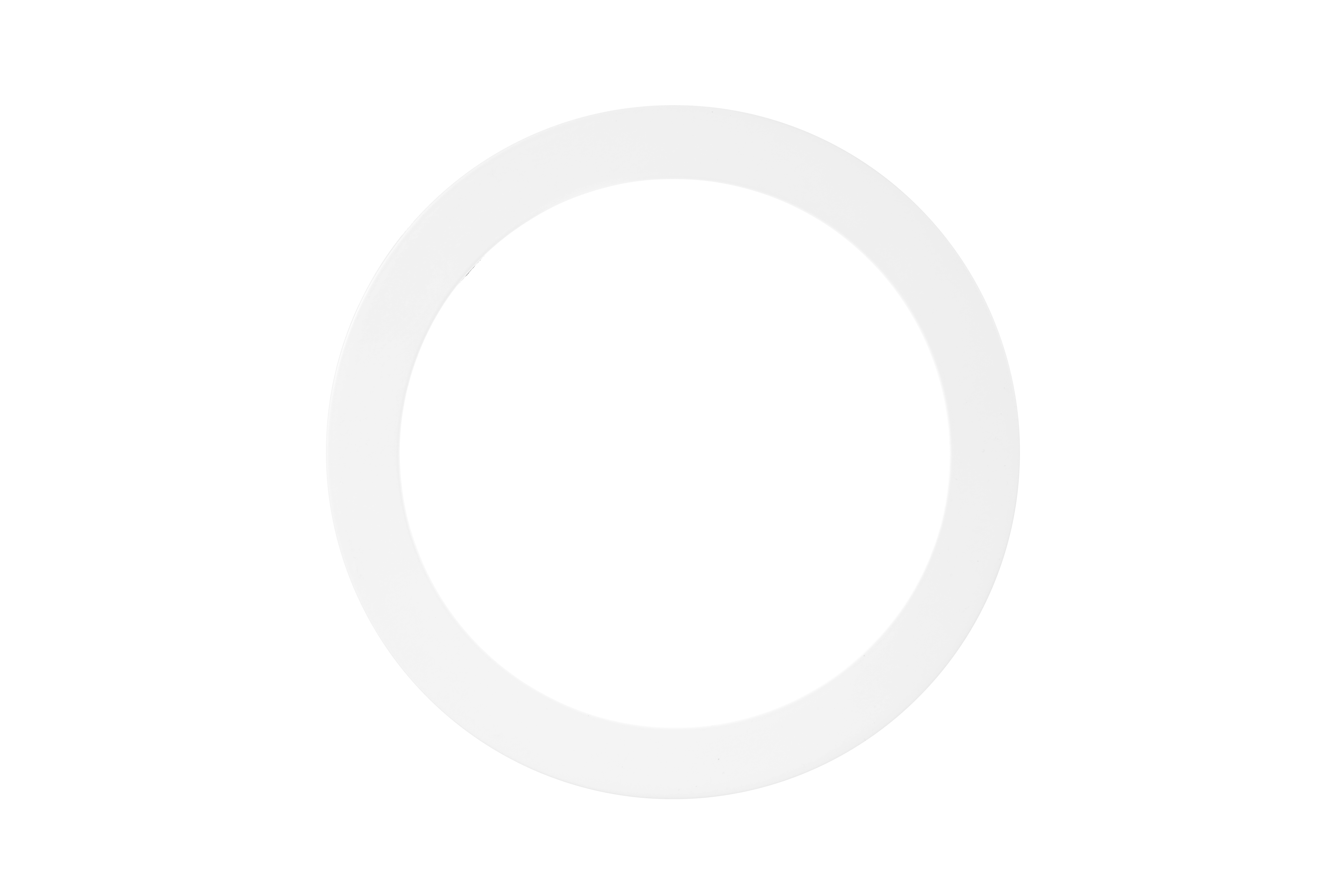

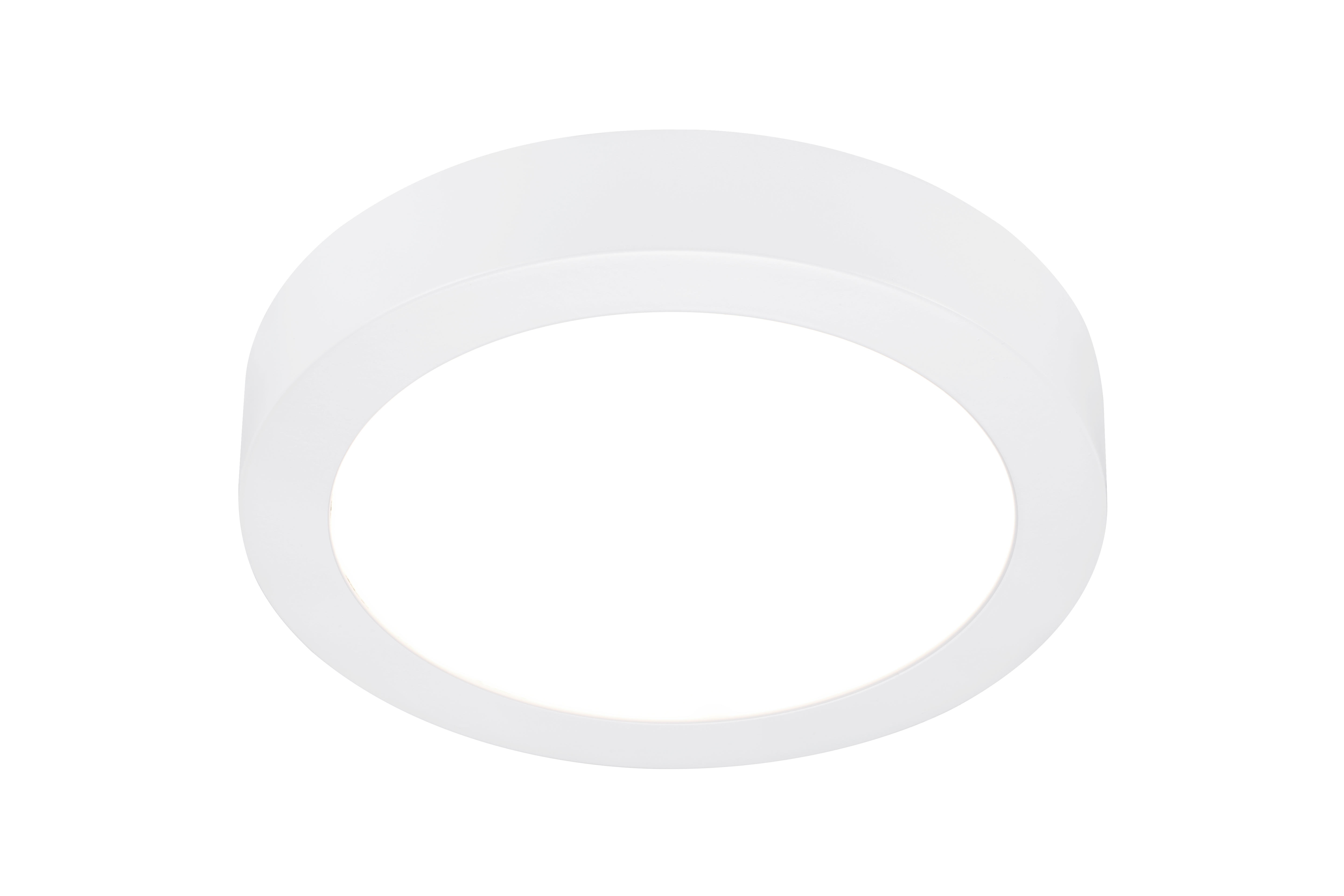

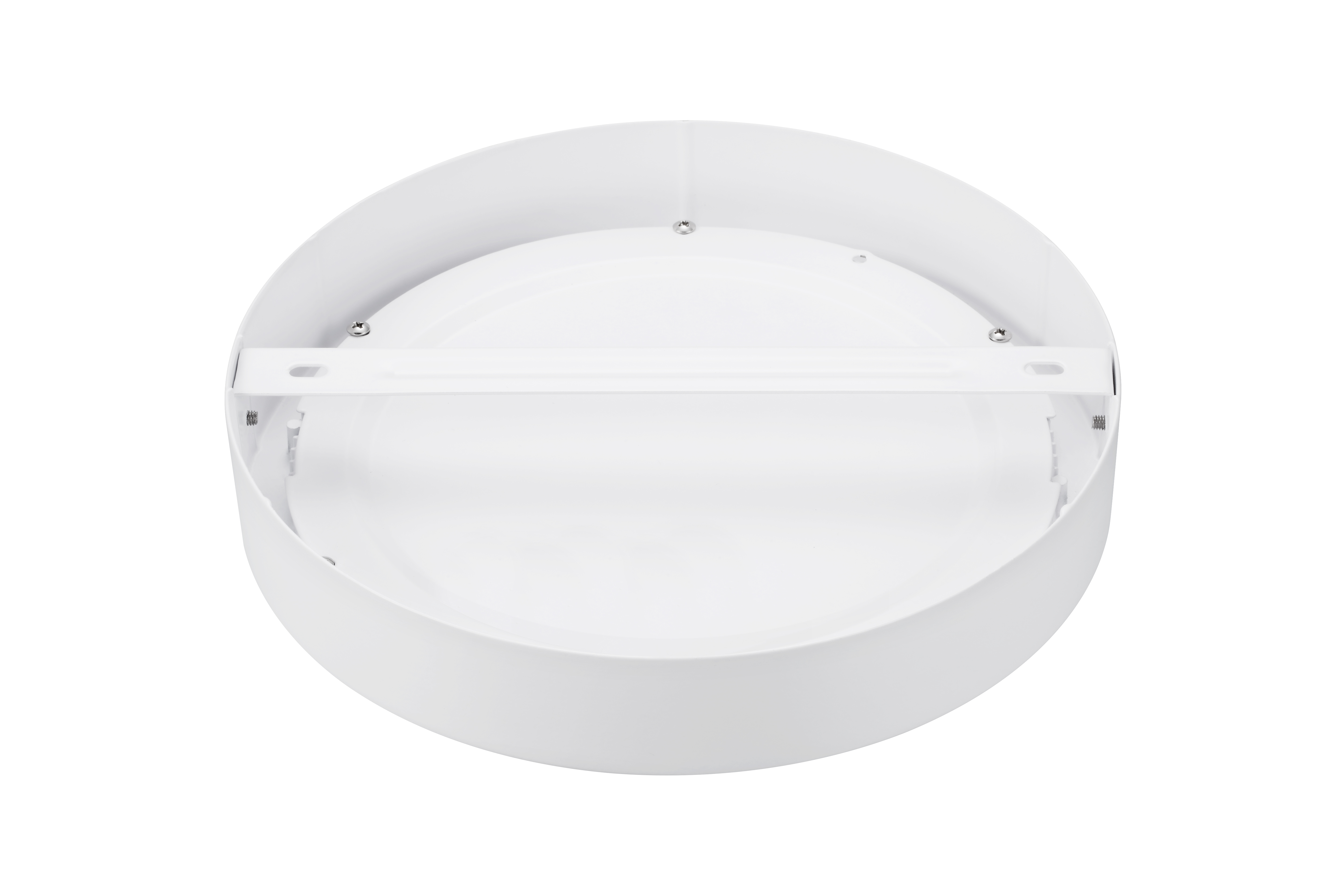

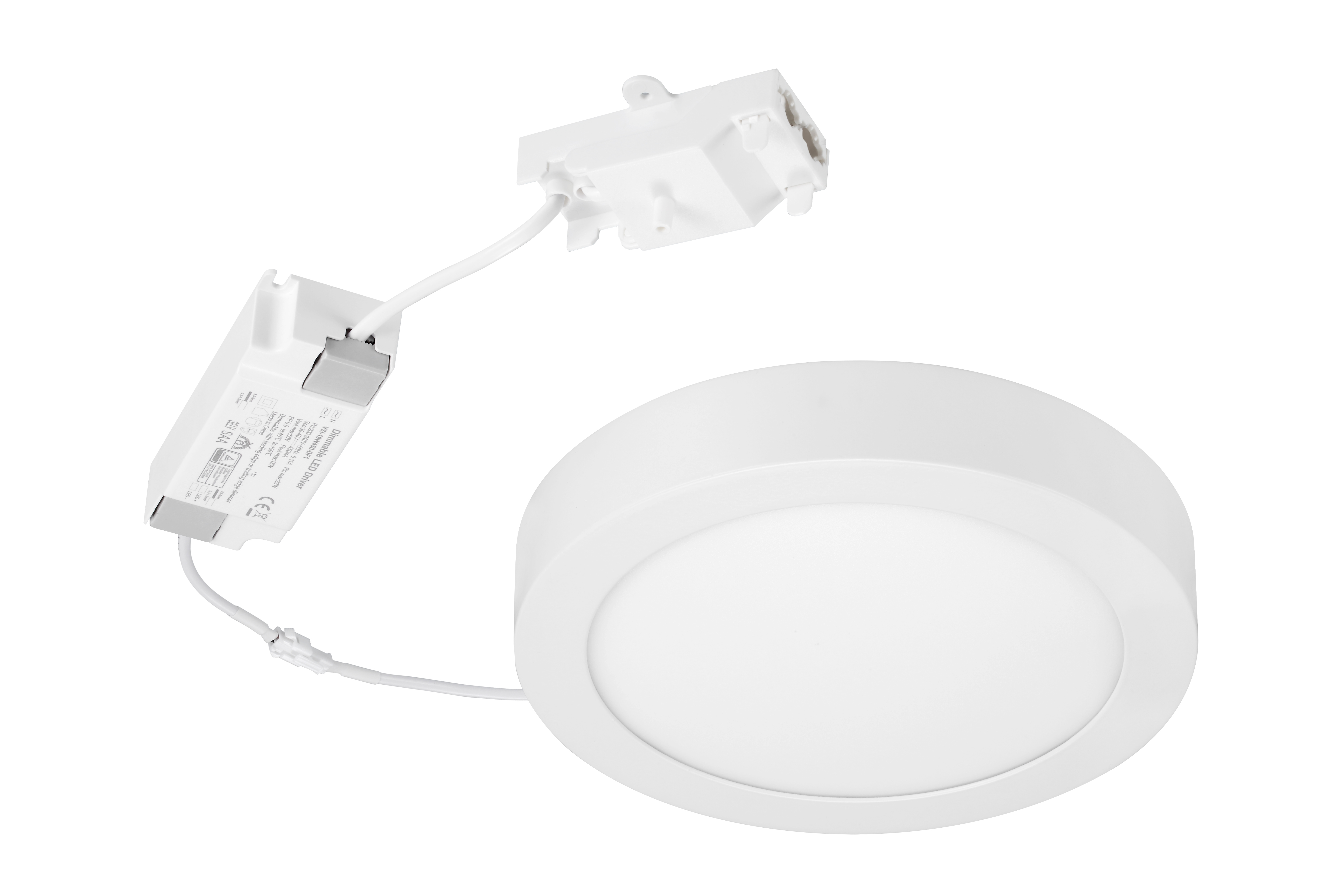

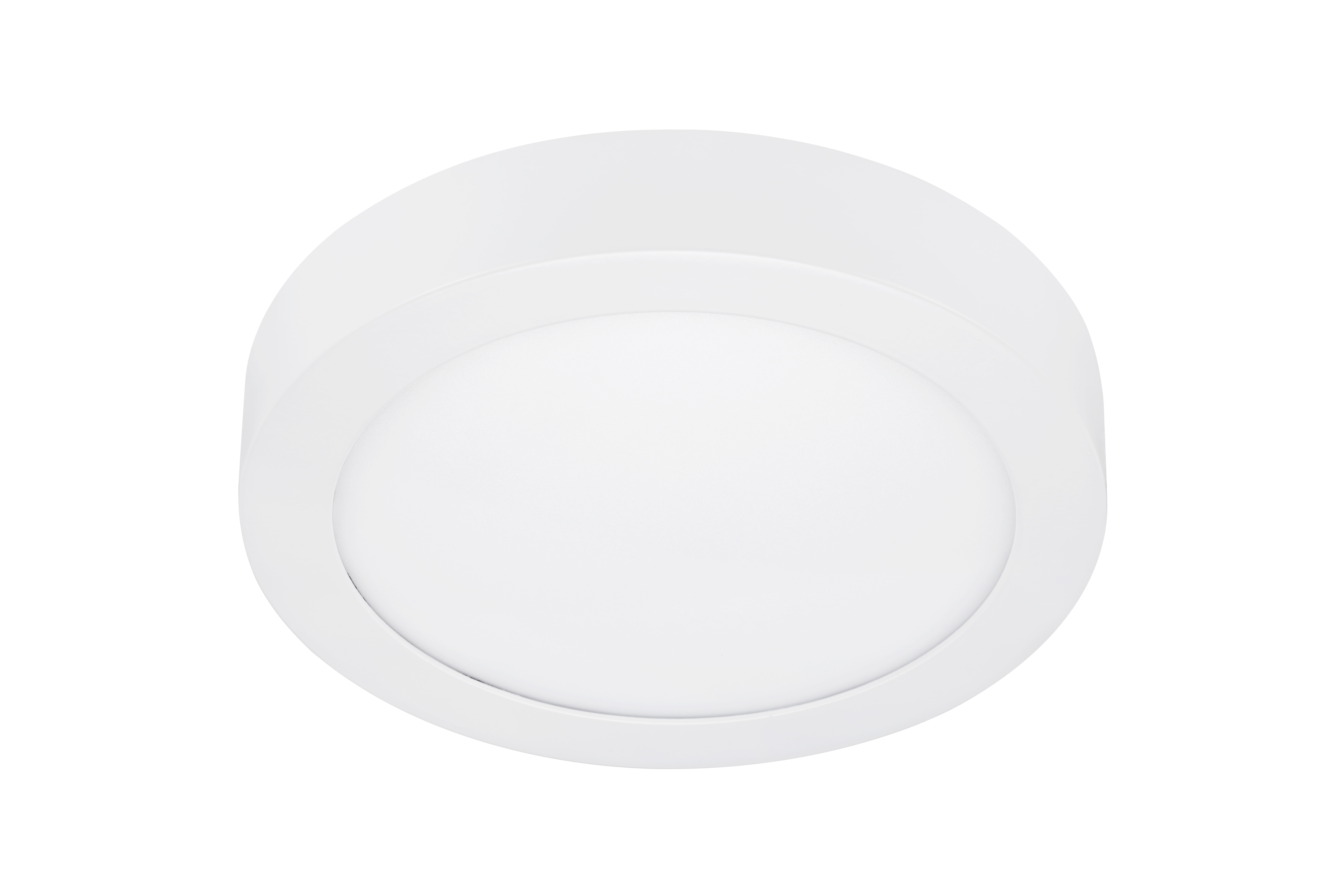

START eco Downlight Flat DIM Surface is an integrated LED surface mounted downlight with a separate, phase dimmable driver and loop in- out box, 17W; 1750Lm; 103Lm/W; 4000K; IP20.
Technical Assets

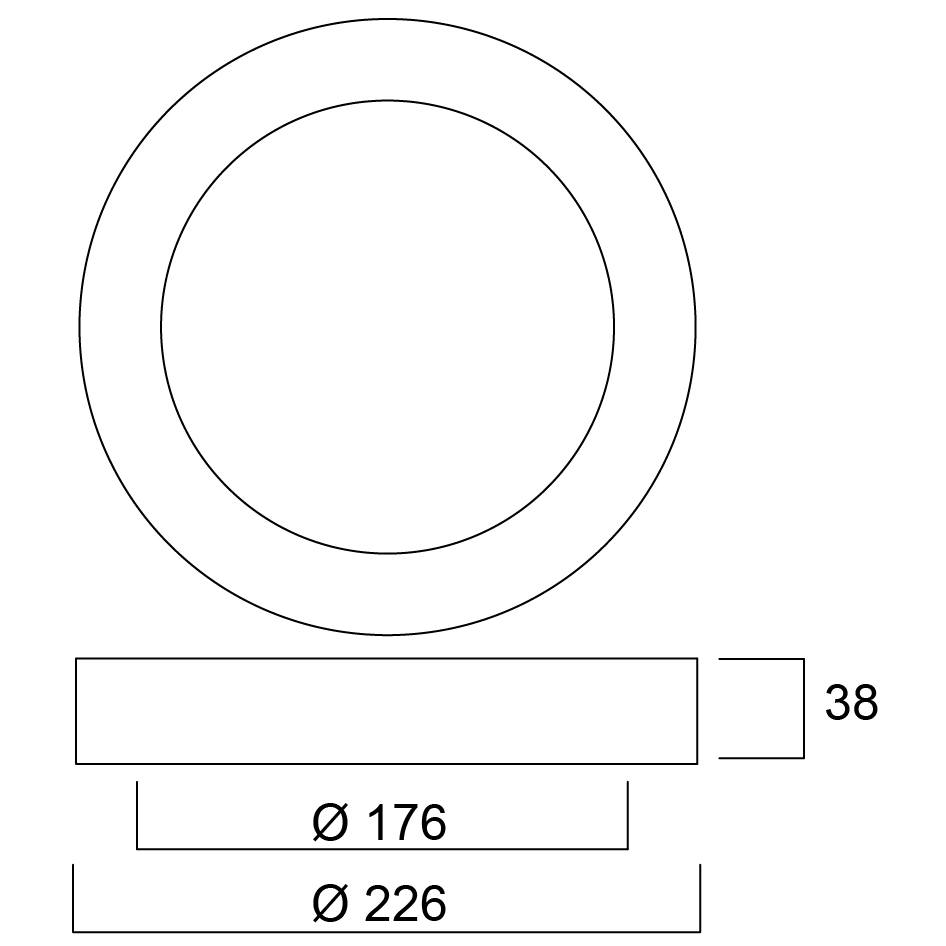

Dimensions (mm)

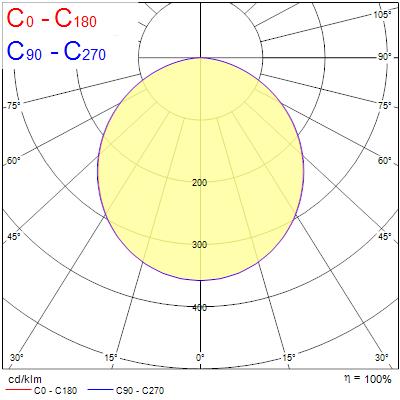

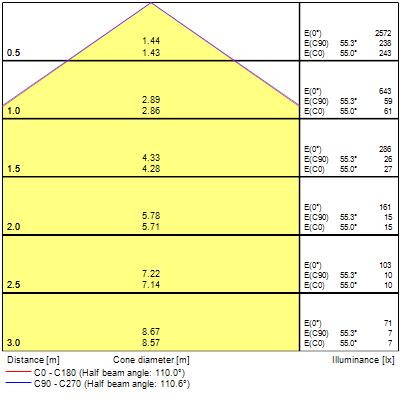

Photometrics
Product name
START eco Downlight Flat 226 1750lm 840 DIM Surface
Technology
LED
Housing
Aluminium
Mount
Ceiling surface mounting
General application
Hospitality
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4278202
Warranty
3 years
Fixture luminous flux (lm)
1750
Luminaire efficacy (lm/W)
103
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Beam Angle (°)
120
Distribution type
Symmetric
Glare control
< 28
Photobiological Risk Group
RG0
Total power consumption (W)
17
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20.0
Electrical protection
Class II
Control gear required
No
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
Mains: leading / trailing edge
Drive current (mA)
450
Inrush Current (A)
4.16
Inrush Duration (µs)
112
Energy Efficiency Class (A->G) of contained light source
D
Nominal Frequency (Hz)
50Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
67
Max. products per 13A C Breaker
87
Max. products per 16A C Breaker
107
Max. products per 20A C Breaker
133
Max. products per 10A B Breaker
67
Max. products per 13A B Breaker
87
Max. products per 16A B Breaker
107
Max. products per 20A B Breaker
133
Lifespan L70 B50
60000
Lifespan L90 B10
23000
Housing colour
RAL 9003 - Signal white
IP rating
IP20
IK rating
IK06
Diffuser finish
Opal
Diffuser material
PS Polystyrene
Nominal Product Height (mm)
38
Nominal Product Diameter (mm)
226
Weight (kg)
0.687
Product EAN number
5410288539485
Packaging single length / height (cm)
24.7
Packaging single width (cm)
23.0
Packaging single depth (cm)
4.2
DUN14 (inner)
15410288539482
Units per outer package
10
Packaging outer length / height (cm)
47.5
Packaging outer width (cm)
23.0
Packaging outer depth (cm)
26.5
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
