Sylflat 105 IP44 550lm 830 DIM
Item No:
0053988
This product is no longer available
.png)

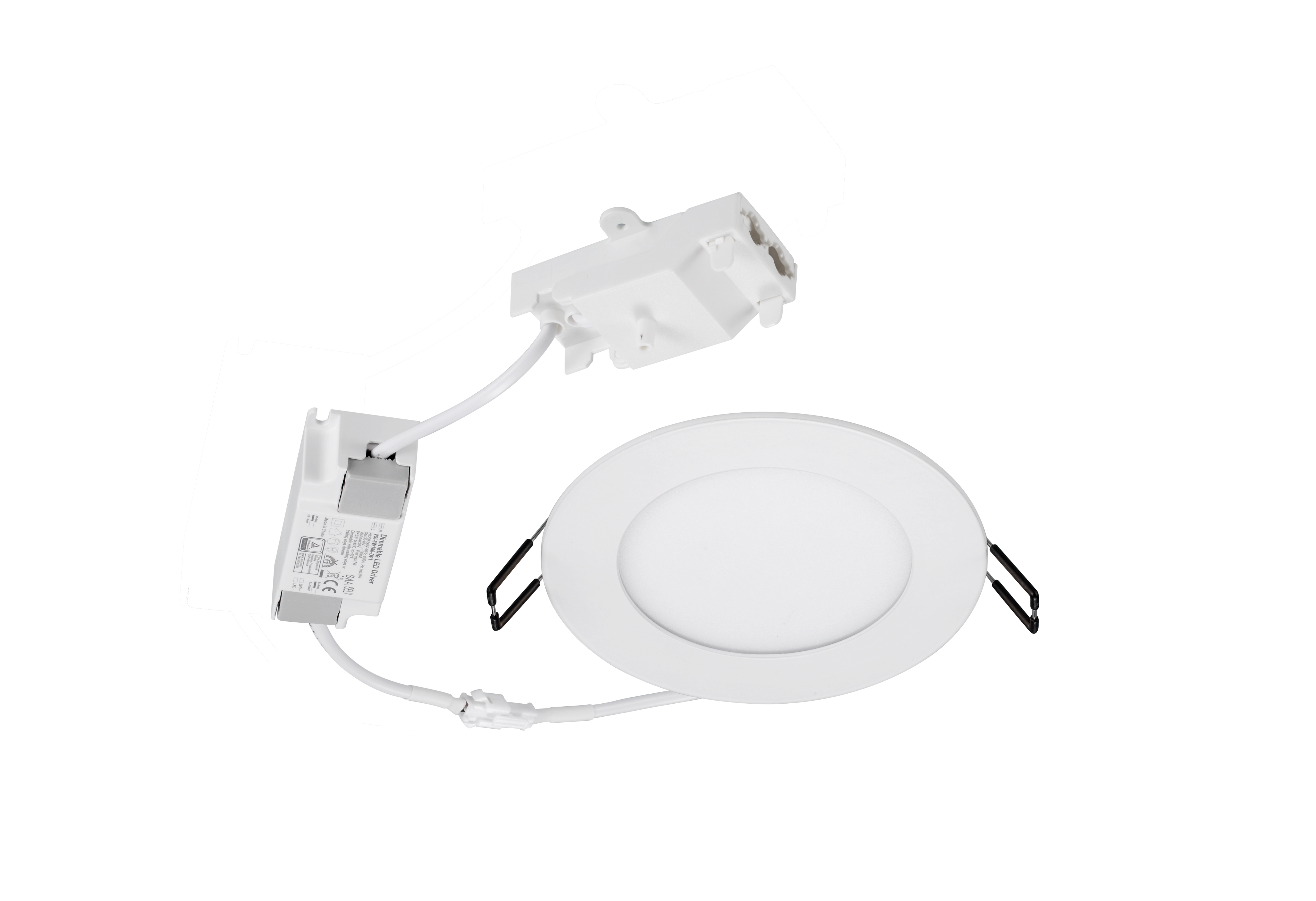

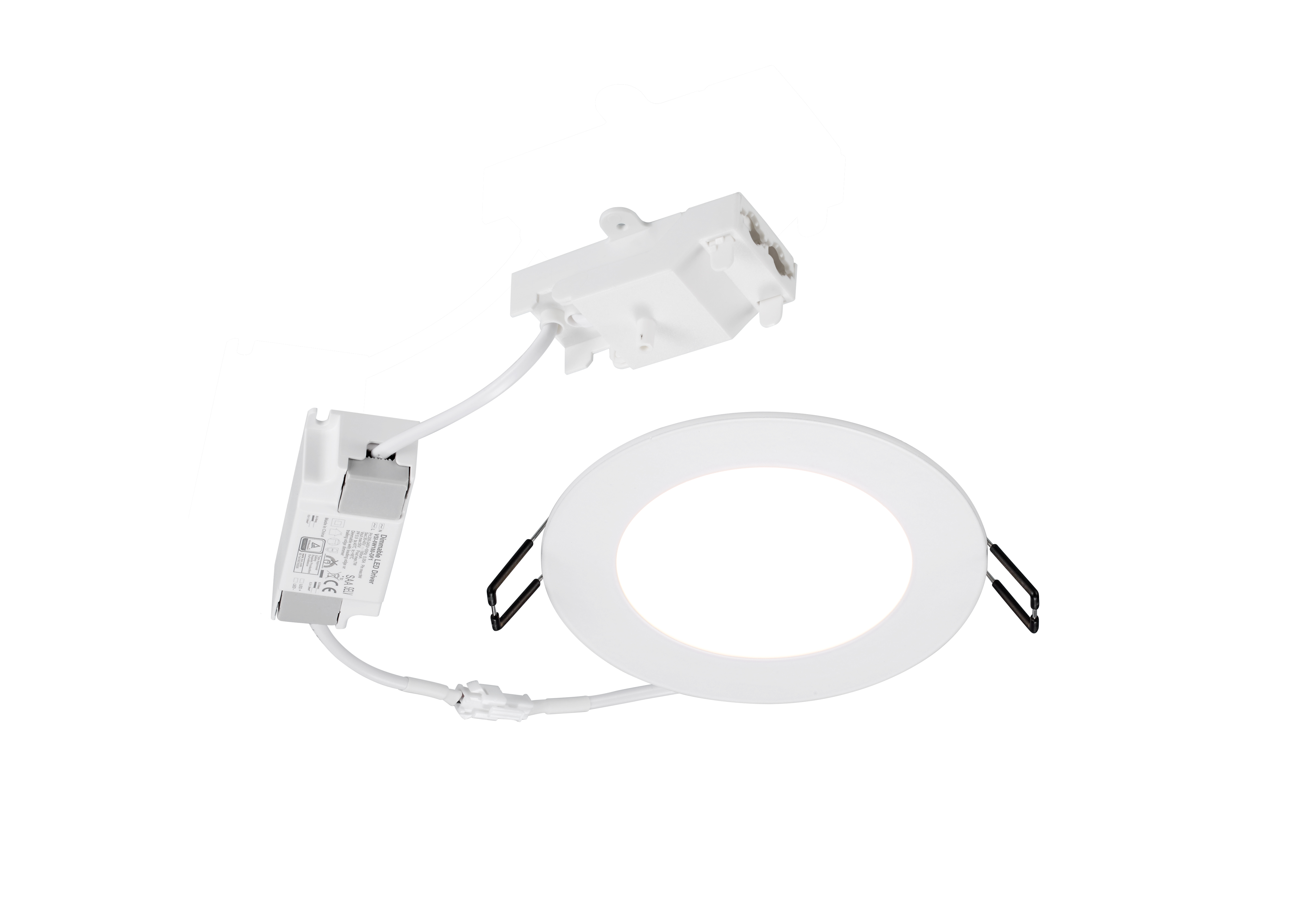

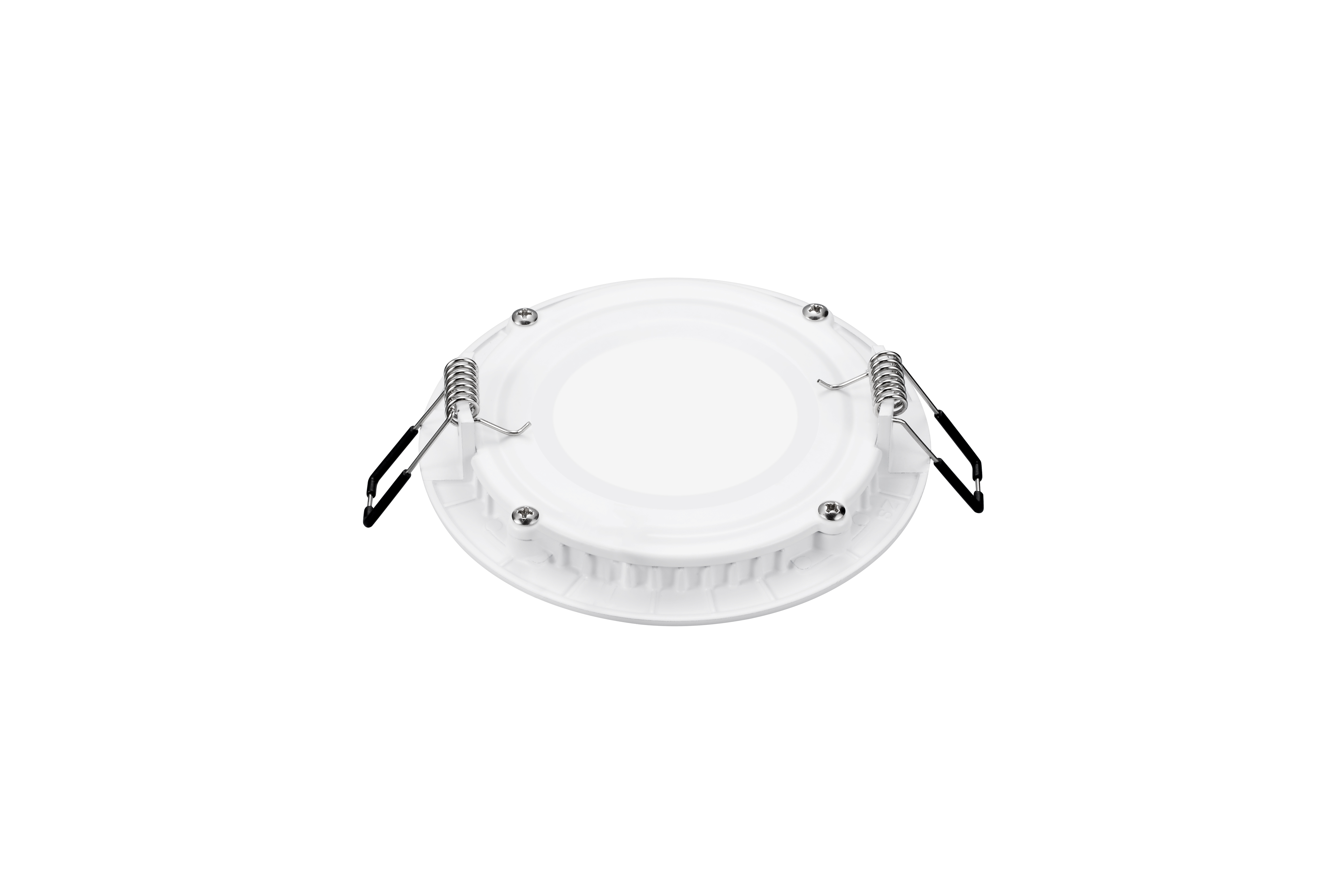

Sylflat DIM is an integrated LED recessed downlight with a separate phase dimmable driver and Loop in out box; 7W; 550Lm; 79Lm/W; 3000K; IP44 rated from the front; 50,000hrs (L70B50).
Technical Assets

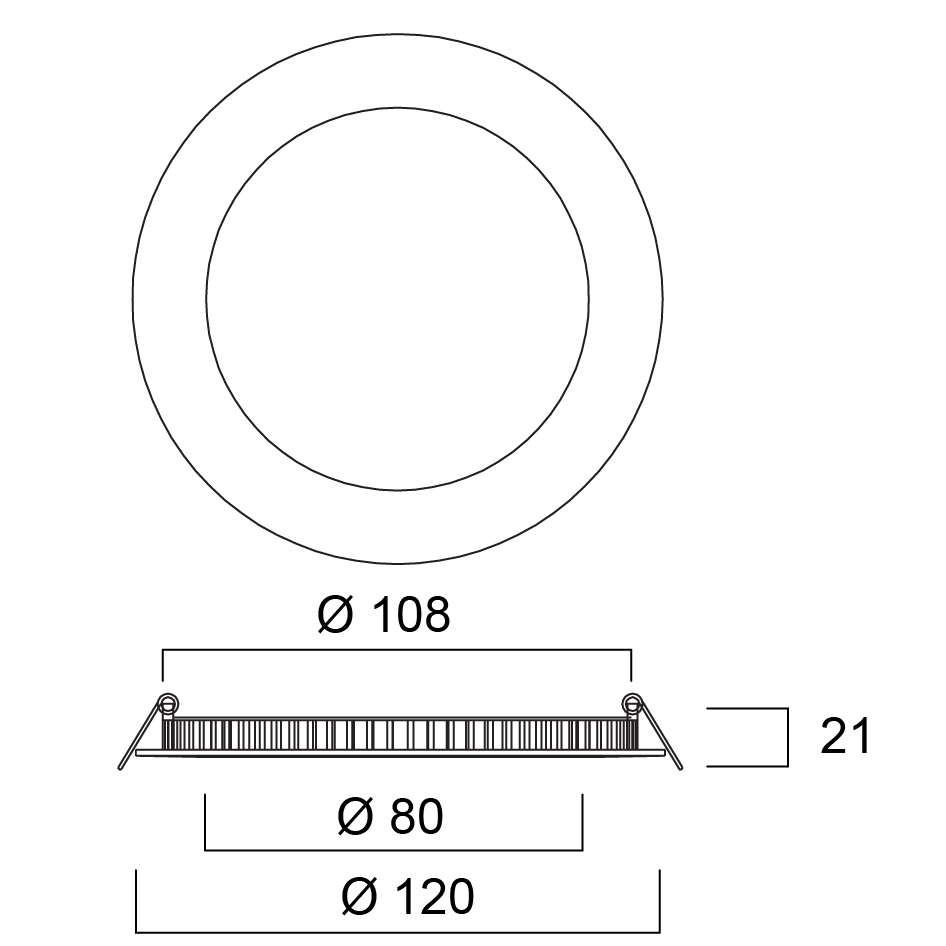

Dimensions (mm)

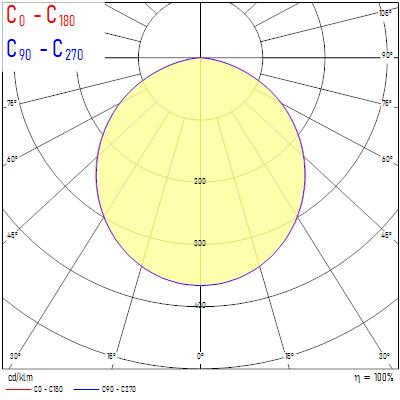

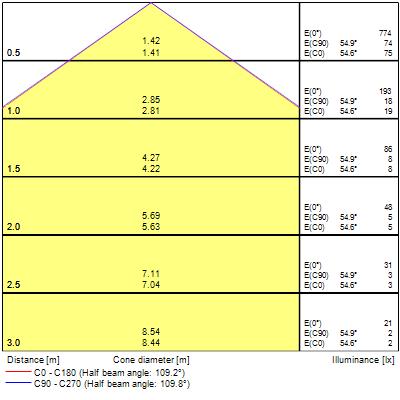

Photometrics
Product name
Sylflat 105 IP44 550lm 830 DIM
Technology
LED
Housing
Aluminium
Mount
Ceiling recessed mounting
General application
Hospitality
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4278197
Warranty
5 years
Fixture luminous flux (lm)
550
Luminaire efficacy (lm/W)
78
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
120
Distribution type
Symmetric
Glare control
< 28
Photobiological Risk Group
RG0
Total power consumption (W)
7
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20.0
Electrical protection
Class II
Control gear required
No
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
Mains: leading / trailing edge
Drive current (mA)
180
Inrush Current (A)
2.35
Inrush Duration (µs)
120
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
133
Max. products per 13A C Breaker
173
Max. products per 16A C Breaker
213
Max. products per 20A C Breaker
267
Max. products per 10A B Breaker
133
Max. products per 13A B Breaker
173
Max. products per 16A B Breaker
213
Max. products per 20A B Breaker
267
Lifespan L70 B50
60000
Lifespan L90 B10
23000
Housing colour
RAL 9003 - Signal white
IP rating
IP44/20
IK rating
IK06
Diffuser finish
Opal
Diffuser material
PS Polystyrene
Nominal Product Height (mm)
21
Nominal Product Diameter (mm)
120
Weight (kg)
0.237
Product EAN number
5410288539881
Packaging single length / height (cm)
19.5
Packaging single width (cm)
12.5
Packaging single depth (cm)
4.2
DUN14 (inner)
15410288539888
Units per outer package
15
Packaging outer length / height (cm)
39.0
Packaging outer width (cm)
23.0
Packaging outer depth (cm)
21.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
