ASCENT 150 II 2500 3K DALI

Item No: 2059357
This product is no longer available

The ASCENT 150 II 2500 3K DALI is a high efficient downlight luminaire , Colour rendering index Ra >80, Colour temperature: 3000K Warm white, Class II, Protection rating IP44/IK03

Technical Assets

Dimensions (mm)

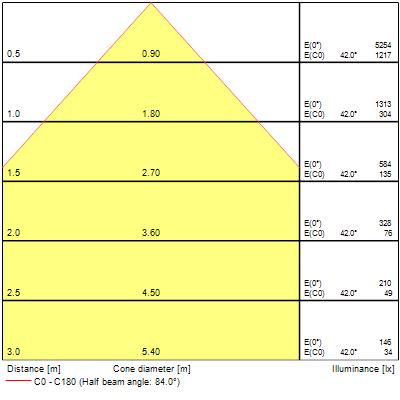

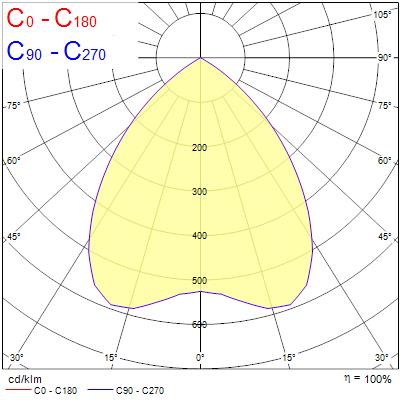

Photometrics

Product name
ASCENT 150 II 2500 3K DALI
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling recessed mounting
Built in presence detector
NONE
Environment
Internal
General application
Hospitality, Office, Retail
Operating temperature range (°C)
25°C...+25°C
Performance ambient temperature Tq (°C)
25
Virtual assistant compatibility
N/A
ETIM Class
EC001744
E-number FI
4237880
Warranty
5 years
Fixture luminous flux (lm)
2500
Luminaire efficacy (lm/W)
132
LOR (%)
100
Correlated colour temperature (k)
3000
CRI (Ra)
80
Colour Consistency (SDCM)
3
Colour Variation Initial (SDCM)
SDCM3
Adjustable chromaticity
N
Beam Angle (°)
80
Distribution type
Diffuse
Glare control
< 22
Photobiological Risk Group
RG0
Total power consumption (W)
19
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
1
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
7
Electrical protection
Class II
Control gear type
Electronic ballast
Dimmable
Yes
Dimming method
DALI, Switch-dim (mains-rated)
Minimum dimming level (%)
1
Drive current (mA)
700
Inrush Current (A)
25
Inrush Duration (µs)
141
Energy Efficiency Class (A->G) of contained light source
C
Nominal Frequency (Hz)
50/60/HF
Max. products per 10A C Breaker
31
Max. products per 13A C Breaker
40
Max. products per 16A C Breaker
51
Max. products per 20A C Breaker
66
Max. products per 10A B Breaker
19
Max. products per 13A B Breaker
24
Max. products per 16A B Breaker
31
Max. products per 20A B Breaker
40
Connectable conductor cross section - Min (mm²)
1
Connectable conductor cross section - Max (mm²)
1
Lifespan L70 B50
100000
Lifespan L80 B20
100000
Lifespan L90 B10
60000
Housing colour
RAL 9016 - Traffic white / Bezel
IP rating
IP44/20
IK rating
IK03
Diffuser finish
Transparent
Diffuser material
PC Polycarbonate
Reflector finish
Other
Nominal Product Width (mm)
189
Nominal Product Height (mm)
107
Nominal Product Diameter (mm)
189
Weight (kg)
1.03
Recessed Depth (mm)
120
Product EAN number
5025768593576
Packaging single length / height (cm)
25.0
Packaging single width (cm)
20.0
Packaging single depth (cm)
25.0
DUN14 (inner)
05025768593576
Units per outer package
1
Packaging outer length / height (cm)
25.0
Packaging outer width (cm)
20.0
Packaging outer depth (cm)
25.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
25-25
Certificate of Conformity UK
Certificate of Conformity EU
Datasheet
POLAR
CONE
IES
LDT
RFA
Technical Drawing
Instruction Sheet
Recycling Instructions
Safety Sheet
