ASCENT150 II SQ 1325 3K DALI
Item No:
2059381
This product is no longer available
.png)

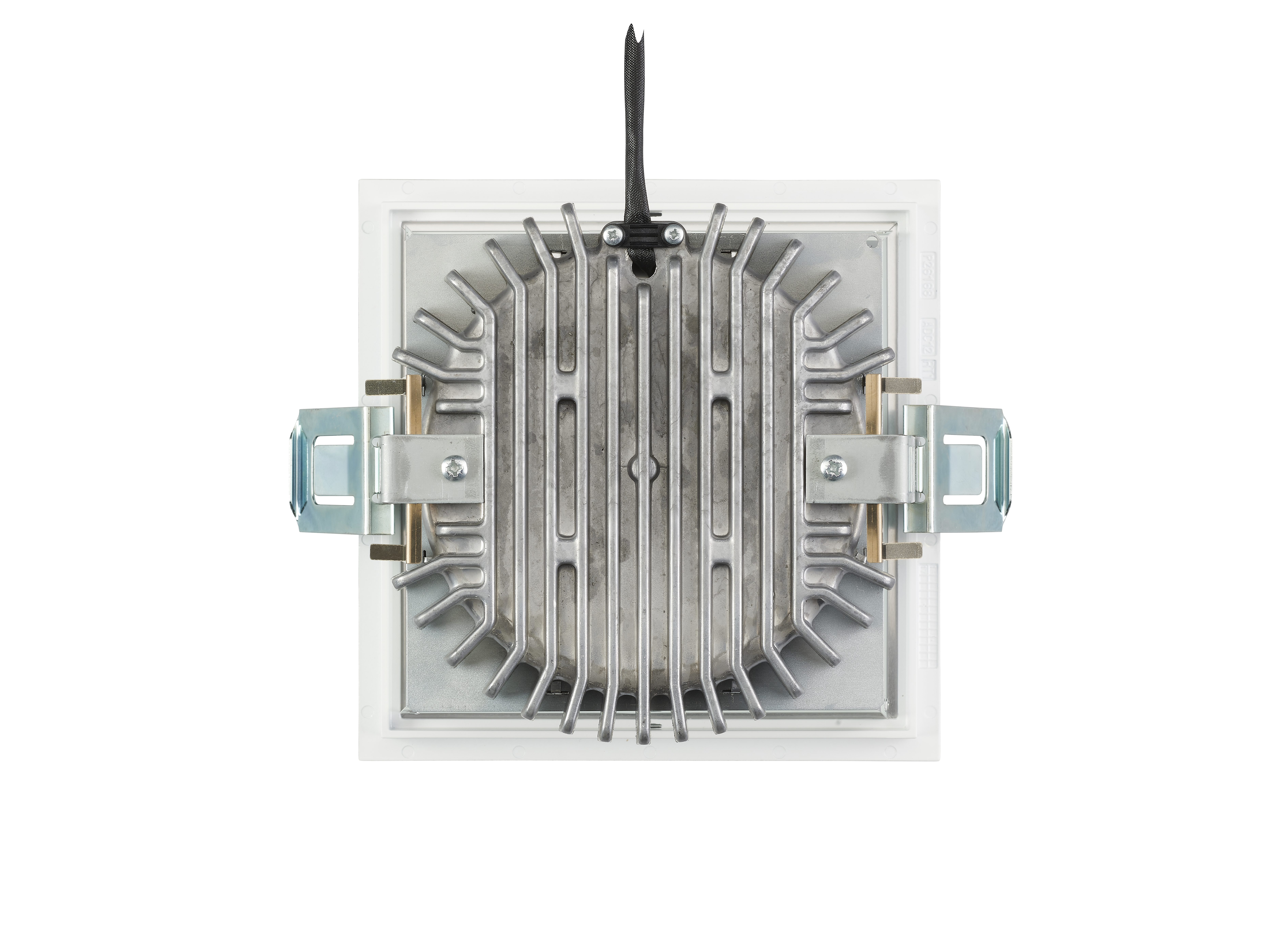

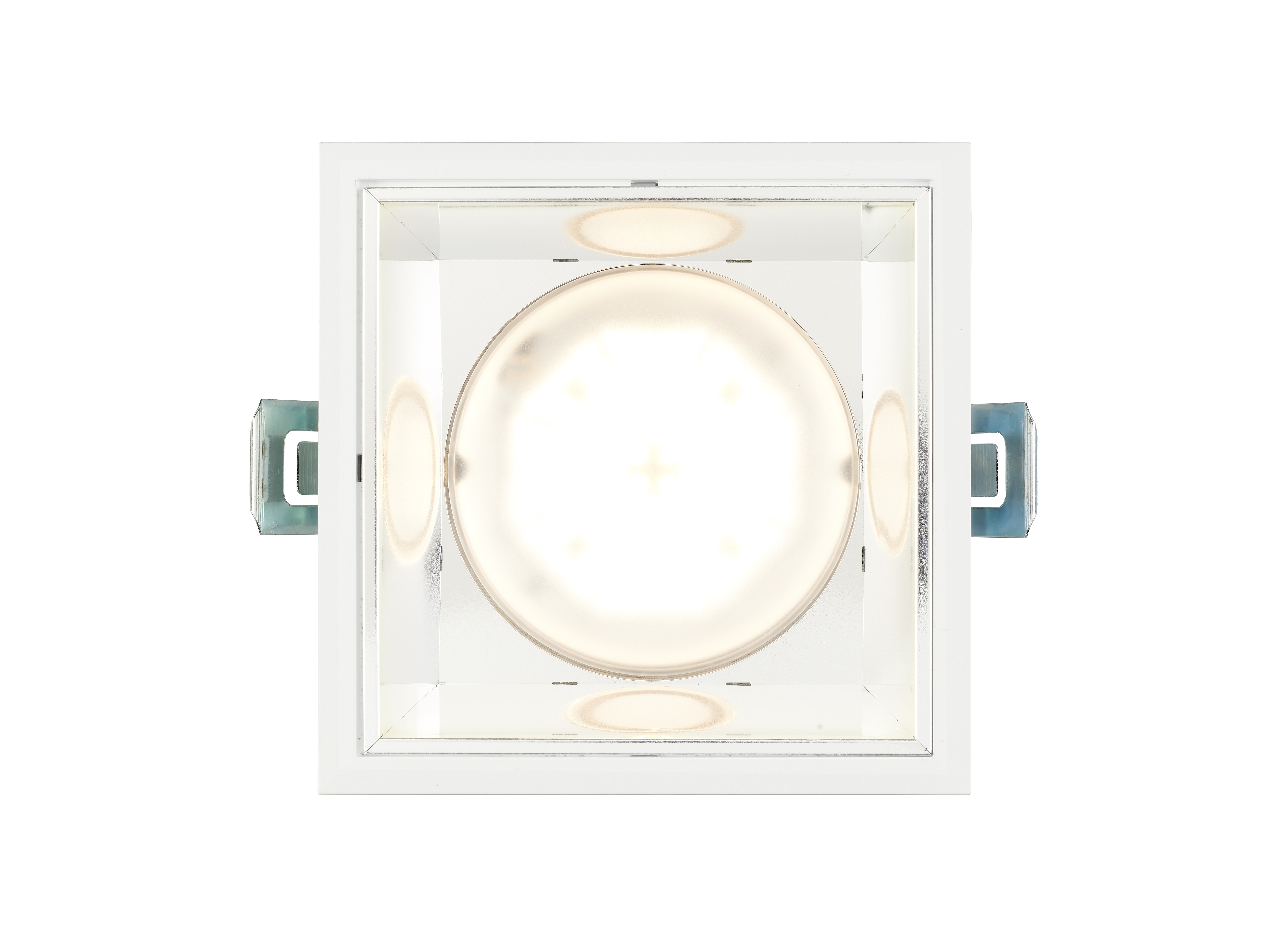

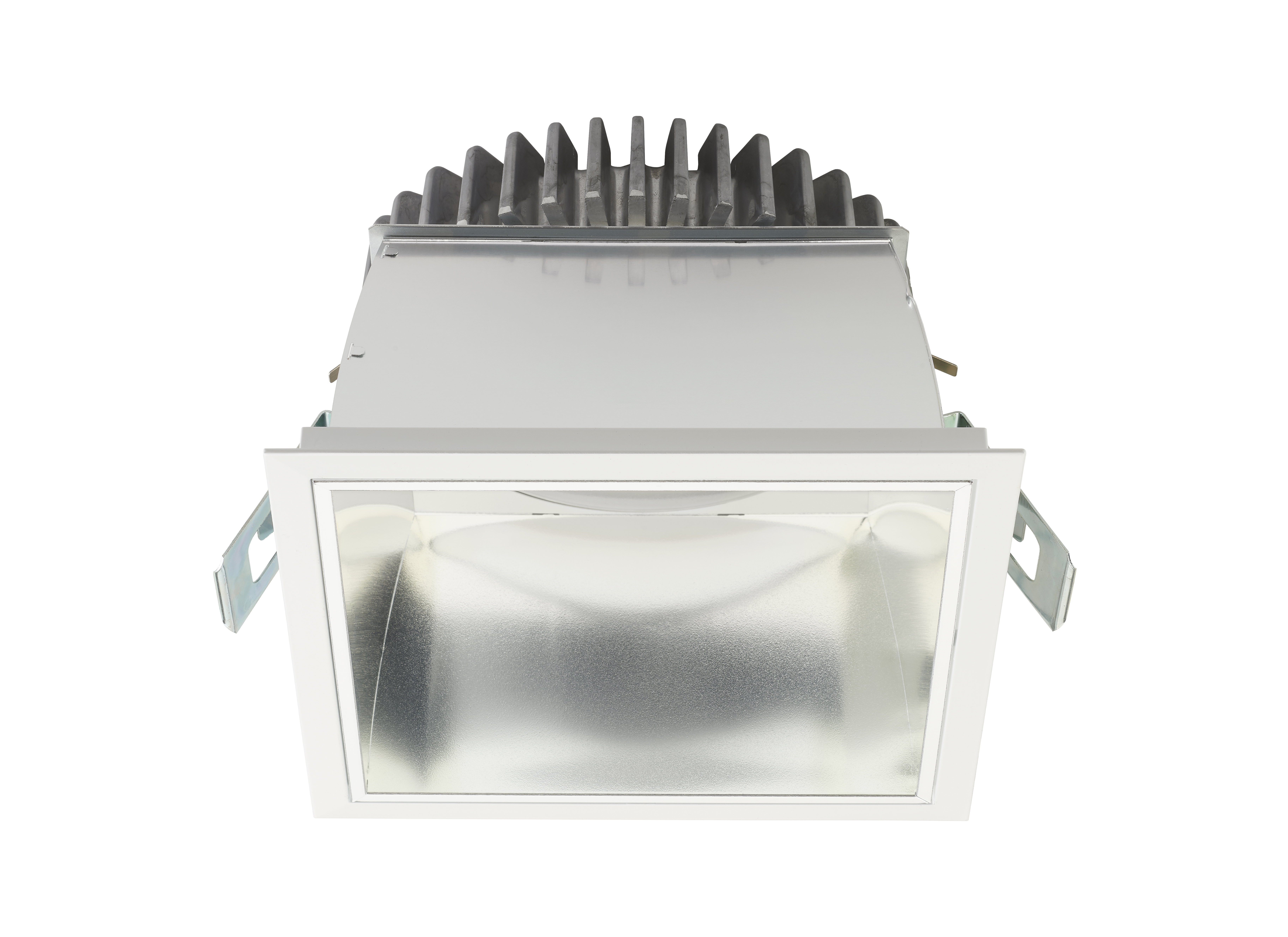

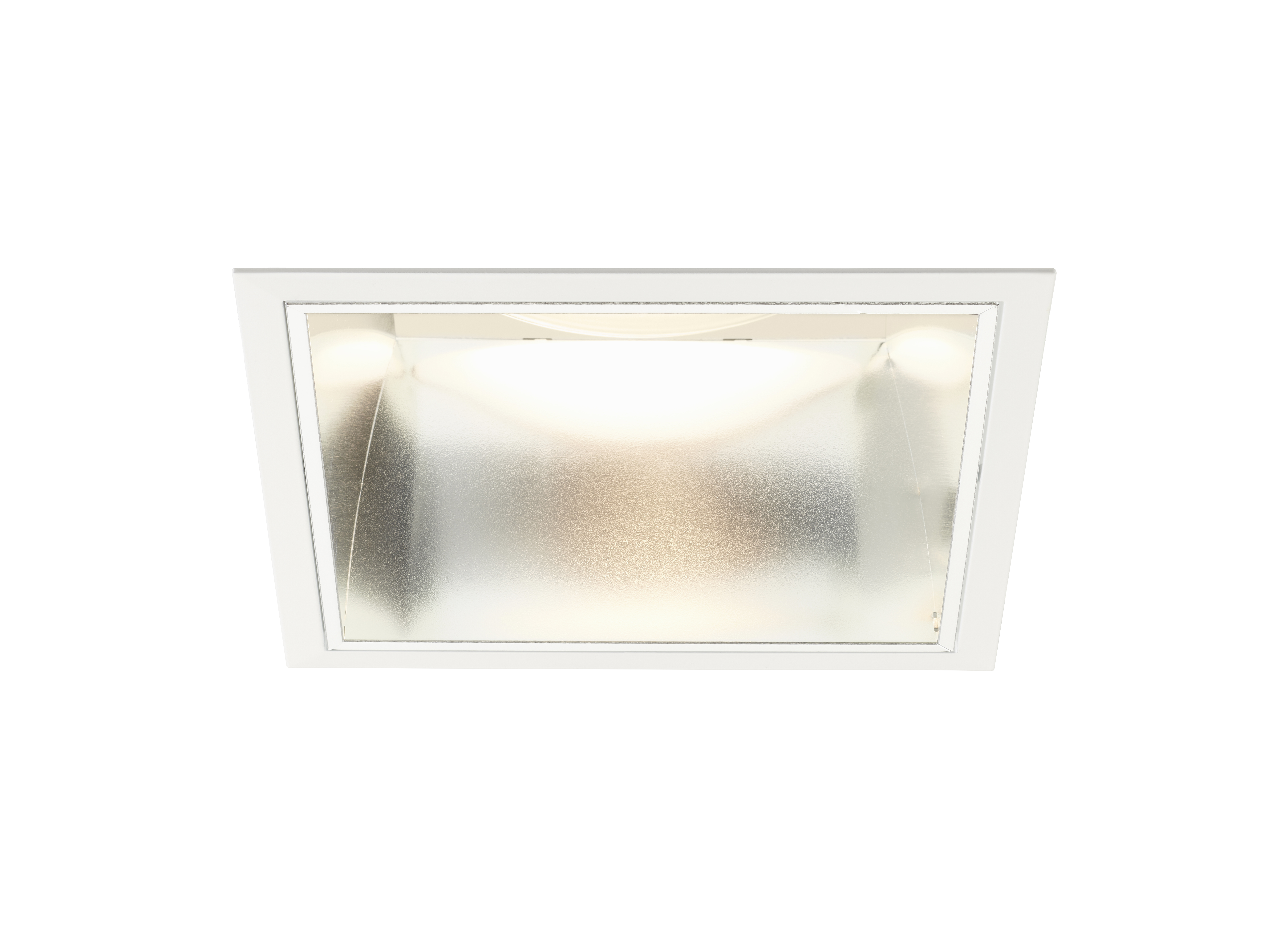

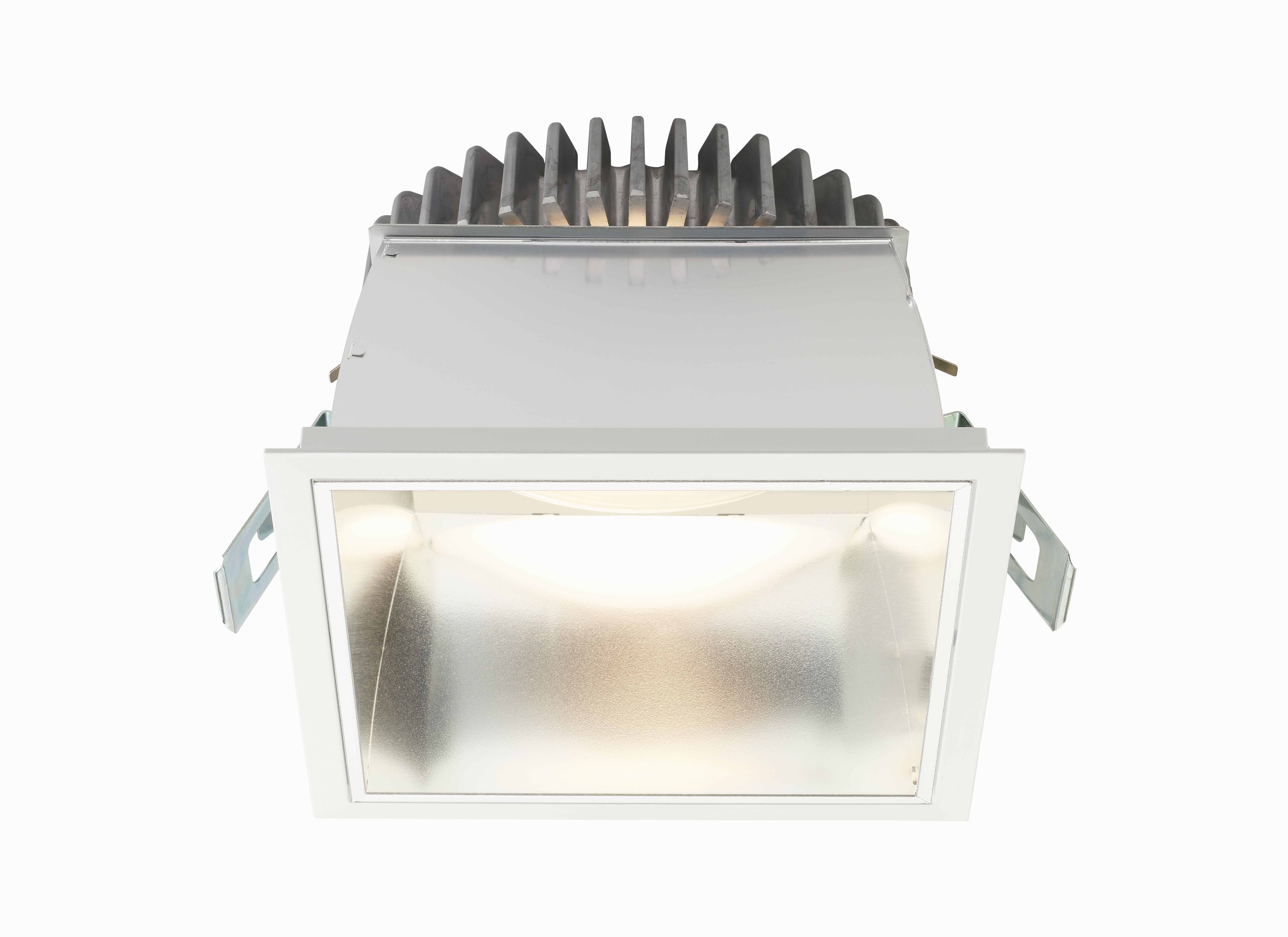

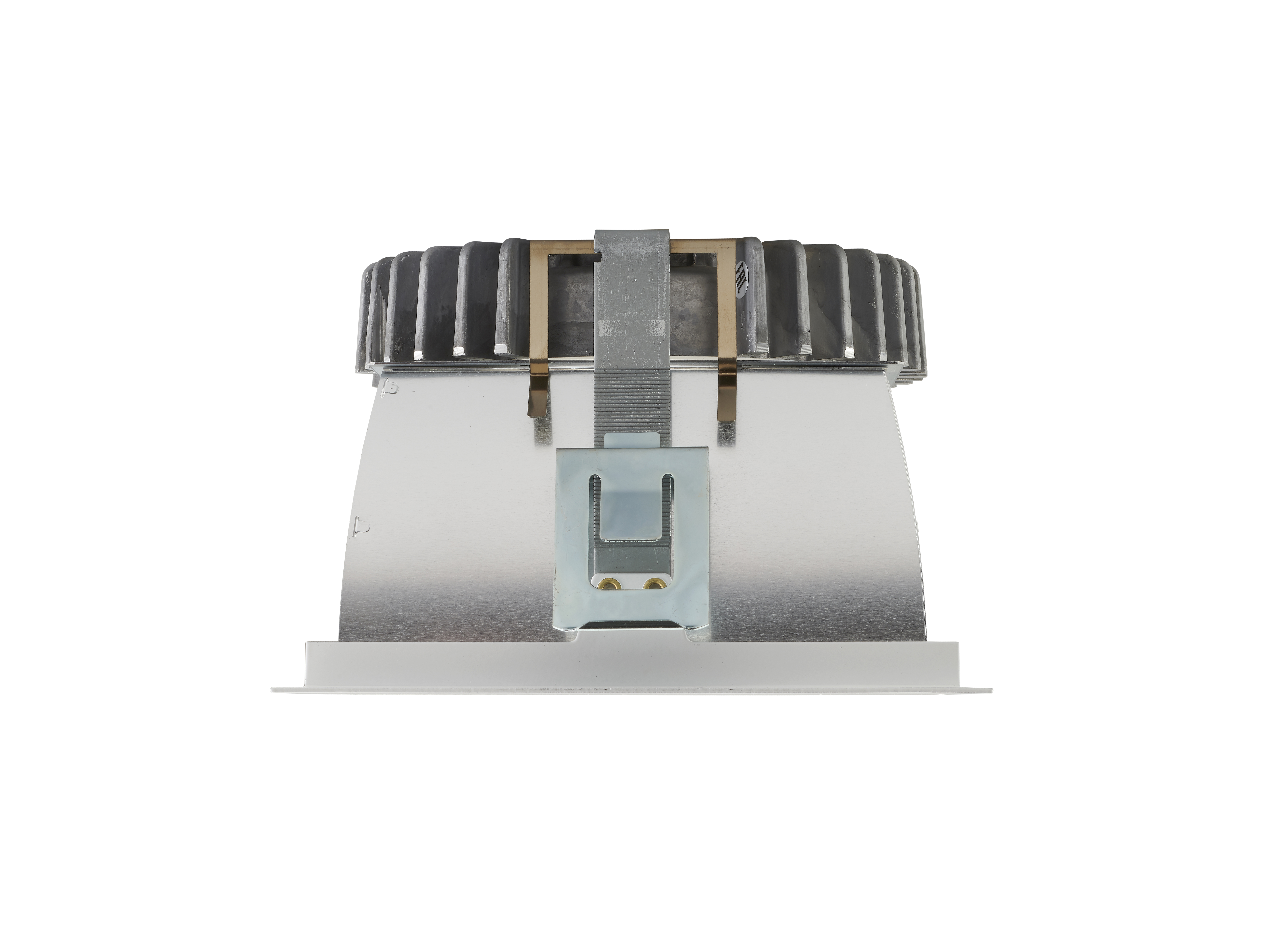

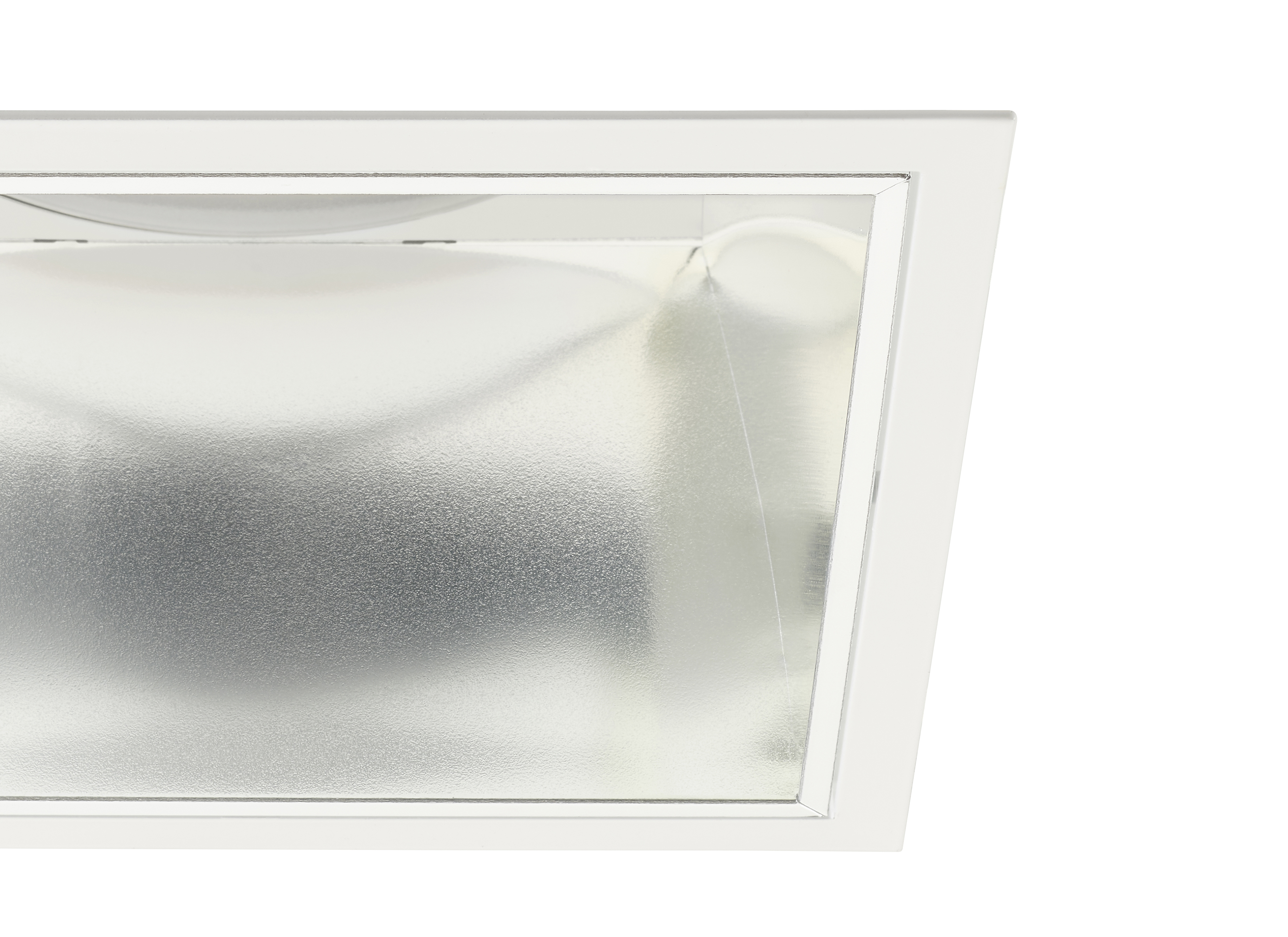

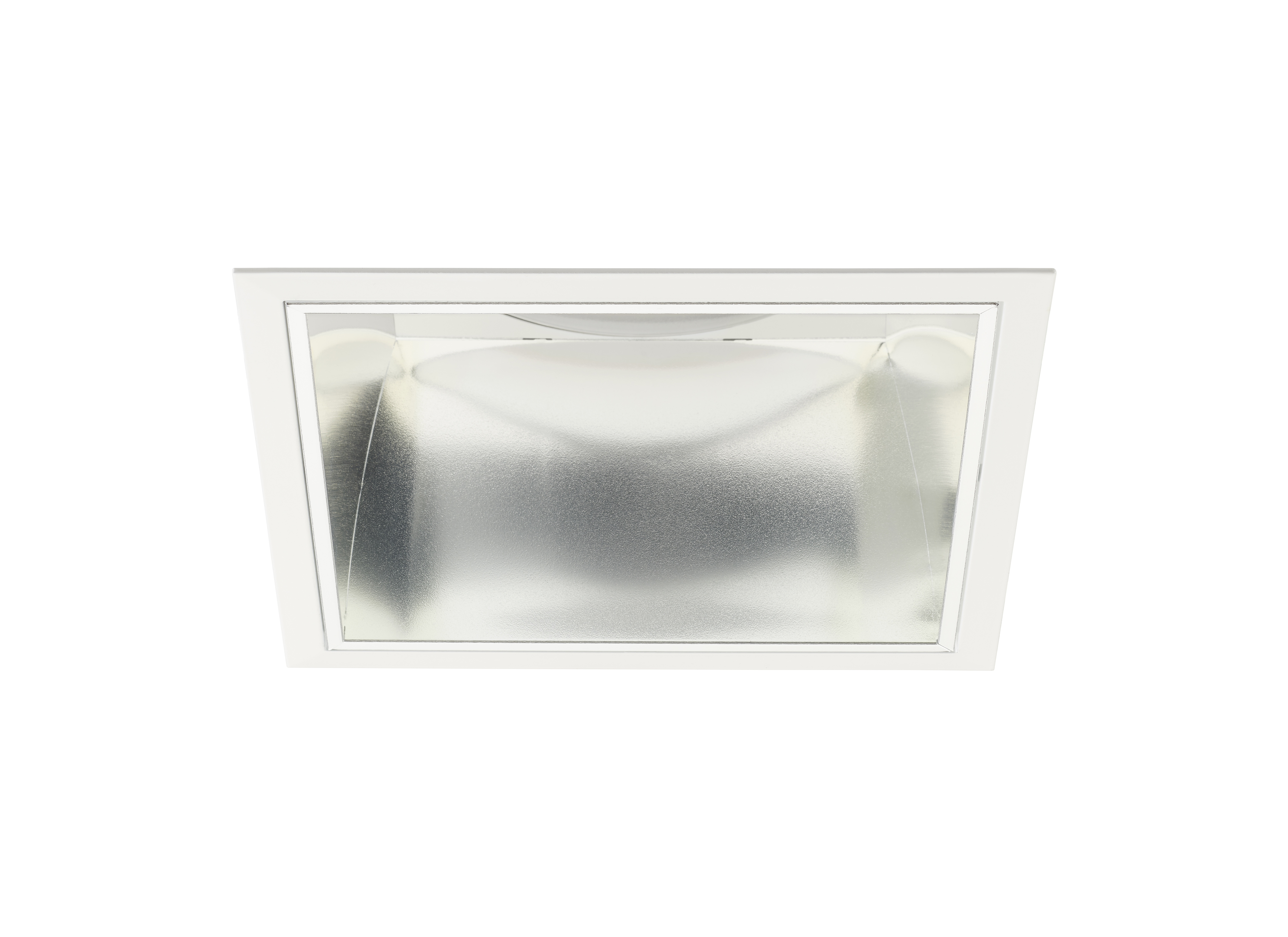

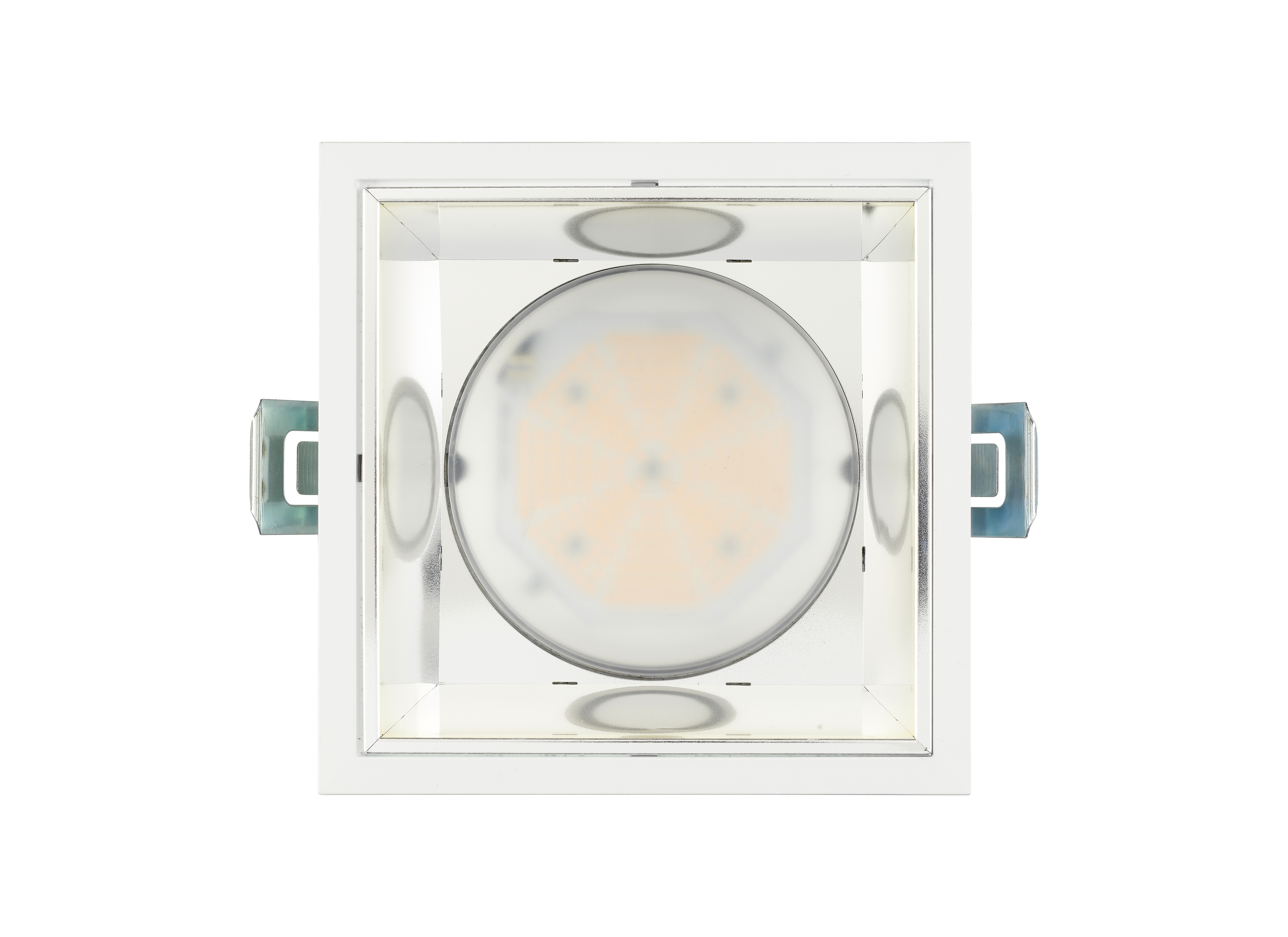

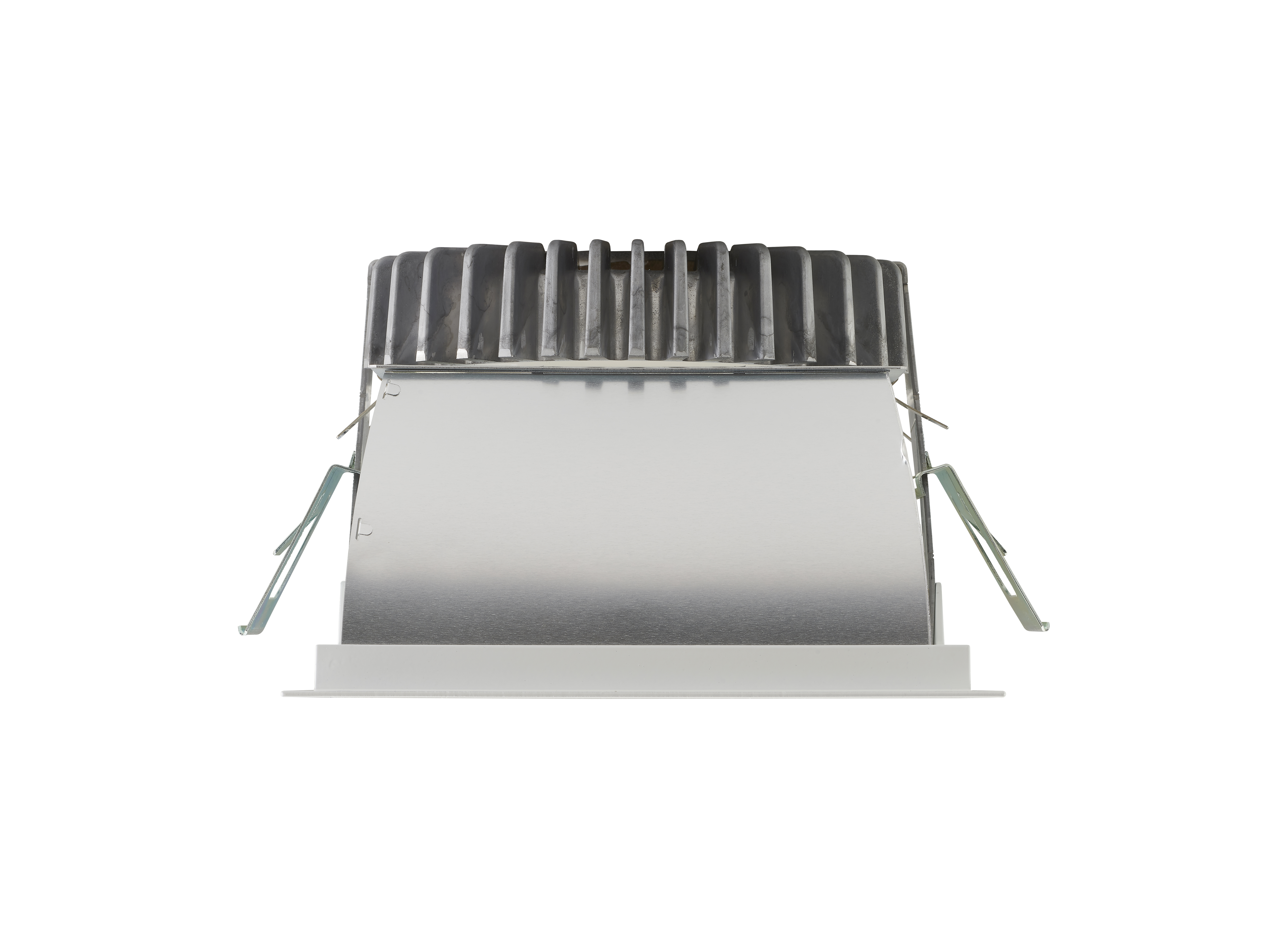

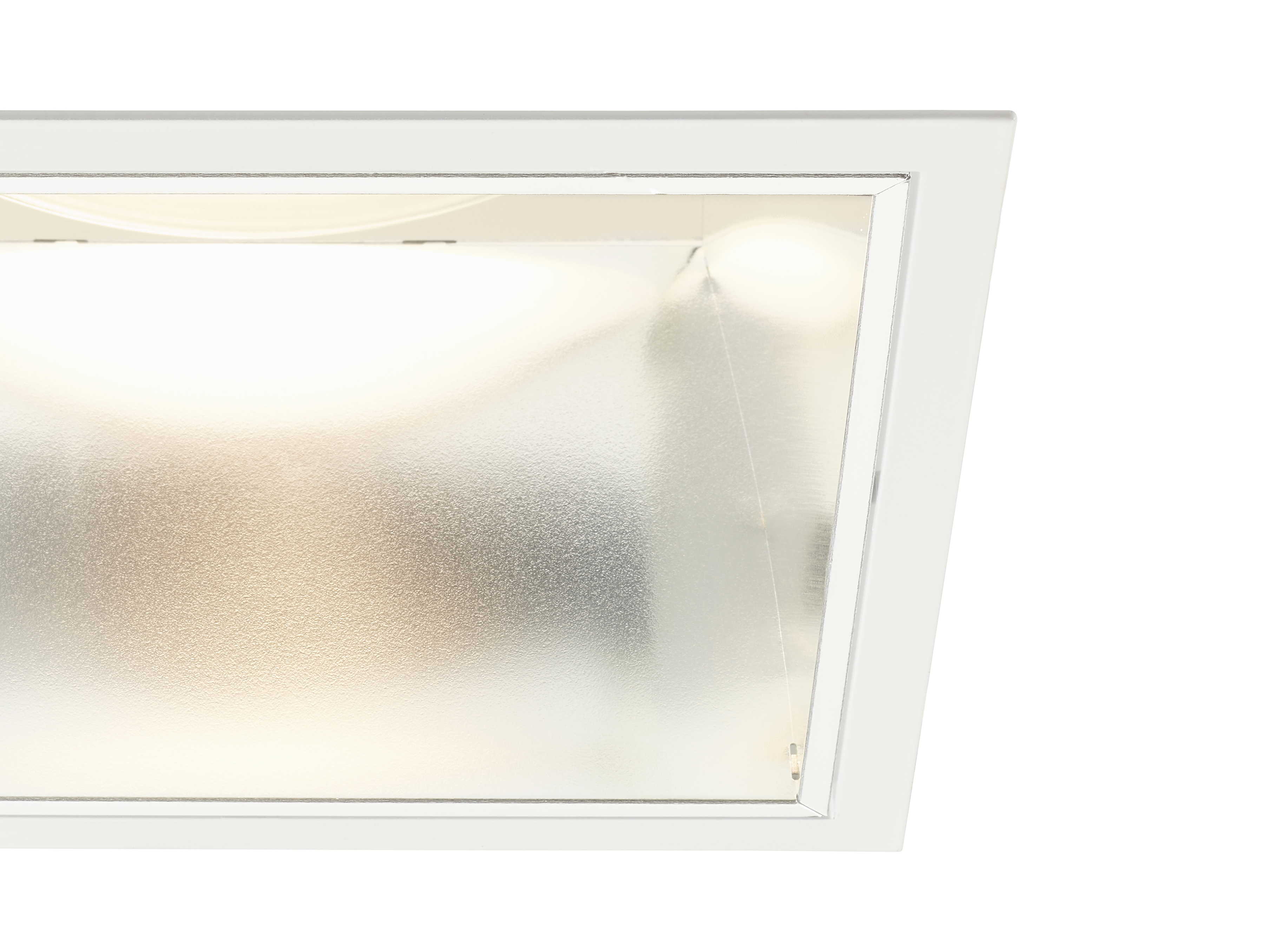

ASCENT150 II SQ 1325 3K DALI is a high efficient downlight luminaire, Colour rendering index Ra >80, Colour temperature: 3000K Warm white, Class II, Protection rating IP44/IK03
Technical Assets

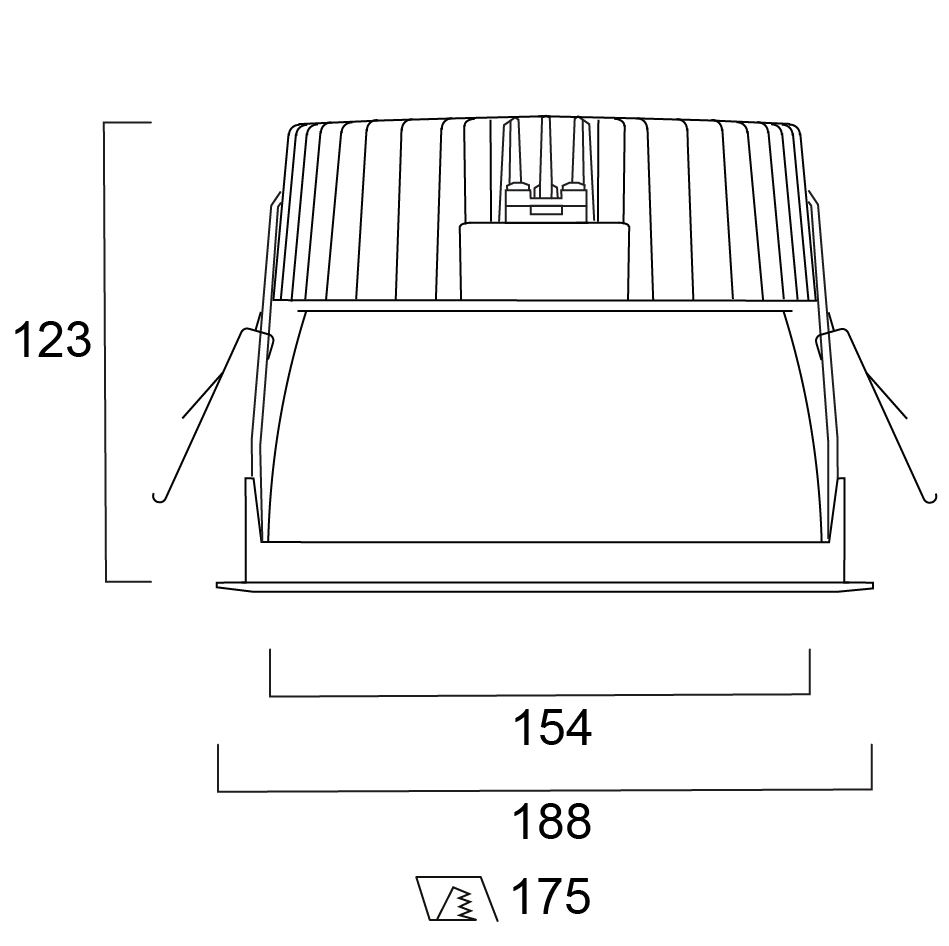

Dimensions (mm)

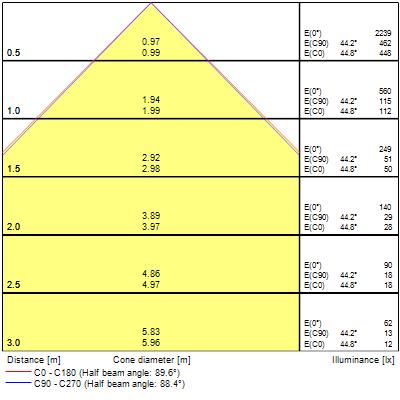

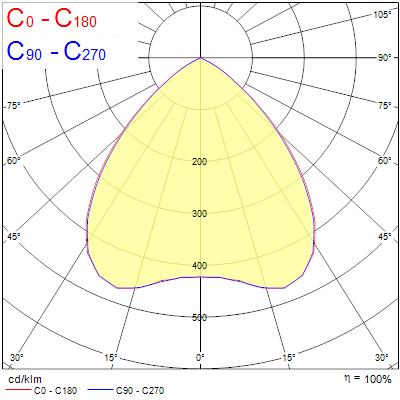

Photometrics
Product name
ASCENT150 II SQ 1325 3K DALI
Technology
LED
Cap/Base
R17d
Housing
Aluminium
Mount
Ceiling recessed mounting
Built in presence detector
NONE
Environment
Internal
General application
Hospitality, Office, Retail
Operating temperature range (°C)
25°C...+25°C
Performance ambient temperature Tq (°C)
25
Virtual assistant compatibility
N/A
ETIM Class
EC001744
E-number FI
4237801
Warranty
5 years
Fixture luminous flux (lm)
1325
Luminaire efficacy (lm/W)
147
LOR (%)
100
Correlated colour temperature (k)
3000
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Colour Consistency (SDCM)
3
Adjustable chromaticity
N
Beam Angle (°)
80
Distribution type
Diffuse
Glare control
< 21
Photobiological Risk Group
RG0
Total power consumption (W)
9
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
1
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
7
Electrical protection
Class II
Control gear type
Electronic ballast
Dimmable
Yes
Dimming method
DALI, Switch-dim (mains-rated)
Minimum dimming level (%)
1
Drive current (mA)
350
Inrush Current (A)
25
Inrush Duration (µs)
141
Energy Efficiency Class (A->G) of contained light source
C
Nominal Frequency (Hz)
50/60/HF
Max. products per 10A C Breaker
31
Max. products per 13A C Breaker
40
Max. products per 16A C Breaker
51
Max. products per 20A C Breaker
66
Max. products per 10A B Breaker
19
Max. products per 13A B Breaker
24
Max. products per 16A B Breaker
31
Max. products per 20A B Breaker
40
Connectable conductor cross section - Min (mm²)
1
Connectable conductor cross section - Max (mm²)
1
Lifespan L70 B50
100000
Lifespan L80 B20
100000
Lifespan L90 B10
60000
Housing colour
Aluminium
IP rating
IP44/20
IK rating
IK03
Diffuser finish
Transparent
Diffuser material
PC Polycarbonate
Reflector finish
Other
Nominal Product Length (mm)
188
Nominal Product Width (mm)
188
Nominal Product Height (mm)
123
Weight (kg)
1.03
Recessed Depth (mm)
158
Product EAN number
5025768593811
Packaging single length / height (cm)
25.0
Packaging single width (cm)
20.0
Packaging single depth (cm)
25.0
DUN14 (inner)
05025768593811
Units per outer package
1
Packaging outer length / height (cm)
25.0
Packaging outer width (cm)
20.0
Packaging outer depth (cm)
25.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
25-25
