EXPOSPOT 90 DUO HO RA90 4000K MB BLACK
Item No:
2070118
This product is no longer available
.png)

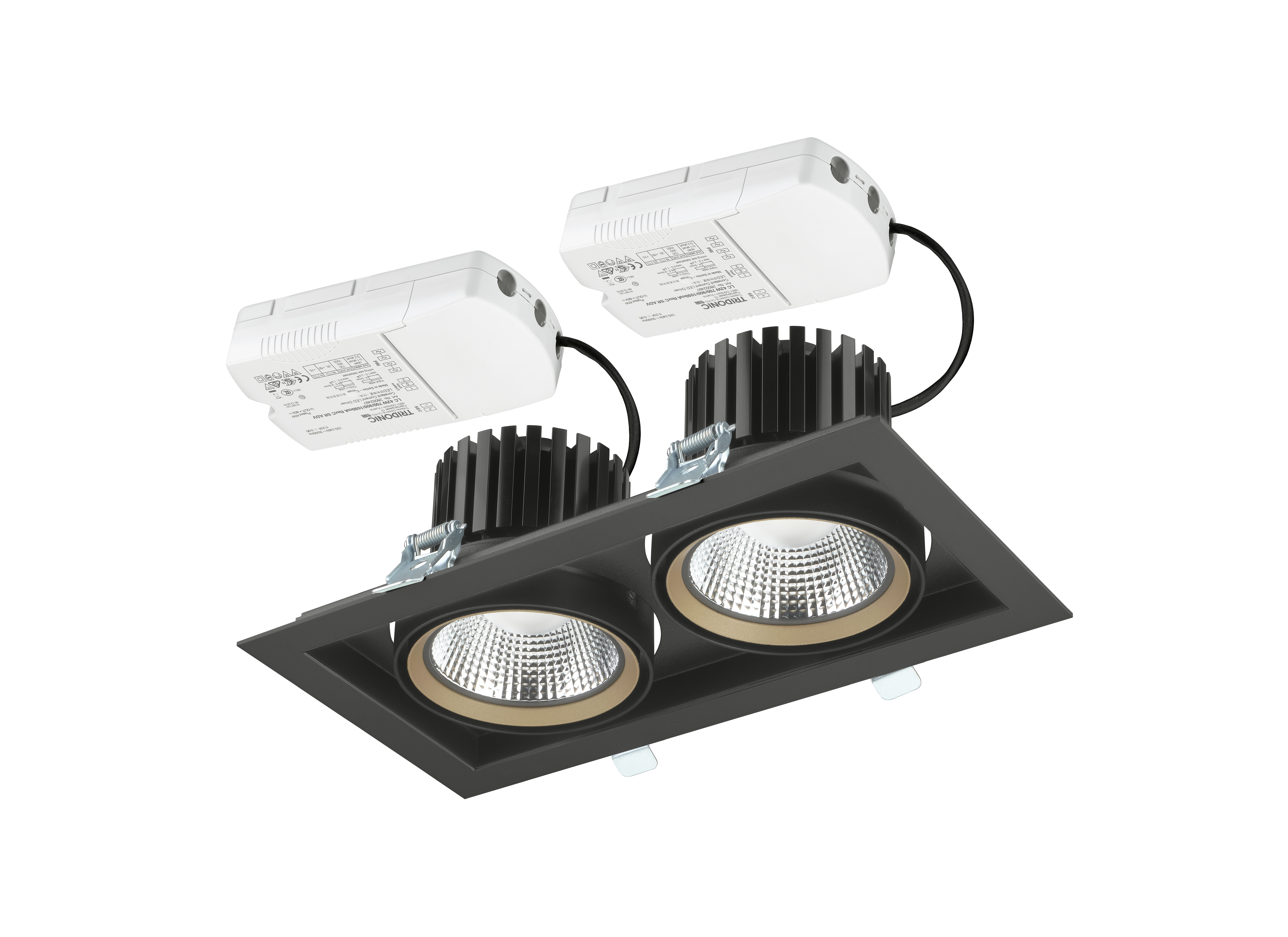

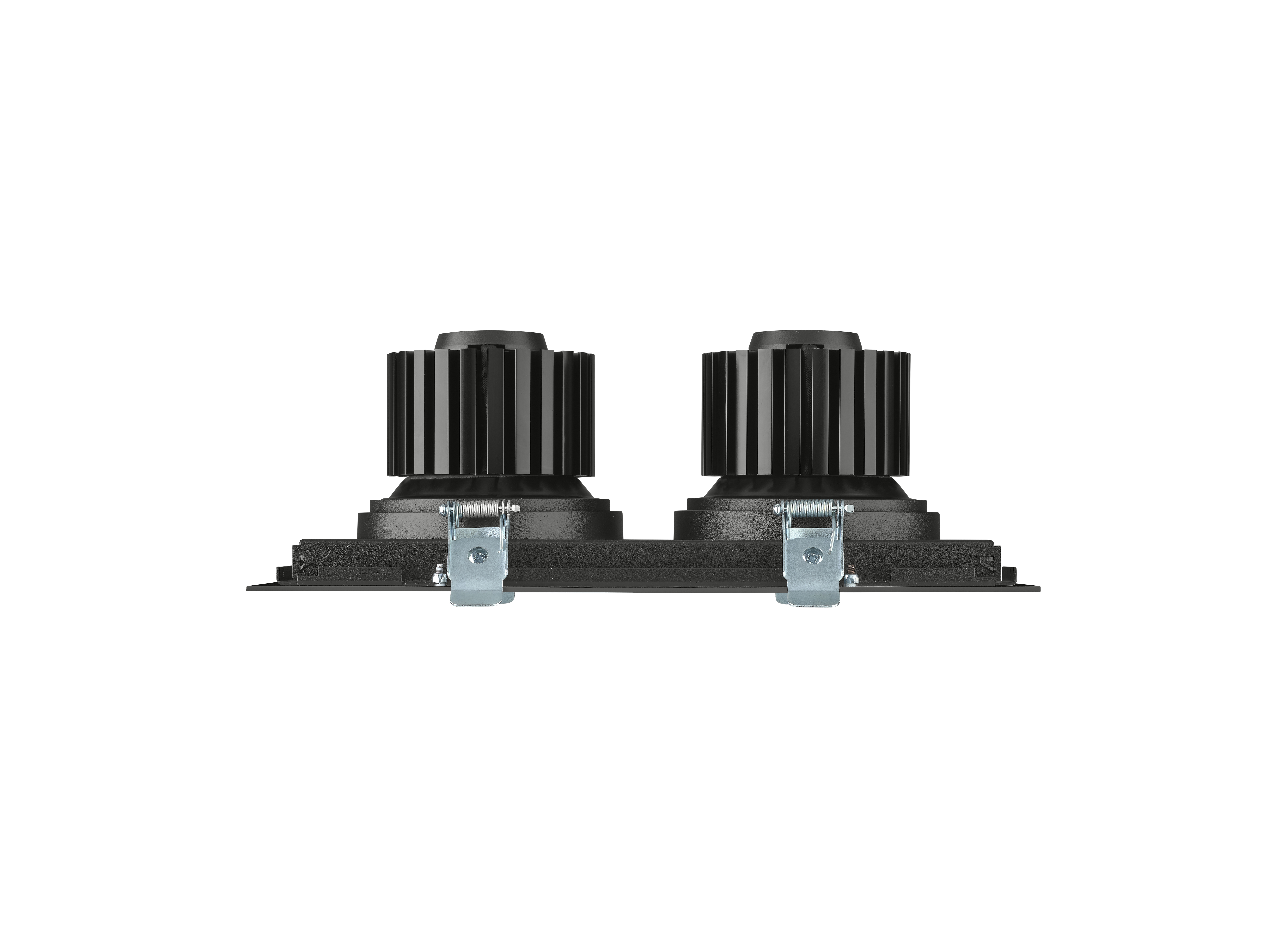

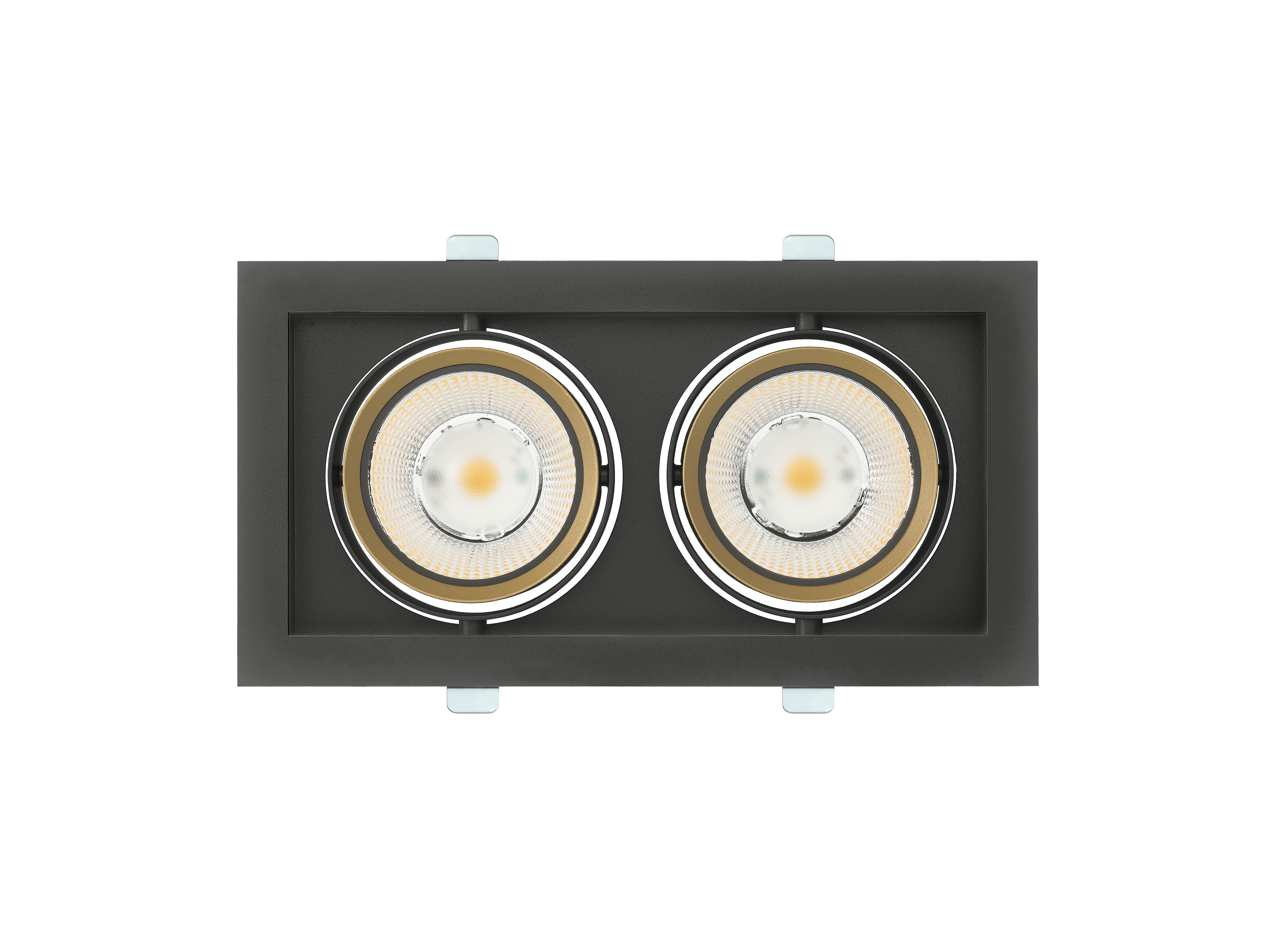

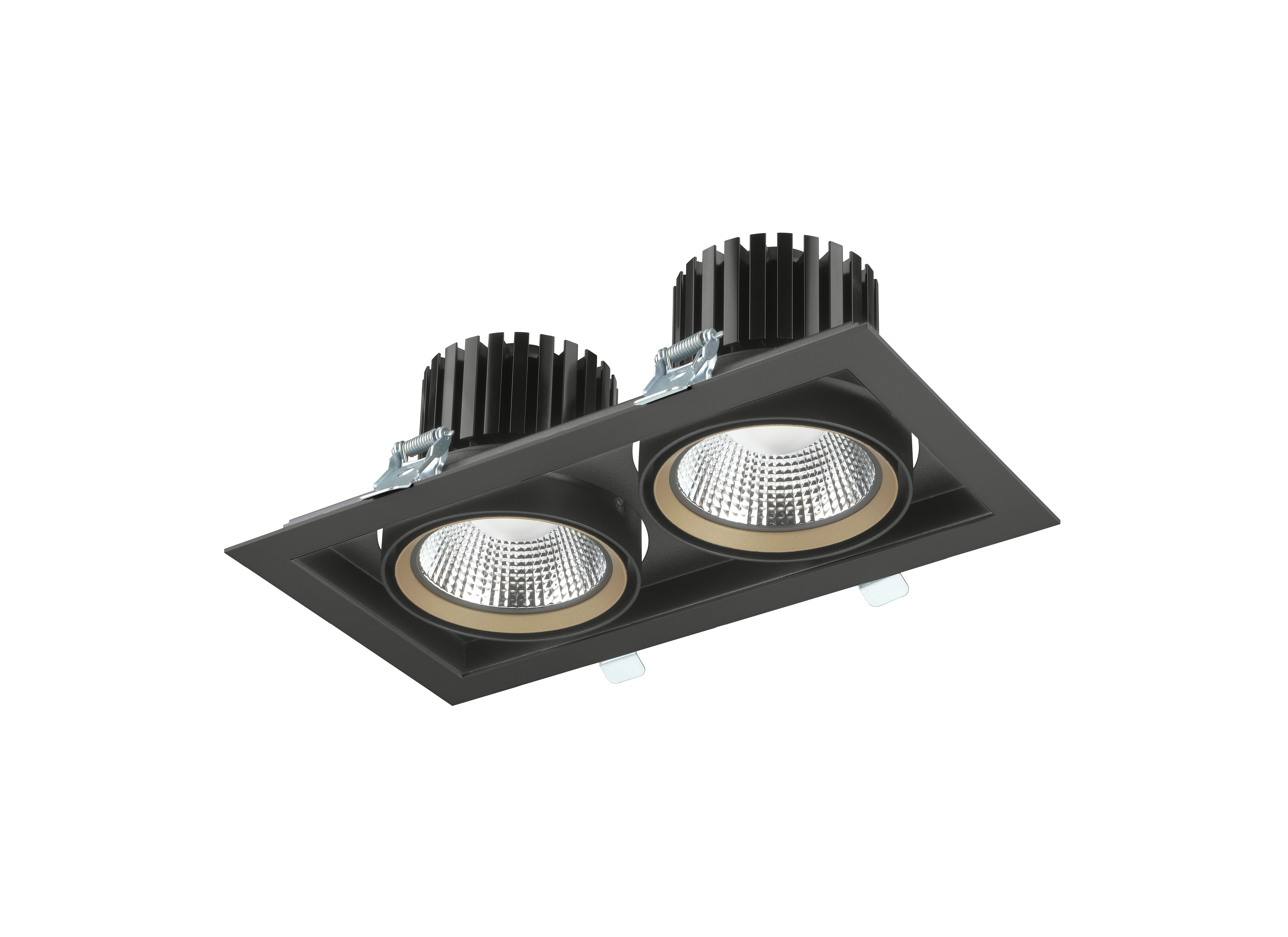

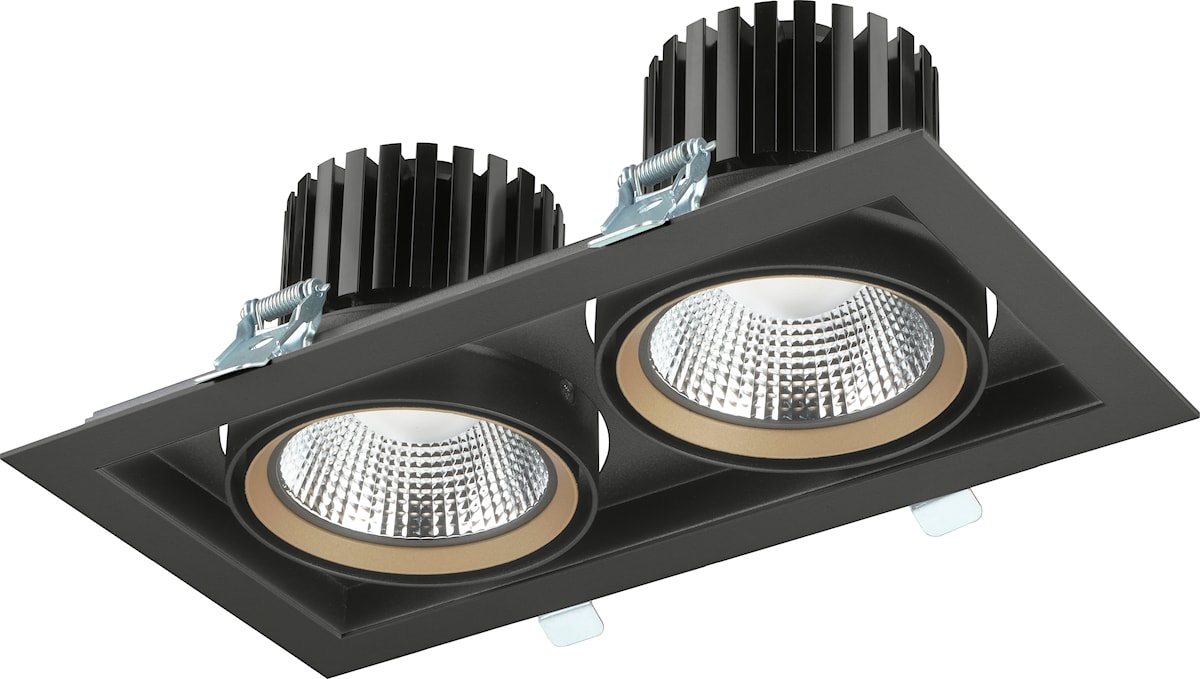

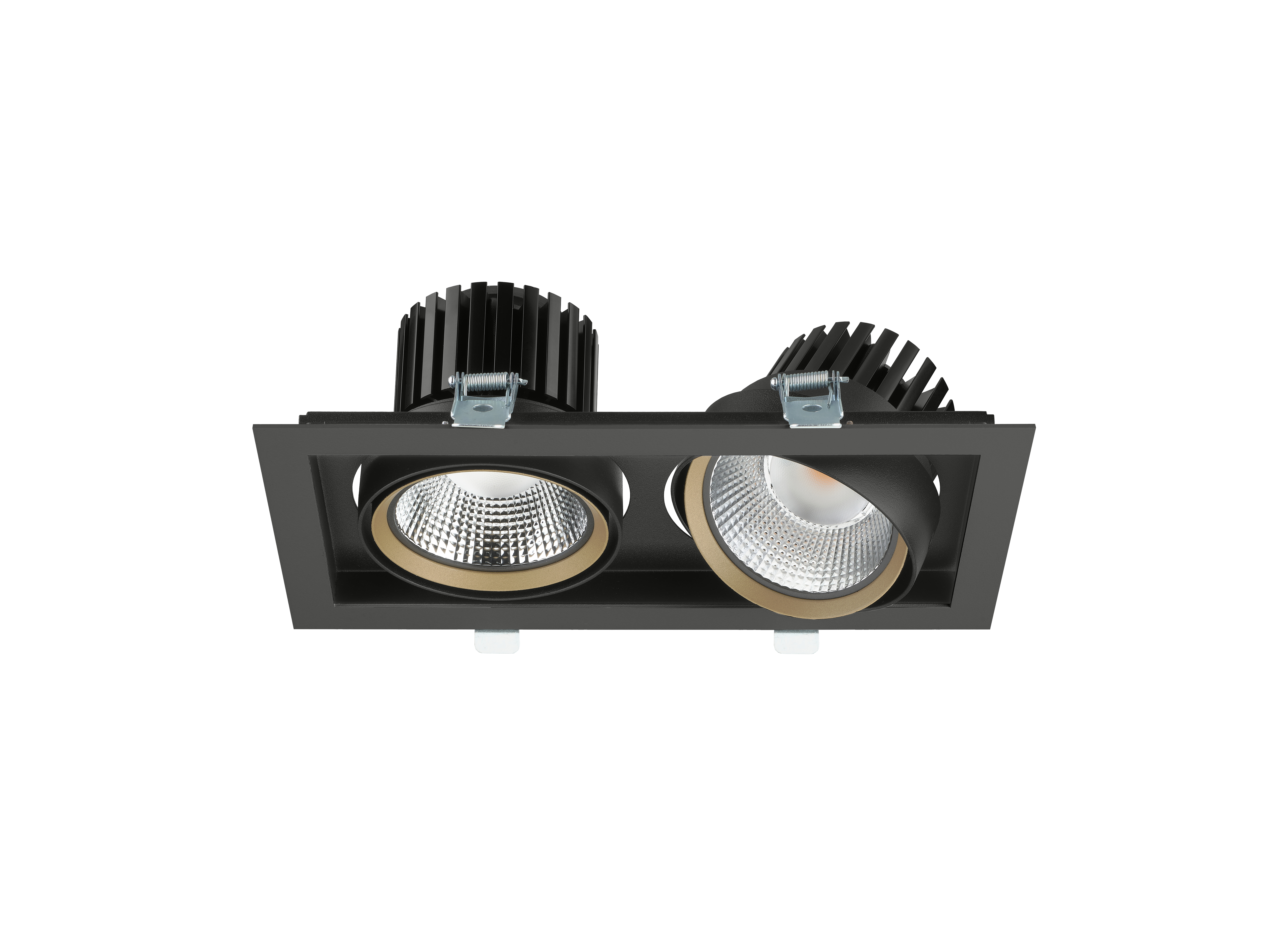

Integrated LED gimbal accent downlight, duo head, ideal for retail and display applications, die-cast aluminium body, black colour housing, passive cooling, beam angle: 44°, optics: aluminium reflector and lens combination, colour temperature: 3000K, total system power: 107W, total fixture output: 2 x 3458lm, 95lm/W, LOR: 100%, colour rendering: Ra 90 typical, LED Chromacity: 3 step MacAdam ellipse, IR/UV free light source without heat radiation, operating voltage: 220-240V / 50-60Hz, electronic driver, non-dimmable, electrical protection: CLASS II, ingress protection rating: IP20, suitable for internal environment only, ceiling cut-out: 148x422mm, outer dimensions: 163x104mm, weight: 2.1kg.
Technical Assets

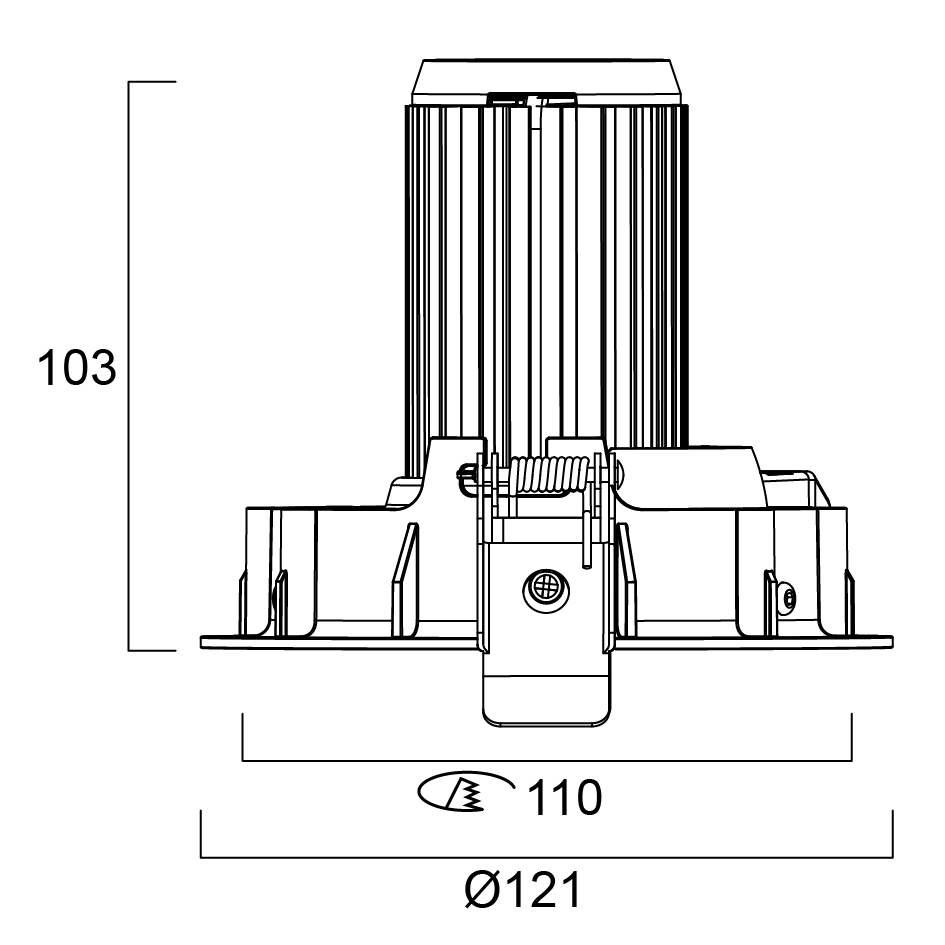

Dimensions (mm)

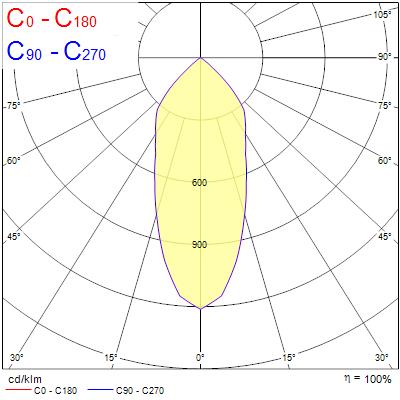

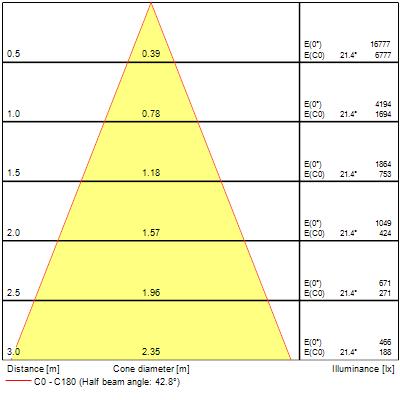

Photometrics
Product name
EXPOSPOT 90 DUO HO RA90 4000K MB BLACK
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling recessed mounting
Fixture rating
Enclosed
General application
Hospitality, Museums & Galleries, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
Warranty
5 years
Fixture luminous flux (lm)
2 x 3458
Luminaire efficacy (lm/W)
95
LOR (%)
100
Correlated colour temperature (k)
3000
Light colour
Neutral White
CRI (Ra)
90
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
44
Photobiological Risk Group
RG1
Total power consumption (W)
107
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.95
Electrical protection
Class II
Control gear required
No
Control gear type
Electronic ballast
Control gear mounting
Remote
Dimmable
No
Dimming method
N/A
Drive current (mA)
300
Inrush Current (A)
17
Inrush Duration (µs)
199
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
31
Max. products per 13A C Breaker
41
Max. products per 16A C Breaker
51
Max. products per 20A C Breaker
65
Max. products per 10A B Breaker
19
Max. products per 13A B Breaker
25
Max. products per 16A B Breaker
31
Max. products per 20A B Breaker
39
Lifespan L70 B50
100000
Lifespan L80 B20
100000
Lifespan L90 B10
54500
Housing colour
Black
IP rating
IP20
IK rating
IK02
Nominal Product Length (mm)
437
Nominal Product Width (mm)
163
Nominal Product Height (mm)
104
Weight (kg)
2.1
Recessed Depth (mm)
104
Product EAN number
5025768701186
Packaging single length / height (cm)
50.0
Packaging single width (cm)
30.0
Packaging single depth (cm)
20.0
DUN14 (inner)
05025768701186
Units per outer package
1
Packaging outer length / height (cm)
50.0
Packaging outer width (cm)
30.0
Packaging outer depth (cm)
20.0
Glow Wire Test (°C)
850
