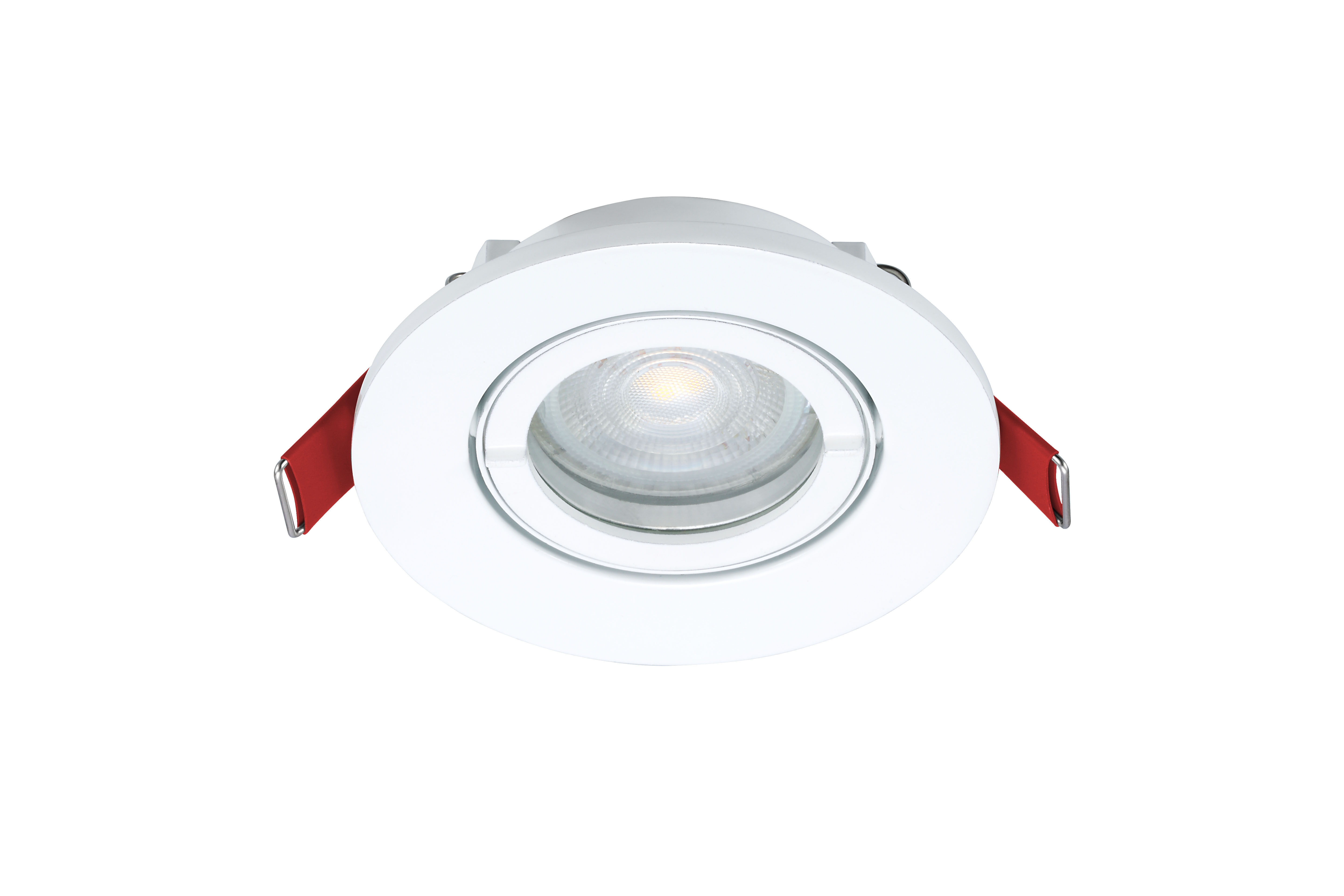

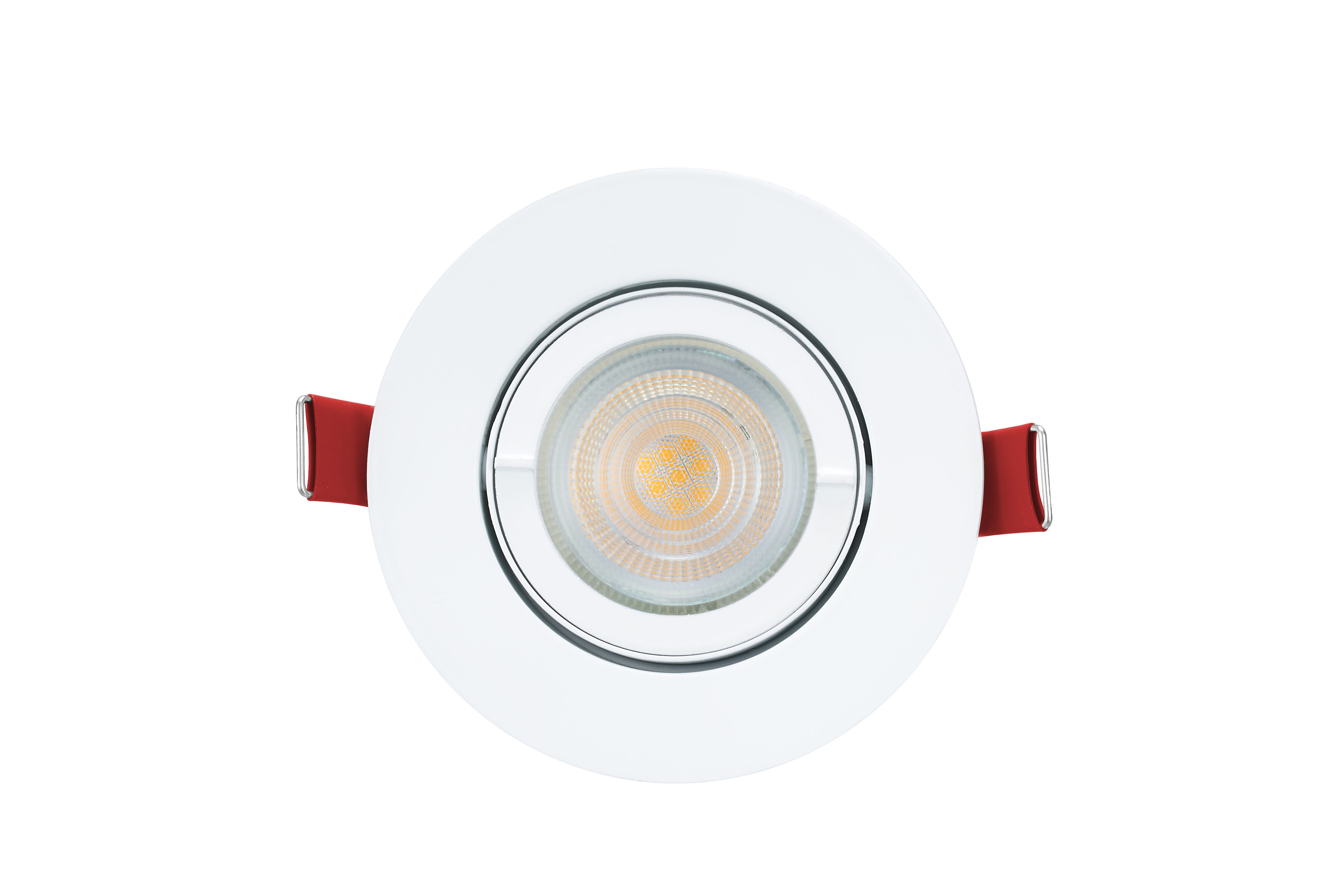

INSET TREND KIT SW IP44 REFLED ES50 36° WH NW DIM
Item No:
3001765
This product is no longer available
.png)

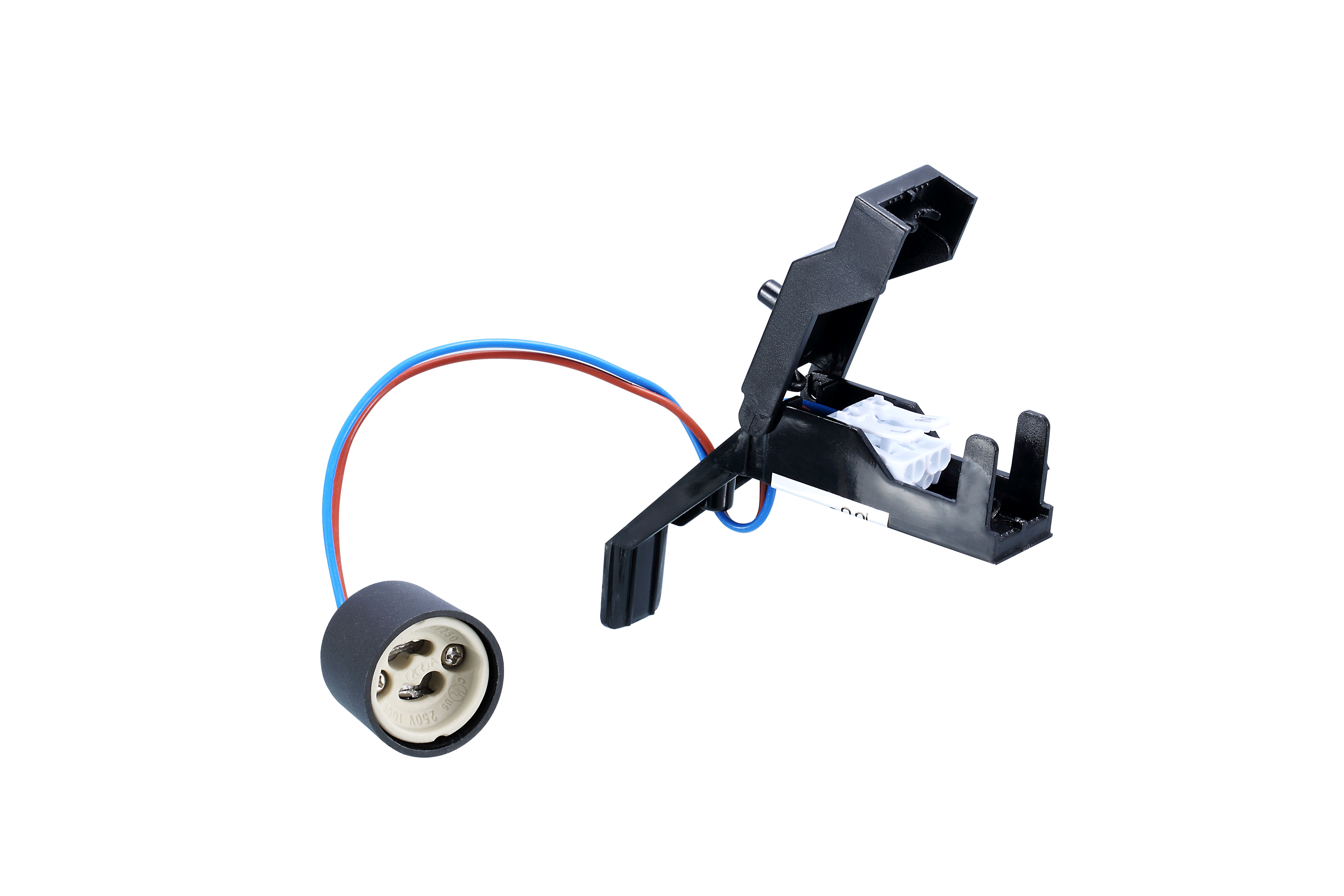

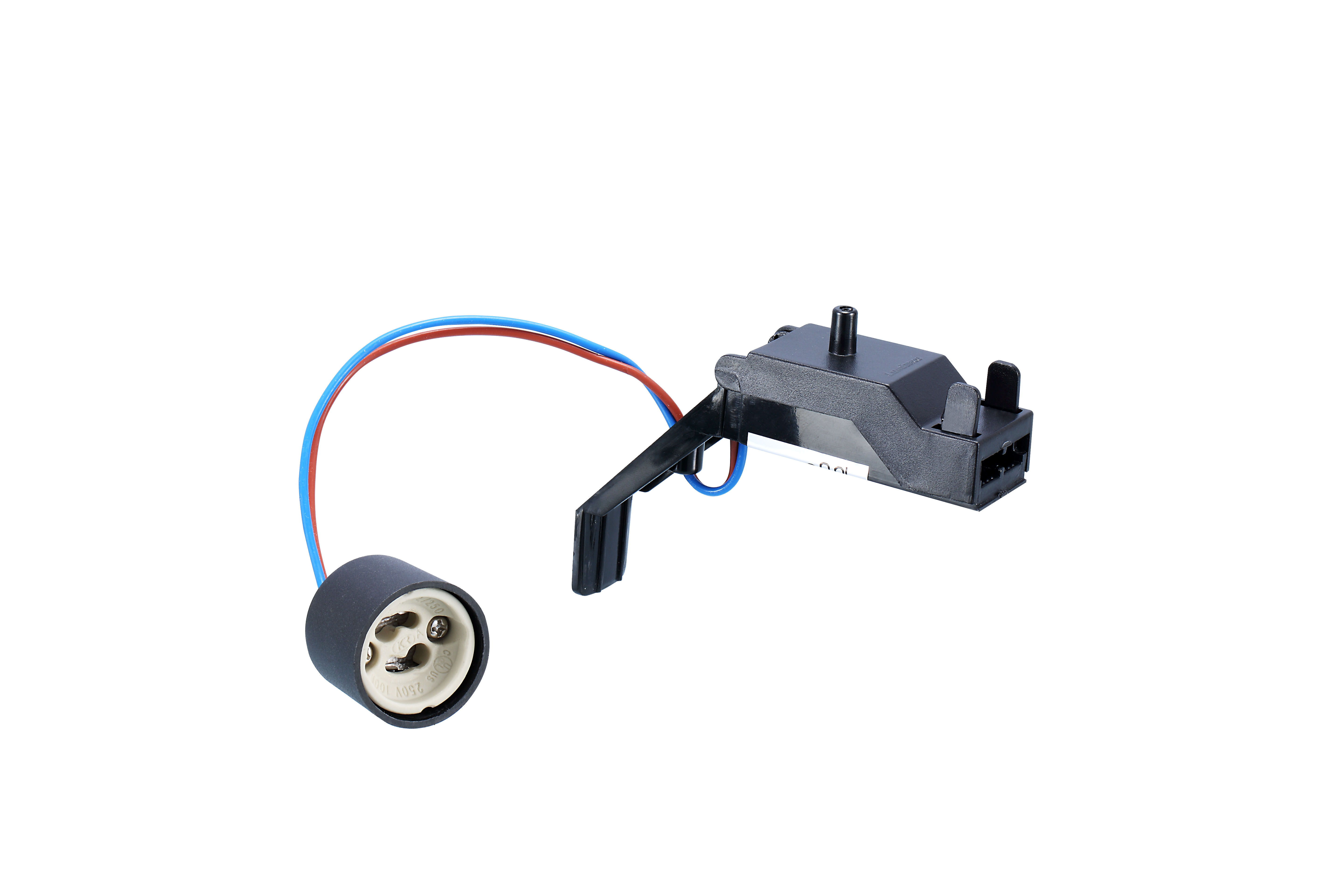

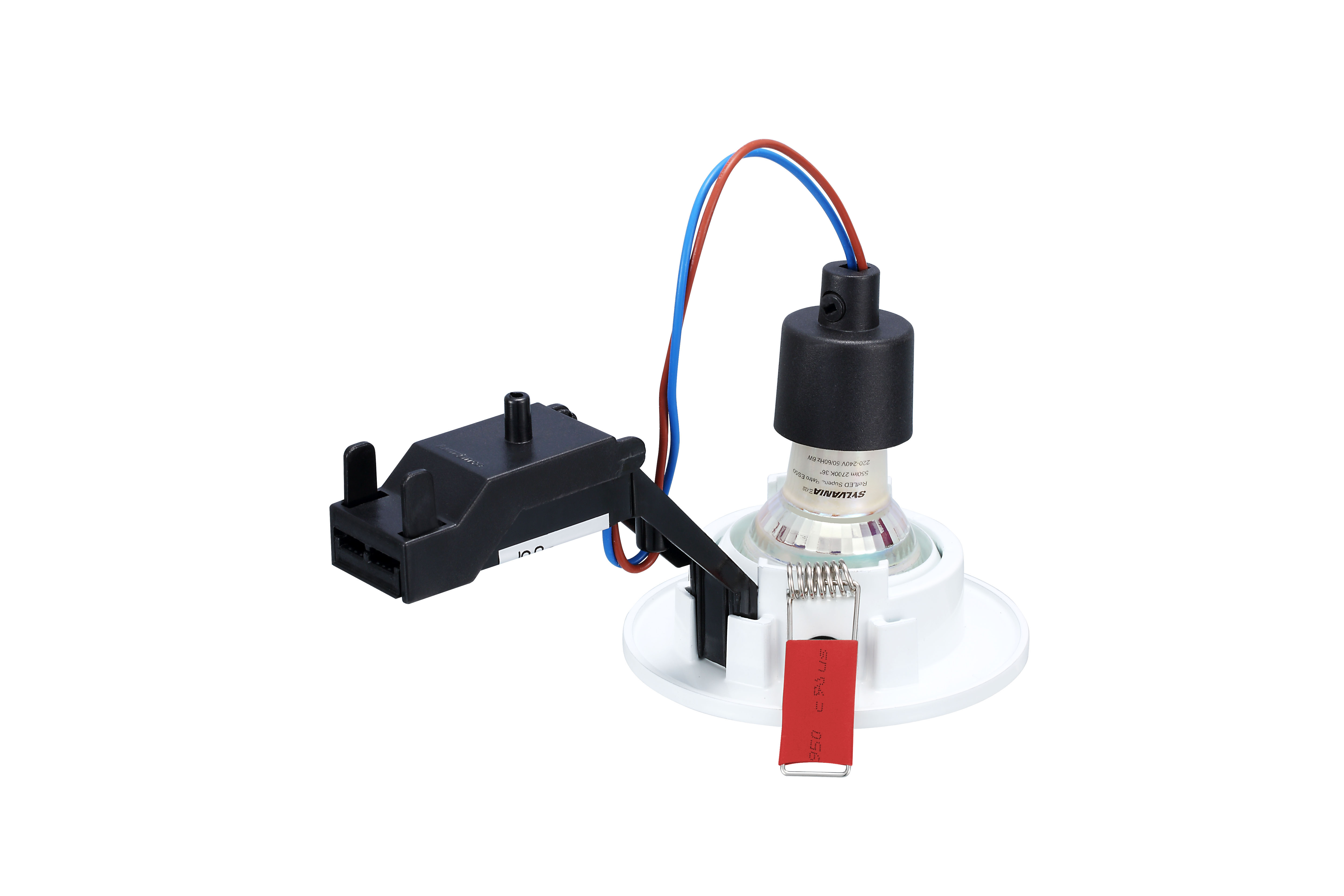

GU10 Housing with REFLED ES50 36° lamp included, Ideal for indoor application, Loop in - loop out box included
Downloads
Technical Assets

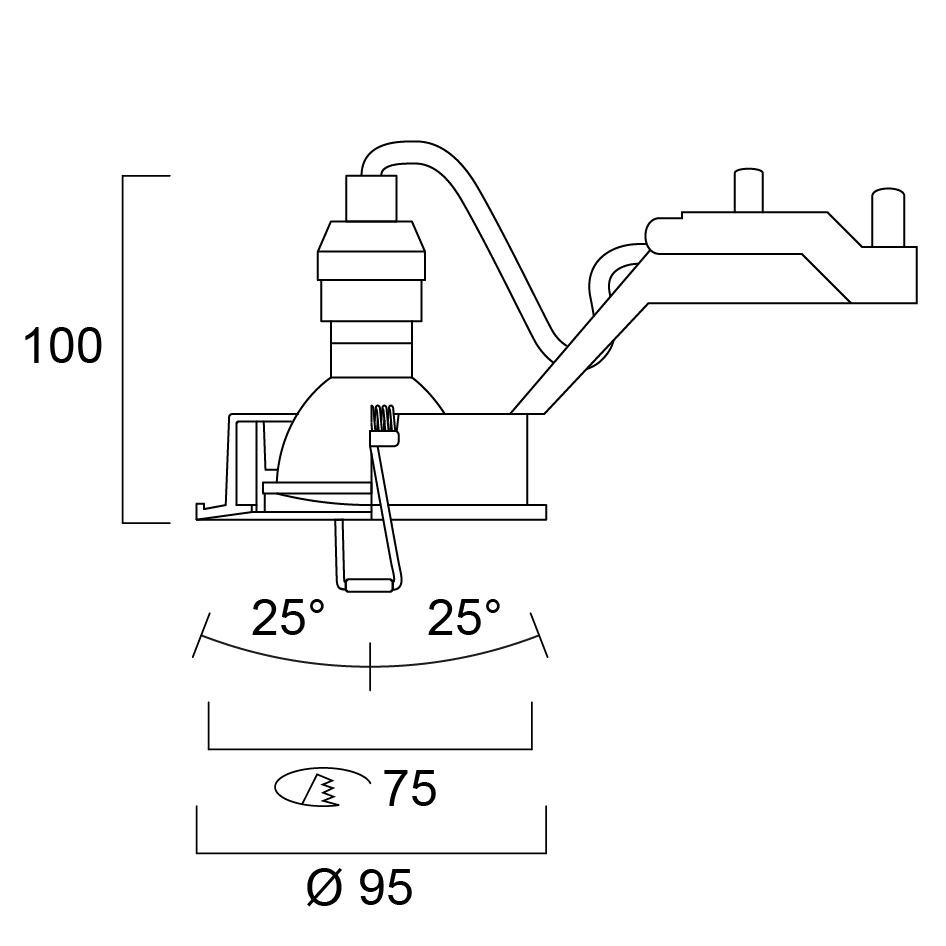

Dimensions (mm)
Photometrics
Product name
INSET TREND KIT SW IP44 REFLED ES50 36° WH NW DIM
Technology
LED
Cap/Base
GU10
Housing
Aluminium
Mount
Ceiling recessed mounting
Environment
Indoor
General application
Hospitality, Residential & Consumer
ETIM Class
EC001744
E-number FI
4270039
E-number SE
7468152
Warranty
3 years
Fixture luminous flux (lm)
345
Luminaire efficacy (lm/W)
76
LOR (%)
100
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Adjustable chromaticity
N
Beam Angle (°)
40
Light source included
0029128
Total power consumption (W)
4.5
Control gear type
Electronic ballast
Dimming method
Mains: leading / trailing edge
Energy Efficiency Class (A->G) of contained light source
F
Housing colour
White
IP rating
IP44/20
IK rating
IK02
Diffuser finish
Transparent
Diffuser material
Other
Nominal Product Height (mm)
100
Nominal Product Diameter (mm)
95
Weight (kg)
0.224
Recessed Depth (mm)
140
Product EAN number
8711971017653
Packaging single length / height (cm)
13.03
Packaging single width (cm)
10.03
Packaging single depth (cm)
8.53
DUN14 (inner)
18711971017650
Units per outer package
30
Packaging outer length / height (cm)
29.0
Packaging outer width (cm)
28.4
Packaging outer depth (cm)
53.0
