Consumer Professional

Sylighter 225 Square LED 21W NW

Item No: 3031705
This product is no longer available

A square downlight with cut out of 205mm with phase dimmable driver included

Technical Assets

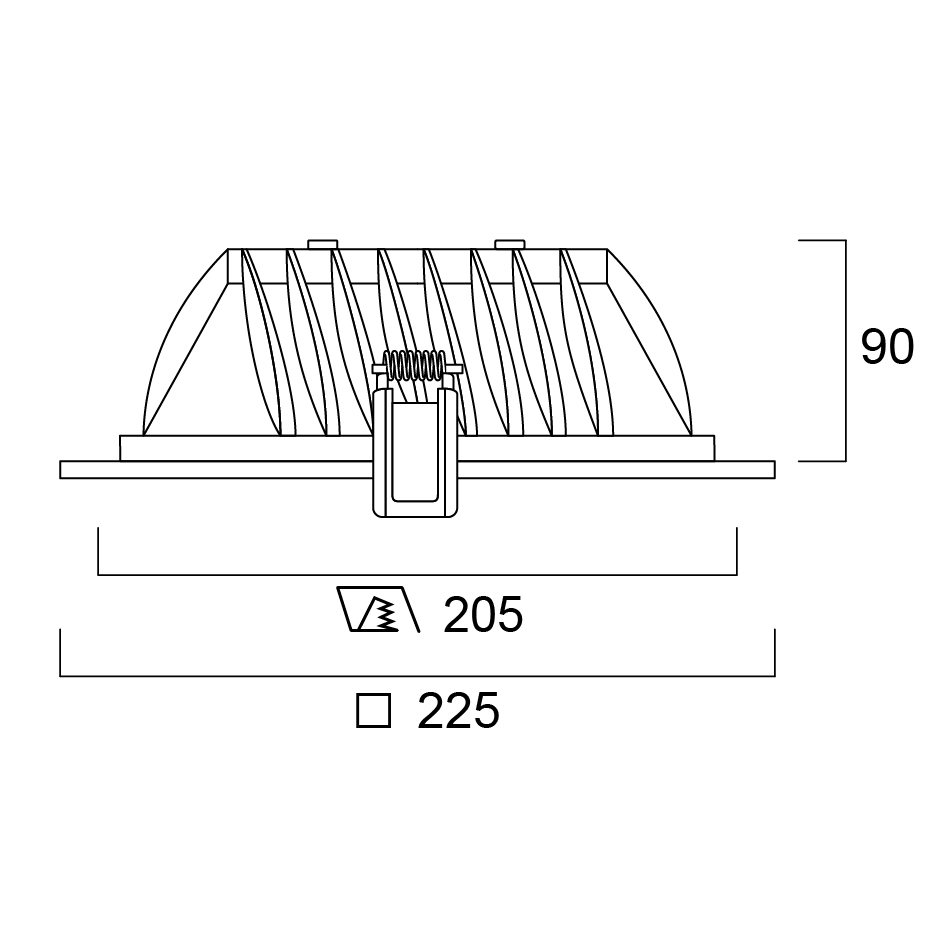

Dimensions (mm)

Photometrics

Product name
Sylighter 225 Square LED 21W NW
Technology
LED
Mount
Ceiling recessed mounting
Environment
Interior
General application
Hospitality, Logistics & Industry, Office
ETIM Class
EC001744
E-number FI
4273652
E-number SE
7462140
Warranty
3 years
Fixture luminous flux (lm)
1678
Luminaire efficacy (lm/W)
80
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Adjustable chromaticity
N
Beam Angle (°)
85
Photobiological Risk Group
RG0
Total power consumption (W)
21
Electrical protection
Class II
Control gear type
Electronic ballast
Drive current (mA)
500
Energy Efficiency Class (A->G) of contained light source
E
Housing colour
White
IP rating
IP44/20
IK rating
IK02
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
225
Nominal Product Width (mm)
225
Nominal Product Height (mm)
90
Weight (kg)
1.019
Recessed Depth (mm)
90
Product EAN number
8711971317050
Packaging single length / height (cm)
25.87
Packaging single width (cm)
24.07
Packaging single depth (cm)
10.23
DUN14 (inner)
18711971317057
Units per outer package
8
Packaging outer length / height (cm)
53.6
Packaging outer width (cm)
49.7
Packaging outer depth (cm)
23.0
Glow Wire Test (°C)
960
Compatible dimmers
Leading / trailing edge
Datasheet

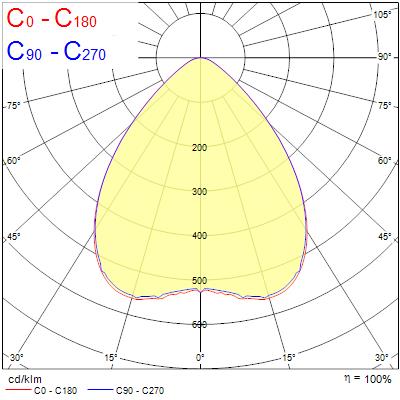

POLAR
RFA
IES

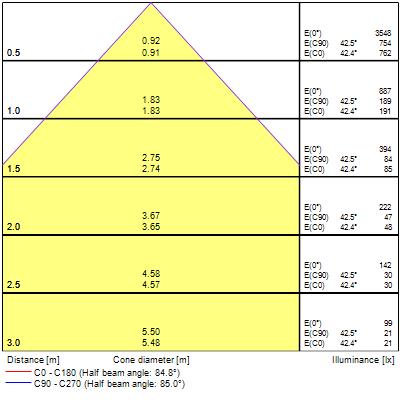

CONE
LDT
Technical Drawing
Safety Sheet 1
Safety Sheet 2
Instruction Sheet



Accessories
