Syl-Lighter LED II 220 RO 21W WW
Item No:
3031816
This product is no longer available
.png)

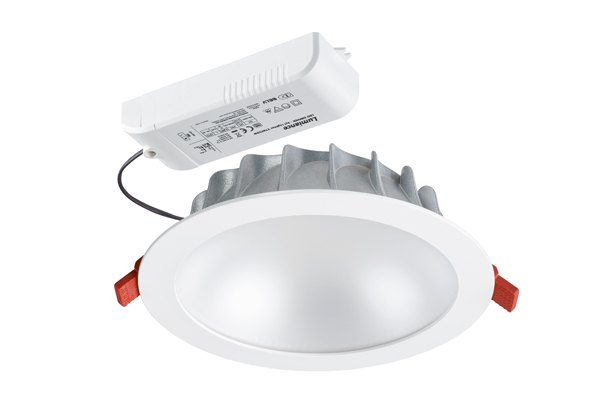

Ceiling recessed IP44 from the front LED downlight, perfect where limited ceiling void is available with only 60mm product depth and 205mm cutout. Ideal replacement for 1x42W CFL downlights. The polycarbonate diffuser allows for a wider light distribution and increased spacings between luminiares. Loop in loop out connector allows for quick installation. Die-cast aluminium body, 1785LM, 21W, 85lm/W, 3000K, Driver Current: 600mA, CRI80, 74° beam angle, Non-dimmable LED driver, IP44 from the front, IK07, (HxW) 60x205mm, 0.60kg, RAL9003, Class 2, 220-240V,
Technical Assets
Dimensions (mm)

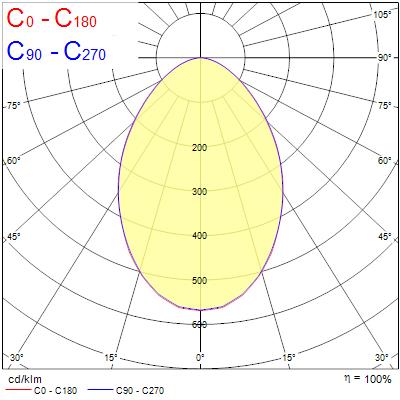

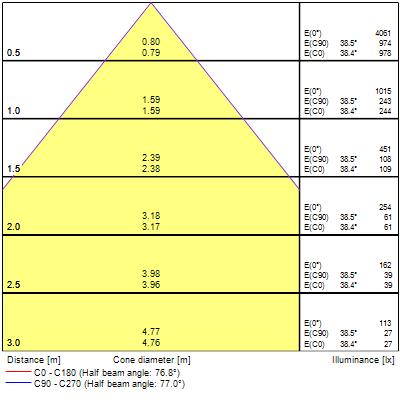

Photometrics
Product name
Syl-Lighter LED II 220 RO 21W WW
Technology
LED
Housing
Aluminium
Mount
Ceiling recessed mounting
Environment
Interior
General application
Hospitality
Operating temperature range (°C)
-10°C...+25°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4271255
E-number SE
7467166
Warranty
5 years
Fixture luminous flux (lm)
1785
Luminaire efficacy (lm/W)
85
LOR (%)
100
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Adjustable chromaticity
N
Beam Angle (°)
74
Distribution type
Symmetric
Glare control
< 25
Photobiological Risk Group
RG0
Total power consumption (W)
21
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class II
Control gear type
LED driver constant current
Dimmable
No
Dimming method
N/A
Drive current (mA)
600
Inrush Current (A)
6.44
Inrush Duration (µs)
830
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
20
Max. products per 13A C Breaker
26
Max. products per 16A C Breaker
32
Max. products per 20A C Breaker
40
Lifespan L70 B50
100000
Lifespan L80 B20
74000
Lifespan L90 B10
34000
Housing colour
RAL 9003 - Signal white
IP rating
IP44/20
IK rating
IK07
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Reflector finish
High-gloss
Nominal Product Length (mm)
220
Nominal Product Width (mm)
220
Nominal Product Height (mm)
60
Nominal Product Diameter (mm)
220
Weight (kg)
0.72
Recessed Depth (mm)
150
Product EAN number
8711971318163
Packaging single length / height (cm)
25.0
Packaging single width (cm)
25.0
Packaging single depth (cm)
7.5
DUN14 (inner)
18711971318160
Units per outer package
12
Packaging outer length / height (cm)
52.0
Packaging outer width (cm)
52.0
Packaging outer depth (cm)
26.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-10-25
