SYL-LIGHTER II 165 14W NW DALI
Item No:
3031842
This product is no longer available
.png)
Ceiling recessed IP44 from the front LED downlight, perfect where limited ceiling void is available with only 45mm product depth and 145mm cutout. Ideal replacement for 1x26W CFL downlights. The polycarbonate diffuser allows for a wider light distribution and increased spacings between luminiares. Die-cast aluminium body, 1170LM, 14W, 84lm/W, 4000K, Driver Current: 400mA, CRI80, 74° beam angle, Dali dimmable LED driver (Tridonic 28000693), IP44 from the front, IK07, (HxW) 45x165mm, 0.38kg, RAL9003, Class 2, 220-240V,
Technical Assets
Dimensions (mm)

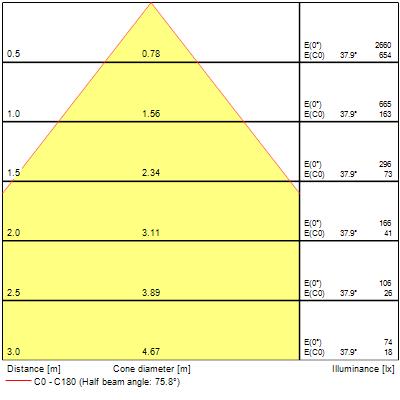

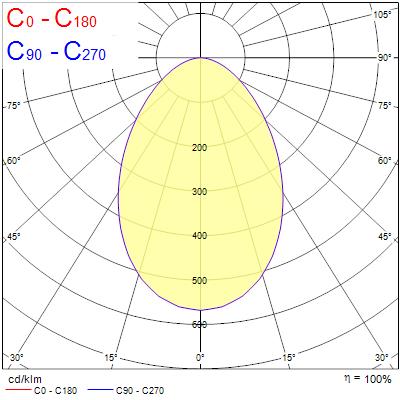

Photometrics
Product name
SYL-LIGHTER II 165 14W NW DALI
Technology
LED
Housing
Aluminium
Mount
Ceiling recessed mounting
Fixture rating
Enclosed
Environment
Interior
General application
Hospitality
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4270273
E-number SE
7470938
Warranty
5 years
Fixture luminous flux (lm)
1170
Luminaire efficacy (lm/W)
84
LOR (%)
100
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Consistency (SDCM)
5
Beam Angle (°)
74
Distribution type
Symmetric
Photobiological Risk Group
RG0
Total power consumption (W)
14
Lamp power factor
0.98
Electrical protection
Class II
Control gear required
Yes
Control gear type
Other
Control gear mounting
Remote
Dimmable
Yes
Dimming method
DALI
Minimum dimming level (%)
1
Drive current (mA)
300
Inrush Current (A)
18
Inrush Duration (µs)
140
Energy Efficiency Class (A->G) of contained light source
F
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
36
Max. products per 13A C Breaker
50
Max. products per 16A C Breaker
60
Max. products per 20A C Breaker
76
Max. products per 10A B Breaker
22
Max. products per 13A B Breaker
30
Max. products per 16A B Breaker
36
Max. products per 20A B Breaker
46
Lifespan L70 B50
50000
Housing colour
RAL 9003 - Signal white
IP rating
IP44/20
IK rating
IK07
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Reflector finish
Other
Nominal Product Height (mm)
45
Nominal Product Diameter (mm)
165
Weight (kg)
0.479
Product EAN number
8711971318422
Packaging single length / height (cm)
19.6
Packaging single width (cm)
19.7
Packaging single depth (cm)
6.4
DUN14 (inner)
18711971318422
Units per outer package
12
Packaging outer length / height (cm)
42.5
Packaging outer width (cm)
42.7
Packaging outer depth (cm)
21.9
Glow Wire Test (°C)
850
