SYL-LIGHTER II 220 21W NW DALI
Item No:
3031846
This product is no longer available
.png)
Ceiling recessed IP44 from the front LED downlight, perfect where limited ceiling void is available with only 60mm product depth and 205mm cutout. Ideal replacement for 1x42W CFL downlights. The polycarbonate diffuser allows for a wider light distribution and increased spacings between luminiares. Die-cast aluminium body, 2102LM, 21W, 100lm/W, 4000K, Driver Current: 600mA, CRI80, 74° beam angle, Dali dimmable LED driver (Tridonic 28000675), IP44 from the front, IK07, (HxW) 60x205mm, 0.60kg, RAL9003, Class 2, 220-240V,
Technical Assets
Dimensions (mm)

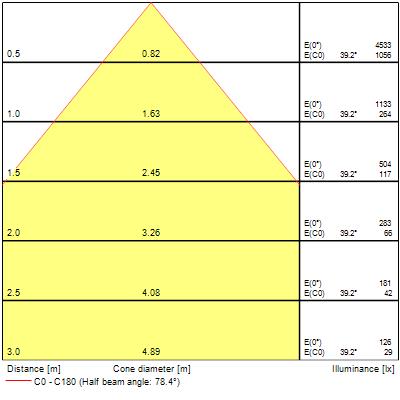

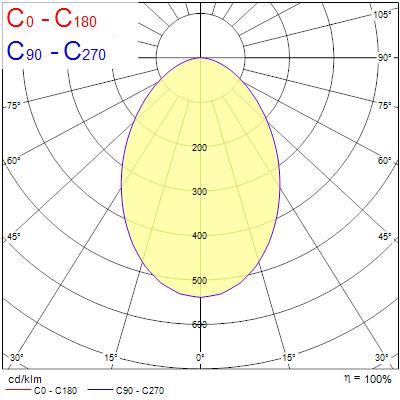

Photometrics
Product name
SYL-LIGHTER II 220 21W NW DALI
Technology
LED
Housing
Aluminium
Mount
Ceiling recessed mounting
Fixture rating
Enclosed
Environment
Interior
General application
Hospitality
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4270285
E-number SE
7470959
Warranty
5 years
Fixture luminous flux (lm)
2102
Luminaire efficacy (lm/W)
100
LOR (%)
100
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Consistency (SDCM)
5
Beam Angle (°)
74
Distribution type
Symmetric
Photobiological Risk Group
RG0
Total power consumption (W)
21
Lamp power factor
0.96
Electrical protection
Class II
Control gear required
Yes
Control gear type
Other
Control gear mounting
Remote
Dimmable
Yes
Dimming method
DALI
Minimum dimming level (%)
1
Drive current (mA)
600
Inrush Current (A)
26
Inrush Duration (µs)
151
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
31
Max. products per 13A C Breaker
43
Max. products per 16A C Breaker
53
Max. products per 20A C Breaker
66
Max. products per 10A B Breaker
19
Max. products per 13A B Breaker
26
Max. products per 16A B Breaker
32
Max. products per 20A B Breaker
40
Lifespan L70 B50
50000
Housing colour
RAL 9003 - Signal white
IP rating
IP44/20
IK rating
IK07
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Reflector finish
Other
Nominal Product Height (mm)
60
Nominal Product Diameter (mm)
220
Weight (kg)
0.757
Product EAN number
8711971318460
Packaging single length / height (cm)
25.3
Packaging single width (cm)
25.3
Packaging single depth (cm)
7.2
DUN14 (inner)
18711971318460
Units per outer package
12
Packaging outer length / height (cm)
52.4
Packaging outer width (cm)
52.6
Packaging outer depth (cm)
23.8
Glow Wire Test (°C)
850
