Inverto Direct WW 1-10v Black
Item No:
3080089
This product is no longer available
.png)
Surface Wall mounted luminaire, wire to base with pluggable connection for easy installation, suitable for looping, switchable driver, black coloured aluminium housing, 1,617lm or 2,045lm, 16W or 19W, 102lm/W or 107lm/W, 3000K, 350mA or 450mA , CRI:80, 40° beam Angle, 1-10V dimmable, IP65, IK07, 50,000hrs (L70), 23.00x19.4x11.5mm.
Technical Assets
Dimensions (mm)

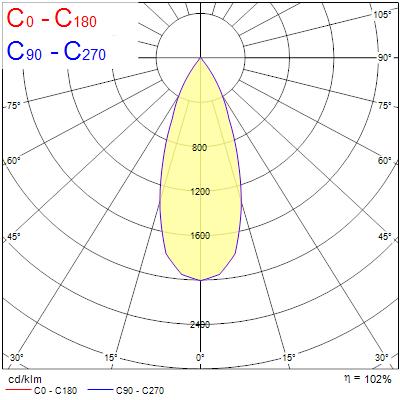

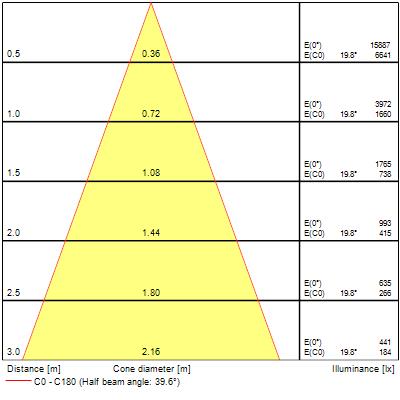

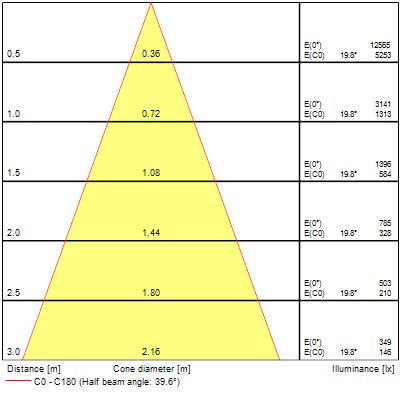

Photometrics
Product name
Inverto Direct WW 1-10v Black
Technology
LED
Housing
Aluminium
Mount
Wall surface mounted
Environment
Internal/External
General application
Hospitality
Operating temperature range (°C)
-25°C...+25°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC002892
E-number FI
4579301
E-number SE
7702956
Fixture luminous flux (lm)
1566 / 1980
Luminaire efficacy (lm/W)
98
LOR (%)
100
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
80
Colour Consistency (SDCM)
3
Adjustable chromaticity
N
Beam Angle (°)
40
Distribution type
Direct
Photobiological Risk Group
RG1
Total power consumption (W)
16
Electrical protection
Class I
Control gear type
Electronic ballast
Dimmable
Yes
Dimming method
1-10V (Analogue)
Minimum dimming level (%)
5
Drive current (mA)
350
Inrush Current (A)
45
Inrush Duration (µs)
20
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
50
Max. products per 16A C Breaker
80
Lifespan L70 B50
60000
Lifespan L70 B20
60000
Lifespan L70 B10
60000
Lifespan L80 B50
60000
Lifespan L80 B20
60000
Lifespan L80 B10
60000
Lifespan L90 B50
60000
Lifespan L90 B20
57300
Lifespan L90 B10
56100
Housing colour
RAL 9005 - Jet black
IP rating
IP65
IK rating
IK07
Diffuser finish
Transparent
Diffuser material
Glass
Nominal Product Length (mm)
162
Nominal Product Width (mm)
110
Nominal Product Height (mm)
110
Weight (kg)
1.461
Product EAN number
8711971800897
Packaging single length / height (cm)
23.5
Packaging single width (cm)
19.4
Packaging single depth (cm)
11.5
DUN14 (inner)
08711971800897
Units per outer package
1
Packaging outer length / height (cm)
23.5
Packaging outer width (cm)
19.4
Packaging outer depth (cm)
11.5
Optimal operating condition (°C)
-25-25
