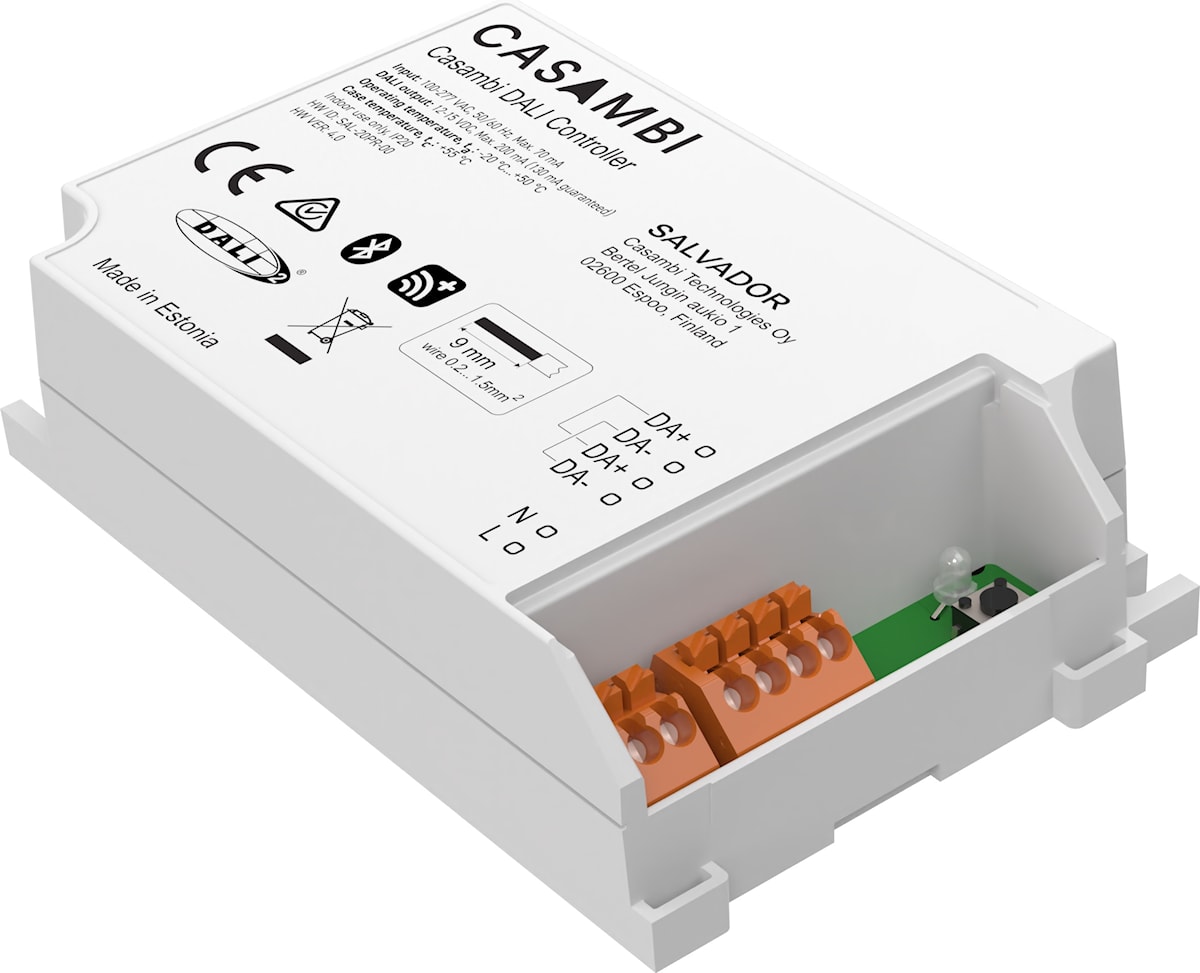

SYLSMART SALVADOR 2064 SSC
Item No:
V960014
The Salvador Series 2000 DALI controller seamlessly integrates up to 63 wired DALI drivers into the SylSmart Standalone system. When integrated, DALI luminaires appear as luminaires in the SylSmart Standalone network. The SylSmart Salvador 2064 supports industry standards such as DALI D4i, DALI DT6, and DALI DT8.
Technical Assets
Photometrics
Product name
SYLSMART SALVADOR 2064 SSC
Technology
Electronic Device
Type of accessory
Control
Operating temperature range (°C)
-20°C...+50°C
Warranty
5 years
Primary Supply/Product voltage - min (V)
100.0
Primary Supply/Product voltage - max (V)
277.0
Dimmable
Yes
Dimming method
DALI-2
Inrush Current (A)
20
Housing colour
White
Nominal Product Length (mm)
106
Nominal Product Width (mm)
67
Nominal Product Height (mm)
28
Weight (kg)
0.14
Packaging single length / height (cm)
14.0
Packaging single width (cm)
7.0
Packaging single depth (cm)
3.5
Units per outer package
1
Packaging outer length / height (cm)
14.0
Packaging outer width (cm)
7.0
Packaging outer depth (cm)
3.5
Optimal operating condition (°C)
-20-50
