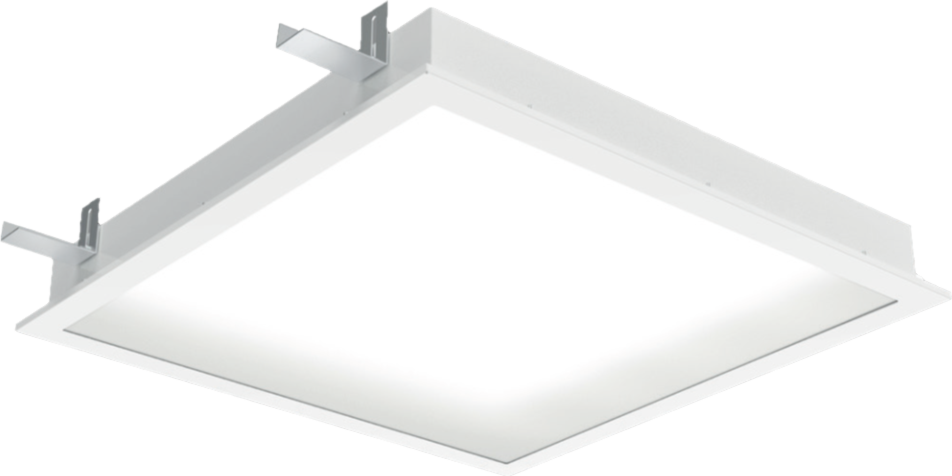

Panel IP66 Cleanroom

Operating theatres, Intensive Care Units, ambulances, surgery rooms, laboratories, microelectronics production or food industry? The new Panel IP66 CR (cleanroom) designed for clean areas in compliance with ISO 14644-1. This recessed luminaire is ideal for hygienic applications such as hospitals, laboratories or clinics. The luminaires are suitable for use in cleanrooms fulfilling the specification of air cleanliness ISO Class 2-9. It is the perfect solution for customers who require easy-toclean luminaires with a high protection class: dual IP rated along with rigid steel construction and tamper proof secure diffuser. The range is available with a robust matt tempered safety glass or a clear tempered safety glass diffuser with micro-prismatic plexiglass for reduced glare (UGR<19). The square and rectangular luminaire are compatible with modular metallic ceilings. The ENEC certified luminaire has high efficacy of up to 145lm/W, impressive lifespan over 70,000 hours at L80B10 at Ta 30°C.

Downloads

Panel IP66 Cleanroom Selling Sheet.pdf

Application Images

Panel IP66 Cleanroom Products

Item No:	Nombre del producto	Consumo total de energía (W)	Lúmenes	Eficacia (lmW)	CRI (Ra)	Control de deslumbramiento	Modo de regulación


Item No:	Nombre del producto	Consumo total de energía (W)	Lúmenes	Eficacia (lmW)	CRI (Ra)	Control de deslumbramiento	Modo de regulación
0042760	Panel IP66 CR R 598 37W 5357lm 840	37	5360	145	80	< 22	No aplicable
0042764	Panel IP66 CR R 598 37W 5357lm 840 DALI	37	5360	145	80	< 22	DALI-2
0042776	Panel IP66 CR R 598 40W 5357lm 840 DALI EM	37	5360	145	80	< 25	DALI-2
0042762	Panel IP66 CR R 1198 37W 4992lm 840	37	4990	135	80	< 22	No aplicable
0042766	Panel IP66 CR R 1198 37W 4992lm 840 DALI	37	4990	135	80	< 22	DALI-2
0042777	Panel IP66 CR R 1198 40W 4992lm 840 DALI EM	37	4990	135	80	< 25	DALI-2
0042768	Panel IP66 CR R 598 37W 5049lm 840 UGR	37	4670	126	80	< 19	No aplicable
0042772	Panel IP66 CR R 598 37W 5049lm 840 UGR DALI	37	4670	126	80	< 19	DALI-2
0042778	Panel IP66 CR R 598 40W 5049lm 840 UGR DALI EM	37	4670	126	80	< 19	DALI-2
0042770	Panel IP66 CR R 1198 37W 4671lm 840 UGR	37	4290	116	80	< 19	No aplicable
0042774	Panel IP66 CR R 1198 37W 4671lm 840 UGR DALI	37	4290	116	80	< 19	DALI-2
0042779	Panel IP66 CR R 1198 40W 4671lm 840 UGR DALI EM	37	4290	116	80	< 19	DALI-2
0042010	Panel IP66 CR R 598 37W 4292lm 940 UGR	37	4000	108	90	< 19	No aplicable
0042014	Panel IP66 CR R 598 37W 4292lm 940 UGR DALI	37	4000	108	90	< 19	DALI-2
0042018	Panel IP66 CR R 598 40W 4292lm 940 UGR DALI EM	37	4000	108	90	< 19	DALI-2
0042012	Panel IP66 CR R 1198 37W 3973lm 940 UGR	37	3750	101	90	< 19	No aplicable
0042016	Panel IP66 CR R 1198 37W 3973lm 940 UGR DALI	37	3750	101	90	< 19	DALI-2
0042019	Panel IP66 CR R 1198 40W 3973lm 940 UGR DALI EM	37	3750	101	90	< 19	DALI-2
0042020	Panel IP66 CR R Cable de seguridad	-	-	-	-	-	-

Panel IP66 Cleanroom

Cleanroom certified

Class 2–9 (ISO 14644‑1:2015)

Wide operating temperature

-20 to + 60°C

Durable

IP66 & IK08

Panel IP66 Cleanroom Products
