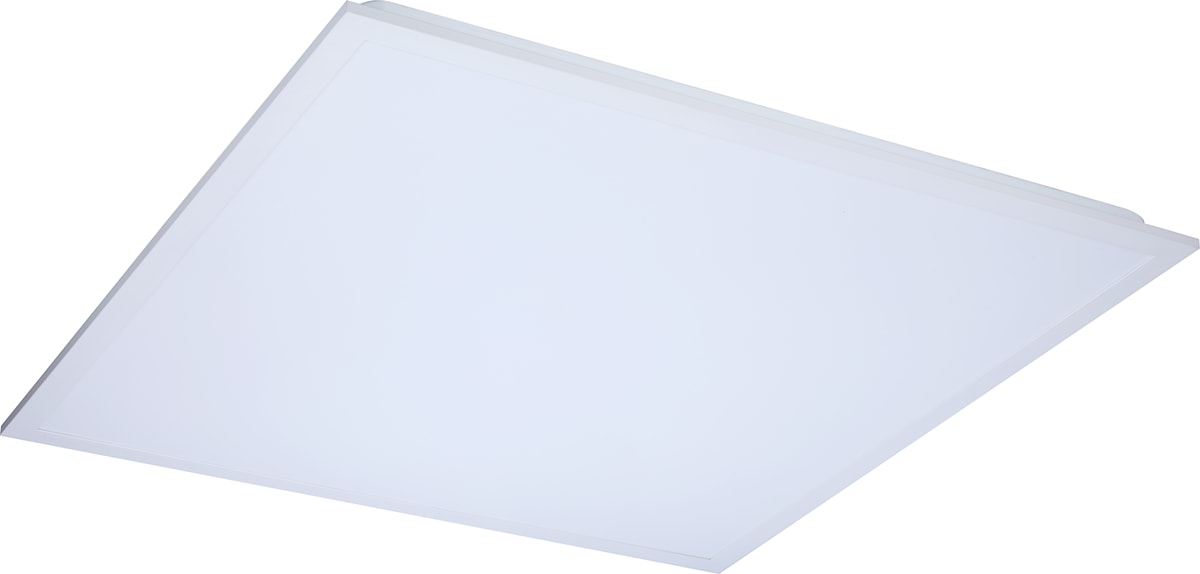

LED panel with Backlit technology. High efficacy of up to 182lm/W. Suitable for premises requiring a high level of IP protection: hospitals, laboratories, professional kitchens, etc.. UGR<19, SDCM<3. Multipower functionality where the luminous flux of the luminaire can be tailored to local needs during installation by only setting a quick selector switch. Dimmable via standard wired switch (DALI models) and SylSmart® Connected enabled. Integrated Loop-in-Loop-out (LILO) function. Can be covered with rollable insulation. Safety cable supplied as standard. Photobiological risk group: GR0. Lifespan: 100.000 hrs (L80). 5-year warranty.
Quantum - NUEVO Products
| Item No: | Nombre del producto | Consumo total de energía (W) | Lúmenes | Eficacia (lmW) | CRI (Ra) | Control de deslumbramiento | Modo de regulación |
|---|---|---|---|---|---|---|---|
| Item No: | Nombre del producto | Consumo total de energía (W) | Lúmenes | Eficacia (lmW) | CRI (Ra) | Control de deslumbramiento | Modo de regulación |
| 0048108 | Quantum 600X600 2200-4400lm 830 MP | 26 | 4400 | 169 | 80 | < 19 | No aplicable |
| 0048106 | Quantum 600X600 2300-4700lm 840 MP | 26 | 4700 | 181 | 80 | < 19 | No aplicable |
| 0048109 | Quantum 600X600 4400lm 830 DALI | 26 | 4400 | 169 | 80 | < 19 | DALI-2 |
| 0048107 | Quantum 600X600 4700lm 840 DALI | 26 | 4700 | 181 | 80 | < 19 | DALI-2 |
| 0048113 | QUANTUM 600X600 4700LM 840 SSA01D | 28 | 4700 | 168 | 80 | < 19 | SylSmart Connected (SSA) |
| 0048112 | QUANTUM 600X600 4700LM 840 SSA03 | 28 | 4700 | 168 | 80 | < 19 | SylSmart Connected (SSA) |
| 0048110 | Quantum 600X600 2200-4300lm 940 MP | 26 | 4300 | 165 | 90 | < 19 | No aplicable |
| 0048111 | Quantum 600X600 4300lm 940 DALI | 26 | 4300 | 165 | 90 | < 19 | DALI-2 |
| 0048118 | Quantum 1200X300 2200-4300lm 830 MP | 26 | 4300 | 165 | 80 | < 19 | No aplicable |
| 0048116 | Quantum 1200X300 2300-4500lm 840 MP | 26 | 4500 | 173 | 80 | < 19 | No aplicable |
| 0048119 | Quantum 1200X300 4300lm 830 DALI | 26 | 4300 | 165 | 80 | < 19 | DALI-2 |
| 0048117 | Quantum 1200X300 4500lm 840 DALI | 26 | 4500 | 173 | 80 | < 19 | DALI-2 |
| 0048136 | QUANTUM 1200X300 4500LM 840 SSA03 | 28 | 4500 | 161 | 80 | < 19 | SylSmart Connected (SSA) |
| 0048130 | Quantum 1200X600 4500-5500lm 830 MP | 33 | 5500 | 167 | 80 | < 19 | No aplicable |
| 0048128 | Quantum 1200X600 4800-5800lm 840 MP | 33 | 5800 | 176 | 80 | < 19 | No aplicable |
| 0048129 | Quantum 1200X600 5800lm 840 DALI | 33 | 5800 | 176 | 80 | < 19 | DALI-2 |
| 0044613 | Surface Mounting Kit 600x600x70mm | - | - | - | - | - | - |
| 0044614 | Surface Mounting Kit 1200x300x70mm | - | - | - | - | - | - |
| 0044616 | Kit de montaje de superficie 1200x600x70mm | - | - | - | - | - | - |
| 0062317 | Marco para escayola 600x600 | - | - | - | - | - | - |
| 0062319 | Marco para escayola 1200x300 | - | - | - | - | - | - |
| 0047547 | Kit de suspensión START Panel | - | - | - | - | - | - |
| 0047545 | Pull-up ceiling bracket | - | - | - | - | - | - |
| 9146602 | LSF EM PACK MT 6-54V LIFEPO4 3H3W RC | - | - | - | - | - | - |
| 9146603 | LSF EM PACK DAST 6-54V LIFEPO4 3H3W RC | - | - | - | - | - | - |
