Raiden IP66 8KLM 840 Street
Code article
2824063
This product is no longer available
.png)
Outdoor and indoor floodlight range with in house design, comes complete with 1m flying lead and adjustable bracket, aluminium housing, RAL 9022 - Pearl light grey, clear glass diffuser, IP66, IK08, Class I, 4000K, Non-dimming, 8500lm, 67W, 127lm/W, CRI80, Street beam angle 155*75°, 100000 hrs L90B50 lifespan, 327x270x74mm (LxWxH) dimensions, 4.2kg weight. Ball-impact-resistance according to DIN57710-13 VDE 0710 13/5.81, DIN 18032-3 only with the separate wire guard accessory fitted.
Téléchargements
Atouts techniques
Dimensions (mm)

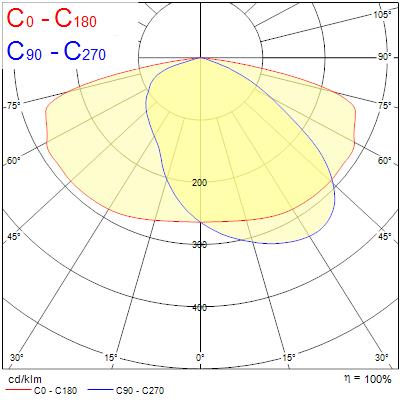

Photométrie
Nom du produit
Raiden IP66 8KLM 840 Street
Technologie
LED
Cap/Base
N/A
Housing
Aluminium
General application
Logistics & Industry
Operating temperature range (°C)
-40°C...+50°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
Warranty
5 ans
Fixture luminous flux (lm)
8500
Luminaire efficacy (lm/W)
127
Température de couleur (K)
4000
Couleur de lumière
Neutral White
IRC (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
155*75
Photobiological Risk Group
RG1
Consommation électrique totale (W)
67
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class I
Control gear required
No
Dimmable
No
Dimming method
N/A
Drive current (mA)
1280
Courant d'appel (A)
45
Inrush Duration (µs)
200
Energy Efficiency Class (A->G) of contained light source
D
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
15
Max. products per 13A C Breaker
19
Max. products per 16A C Breaker
24
Max. products per 20A C Breaker
30
Max. products per 10A B Breaker
9
Max. products per 13A B Breaker
11
Max. products per 16A B Breaker
14
Max. products per 20A B Breaker
18
Mains surge immunity (differential mode -> L-N) (kV)
6
Mains surge immunity (common mode -> L/N - GND) (kV)
10
Lifespan L70 B50
100000
Lifespan L80 B20
100000
Lifespan L90 B50
100000
Housing colour
RAL 9022 - Pearl light grey
IP rating
IP66
IK rating
IK08
Longueur (mm)
327
Largeur (mm)
270
Nominal Product Height (mm)
74
Poids (kg)
4.2
Product EAN number
5025768240630
Longueur simple de l’emballage (cm)
39.5
Largeur simple de l’emballage (cm)
36.5
Packaging single depth (cm)
14.5
DUN14 (inner)
05025768240630
Units per outer package
1
Packaging outer length / height (cm)
39.5
Packaging outer width (cm)
36.5
Packaging outer depth (cm)
14.5
Glow Wire Test (°C)
850
Condition de fonctionnement optimal (° C)
-40-50
