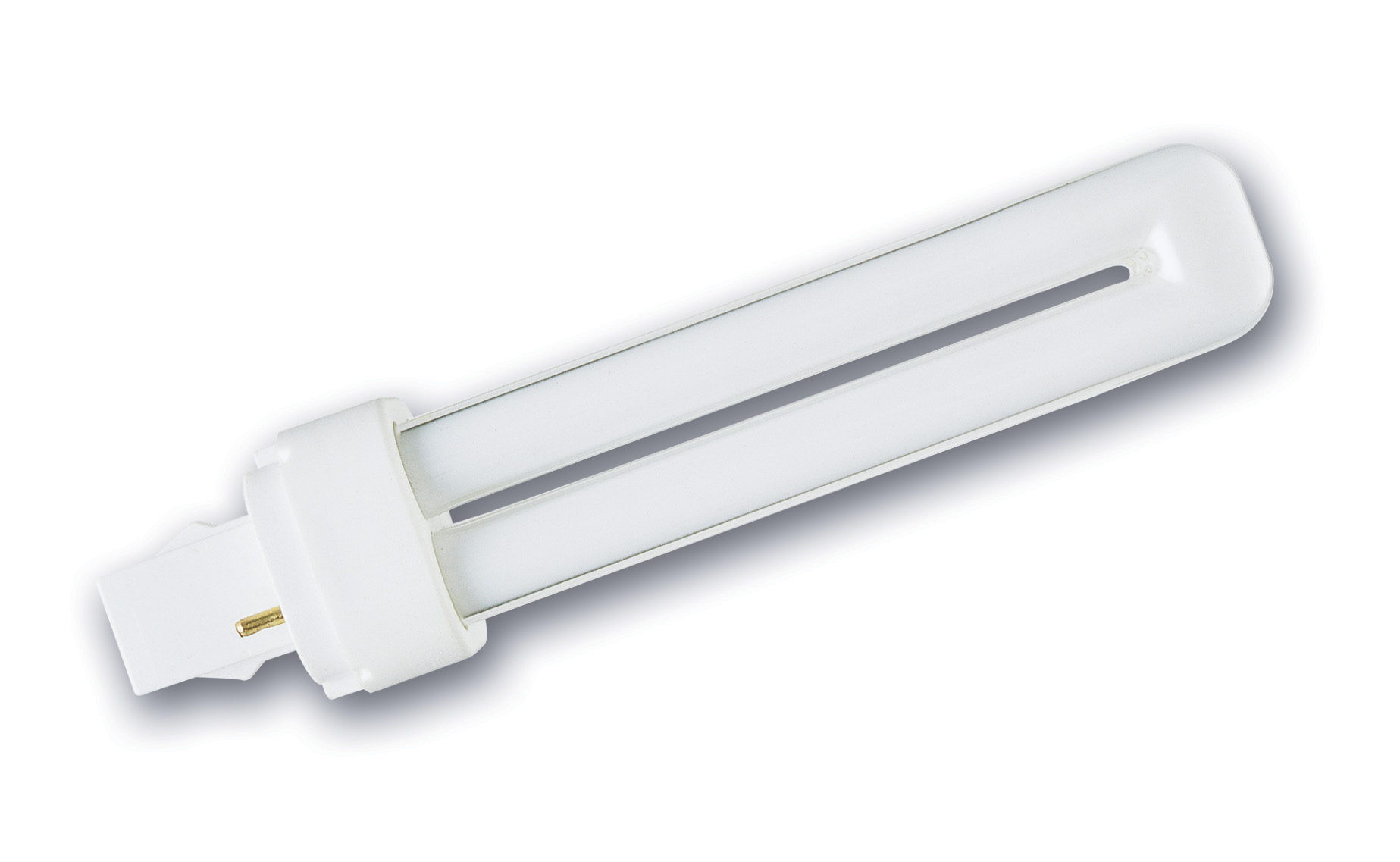

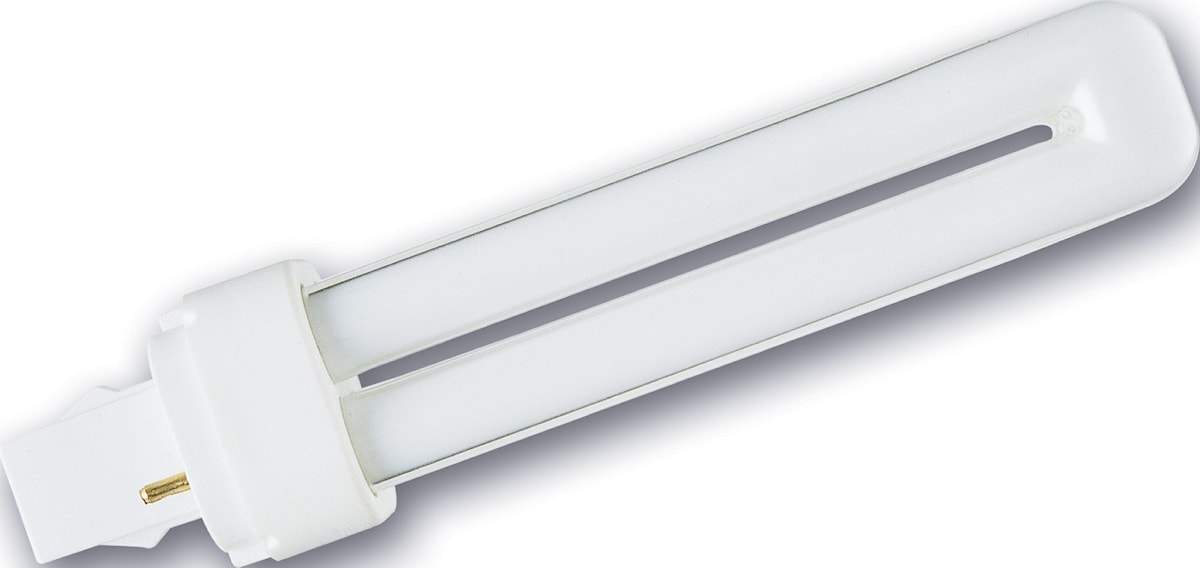

Lynx-D Superia 26W/827 G24d-3 SLV
Item No:
0025907
- Compact and high performance double bend 2-bend pin lamp, - Suitable for operation on elecronic control gear (DE type) and magnetic ballast (D version), - Dimmable with suitable dimmer, - Excellent colour rendering, - Suitable for emergency lighting
Technical Assets
Dimensions (mm)
Photometrics
Nome do produto
Lynx-D Superia 26W/827 G24d-3 SLV
Tecnologia
Fluorescent
Watt (Rated) (W)
26
Forma da lâmpada
Other
Casquilho
G24d-3
Acabamento da lâmpada
Frosted/Coated
Luminária
Open
Aplicação geral
Educação, Hotelaria, Logistics & Industry, Museums & Galleries, Escritórios, Retalho, Residential & Consumer
ETIM
EC000087
E-number SE
8357365
Useful luminous flux (Φuse)
1800
Luminous flux (Rated) (lm)
1800
Rated lamp efficacy 100h 50Hz at 25°C (lm/W)
66
Ambient temperature for maximum luminous flux (°C)
25
Temperatura de cor (K)
2700
Cor da luz
Homelight
Colour Code
827
CRI
82
Variação da cor (SDCM)
SDCM5
Adjustable chromaticity
Não
Grupo de risco fotobiológico
Not applicable
Rated lumen maint. factor (%) at 2000 h 50Hz
85
Rated lumen maint. factor (%) at 4000 h 50Hz
78
Rated lumen maint. factor (%) at 8000 h 50Hz
75
Power consumption (W)
26
Potência
26
Starting time (max) (s)
10 Sec
Supply current (A)
0.42
Tensão de alimentação do produto – mín. (V)
220
Tensão de alimentação do produto – máx. (V)
240.0
Ignition voltage (V)
191
Control gear required
Yes
Regulável
No
Modo de regulação
N/A
Lamp Energy Label (class)
G
kWh per 1000 hours burning time
28
Vida média (horas)
12000
Average life (Rated) (h)
12000
Rated survival factor (%) at 2000 h 50Hz
96
Rated survival factor (%) at 4000 h 50Hz
90
Rated survival factor (%) at 6000 h 50Hz
80
Rated survival factor (%) at 8000 h 50Hz
72
Rated survival factor (%) at 12000 h 50Hz
50
Rated survival factor (%) at 16000 h 50Hz
71
Comprimento nominal do produto (mm)
174
Nominal Product Diameter (mm)
35
Max. Length base to base (mm) - A
171
Max. Lamp Diameter (mm) - D
13
Peso (kg)
0.072
Código EAN
5410288259079
Comprimento / altura da embalagem individual (cm)
17.3
Largura da embalagem individual (cm)
3.6
Profundidade da embalagem individual (cm)
3.6
DUN14 (inner)
15410288259076
Unidades por embalagem exterior
10
Comprimento / altura da embalagem exterior (cm)
18.4
Largura da embalagem exterior (cm)
8.0
Profundidade da embalagem exterior (cm)
18.7
Lamp mercury content (mg)
2.5
Breakage cleaning instructions
Applicable
Recommendation for disposal at end of life
Applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
