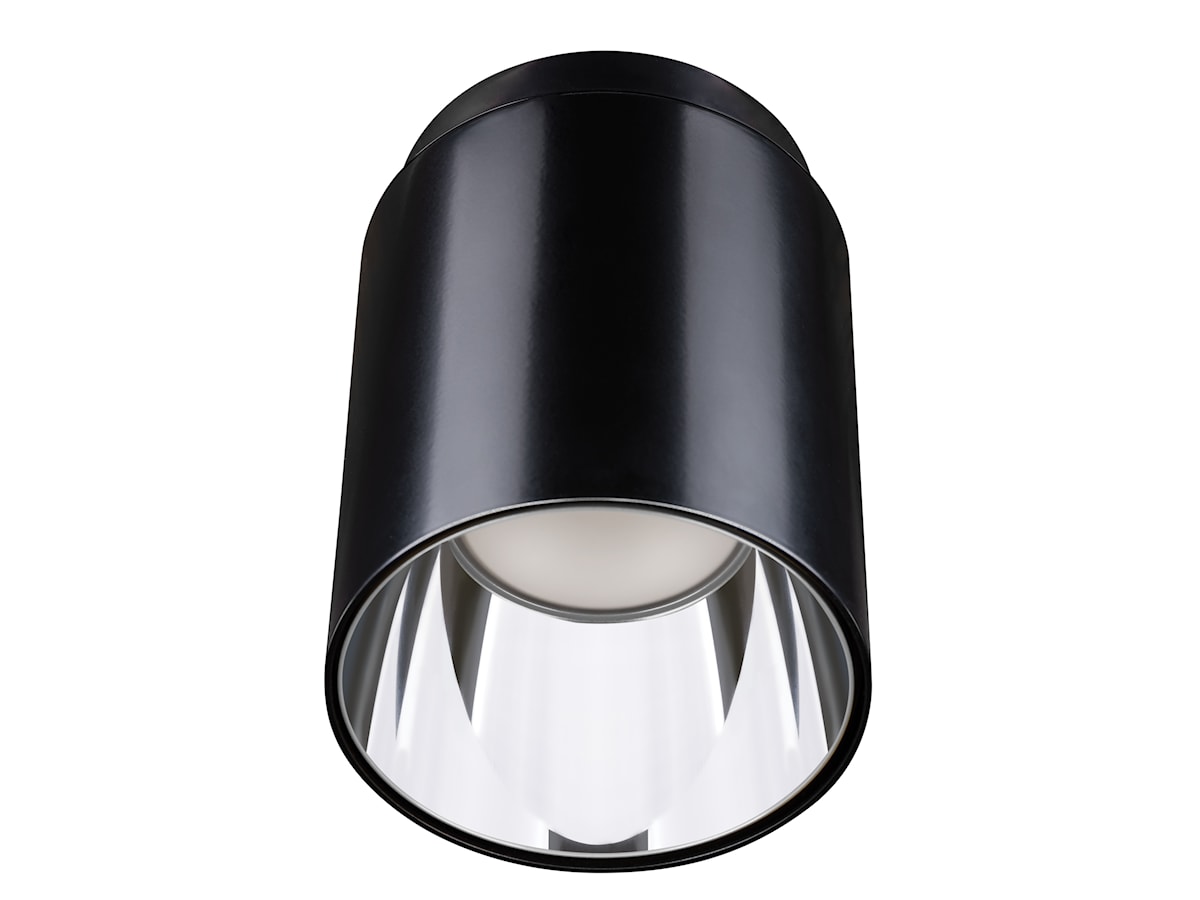

Die Solstice‑Produktfamilie bietet oberflächenmontierte Versionen in zwei Größen – 145 mm und 196 mm Durchmesser – aus hochwertigem Aluminium-Druckgussgehäuse und einem spritzgegossenen Top Hat. Die Version mit 196 mm Durchmesser ist auch als Notfallversion mit einer dezenten LED-Anzeige an der Seite des Produkts erhältlich. Alle Anabuversionen können mit einem weißen oder schwarzen Pendelset in Pendelleuchten umgewandelt werden. Die Produktreihe bietet eine Lichtleistung von bis zu 4000 lm. Es gibt keinen optischen Unterschied zwischen den Optionen Standard, Wireless, EM und Direkt/Indirekt, was diese Produktfamilie perfekt macht. Die Installation ist für alle Varianten gleich, da sie über den gemeinsamen spritzgegossenen Aufsatz erfolgt, der auch als „Fenster” für das Wireless-Signal dient (SSA- und SSC-Versionen erhältlich).
Solstice Anbau Produkte
| Artikelnummer | Produktname | Leistungsaufnahme gesamt (W) | Leuchtenlichtstrom (lm) | Farbtemperatur (K) | IP Schutzart | Dimming method |
|---|---|---|---|---|---|---|
| Artikelnummer | Produktname | Leistungsaufnahme gesamt (W) | Leuchtenlichtstrom (lm) | Farbtemperatur (K) | IP Schutzart | Dimming method |
| 2070181 | Solstice 150 1900lm 930 DALI Surface Mounted | 16 | 1900 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070182 | Solstice 150 2000lm 940 DALI Surface Mounted | 16 | 2000 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070184 | Solstice 150 Lumi HCL TW SSC01D Surface Mounted | 18 | 1500 | - | IP20 | SylSmart Standalone (SSC) |
| 2070185 | Solstice 150 1350 LUMI 930 SSC01D Surface Mounted | 17 | 1350 | 3000 | IP20 | SylSmart Standalone (SSC) |
| 2070186 | Solstice 150 1450 LUMI 940 SSC01D Surface Mounted | 17 | 1450 | 4000 | IP20 | SylSmart Standalone (SSC) |
| 2070191 | Solstice 150 1900lm 930 DALI Surface Mounted WW | 16 | 1900 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070192 | Solstice 150 2000lm 940 DALI Surface Mounted WW | 16 | 2000 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070189 | Solstice 150 1000lm 930 DALI Surface Mounted BB | 16 | 1000 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070190 | Solstice 150 1050lm 940 DALI Surface Mounted BB | 16 | 1050 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070406 | Solstice 150 1250lm 930 DALI Surface Mounted GB | 16 | 1250 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070407 | Solstice 150 1300lm 940 DALI Surface Mounted GB | 16 | 1300 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070410 | Solstice 150 1900lm 930 DALI Surface Mounted SB | 16 | 1900 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070411 | Solstice 150 2000lm 940 DALI Surface Mounted SB | 16 | 2000 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070193 | Solstice 200 2150lm 930 DALI Surface Mounted | 16 | 2150 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070194 | Solstice 200 2250lm 940 DALI Surface Mounted | 16 | 2250 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070195 | Solstice 200 2150lm 930 DALI ST Surface Mounted | 18 | 2150 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070196 | Solstice 200 2250lm 940 DALI ST Surface Mounted | 18 | 2250 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070197 | Solstice 200 4000lm 930 DALI Surface Mounted | 31 | 4000 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070198 | Solstice 200 4100lm 940 DALI Surface Mounted | 31 | 4100 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070201 | Solstice 200 4000lm 930 DALI EM Surface Mounted | 34 | 4000 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070202 | Solstice 200 4100lm 940 DALI ST Surface Mounted | 34 | 4100 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070203 | Solstice 200 2150lm 930 SSC01D Surface Mounted | 17 | 2150 | 3000 | IP20 | SylSmart Standalone (SSC) |
| 2070204 | Solstice 200 2250lm 940 SSC01D Surface Mounted | 17 | 2250 | 4000 | IP20 | SylSmart Standalone (SSC) |
| 2070205 | Solstice 200 2150lm 930 SSA01D Surface Mounted | 17 | 2150 | 3000 | IP20 | SylSmart Connected (SSA) |
| 2070206 | Solstice 200 2250lm 940 SSA01D Surface Mounted | 17 | 2250 | 4000 | IP20 | SylSmart Connected (SSA) |
| 2070208 | Solstice 200 Lumi HCL TW SSC01D Surface Mounted | 23 | 1950 | - | IP20 | SylSmart Standalone (SSC) |
| 2070209 | Solstice 200 1800 LUMI 930 SSC01D Surface Mounted | 20 | 1800 | 3000 | IP20 | SylSmart Standalone (SSC) |
| 2070210 | Solstice 200 1900 LUMI 940 SSC01D Surface Mounted | 20 | 1900 | 4000 | IP20 | SylSmart Standalone (SSC) |
| 2070213 | Solstice 200 2050lm 930 DALI Surface Mounted WW | 16 | 2050 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070214 | Solstice 200 2150lm 940 DALI Surface Mounted WW | 16 | 2150 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070211 | Solstice 200 1500lm 930 DALI Surface Mounted BB | 16 | 1500 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070212 | Solstice 200 1600lm 940 DALI Surface Mounted BB | 16 | 1600 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070408 | Solstice 200 1700lm 930 DALI Surface Mounted GB | 16 | 1700 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070409 | Solstice 200 1800lm 940 DALI Surface Mounted GB | 16 | 1800 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070412 | Solstice 200 2150lm 930 DALI Surface Mounted SB | 16 | 2150 | 3000 | IP20 | DALI-2, Switch-dim (mains-rated) |
| 2070413 | Solstice 200 2250lm 940 DALI Surface Mounted SB | 16 | 2250 | 4000 | IP20 | DALI-2, Switch-dim (mains-rated) |
