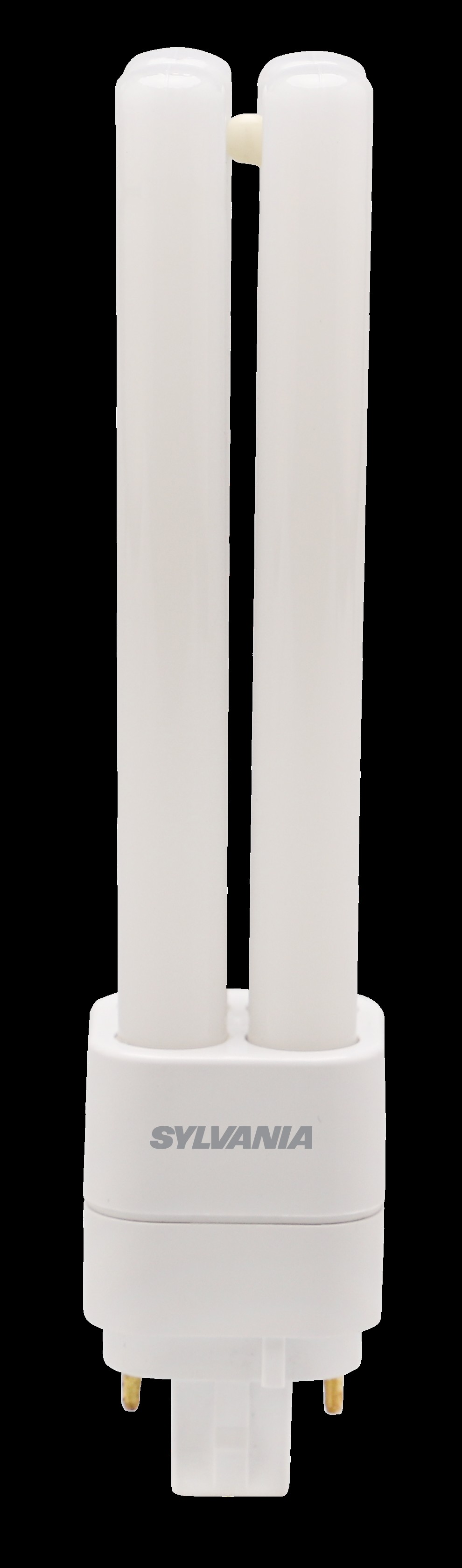

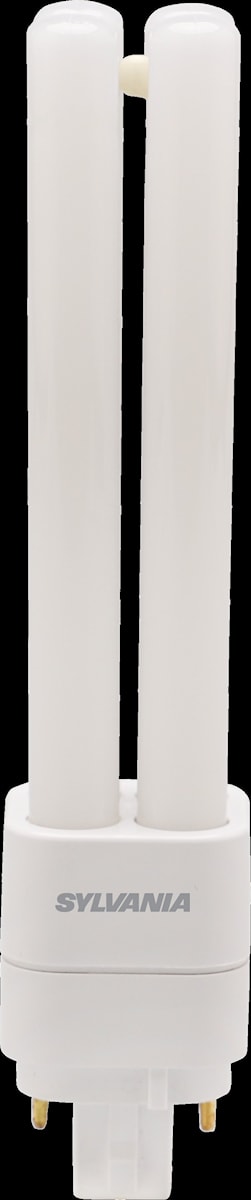

TOLEDO LYNX DE 1000LM G24Q 830 SL
Item No:
0031855
LED replacement for compact fluorescent Lynx-DE lamps30,000 hours average rated life (L70 F50)3 years warrantyQuick, simple and safe replacement without rewiringDirect retrofit – easiest way to upgrade existing luminaires to LED technologySuitable for electronic ballast/ ECG ballastCompact and durable constructionMinimum and maximum operating temperature: -20°C to 45°CLow energy consumption and no flickeringIdeal for commercial and residential applications including offices, hotels, restaurants, warehouses, supermarkets, corridors, in addition to living rooms, kitchens and garagesWarning: ToLEDo Lynx DE lamps are not suitable for magnetic ballast/CCG and direct mains 220-240V AC operation
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
TOLEDO LYNX DE 1000LM G24Q 830 SL
Technology
LED
Lamp shape
U shape
Cap/Base
G24q-3
Lamp finish
Opal
Built in presence detector
NONE
General application
Hospitality, Logistics & Industry, Residential & Consumer
Operating temperature range (°C)
-20°C...+45°C
Virtual assistant compatibility
N/A
ETIM Class
EC001959
E-number FI
4941375
Warranty
3 years
Useful luminous flux (Φuse)
1000
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Beam Angle (°)
280
Photobiological Risk Group
RG0
Power consumption (W)
10
Wattage (W)
10
Equivalent watt (W)
26
Supply current (A)
0.35
Primary Supply/Product voltage - min (V)
20.0
Primary Supply/Product voltage - max (V)
40.0
Control gear required
Yes
Control gear type
LED driver constant current
No. Of switching cycles before premature failures
>50000
Dimmable
No
Dimming method
N/A
Inrush Current (A)
10
Inrush Duration (µs)
800
Lamp Energy Label (class)
F
Nominal Frequency (Hz)
50/60Hz
Lifespan L70 B50
30000
Housing colour
White
IP rating
IP20
Nominal Product Length (mm)
170
Nominal Product Width (mm)
34
Nominal Product Height (mm)
34
Weight (kg)
0.07
Product EAN number
5410288318554
Packaging single length / height (cm)
4.5
Packaging single width (cm)
3.8
Packaging single depth (cm)
17.5
DUN14 (inner)
15410288318551
Units per outer package
6
Packaging outer length / height (cm)
14.9
Packaging outer width (cm)
8.8
Packaging outer depth (cm)
22.2
Optimal operating condition (°C)
-20-45
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
No
Suitable for household illumination
Yes
Safety message
Not suitable for household
