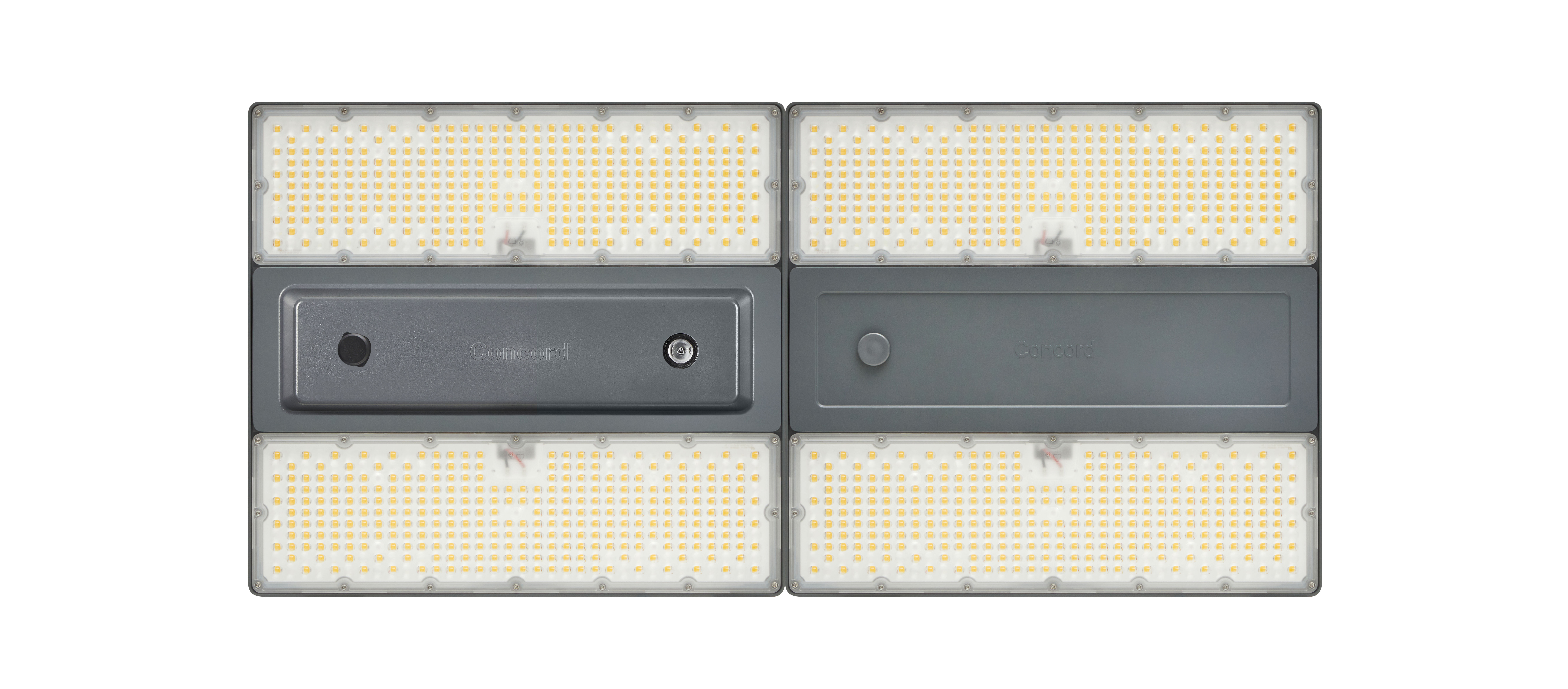

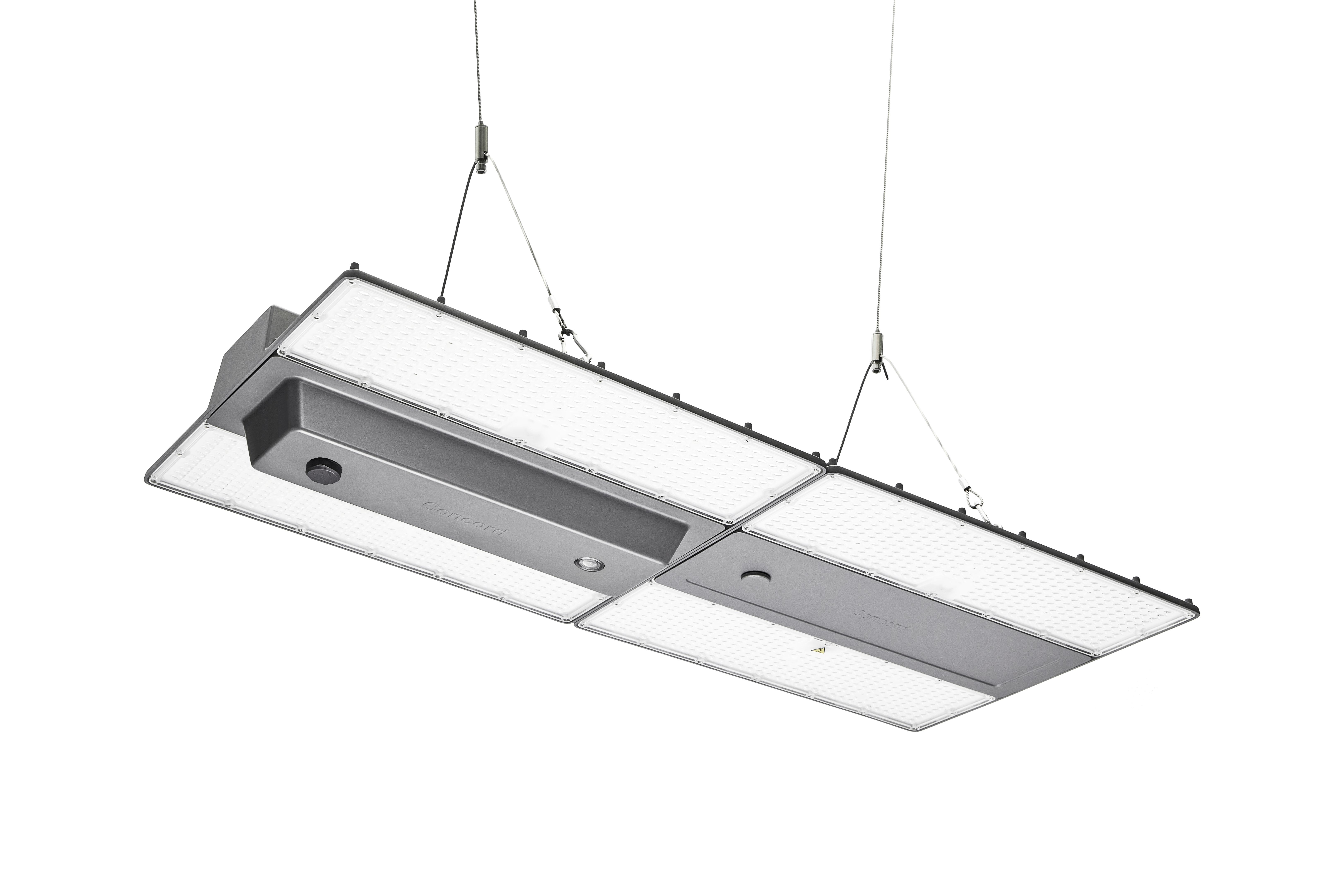

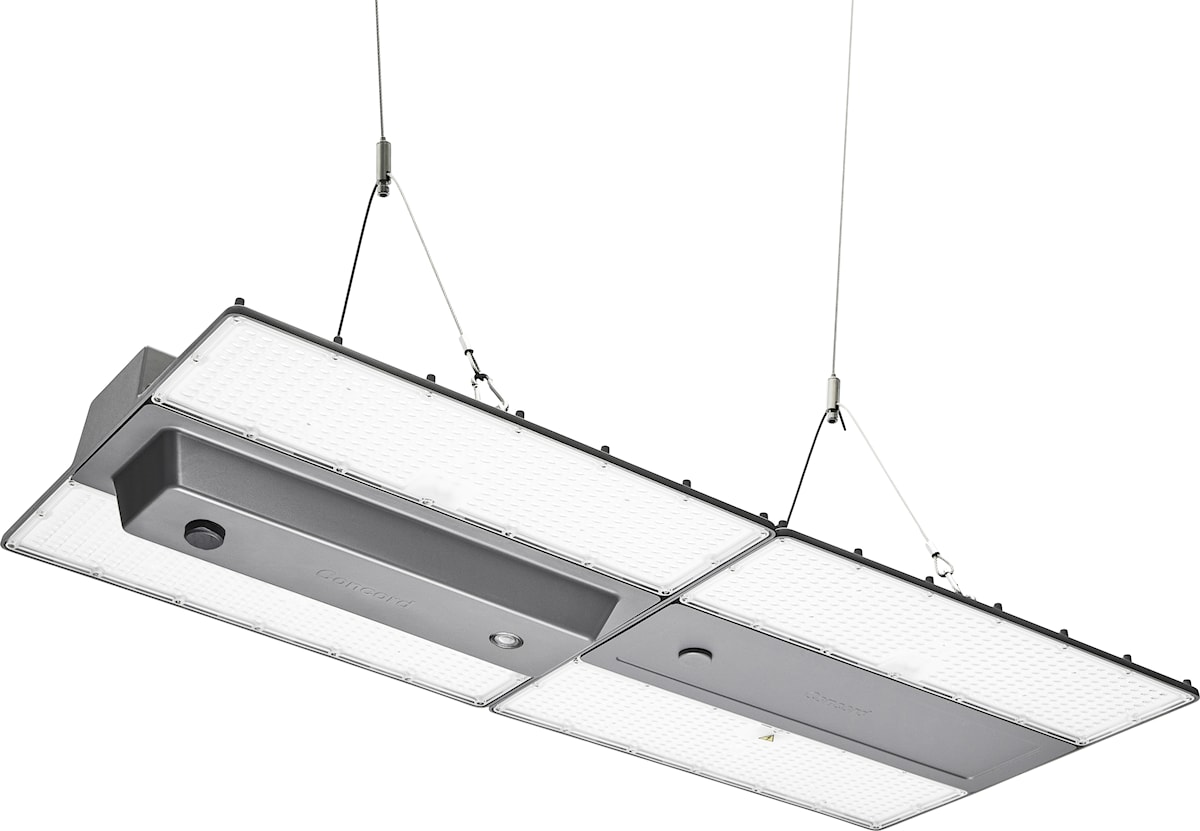

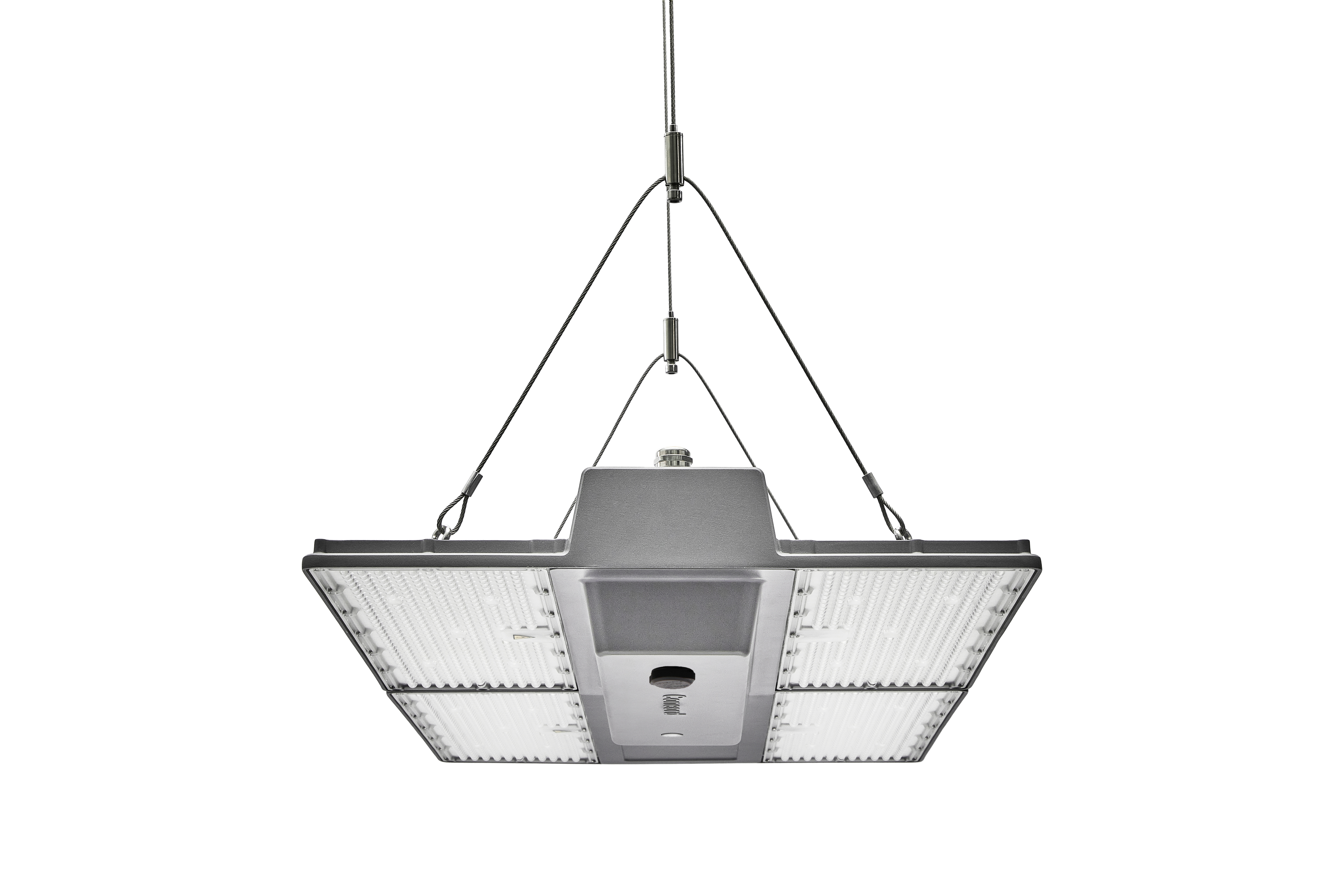

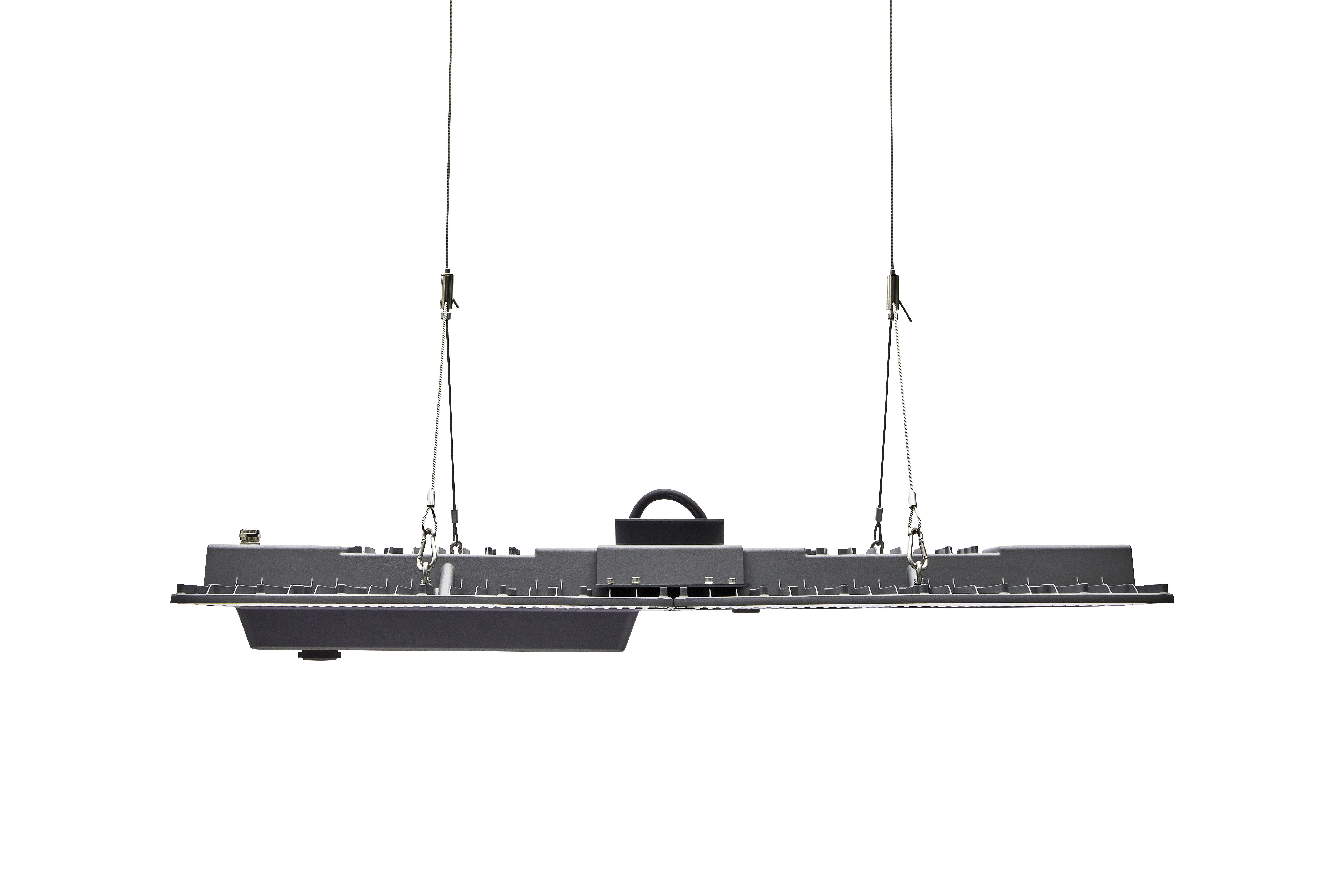

Rocks IP65 42600lm 840 Aisle D4I ZDAST
Item No:
2825861
.png)
Logistics and Industry high bay luminaire with Aisle optics to provide necessary illumination for narrow areas, comes complete with 2000mm flying lead and 1000mm suspension cable, aluminium housing, PC diffuser, IP65, IK08, Class I, 4000K, CRI80, 3 step MacAdam ellipse, Zhaga Book 18 Ready, Integrated 3hrs DALI Self Test Emergency LiFePO4 unit, D4i driver, 42600lm, 222W, 192lm/W, 105.000hrs L80B50 lifespan, 446 x 963 x 154mm (LxWxD) dimensions, 10.66kg weight, RAL7012 Basalt Grey color, 0…+40°C operating temperature range.
Downloads
Technical Assets
Dimensions (mm)

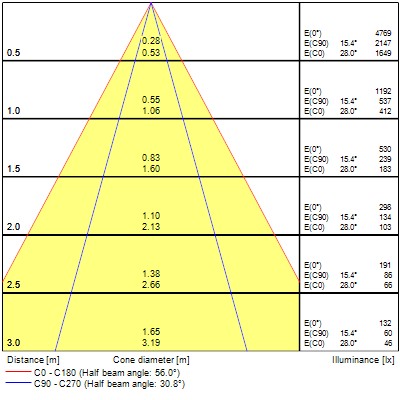

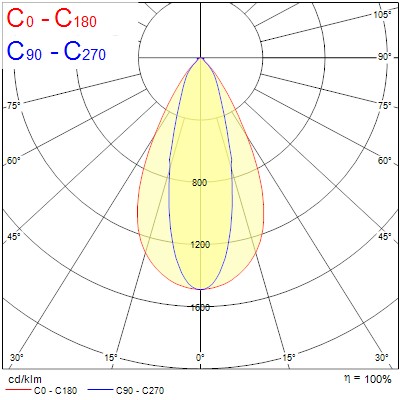

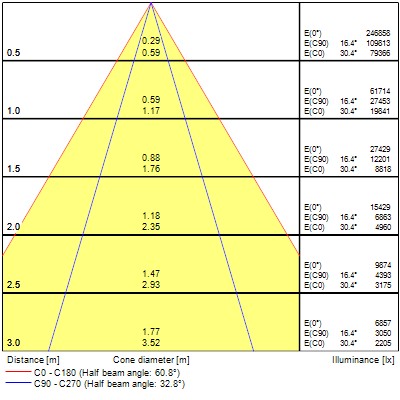

Photometrics
Product name
Rocks IP65 42600lm 840 Aisle D4I ZDAST
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Suspended
Built in presence detector
NONE
General application
Logistics & Industry
Operating temperature range (°C)
5°C...+35°C
ETIM Class
EC001716
Warranty
5 years
Fixture luminous flux (lm)
42600
Luminaire efficacy (lm/W)
192
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Colour Consistency (SDCM)
3
Beam Angle (°)
60
Distribution type
Asymmetric
Glare control
< 22
Photobiological Risk Group
RG1
Luminous flux (emergency) (lm)
800
Emergency type
Emergency duration (h)
3
Total power consumption (W)
222
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
8
Electrical protection
Class I
Control gear required
No
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
D4i
Drive current (mA)
700
Inrush Current (A)
17
Inrush Duration (µs)
200
Energy Efficiency Class (A->G) of contained light source
B
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
10
Max. products per 13A C Breaker
13
Max. products per 16A C Breaker
16
Max. products per 20A C Breaker
20
Max. products per 10A B Breaker
10
Max. products per 13A B Breaker
13
Max. products per 16A B Breaker
16
Max. products per 20A B Breaker
20
Lifespan L70 B50
120000
Lifespan L70 B20
120000
Lifespan L70 B10
120000
Lifespan L80 B50
105000
Lifespan L80 B20
91000
Lifespan L80 B10
84000
Lifespan L90 B50
51000
Lifespan L90 B20
44000
Lifespan L90 B10
41000
Housing colour
Grey
IP rating
IP65
IK rating
IK08
Diffuser material
PC Polycarbonate
Reflector finish
Matt
Nominal Product Length (mm)
963
Nominal Product Width (mm)
446
Nominal Product Height (mm)
154
Weight (kg)
11.102
Product EAN number
5025768258611
Packaging single length / height (cm)
102.5
Packaging single width (cm)
50.0
Packaging single depth (cm)
23.0
Units per outer package
1
Packaging outer length / height (cm)
102.5
Packaging outer width (cm)
50.0
Packaging outer depth (cm)
23.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
5-35
