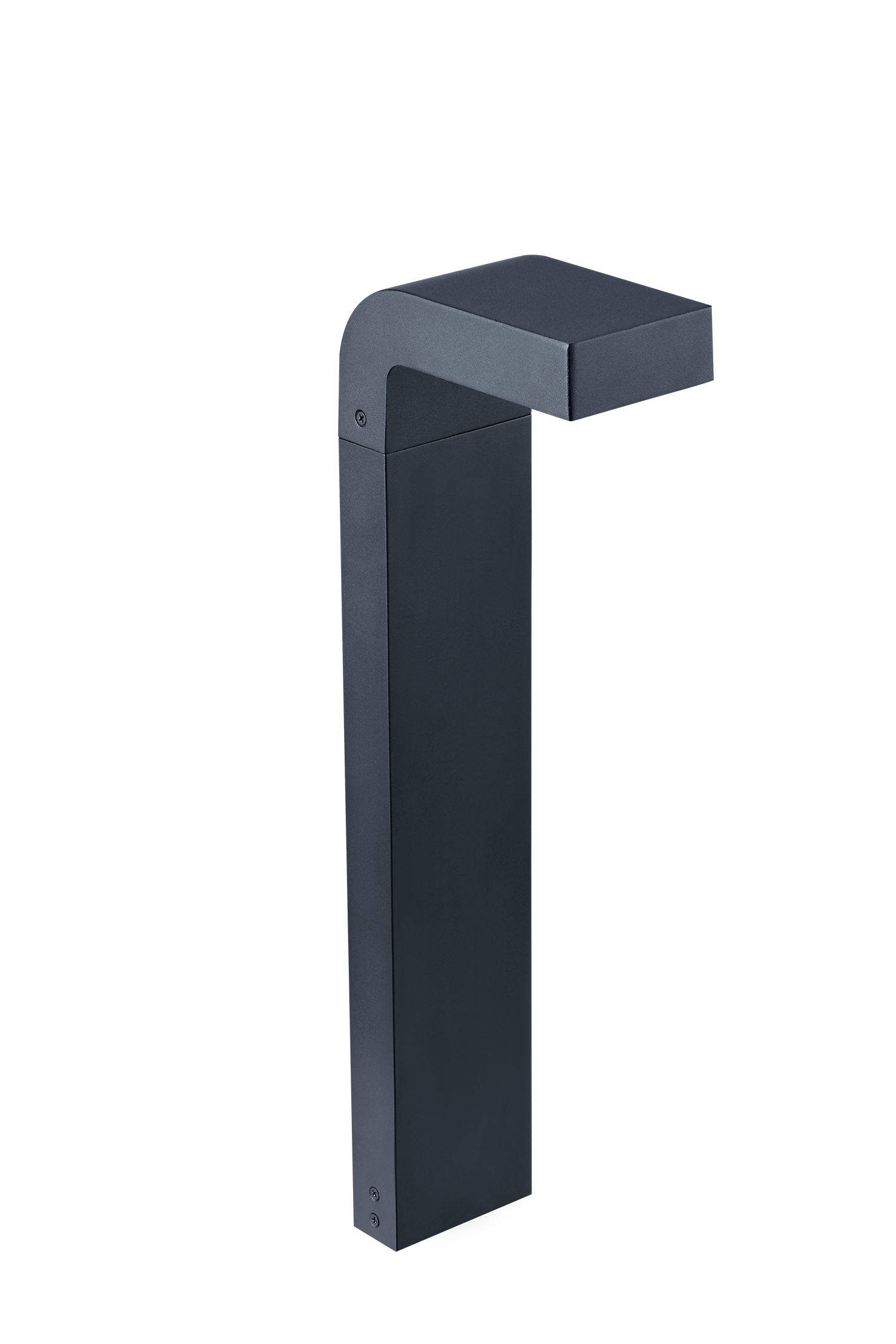

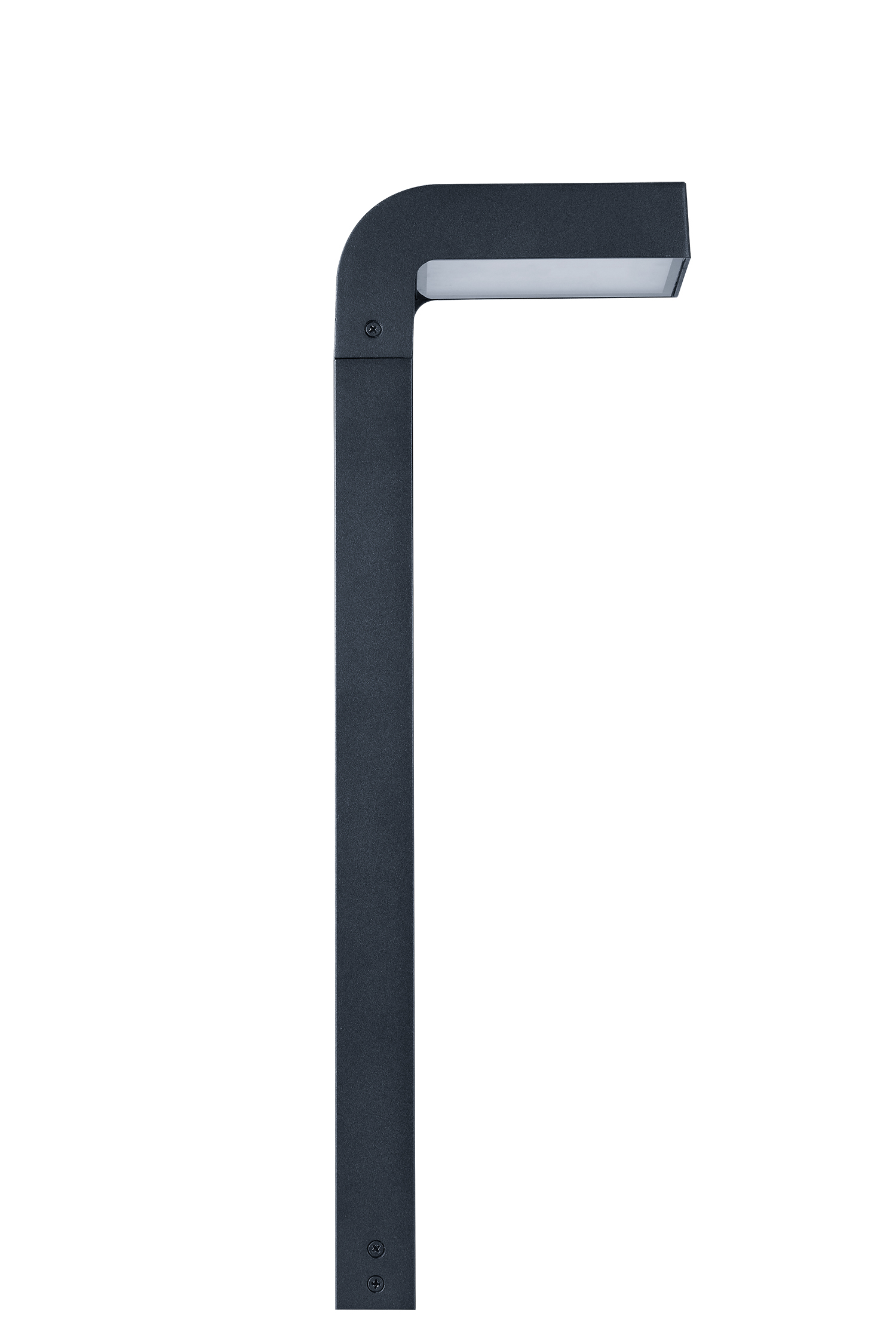

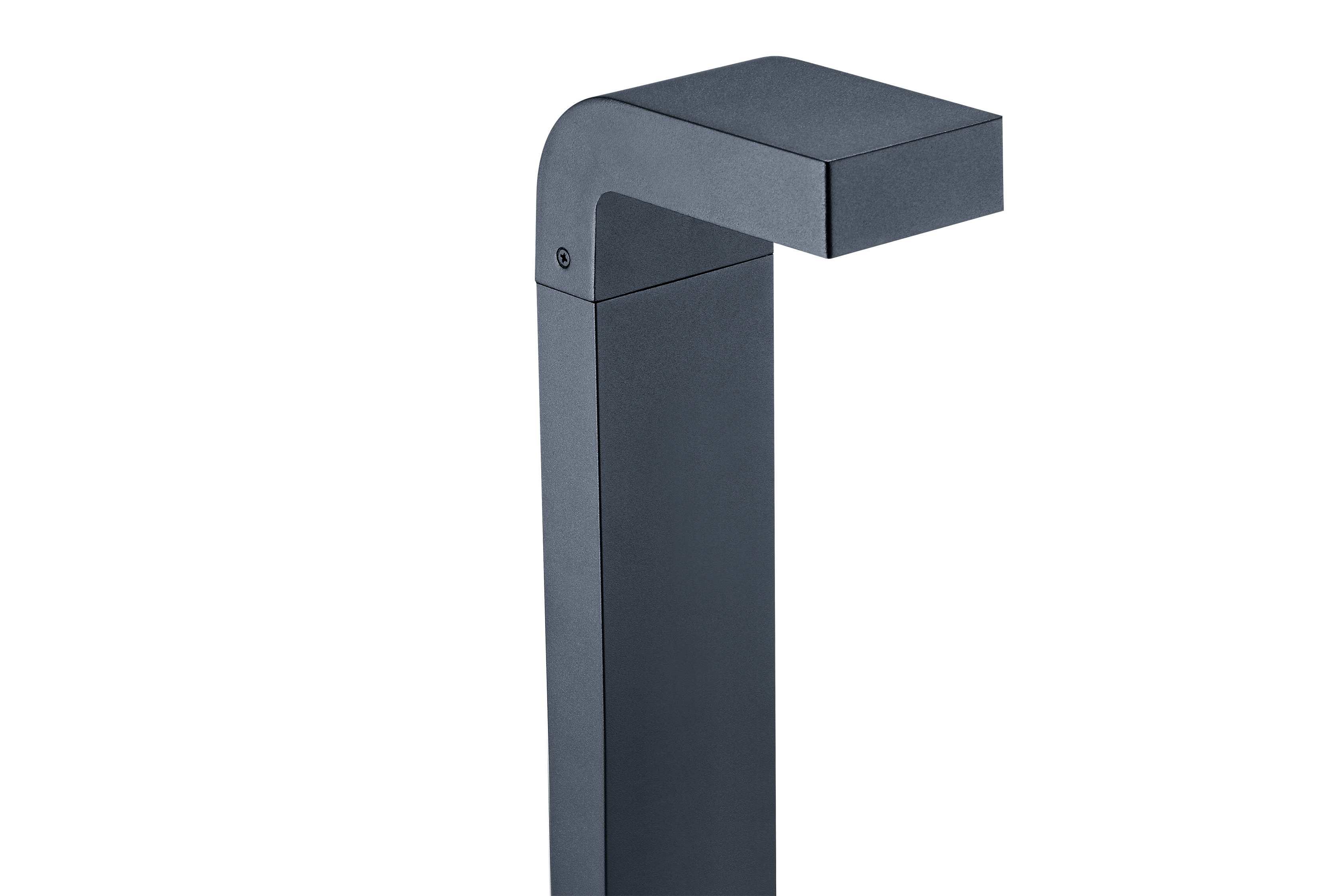

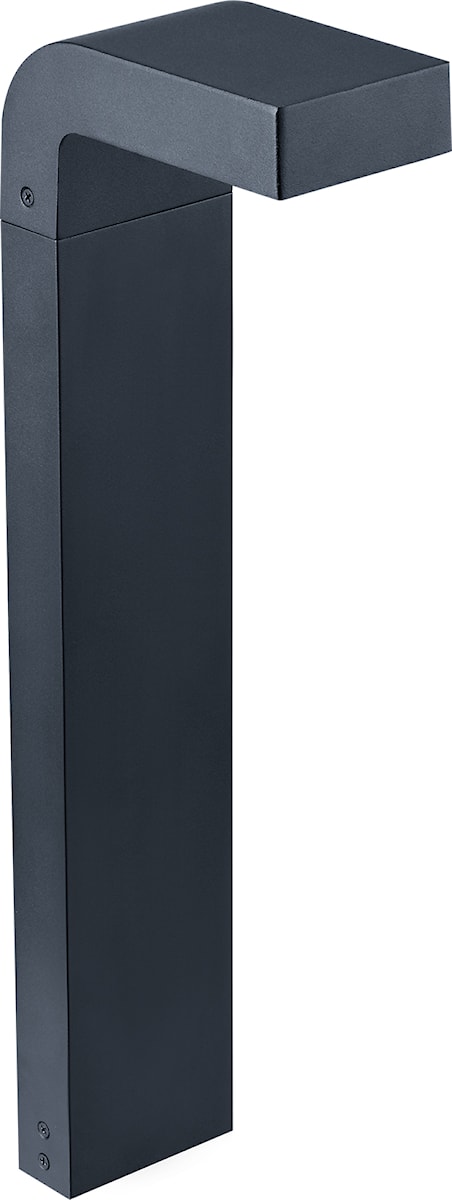

START eco Bollard L-Shape M IP65 620lm 830 BLK
Item No:
0047951
.png)
Exterior integrated LED bollard, Decorative bollard with a sleek design, Metal - Aluminium housing - RAL9005, 620LM, 8W, 78lm/W, 3000K, Electronic driver, Driver Current: 60mA, CRI80, IP65, IK05, 30,000hrs (L70), (HxWxD) 500x160x90mm, 5 step MacAdam ellipse, 1.53 kg, RAL 9005, Class 1, 220-240V, energy class: A++, A+, A
Technical Assets

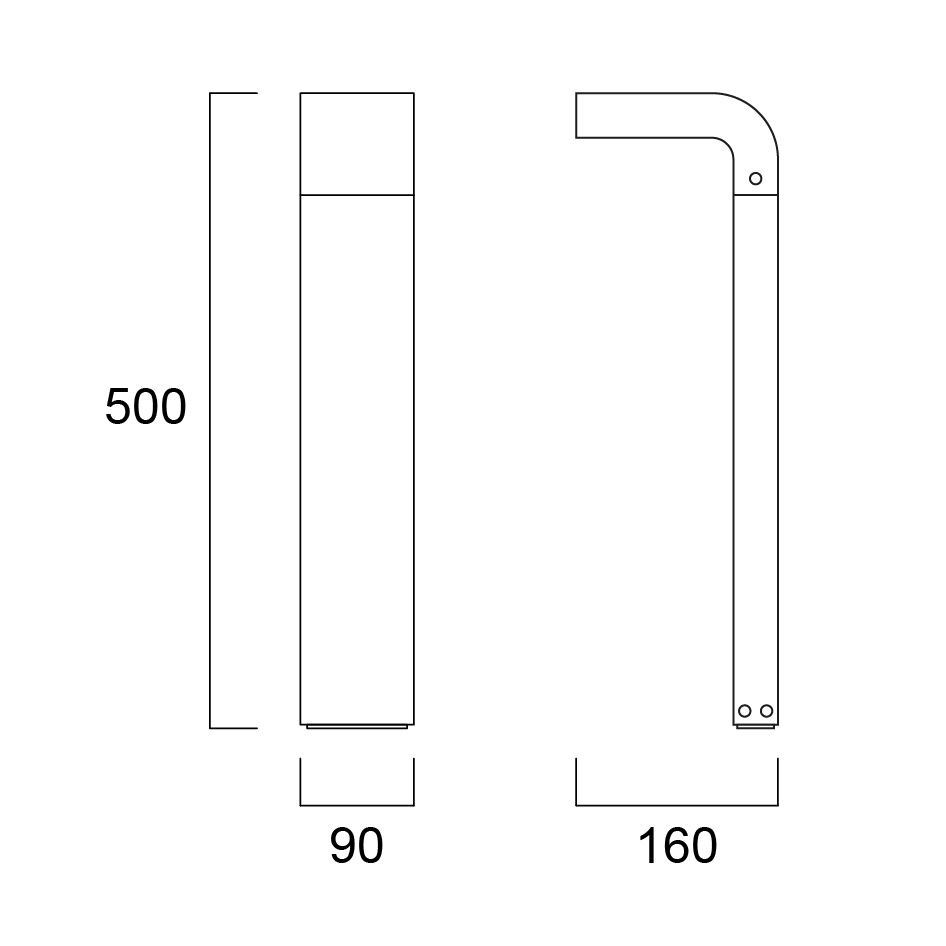

Dimensions (mm)

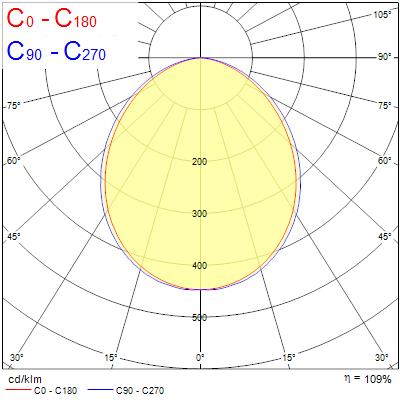

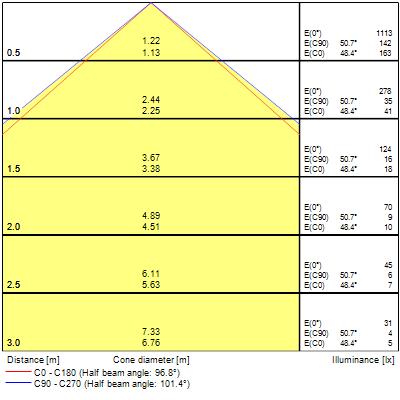

Photometrics
Product name
START eco Bollard L-Shape M IP65 620lm 830 BLK
Technology
LED
Cap/Base
N/A
Housing
Aluminium
General application
Residential & Consumer
Operating temperature range (°C)
-20°C...+45°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC000301
Warranty
3 years
Fixture luminous flux (lm)
620
Luminaire efficacy (lm/W)
78
Correlated colour temperature (k)
3000
Colour Code
830
Light colour
Warm White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Beam Angle (°)
92
Photobiological Risk Group
RG1
Total power consumption (W)
8
Supply current (A)
0.064
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.57
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
120.0
Electrical protection
Class I
Dimmable
No
Drive current (mA)
60
Inrush Current (A)
10
Inrush Duration (µs)
250
Energy Efficiency Class (A->G) of contained light source
F
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Low (6% - 20%)
Max. products per 10A C Breaker
60
Max. products per 13A C Breaker
80
Max. products per 16A C Breaker
100
Max. products per 20A C Breaker
120
Lifespan L70 B50
30000
Housing colour
RAL 9005 - Jet black
IP rating
IP65
IK rating
IK05
Diffuser finish
Transparent
Diffuser material
Glass
Nominal Product Length (mm)
90
Nominal Product Width (mm)
160
Nominal Product Height (mm)
500
Weight (kg)
1.52
Product EAN number
5410288479514
Packaging single length / height (cm)
53.5
Packaging single width (cm)
19.5
Packaging single depth (cm)
12.5
DUN14 (inner)
15410288479511
Units per outer package
3
Packaging outer length / height (cm)
21.5
Packaging outer width (cm)
55.5
Packaging outer depth (cm)
39.5
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-20-45
