MYRIAD HOUSING 2700K PHASE DIM EM
Item No:
2057923
This product is no longer available
.png)
MYRIAD HOUSING 2700K PHASE DIM EM
Downloads
Technical Assets

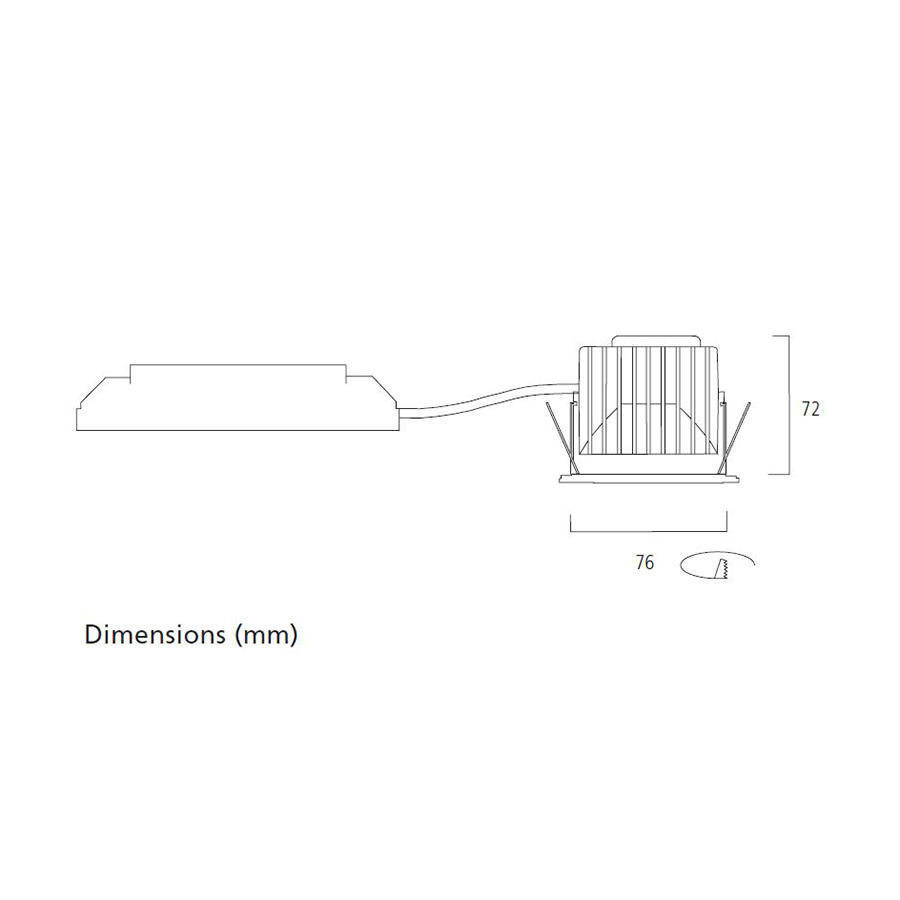

Dimensions (mm)

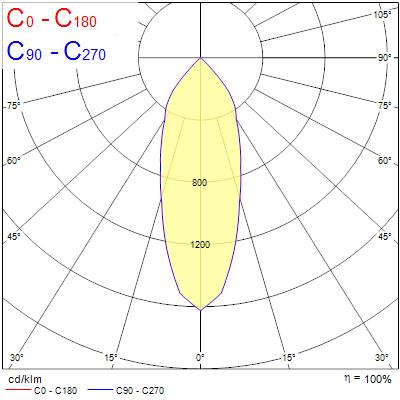

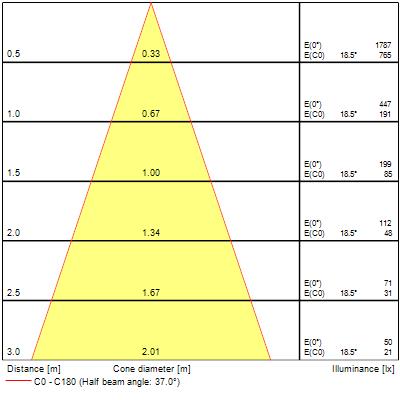

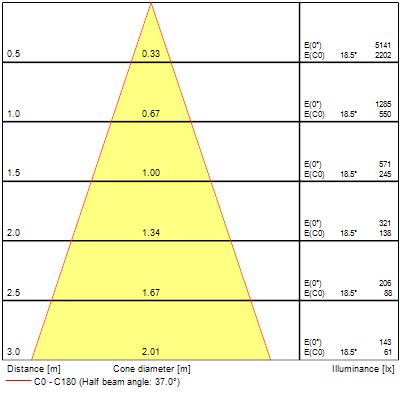

Photometrics
Product name
MYRIAD HOUSING 2700K PHASE DIM EM
Technology
LED
Cap/Base
N/A
Environment
Interior
General application
Hospitality, Office, Retail
ETIM Class
EC001744
Warranty
5 years
Fixture luminous flux (lm)
791
Luminaire efficacy (lm/W)
66
LOR (%)
100
Correlated colour temperature (k)
2700
Light colour
Candlelight
CRI (Ra)
90
Colour Variation Initial (SDCM)
SDCM3
Adjustable chromaticity
N
Beam Angle (°)
30
Photobiological Risk Group
RG1
Luminous flux (emergency) (lm)
275
Total power consumption (W)
16
Primary Supply/Product voltage - min (V)
230
Primary Supply/Product voltage - max (V)
240
Electrical protection
Class II
Dimming method
Other
Drive current (mA)
250
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
Lifespan L70 B50
100000
Lifespan L80 B20
100000
Lifespan L90 B10
68500
IP rating
IP44/20
IK rating
IK02
Nominal Product Width (mm)
76
Nominal Product Height (mm)
72
Weight (kg)
1.37
Recessed Depth (mm)
72
Product EAN number
5025768579235
Packaging single length / height (cm)
17.5
Packaging single width (cm)
15.0
Packaging single depth (cm)
17.5
DUN14 (inner)
05025768579235
Units per outer package
1
Packaging outer length / height (cm)
17.5
Packaging outer width (cm)
15.0
Packaging outer depth (cm)
17.5
