MYRIAD DECO IP65 FLOOD 4000K DALI BLACK CBEZ
Item No:
2058973
This product is no longer available
.png)
MYRD IP FL 4K DALI BLK CBEZ
Downloads
Technical Assets
Dimensions (mm)

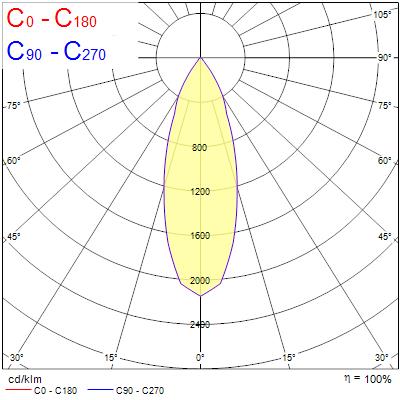

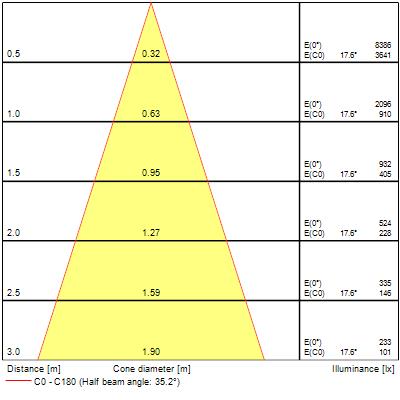

Photometrics
Product name
MYRIAD DECO IP65 FLOOD 4000K DALI BLACK CBEZ
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling recessed mounting
Environment
Interior
General application
Hospitality, Office, Residential & Consumer, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
Warranty
5 years
Fixture luminous flux (lm)
977
Luminaire efficacy (lm/W)
98
LOR (%)
100
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
90
Colour Variation Initial (SDCM)
SDCM3
Adjustable chromaticity
N
Beam Angle (°)
46
Photobiological Risk Group
RG1
Total power consumption (W)
10
Primary Supply/Product voltage - min (V)
230
Primary Supply/Product voltage - max (V)
240
Electrical protection
Class II
Control gear type
Electronic ballast
Dimmable
Yes
Dimming method
DALI-2, Switch-dim (mains-rated)
Minimum dimming level (%)
1
Drive current (mA)
250
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
Lifespan L70 B50
100000
Lifespan L80 B20
100000
Lifespan L90 B10
68500
Housing colour
Black
IP rating
IP65/20
IK rating
IK02
Diffuser finish
Bezel (or Ring)
Nominal Product Height (mm)
72
Nominal Product Diameter (mm)
90
Weight (kg)
0.44
Recessed Depth (mm)
72
Product EAN number
5025768589739
Packaging single length / height (cm)
17.5
Packaging single width (cm)
15.0
Packaging single depth (cm)
17.5
DUN14 (inner)
05025768589739
Units per outer package
1
Packaging outer length / height (cm)
17.5
Packaging outer width (cm)
15.0
Packaging outer depth (cm)
17.5
