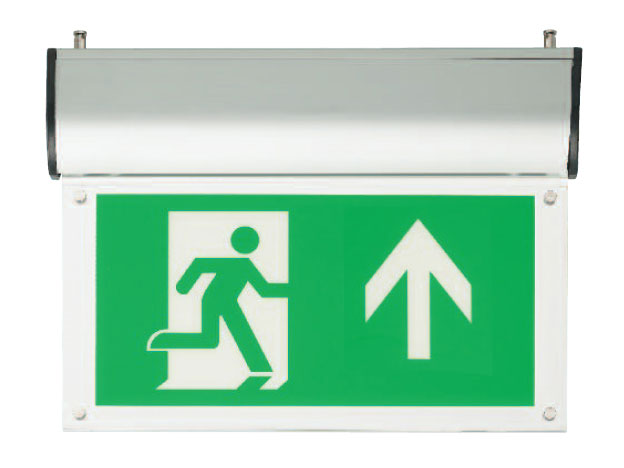

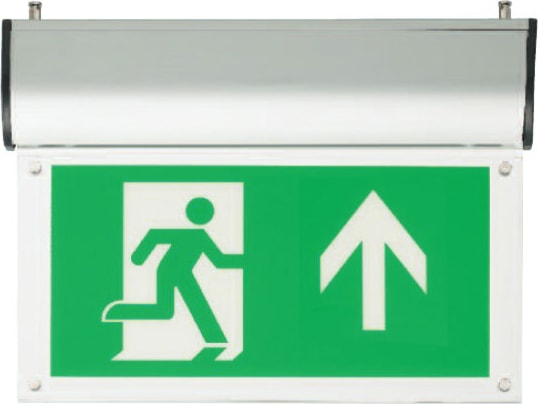

Surface LED Exit Sign Wht Arrow Up
Item No:
9154174
This product is no longer available
Suspended LED emergency exit sign arrow up (ISO standard), white finish, 15 x long life white LEDs, includes 4.8V 1.1Ah NiCd battery, charge current 200mA nominal, Recharge period: 24hrs (14hrs for 1 hour duration), 12V, IP20.
Technical Assets
Dimensions (mm)
Photometrics
Product name
Surface LED Exit Sign Wht Arrow Up
Technology
LED
Housing
Aluminium
Mount
Ceiling surface mounting, Suspended, Wall surface mounted
General application
Education, Hospitality, Office, Retail
Warranty
3 years
Correlated colour temperature (k)
4000
Light colour
Neutral White
Adjustable chromaticity
N
Emergency mode
Maintained
Emergency duration (h)
3
Primary Supply/Product voltage - min (V)
12
Primary Supply/Product voltage - max (V)
12
Housing colour
White
Nominal Product Width (mm)
50
Nominal Product Height (mm)
220
Weight (kg)
1.7
Packaging single length / height (cm)
35.0
Packaging single width (cm)
21.0
Packaging single depth (cm)
40.0
Units per outer package
1
Packaging outer length / height (cm)
35.0
Packaging outer width (cm)
21.0
Packaging outer depth (cm)
40.0
